3M Products & Supplies

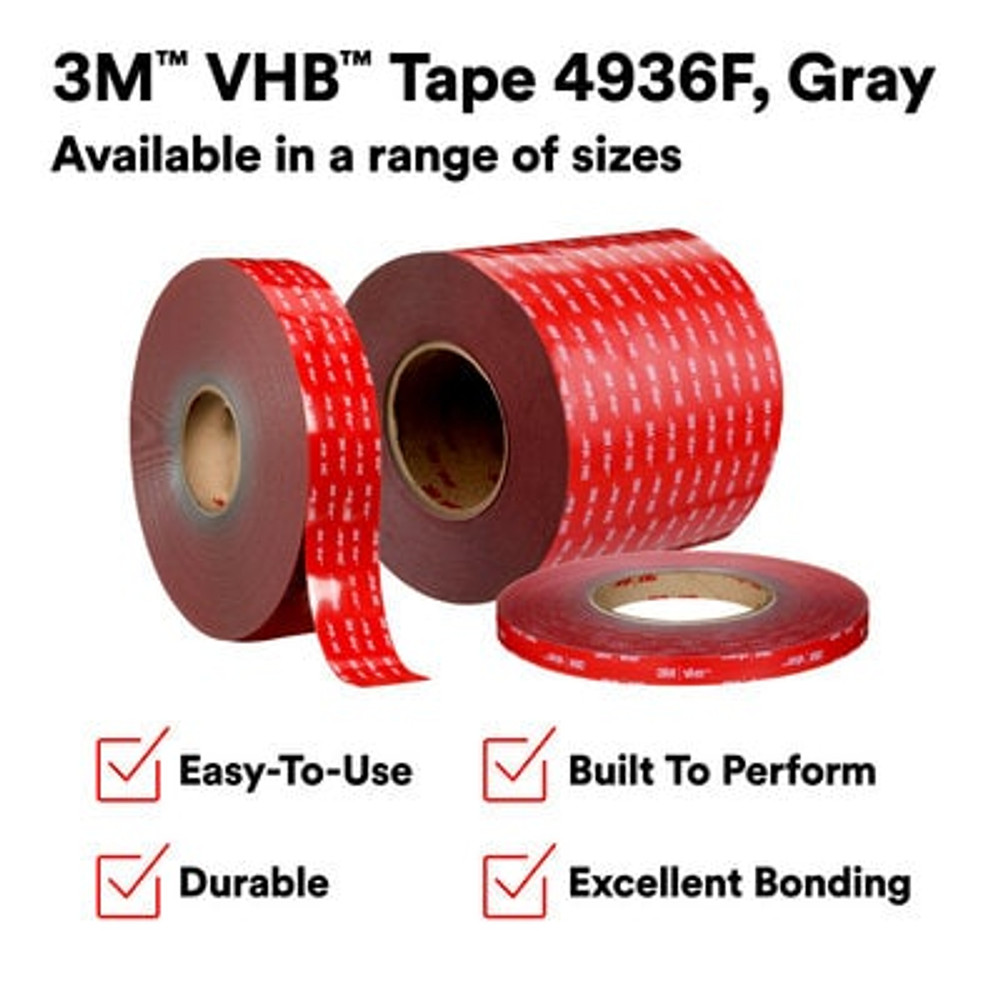

3M™ VHB™ Tape 4936F, Gray, 3/4 in x 72 yd, 25 mil, Film Liner, 12 Roll/Case - 7010374029

Sold As: 12-Pack
SKU: 7010374029
MPN: 7010374029
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200462245
3M ID: 70006290830
5 Digit UPC: 46224
$3,037.46 ($253.12 / Count)
Hurry up! Current stock:

Product Description

3M™ VHB™ Tape 4936F is a double-sided tape comprised of a multi-purpose acrylic adhesive with a conformable, foam core backed on a 5 mil red printed polyethylene film liner, delivering a total thickness of 25 mil (0.6 mm) when applied. This tape provides an excellent balance of strength, conformability, and adhesion to high and medium surface energy materials, making it a smooth, seamless alternative to rivets, welds, and screws. These unique attributes equip 3M™ VHB™ Tape 4936F to take on many bonding and sealing applications, including attaching metal panels to frames and stiffener attachment. Discover new ways to design thanks to the versatility, viscoelasticity, and powerful bonding potential of 3M™ VHB™ Tape 4936F.

Features

  • MULTI-SURFACE: Intended to adhere to a variety of High Surface Energy (HSE) and Medium Surface Energy (MSE) substrates; these may include aluminum, stainless steel, galvanized steel, acrylic, polycarbonate, and ABS
  • DURABLE: Offers excellent outdoor durability and performance, resisting both high and low temperatures, as well as moisture
  • SMOOTH AND SEAMLESS: With a thickness of 25 mil (0.6 mm), this tape is designed as an alternative to mechanical fasteners, such as rivets, welds, and screws, or liquid adhesives
  • FAST AND EASY-TO-USE: A permanent bonding method that provides immediate handling strength; no need to fixture or wait for a cure
  • BUILT TO PERFORM: Delivers excellent shear strength, conformability, and surface adhesion thanks to an acrylic foam core and multi-purpose adhesive
  • A VERSATILE OPTION: Commonly used in applications across a variety of markets, such as transportation, appliance, electronics, construction, sign and display, and general industrial
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Overall Width (Metric)19.05
Overall Length (Imperial)72.0
Total Tape Thickness without Liner (Imperial) UOMmil
Maximum Operating Temperature (Celsius)149.0
Overall Width (Metric) UOMmm
Overall Width (Imperial) UOMin
Total Tape Thickness without Liner (Metric)0.635
Indoor/OutdoorIndoor/Outdoor
Product ColorGray
Foam TypeConformable
IndustriesAppliance, Construction, Electronics, General Industrial, Metalworking, Signage
Overall Length (Imperial) UOMyd
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Metric)65.8
Core Size (Imperial) UOMin
Adhesive TypeAcrylic
Total Tape Thickness without Liner (Imperial)25.0
Overall Length (Metric) UOMm
Overall Width (Imperial)0.75
Total Tape Thickness without Liner (Metric) UOMmm
Core Size (Imperial)3.0
Units per Case12.0
