3M™ VHB™ Tape 4941, Gray, 12 in x 36 yd, 45 mil, 1 Roll/Case - 7000029042

Name: 3M™ VHB™ Tape 4941, Gray, 12 in x 36 yd, 45 mil, 1 Roll/Case - 7000029042
Brand: 3M Products & Supplies
SKU: 7000029042
Price: 1913.66 USD
Availability: InStock

SKU: 7000029042

MPN: 7000029042

Made to Order: For a lead time estimate, please send your request to [email protected]

UPC: 00051115256158

3M ID: 70006429917

5 Digit UPC: 25615

$1,913.66 each

Hurry up! Current stock:

Quantity:

Product Description

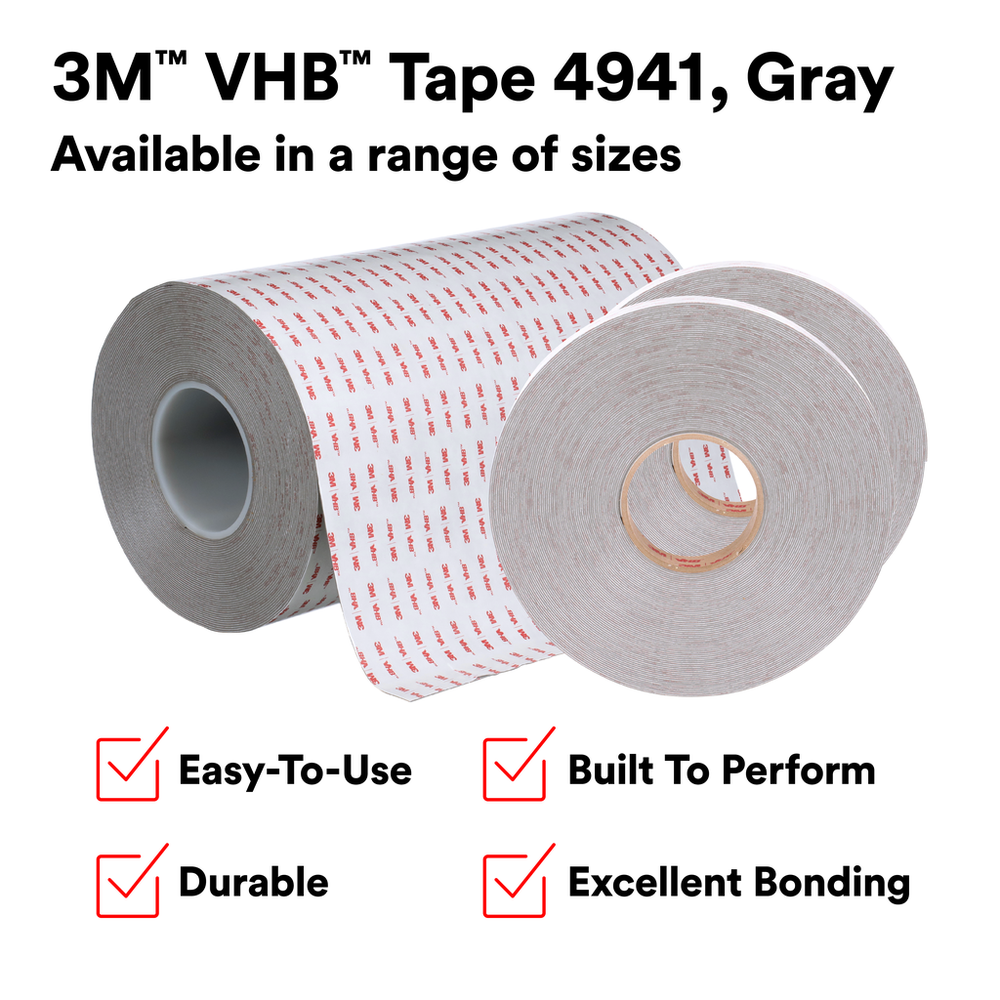

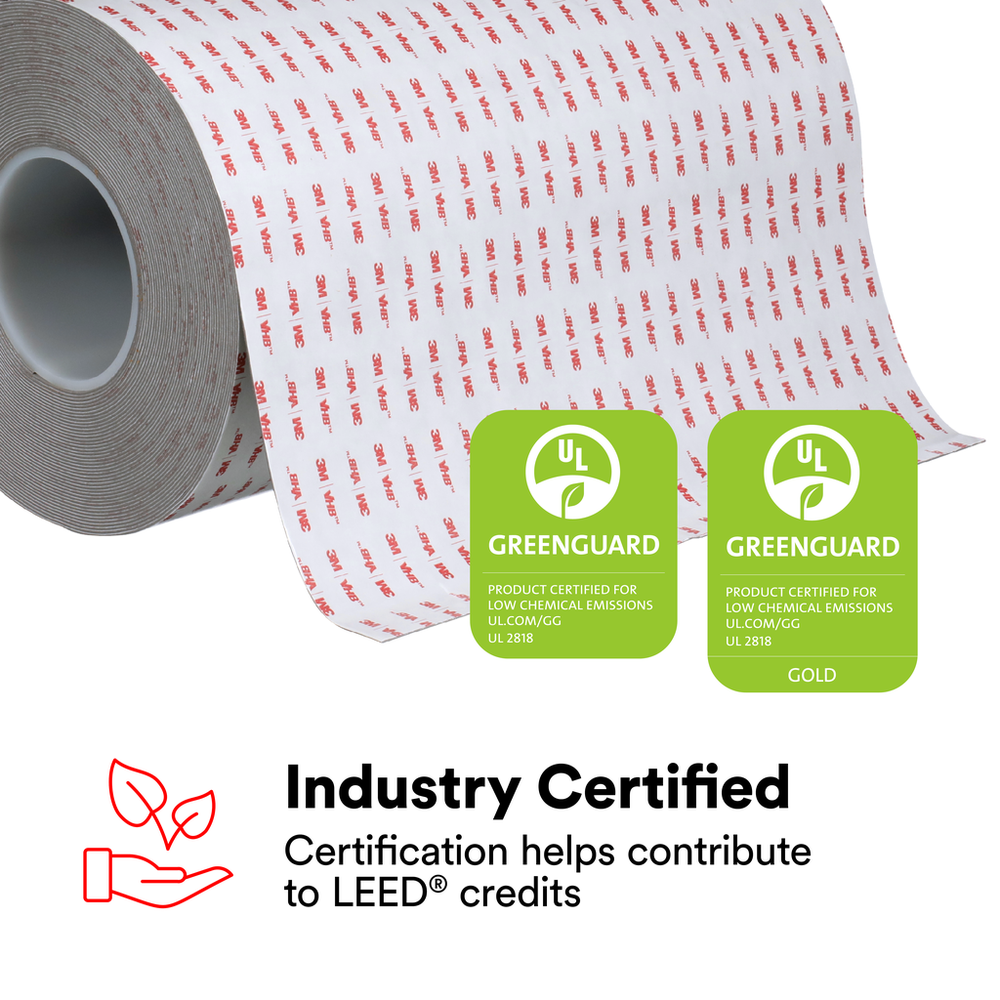

3M™ VHB™ Tape 4941 is a double-sided tape comprised of a multi-purpose acrylic adhesive with a conformable, foam core backed on a 3 mil thick 54# densified kraft paper liner, delivering a total thickness of 45 mil (1.1 mm) when applied. This tape provides an excellent balance of strength, conformability, and adhesion to high and medium surface energy materials, making it a smooth, seamless alternative to rivets, welds, and screws. These unique attributes equip 3M™ VHB™ Tape 4941 to take on many bonding and sealing applications, including attaching metal panels to frames and stiffener attachment. Discover new ways to design thanks to the versatility, viscoelasticity, and powerful bonding potential of 3M™ VHB™ Tape 4941.

Features

MULTI-SURFACE: Intended to adhere to a variety of High Surface Energy (HSE) and Medium Surface Energy (MSE) substrates; these may include aluminum, stainless steel, galvanized steel, acrylic, polycarbonate, and ABS
FAST AND EASY-TO-USE: A permanent bonding method that provides immediate handling strength; no need to fixture or wait for a cure
DURABLE: Offers excellent outdoor durability and performance, resisting both high and low temperatures, as well as moisture
BUILT TO PERFORM: Delivers excellent shear strength, conformability, and surface adhesion thanks to an acrylic foam core and multi-purpose adhesive
SMOOTH AND SEAMLESS: With a thickness of 45 mil (1.1 mm), this tape is designed as an alternative to mechanical fasteners, such as rivets, welds, and screws, or liquid adhesives
A VERSATILE OPTION: Commonly used in applications across a variety of markets, such as transportation, appliance, electronics, construction, sign and display, and general industrial

Spec Sheet

Downloads

Specifications

Shelf Life	730
Country of Origin	United States
Adhesive Type	Acrylic
Core Size (Metric)	76.2
Industries	Appliance, Consumer Goods, Converter Solutions, General Industrial, MRO, Metalworking, Signage, Transportation
Maximum Operating Temperature (Fahrenheit) UOM	Degree
Overall Length (Metric)	32.92
Total Tape Thickness without Liner (Imperial)	45.0
Elongation at Break UOM	Pertinent
Indoor/Outdoor	Indoor/Outdoor
Overall Width (Metric) UOM	mm
Overall Width (Imperial) UOM	in
Maximum Operating Temperature (Celsius) UOM	Degree
Shelf Life UOM	Month
Total Tape Thickness without Liner (Metric) UOM	mm
Maximum Operating Temperature (Celsius)	149.0
Core Size (Metric) UOM	mm
Core Size (Imperial)	3.0
Minimum Operating Temperature (Fahrenheit)	0.0
Overall Length (Metric) UOM	m
Foam Type	Conformable
Minimum Operating Temperature (Celsius)	0.0
Overall Length (Imperial) UOM	yd
Overall Width (Imperial)	12.0
Product Color	Gray
Overall Width (Metric)	304.8
Total Tape Thickness without Liner (Imperial) UOM	mil
Total Tape Thickness without Liner (Metric)	1.1
Units per Case	1.0
Overall Length (Imperial)	36.0
Maximum Operating Temperature (Fahrenheit)	300.0
Core Size (Imperial) UOM	in
