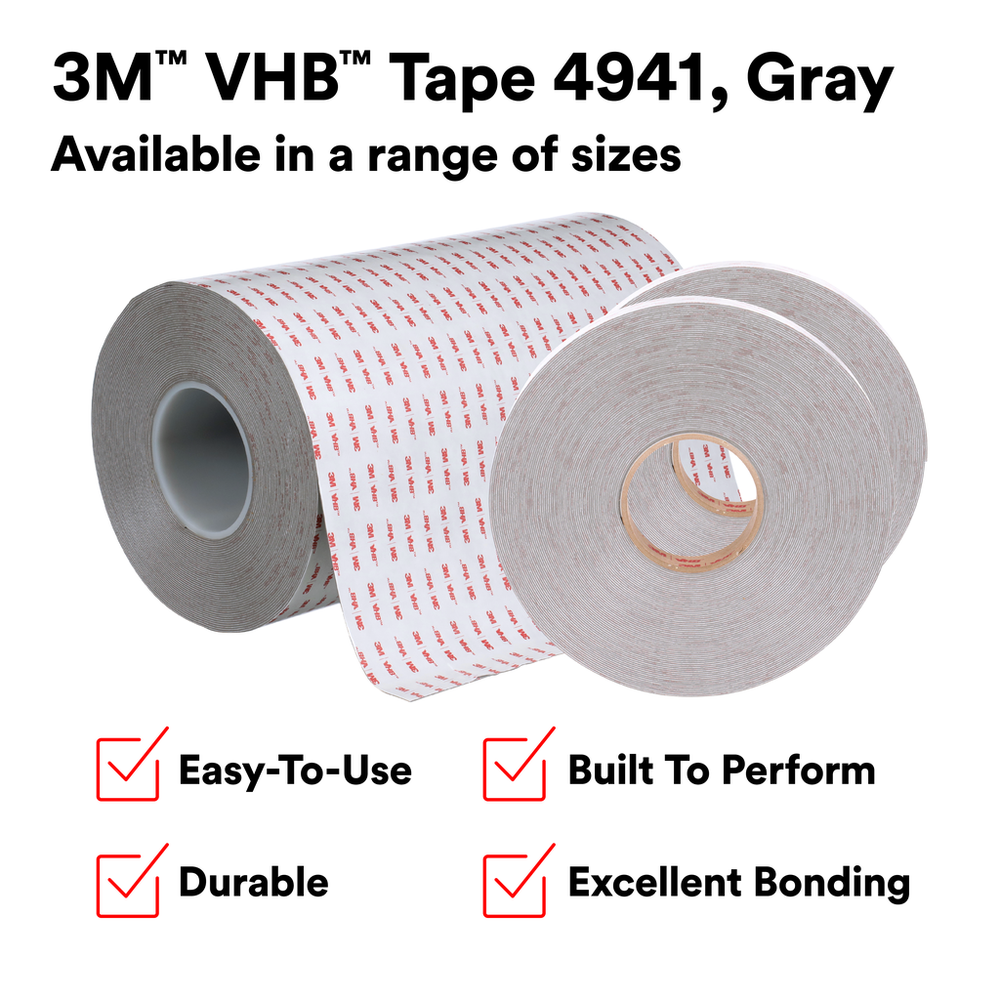

3M™ VHB™ Tape 4941, Gray, 2 in x 36 yd, 45 mil, 6 Roll/Case - 7010334342

Name: 3M™ VHB™ Tape 4941, Gray, 2 in x 36 yd, 45 mil, 6 Roll/Case - 7010334342
Brand: 3M Products & Supplies
SKU: 7010334342
Price: 1913.66 USD
Availability: InStock

Sold As: 6-Pack

SKU: 7010334342

MPN: 7010334342

Made to Order: For a lead time estimate, please send your request to [email protected]

UPC: 00021200974144

3M ID: 70006411139

5 Digit UPC: 97414

$1,913.66 ($318.94 / Count)

Hurry up! Current stock:

Quantity:

Product Description

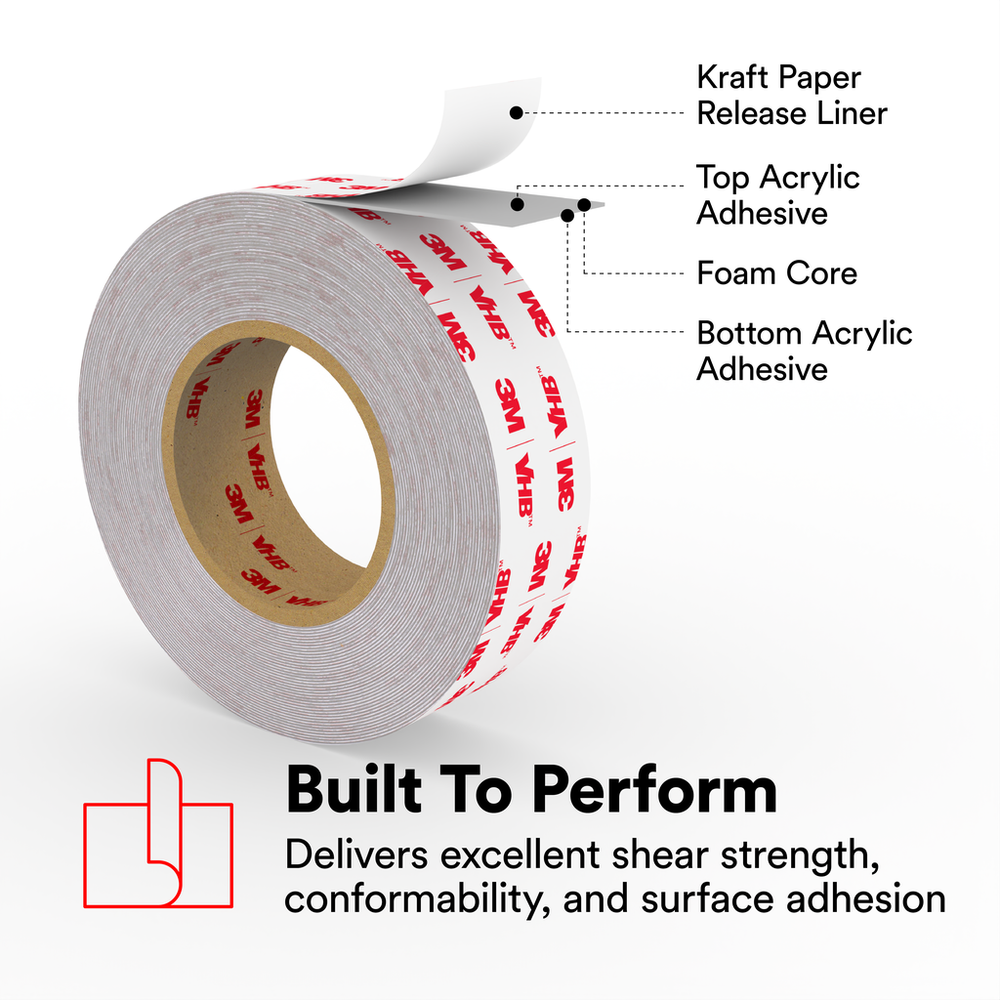

3M™ VHB™ Tape 4941 is a double-sided tape comprised of a multi-purpose acrylic adhesive with a conformable, foam core backed on a 3 mil thick 54# densified kraft paper liner, delivering a total thickness of 45 mil (1.1 mm) when applied. This tape provides an excellent balance of strength, conformability, and adhesion to high and medium surface energy materials, making it a smooth, seamless alternative to rivets, welds, and screws. These unique attributes equip 3M™ VHB™ Tape 4941 to take on many bonding and sealing applications, including attaching metal panels to frames and stiffener attachment. Discover new ways to design thanks to the versatility, viscoelasticity, and powerful bonding potential of 3M™ VHB™ Tape 4941.

Features

A VERSATILE OPTION: Commonly used in applications across a variety of markets, such as transportation, appliance, electronics, construction, sign and display, and general industrial
BUILT TO PERFORM: Delivers excellent shear strength, conformability, and surface adhesion thanks to an acrylic foam core and multi-purpose adhesive
MULTI-SURFACE: Intended to adhere to a variety of High Surface Energy (HSE) and Medium Surface Energy (MSE) substrates; these may include aluminum, stainless steel, galvanized steel, acrylic, polycarbonate, and ABS
DURABLE: Offers excellent outdoor durability and performance, resisting both high and low temperatures, as well as moisture
FAST AND EASY-TO-USE: A permanent bonding method that provides immediate handling strength; no need to fixture or wait for a cure
SMOOTH AND SEAMLESS: With a thickness of 45 mil (1.1 mm), this tape is designed as an alternative to mechanical fasteners, such as rivets, welds, and screws, or liquid adhesives

Spec Sheet

Downloads

Specifications

Shelf Life	730
Country of Origin	United States
Overall Length (Imperial) UOM	yd
Maximum Operating Temperature (Fahrenheit) UOM	Degree
Maximum Operating Temperature (Fahrenheit)	300.0
Foam Type	Conformable
Shelf Life UOM	Month
Total Tape Thickness without Liner (Imperial)	45.0
Maximum Operating Temperature (Celsius) UOM	Degree
Total Tape Thickness without Liner (Metric)	1.1
Overall Width (Metric)	50.8
Overall Width (Imperial) UOM	in
Core Size (Metric)	76.2
Units per Case	6.0
Overall Length (Imperial)	36.0
Maximum Operating Temperature (Celsius)	149.0
Total Tape Thickness without Liner (Metric) UOM	mm
Overall Length (Metric)	32.92
Total Tape Thickness without Liner (Imperial) UOM	mil
Adhesive Type	Acrylic
Overall Width (Imperial)	2.0
Elongation at Break UOM	Pertinent
Minimum Operating Temperature (Celsius)	0.0
Core Size (Metric) UOM	mm
Core Size (Imperial) UOM	in
Core Size (Imperial)	3.0
Indoor/Outdoor	Indoor/Outdoor
Minimum Operating Temperature (Fahrenheit)	0.0
Overall Width (Metric) UOM	mm
Overall Length (Metric) UOM	m
Product Color	Gray
Industries	Appliance, Consumer Goods, Converter Solutions, General Industrial, MRO, Metalworking, Signage, Transportation
