3M VHB Tape, 4920/4930/4950, Paper Liner, Log Roll
3M VHB Tape, 4920/4930/4950, Paper Liner, Log Roll
3M VHB Tape, 4920/4930/4950, Paper Liner, Log Roll
Previous Next

3M Products & Supplies

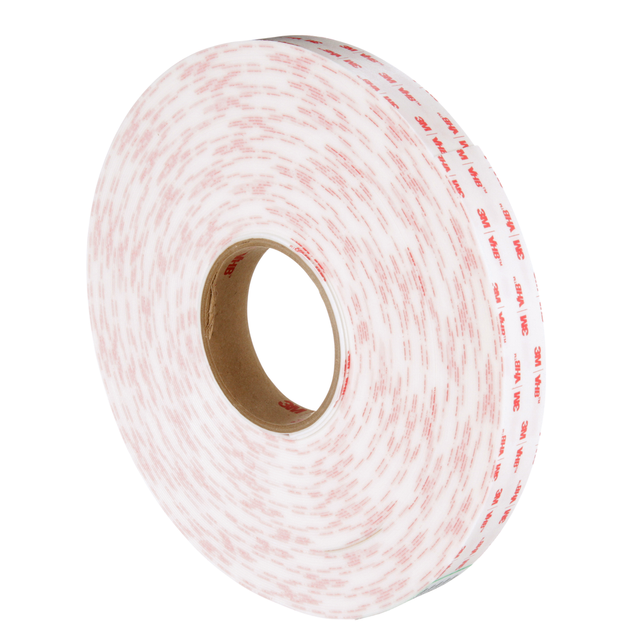

3M™ VHB™ Tape 4950, White, 12 in x 36 yd, 45 mil, 1 roll per case - 7000123590

SKU: 7000123590
MPN: 7000123590
Lead Time: 10 working days.
UPC: 021200244469
3M ID: 70006178043
5 Digit UPC: 24446
$1,938.32 each
Hurry up! Current stock:

Product Description

Dream, Design, Deliver with our 3M™ VHB™ Tape 4950. It is a white, 0.045 in (1.1 mm), general purpose acrylic adhesive with a firm foam core. It can replace rivets, welds and screws. The fast and easy to use permanent bonding method provides high strength and long-term durability. It offers design flexibility with its viscoelasticity and powerful ability to bond to a variety of surfaces.

Features

  • Virtually invisible fastening keeps surfaces smooth
  • Pressure sensitive adhesive bonds on contact to provide immediate handling strength
  • Fast and easy-to-use permanent bonding method provides high strength and long-term durability
  • White, 0.045 in (1.1 mm), general purpose adhesive and firm acrylic foam core
  • Can replace mechanical fasteners (rivets, welds, screws) or liquid adhesives
  • Eliminate drilling, grinding, refinishing, screwing, welding and associated clean-up
  • Creates a permanent seal against water, moisture and more
  • Allows the use of thinner, lighter weight and dissimilar materials

Downloads

Specifications

Overall Length (Metric)32.9 m
Application Temperature-Environment (Metric)10 Degree Celsius
Product FormRoll
Application Temperature-Environment50 Degrees Fahrenheit
Carrier MaterialAcrylic Foam
Temperature Resistance - Initial300 Degree Fahrenheit
Foam TypeFirm
Substrate 1Sealed Wood - Metal - Glass
Maximum Operating Temperature (Celsius)149 Degree Celsius
Foam ConformabilityFirm
Adhesive TypeAcrylic
Backing (Carrier) MaterialAcrylic Foam
Product Number4950
Product ColorWhite
Overall Length (Imperial)36 yd
Design ChallengesImpact & Shock Absorption - Noise Vibration & Harshness Control NVH
SubstrateRough Surfaces - High Surface Energy, (400-1100 Dynes/cm) - HSE Plastics and Glass - Metal - Medium-High Surface Energy, (42-50 Dynes/cm) - Paint - Glass
Backing MaterialFoam
Overall Width (Imperial)12 in
Indoor/OutdoorIndoor/Outdoor
Primary LinerPaper
Backing (Carrier) Thickness (Imperial)3 mil
Backing Thickness (Imperial)3 mil
Core Size (Imperial)3 in
Overall Thickness (Imperial)45 mil
Overall Width (Metric)304.8 mm
ApplicationBonding Glass to a Metal Oven Door - Roof Panel Bonding on Truck Cabs
Set Time
Maximum Operating Temperature (Fahrenheit)200 Degree Fahrenheit
Product Key4950
Primary Liner Thickness (Imperial)3 mil
Substrate 2Glass - Metal - Painted Surface, Easy-to-Bond (HSE) - Bare Metal - Plastic, Easy-to-Bond (HSE) - Paint - HSE Plastics and Glass - Rough Surfaces - Sealed Wood
