3M™ VHB™ Tape 5952, Black, 24 in x 36 yd, 45 mil, 1 Roll/Case - 7100167381

Name: 3M™ VHB™ Tape 5952, Black, 24 in x 36 yd, 45 mil, 1 Roll/Case - 7100167381
Brand: 3M Products & Supplies
SKU: 7100167381
Price: 3316.92 USD
Availability: InStock

SKU: 7100167381

MPN: 7100167381

Made to Order: For a lead time estimate, please send your request to [email protected]

UPC: 00638060141731

3M ID: 70007516829

5 Digit UPC: 14173

$3,316.92 each

Hurry up! Current stock:

Quantity:

Product Description

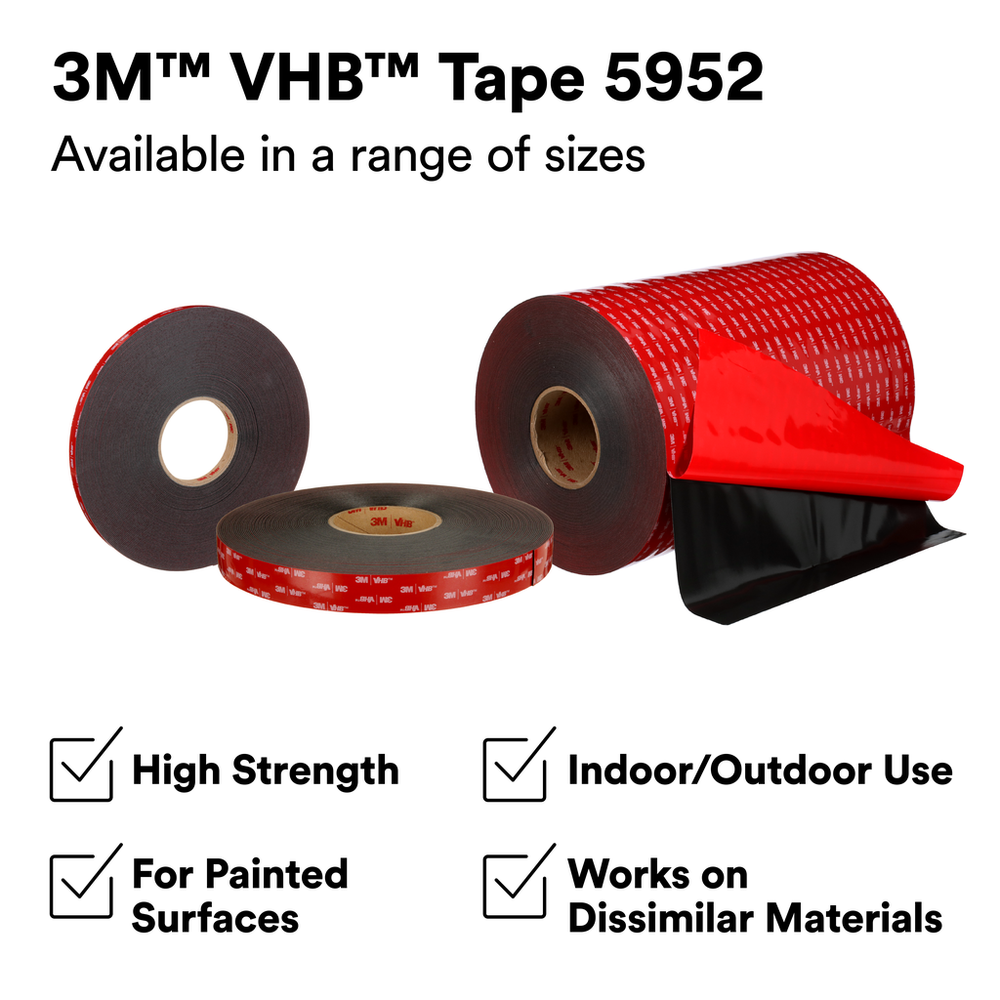

3M™ VHB™ Tape 5952 is a double-sided tape comprised of a multi-purpose modified acrylic adhesive with a conformable, foam core that delivers a total thickness of 45 mil (1.1 mm) when applied and requires no curing time. The advanced closed-cell acrylic technology offers secure bonding that performs on many painted and powder coated surfaces. Engineered to be strong, it can replace rivets, welds, and screws while providing faster production by eliminating the need for drilling, welding, grinding, and project cleanup. Offering seamless joining and minimal surface preparation, this easy-to-use bonding method keeps surfaces smooth and aesthetically pleasing resulting in a professional application on thin, lightweight, and dissimilar materials. It performs in applications for short-term use (up to four hours) at a temperature up to 300 °F (149 °C) or long-term use withstanding up to 200 °F (93 °C). This tape balances strength, viscoelasticity, conformability, and adhesion to various surfaces, such as stainless steel. These attributes make 3M™ VHB™ Tape 5952 a reliable choice to take on a variety of bonding and sealing applications in transportation, appliance, electronics, construction, signage, and general industrial. Discover the many ways to apply the powerful bonding potential of 3M™ VHB™ Tape 5952.

Features

FOR POWDER COATED SURFACES: Provides a quick and easy all-acrylic bonding method on many painted and powder coated surfaces with immediate handling strength—no curing time needed
BUILT TO PERFORM: Delivers high shear strength, conformability, and surface adhesion due to an acrylic foam core and multi-purpose adhesive
A GO-TO SOLUTION: Excels across a variety of markets, such as transportation, appliance, electronics, construction, signage, metalworking, and general industrial

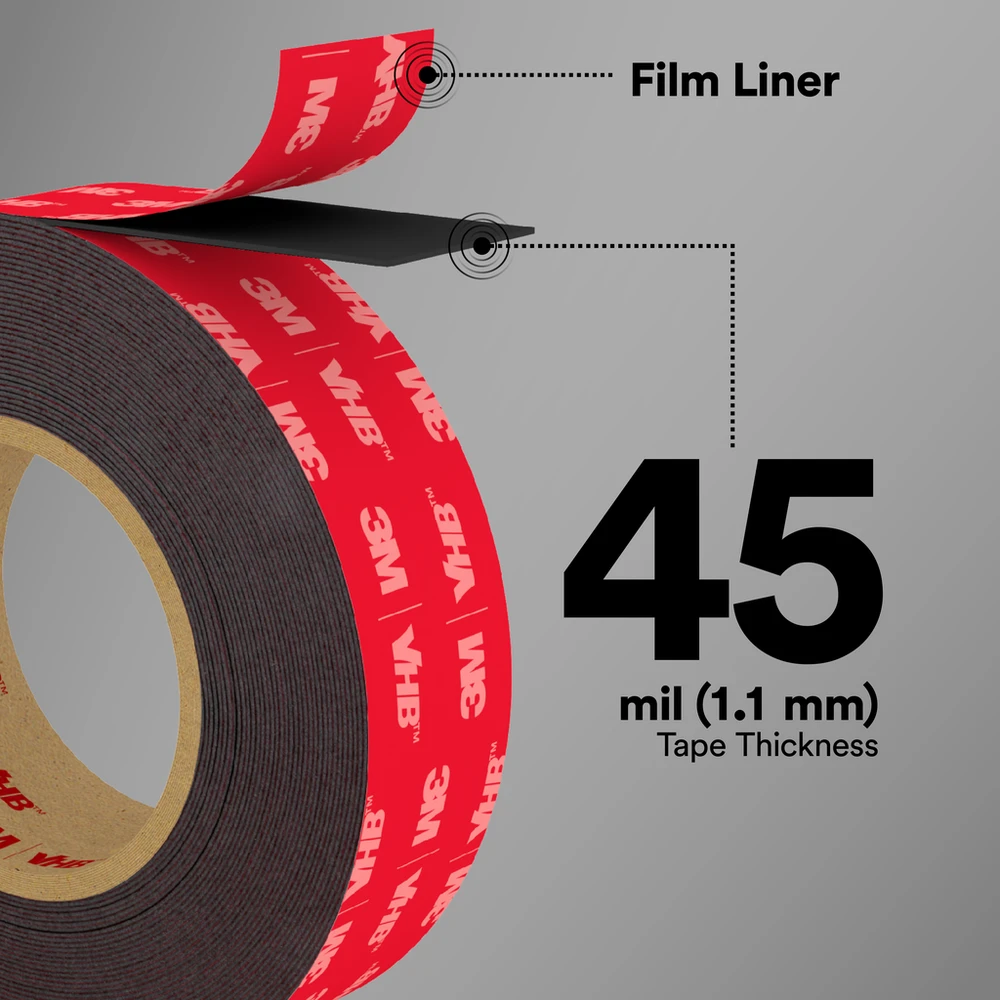

SMOOTH AND SEAMLESS: With a thickness of 45 mil (1.1 mm), this tape is designed as an alternative to mechanical fasteners, such as rivets, welds, and screws, or liquid adhesives
RELIABLE AND TOUGH: Offers excellent indoor and outdoor durability and performance, withstanding long-term use at a temperature up to 200 °F (93 °C)
MULTI-SURFACE: Adheres to various materials, such as stainless steel, and works with minimal surface preparation

Spec Sheet

Downloads

Specifications

Shelf Life	730
Country of Origin	United States
Overall Length (Imperial) UOM	yd
Overall Length (Imperial)	36.0
Core Size (Imperial) UOM	in
Overall Width (Imperial)	24.0
Overall Width (Metric) UOM	mm
Overall Length (Metric) UOM	m
Maximum Operating Temperature (Celsius) UOM	Degree
Overall Length (Metric)	32.91
Overall Width (Metric)	609.6
Adhesive Type	Modified Acrylic
Indoor/Outdoor	Indoor/Outdoor
Core Size (Imperial)	3.0
Product Color	Black
Maximum Operating Temperature (Celsius)	149.0
Overall Width (Imperial) UOM	in
Foam Type	Very Conformable
Industries	Appliance, Construction, Electronics, General Industrial, Metalworking, Signage, Transportation
Shelf Life UOM	Month
