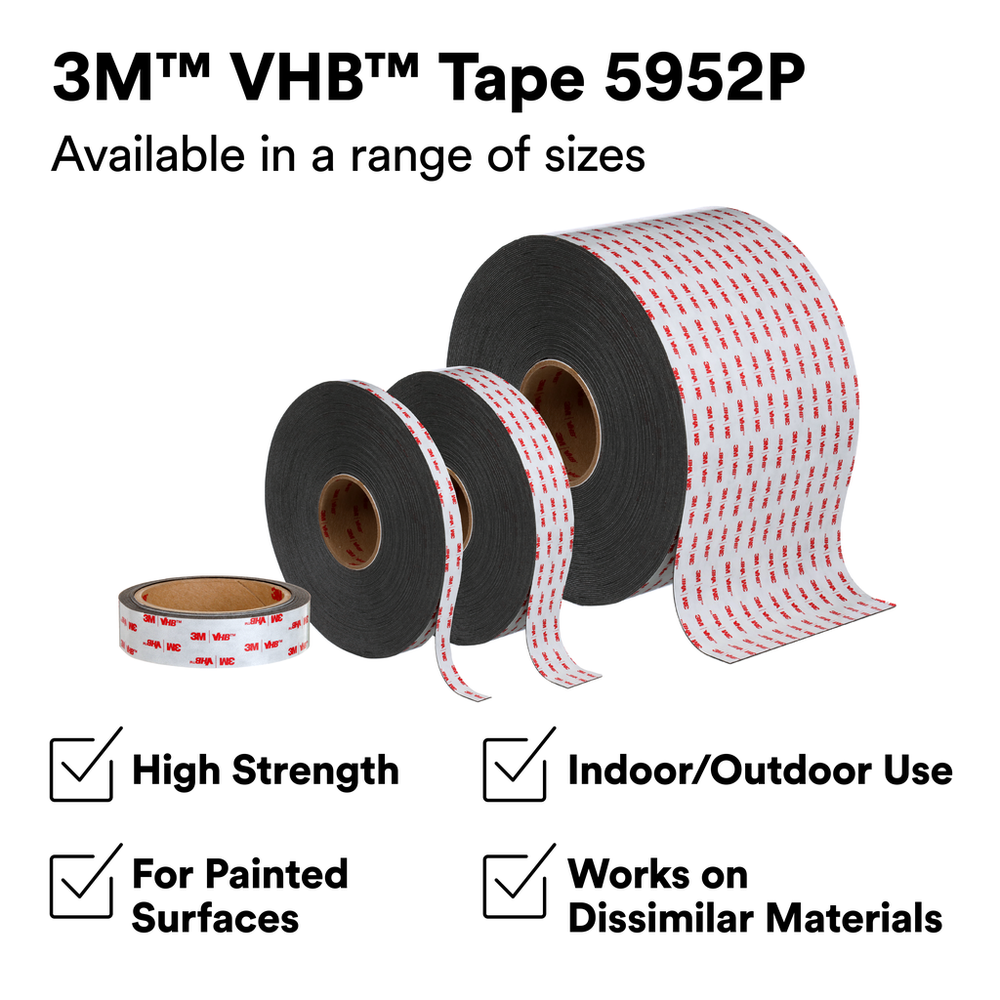

3M™ VHB™ Tape 5952P, Black, 1220 mm x 33 m, 1.1 mm, Paper Liner, 1 Roll/Case - 7010012127

Name: 3M™ VHB™ Tape 5952P, Black, 1220 mm x 33 m, 1.1 mm, Paper Liner, 1 Roll/Case - 7010012127
Brand: 3M Products & Supplies
SKU: 7010012127
Price: 6654.63 USD
Availability: InStock

SKU: 7010012127

MPN: 7010012127

Made to Order: For a lead time estimate, please send your request to [email protected]

UPC: 00051111923542

3M ID: 70006709508

5 Digit UPC: 92354

$6,654.63 each

Hurry up! Current stock:

Quantity:

Product Description

3M™ VHB™ Tape 5952P is a double-sided tape comprised of a multi-purpose modified acrylic adhesive with a conformable, foam core that delivers a total thickness of 45 mil (1.1 mm) when applied and requires no curing time. The advanced closed-cell acrylic technology offers secure bonding that performs on many painted and powder coated surfaces. Engineered to be strong, it can replace rivets, welds, and screws while providing faster production by eliminating the need for drilling, welding, grinding, and project cleanup. Offering seamless joining and minimal surface preparation, this easy-to-use bonding method keeps surfaces smooth and aesthetically pleasing resulting in a professional application on thin, lightweight, and dissimilar materials. It performs in applications for short-term use (up to four hours) at a temperature up to 300 °F (149 °C) or long-term use withstanding up to 200 °F (93 °C). This tape balances strength, viscoelasticity, conformability, and adhesion to various surfaces, such as stainless steel. These attributes make 3M™ VHB™ Tape 5952P a reliable choice to take on a variety of bonding and sealing applications in transportation, appliance, electronics, construction, signage, and general industrial. Discover the many ways to apply the powerful bonding potential of 3M™ VHB™ Tape 5952P.

Features

BUILT TO PERFORM: Delivers high shear strength, conformability, and surface adhesion due to an acrylic foam core and multi-purpose adhesive
FOR POWDER COATED SURFACES: Provides a quick and easy all-acrylic bonding method on many painted and powder coated surfaces with immediate handling strength—no curing time needed
RELIABLE AND TOUGH: Offers excellent indoor and outdoor durability and performance, withstanding long-term use at a temperature up to 200 °F (93 °C)
A GO-TO SOLUTION: Excels across a variety of markets, such as transportation, appliance, electronics, construction, signage, metalworking, and general industrial

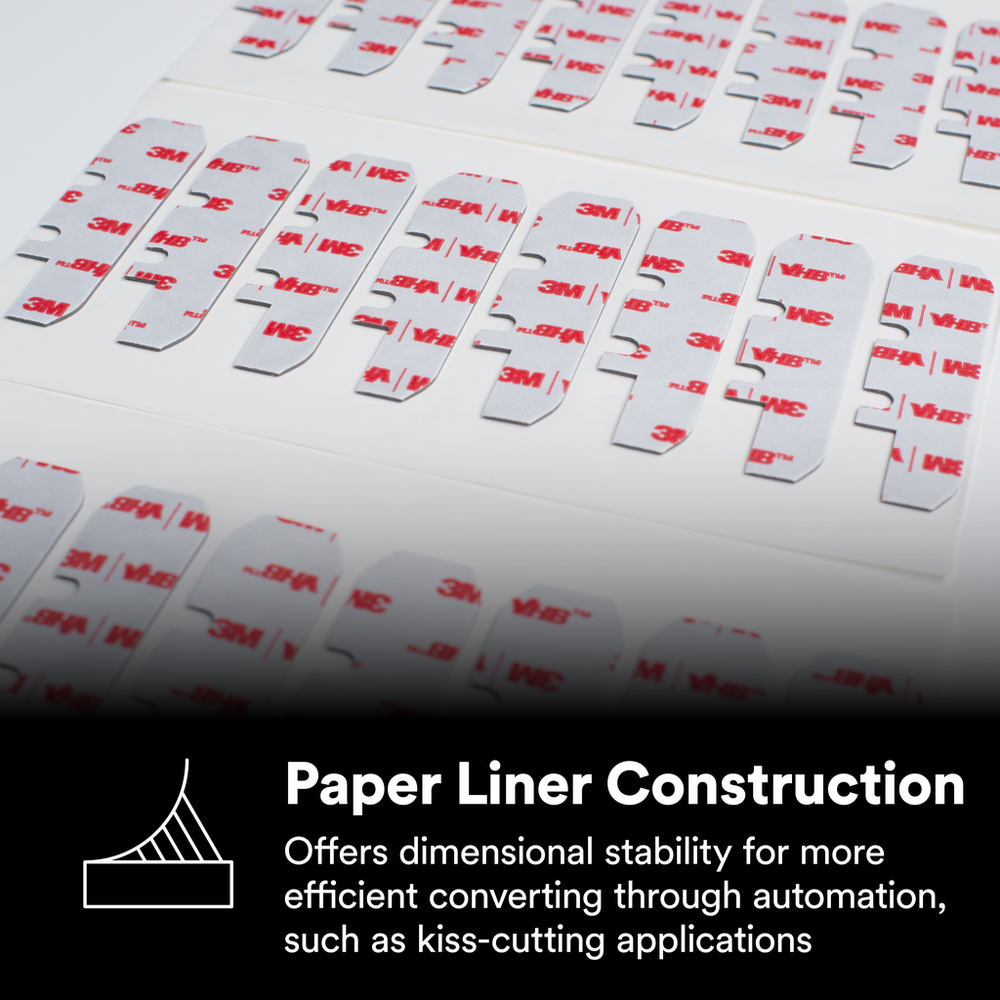

PAPER LINER CONSTRUCTION: Offers dimensional stability for more efficient converting through automation, such as kiss-cutting applications
SMOOTH AND SEAMLESS: With a thickness of 45 mil (1.1 mm), this tape is designed as an alternative to mechanical fasteners, such as rivets, welds, and screws, or liquid adhesives

Spec Sheet

Downloads

Specifications

Shelf Life	730
Country of Origin	United States
Overall Length (Imperial)	36.0
Overall Width (Imperial)	48.0
Overall Width (Imperial) UOM	in
Overall Length (Metric) UOM	m
Indoor/Outdoor	Indoor/Outdoor
Maximum Operating Temperature (Celsius) UOM	Degree
Adhesive Type	Modified Acrylic
Overall Length (Imperial) UOM	yd
Overall Width (Metric)	1219.0
Product Color	Black
Overall Length (Metric)	32.9
Core Size (Imperial) UOM	in
Industries	Appliance, Construction, Electronics, General Industrial, Metalworking, Signage, Transportation
Core Size (Imperial)	3.0
Units per Case	1.0
Overall Width (Metric) UOM	mm
Foam Type	Very Conformable
Maximum Operating Temperature (Celsius)	149.0
