3M Products & Supplies

3M™ VHB™ Tape Max-110GF, Gray, 1 in x 36 yd, 45 mil, Film Liner, 9 Roll/Case - 7100364639

SKU: 7100364639
MPN: 7100364639
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00068060759849
3M ID: 70011120659
$850.73
Hurry up! Current stock:

Product Description

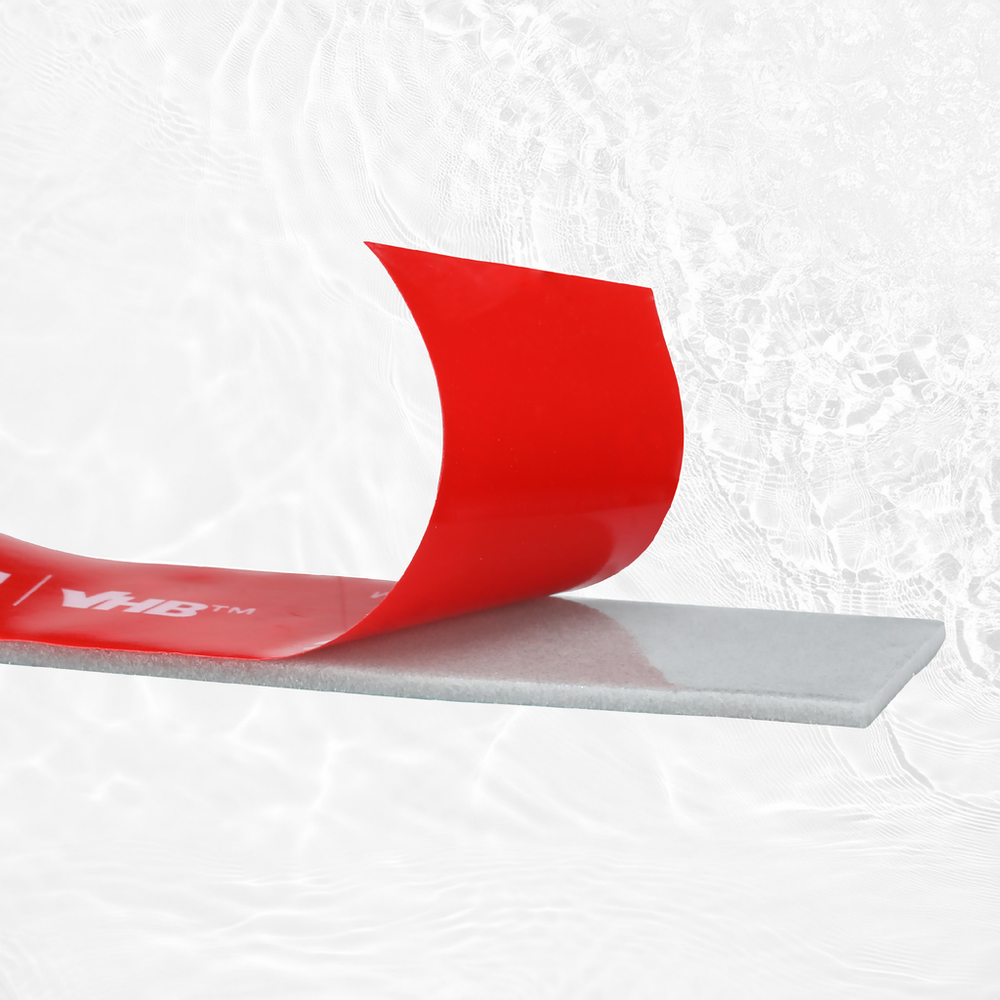

3M™ VHB™ Tape Max Series is a high-performance, double-sided acrylic foam tape designed to replace traditional mechanical fasteners, some forms of welding, and liquid adhesives. The strongest acrylic foam tape in the 3M™ VHB™ Tape portfolio, this tape is made for more demanding applications — while streamlining production by eliminating the need for drilling, welding, and subsequent cleanup. Versatility is also a key feature of this tape series, as it offers excellent adhesion to a wide range of materials, such as metals and high surface energy substrates. This creates a smooth and seamless finish for enhanced aesthetics. Use 3M™ VHB™ Tape Max Series with 3M™ VHB™ Tape Max Promoter to ensure adequate bond strength across a variety of surfaces and environmental conditions.

Features

  • DO MORE WITH LESS: Offers greater design flexibility and may reduce material usage compared to other acrylic foam tapes by using narrower bond lines and less total bond area

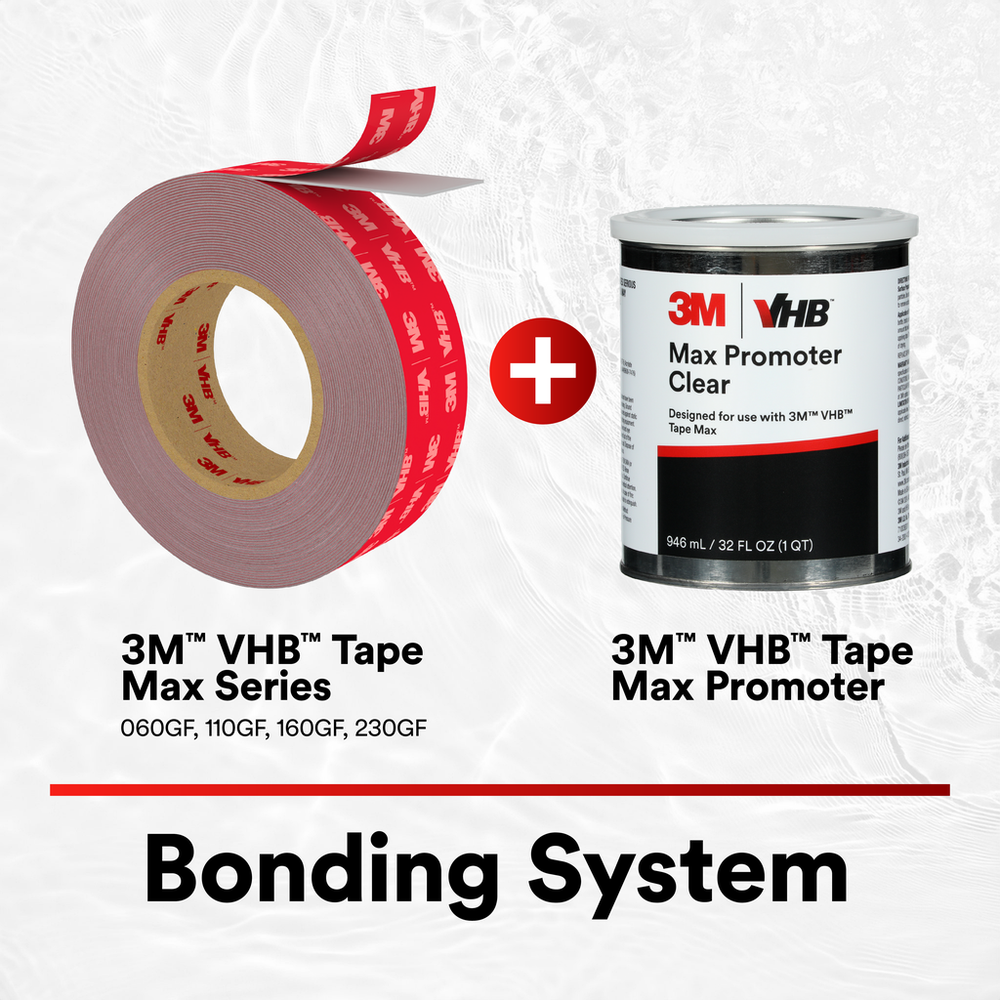

  • PERFECT PAIRING: Designed to be used with 3M™ VHB™ Tape Max Promoter to achieve high bond strength on a variety of substrates
  • BONDING ALTERNATIVE: Designed to replace mechanical fasteners, some forms of welding, and liquid adhesives in applications requiring extreme strength

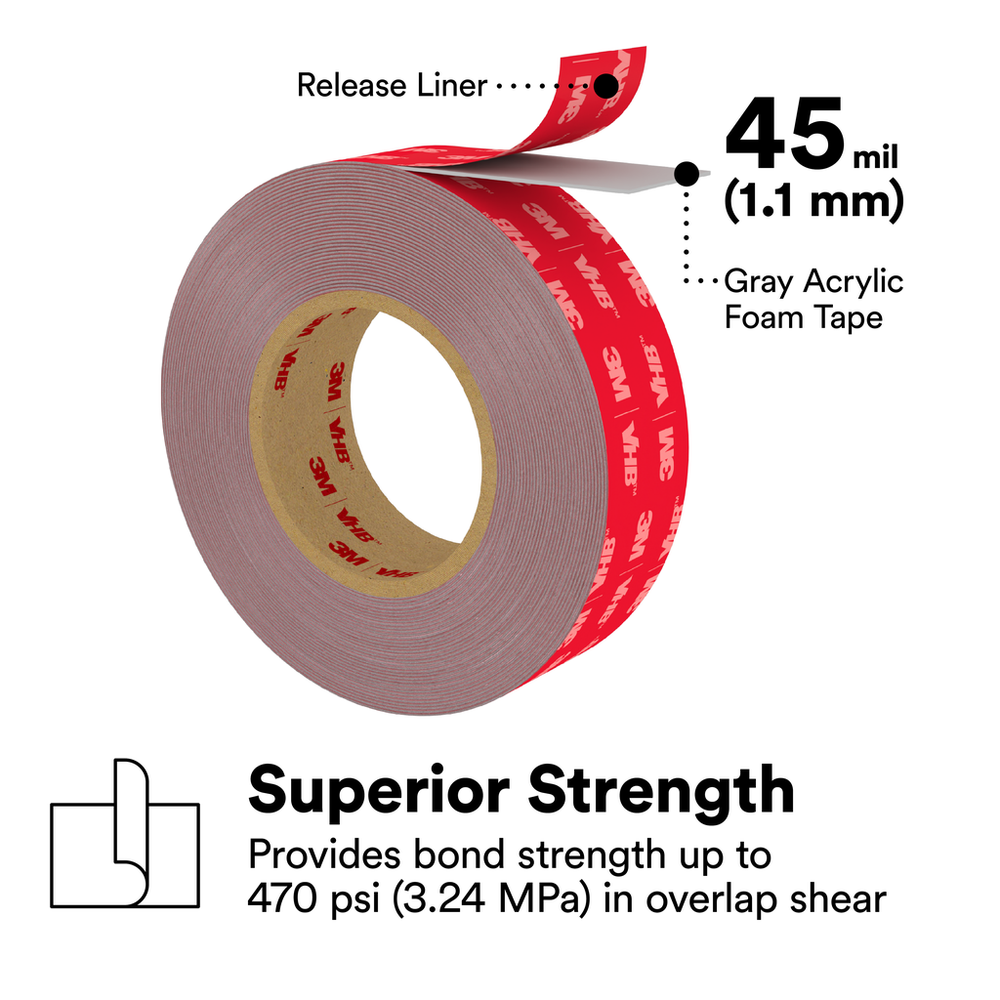

  • SUPERIOR BOND STRENGTH: Provides bond strength up to 470 psi (3.24 MPa) in overlap shear, significantly higher than standard 3M™ VHB™ Tape

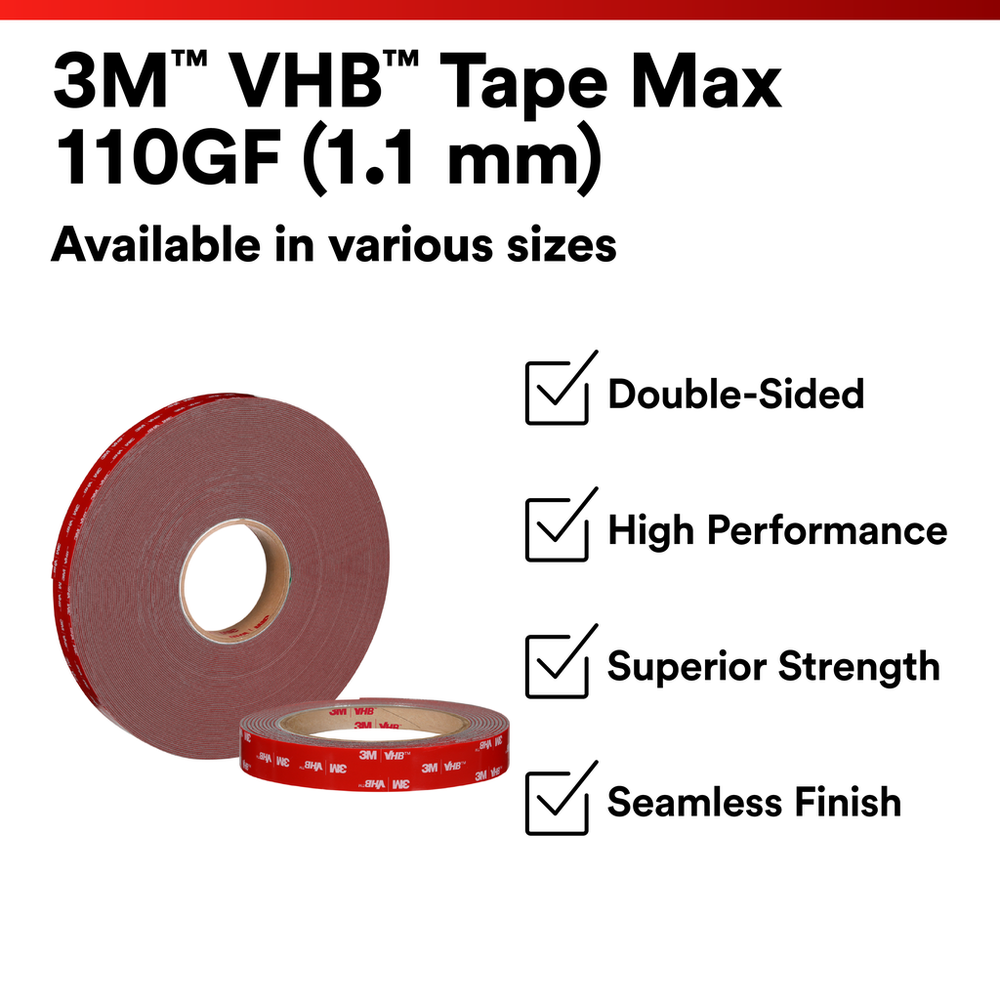

  • MULTIPLE SIZES: Available in thicknesses of 0.6 mm (060GF), 1.1 mm (110GF), 1.6 mm (160GF), and 2.3 mm (230GF)

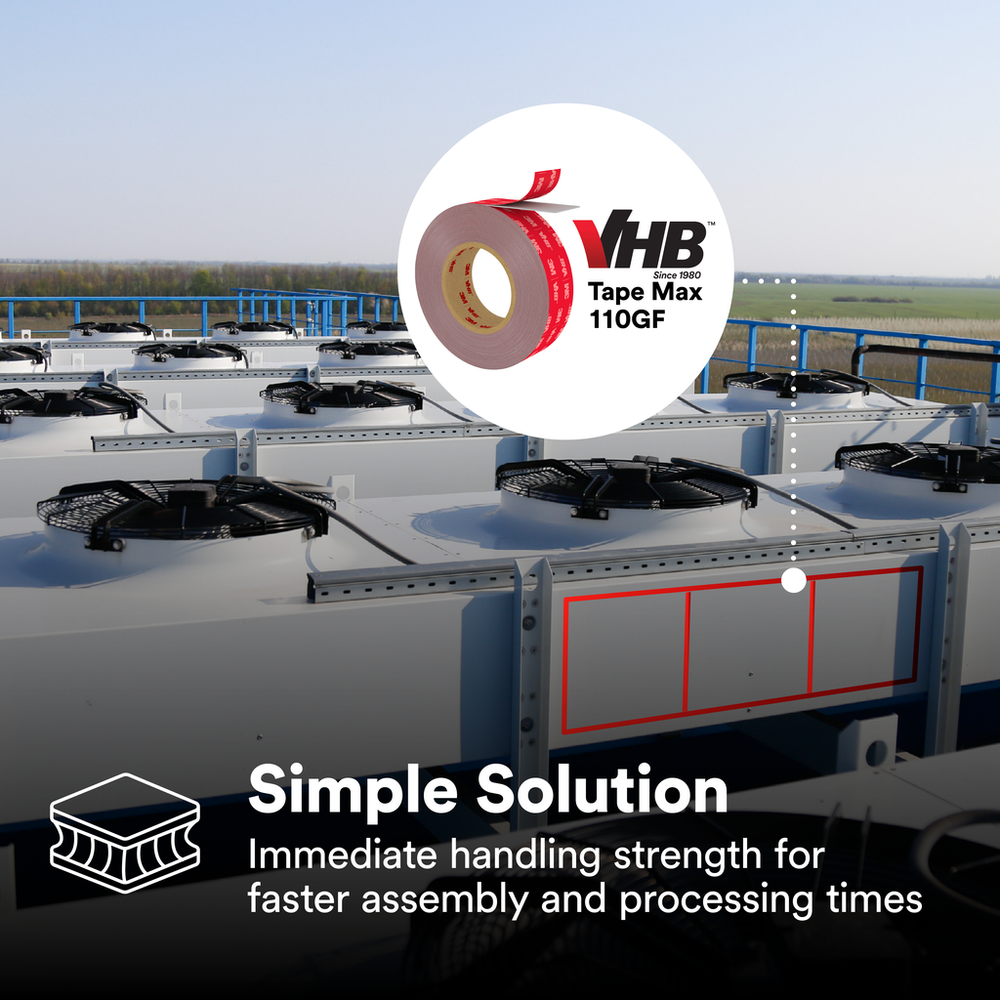

  • SIMPLIFIED SOLUTION: Immediate handling strength allows for faster assembly and processing times when compared to liquid adhesives
Spec Sheet



Downloads

Specifications

Core Size (Metric) UOMmm
Total Tape Thickness without Liner (Imperial)43.3
Total Tape Thickness without Liner (Imperial) UOMmil
Total Tape Thickness without Liner (Metric) UOMmm
Shelf Life UOMMonth
Country of OriginGermany
Overall Length (Metric) UOMm
Overall Length (Metric)32.9
Overall Width (Imperial)1.0
Overall Width (Imperial) UOMin
Core Size (Imperial) UOMin
Foam TypeFirm
Product ColorGray
Overall Width (Metric) UOMmm
Shelf Life730
Total Tape Thickness without Liner (Metric)1.1
Overall Width (Metric)25.4
Core Size (Metric)76.2
Adhesive TypeAcrylic
Indoor/OutdoorIndoor/Outdoor
Overall Length (Imperial)36.0
Overall Length (Imperial) UOMyd
Core Size (Imperial)3.0
