3M Products & Supplies

3M™ VHB™ Tape Max-160GF, Gray, 1/2 in x 36 yd, 62 mil, Film Liner, 18 Roll/Case - 7100364347

SKU: 7100364347
MPN: 7100364347
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00068060759740
3M ID: 70011120543
$1,123.01
Hurry up! Current stock:

Product Description

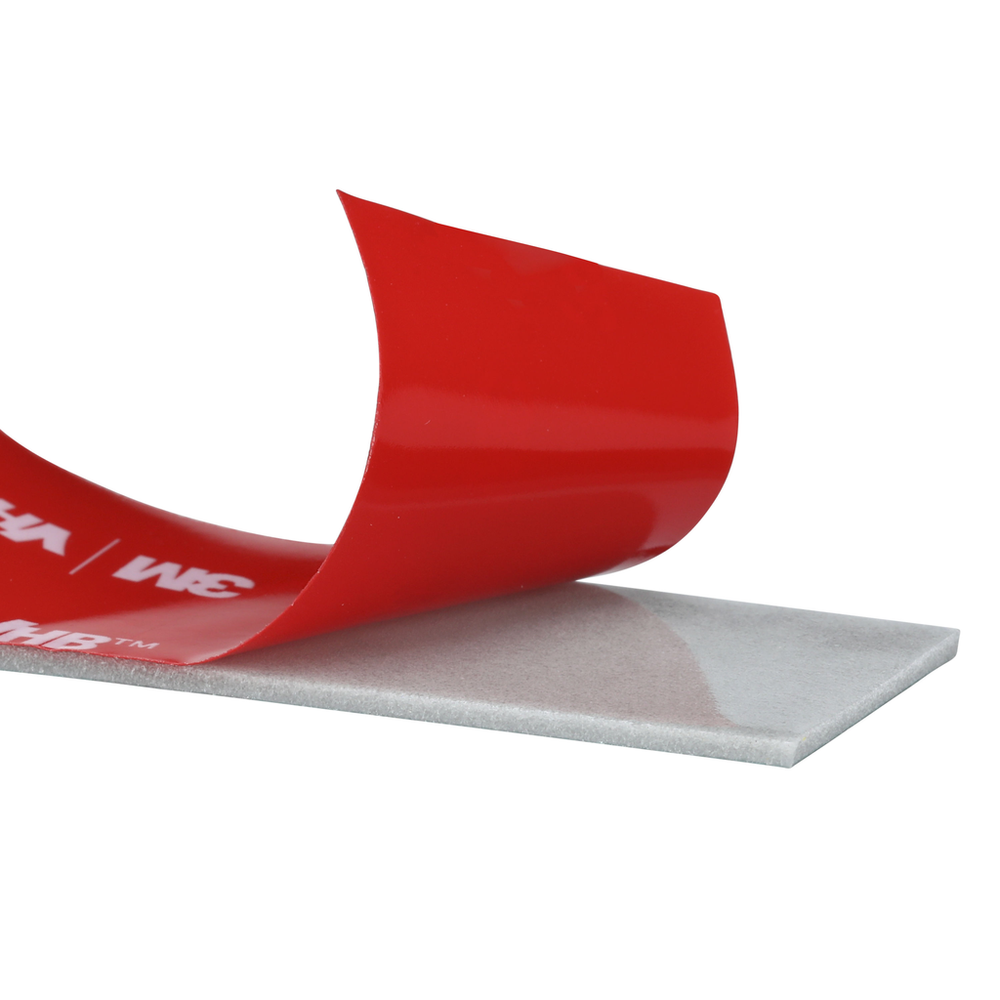

3M™ VHB™ Tape Max Series is a high-performance, double-sided acrylic foam tape designed to replace traditional mechanical fasteners, some forms of welding, and liquid adhesives. The strongest acrylic foam tape in the 3M™ VHB™ Tape portfolio, this tape is made for more demanding applications — while streamlining production by eliminating the need for drilling, welding, and subsequent cleanup. Versatility is also a key feature of this tape series, as it offers excellent adhesion to a wide range of materials, such as metals and high surface energy substrates. This creates a smooth and seamless finish for enhanced aesthetics. Use 3M™ VHB™ Tape Max Series with 3M™ VHB™ Tape Max Promoter to ensure adequate bond strength across a variety of surfaces and environmental conditions.

Features

  • SIMPLIFIED SOLUTION: Immediate handling strength allows for faster assembly and processing times when compared to liquid adhesives
  • DO MORE WITH LESS: Offers greater design flexibility and may reduce material usage compared to other acrylic foam tapes by using narrower bond lines and less total bond area
  • PERFECT PAIRING: Designed to be used with 3M™ VHB™ Tape Max Promoter to achieve high bond strength on a variety of substrates

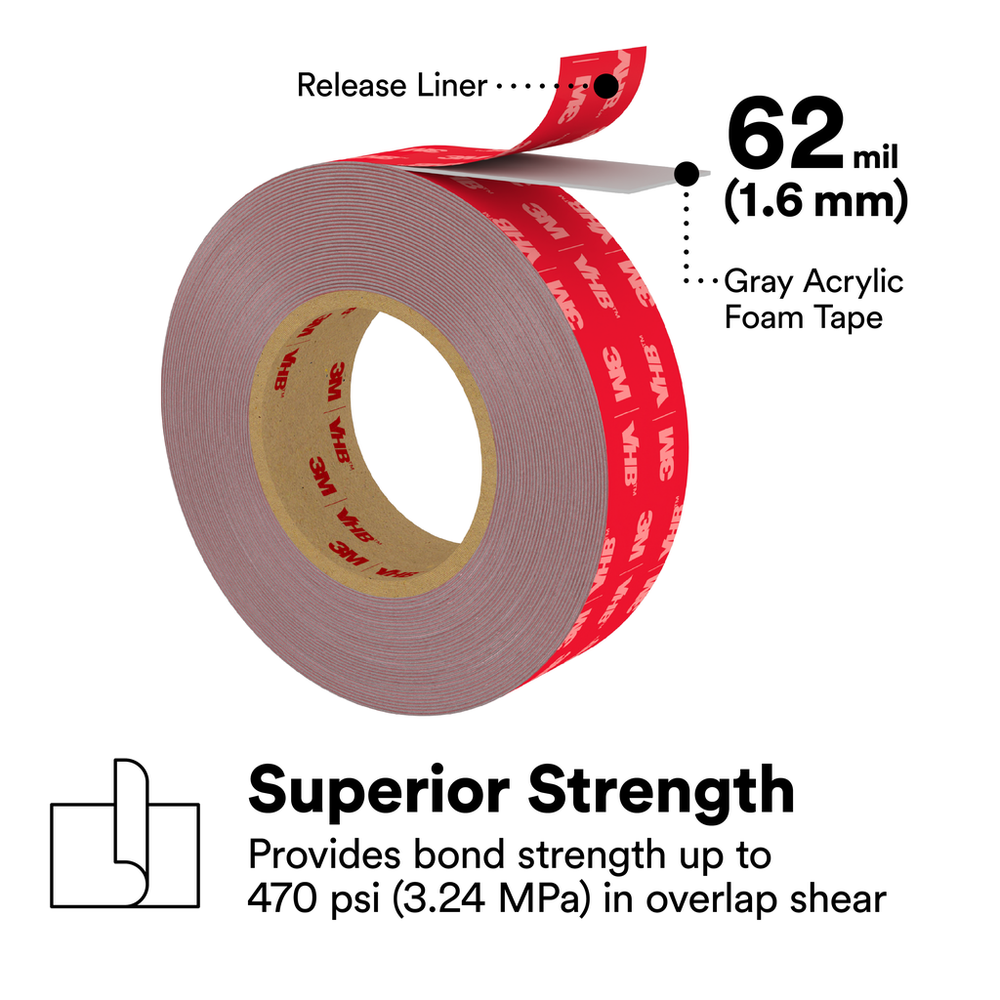

  • SUPERIOR BOND STRENGTH: Provides bond strength up to 470 psi (3.24 MPa) in overlap shear, significantly higher than standard 3M™ VHB™ Tape
  • BONDING ALTERNATIVE: Designed to replace mechanical fasteners, some forms of welding, and liquid adhesives in applications requiring extreme strength

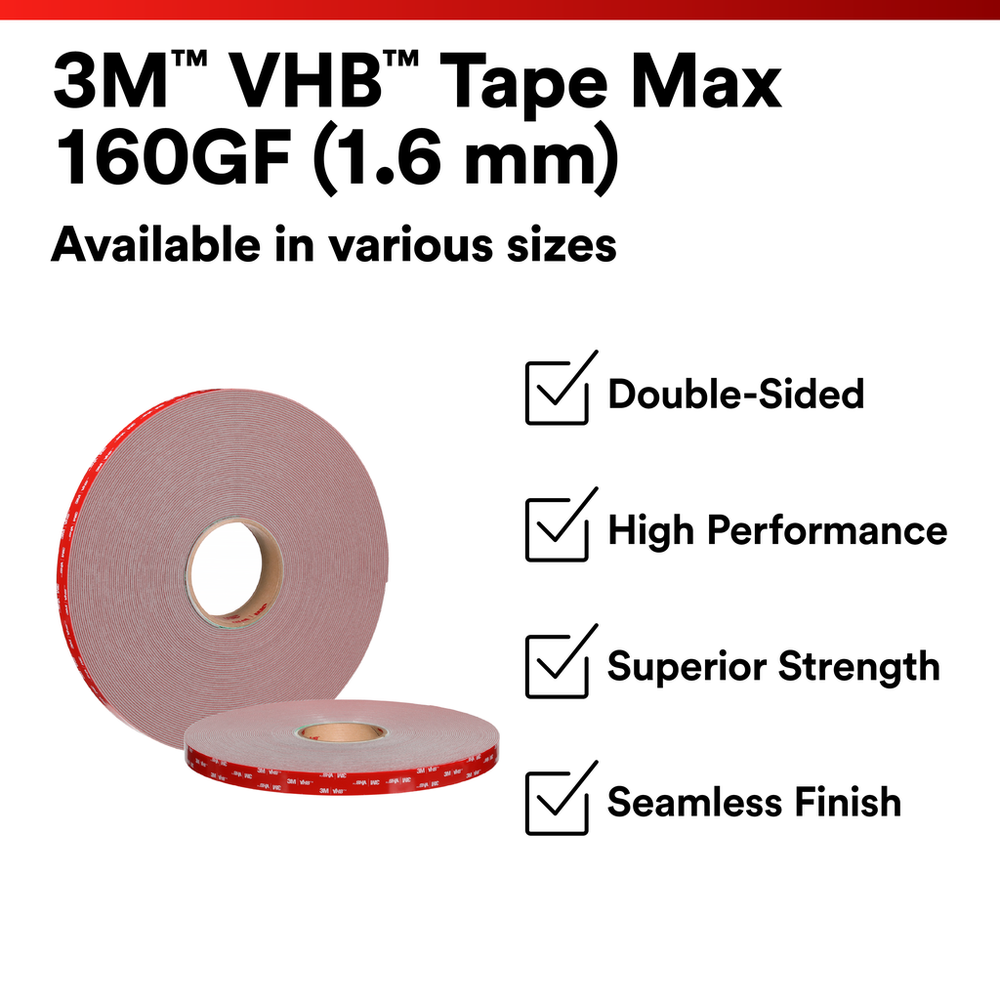

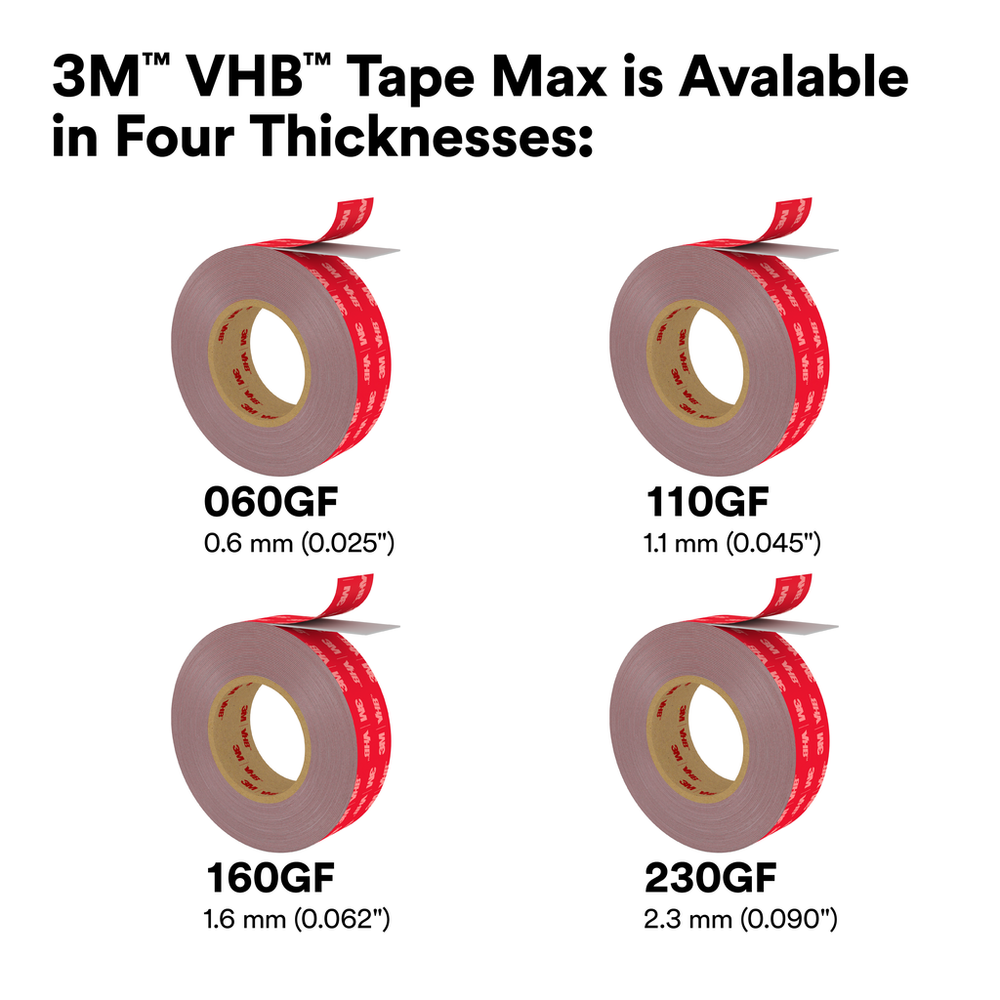

  • MULTIPLE SIZES: Available in thicknesses of 0.6 mm (060GF), 1.1 mm (110GF), 1.6 mm (160GF), and 2.3 mm (230GF)
Spec Sheet



Downloads

Specifications

Overall Width (Imperial)0.5
Overall Width (Imperial) UOMin
Total Tape Thickness without Liner (Imperial)63.0
Country of OriginGermany
Foam TypeFirm
Adhesive TypeAcrylic
Overall Length (Imperial)36.0
Overall Length (Metric)32.9
Total Tape Thickness without Liner (Imperial) UOMmil
Product ColorGray
Core Size (Imperial)3.0
Core Size (Metric)76.2
Shelf Life730
Indoor/OutdoorIndoor/Outdoor
Overall Length (Metric) UOMm
Overall Width (Metric) UOMmm
Core Size (Imperial) UOMin
Shelf Life UOMMonth
Total Tape Thickness without Liner (Metric)1.6
Core Size (Metric) UOMmm
Overall Width (Metric)12.7
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Metric) UOMmm
