3M Products & Supplies

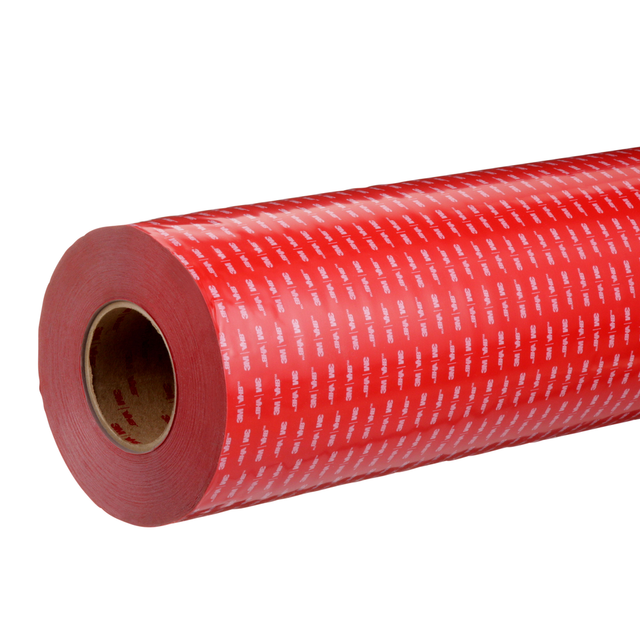

3M™ VHB™ Tape RP+160GF, Gray, 22 in x 36 yd, 62 mil, Film Liner, 1 Roll/Case - 7100273402

SKU: 7100273402
MPN: 7100273402
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00068060002723
3M ID: 70007556940
$1,390.92 each
Hurry up! Current stock:

Product Description

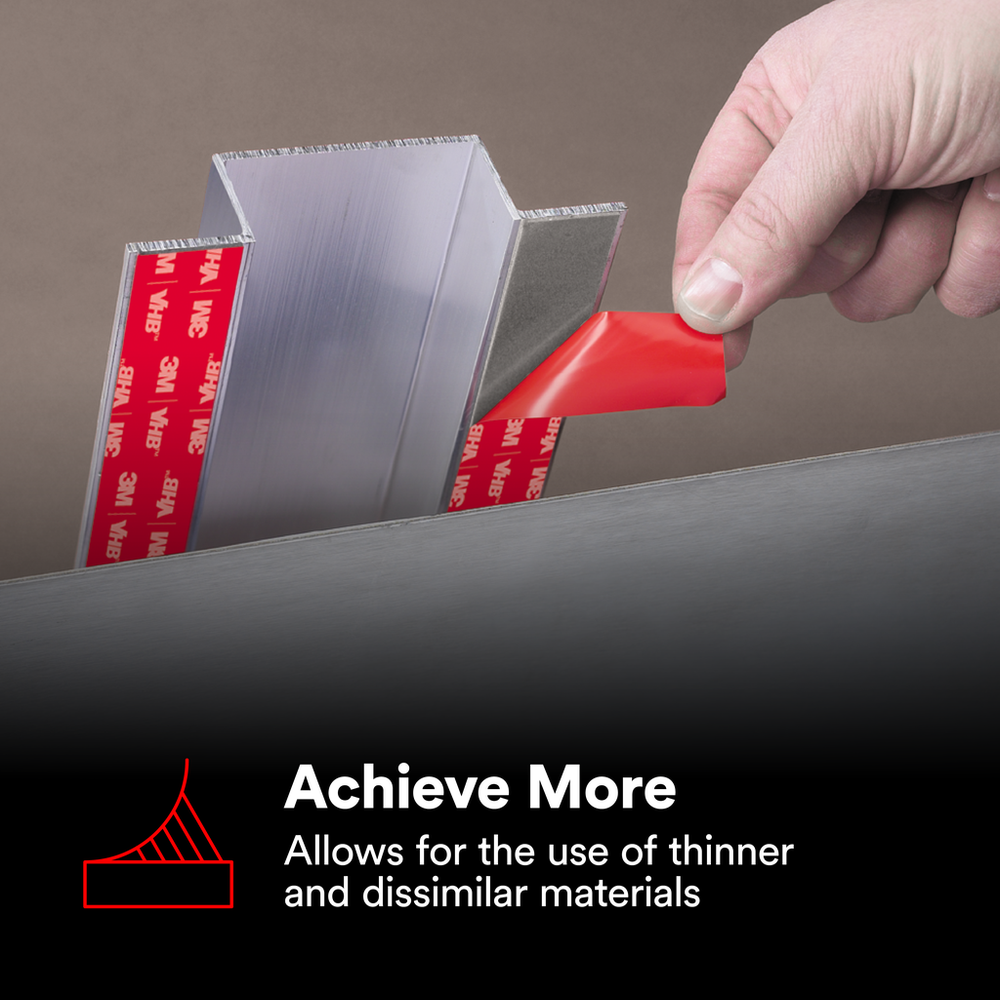

3M™ VHB™ Tape RP+160GF is a double-sided tape comprised of a multi-purpose acrylic adhesive with a PE film liner. With a conformable foam core, it has a total thickness of 62 mil (1.6 mm) when applied. This tape offers an excellent balance of strength, viscoelasticity, conformability, and adhesion to high and medium surface energy metals and plastics. It is compatible with various materials, including aluminum, stainless steel, galvanized steel, composites, plastics, acrylic, polycarbonate, and ABS. The pressure-sensitive adhesive technology ensures water resistance and tight sealing for long-term durability. It can withstand temperatures up to 450 °F (230 °C) for short-term use (up to four hours) and up to 250 °F (121 °C) for long-term use. These attributes make 3M™ VHB™ Tape RP+160GF a reliable choice for a wide range of bonding and sealing applications, such as attaching metal panels to frames and electronic displays. The seamless joining and minimal surface preparation of this tape make it easy to use and result in smooth and aesthetically pleasing surfaces. It is particularly suitable for bonding thin, lightweight, and dissimilar materials. Explore the versatile bonding potential of 3M™ VHB™ Tape RP+160GF.

Features

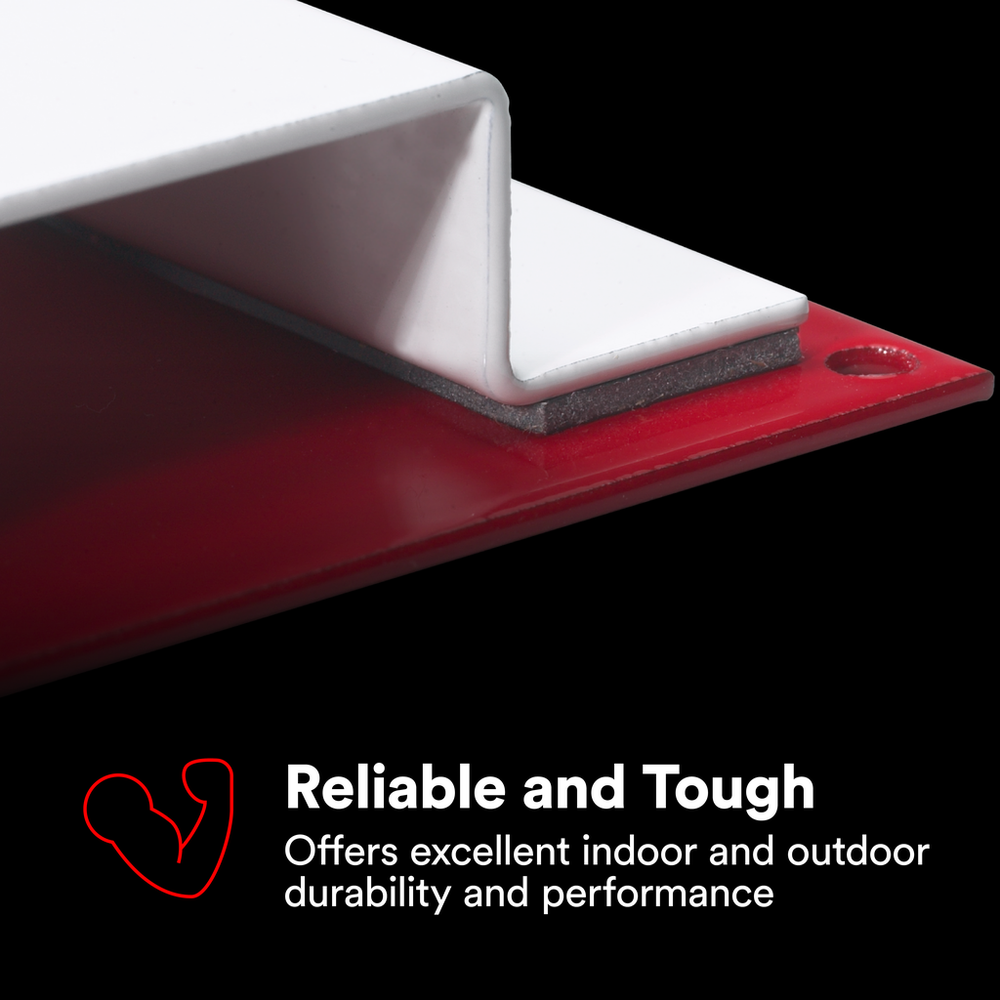

  • RELIABLE AND TOUGH: Offers excellent indoor and outdoor durability and performance, withstanding long-term use at a temperature up to 250 °F (121 °C)

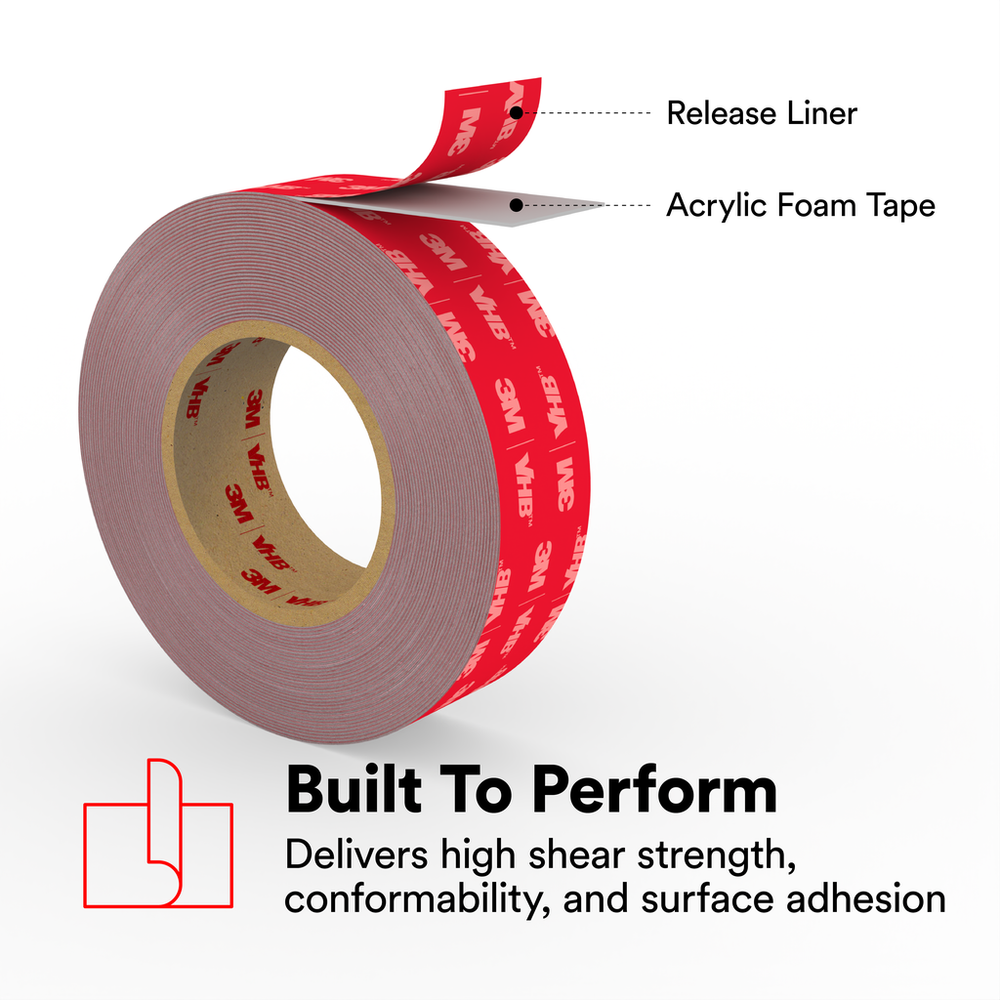

  • BUILT TO PERFORM: Delivers high shear strength, conformability, and surface adhesion due to an acrylic foam core and multi-purpose adhesive

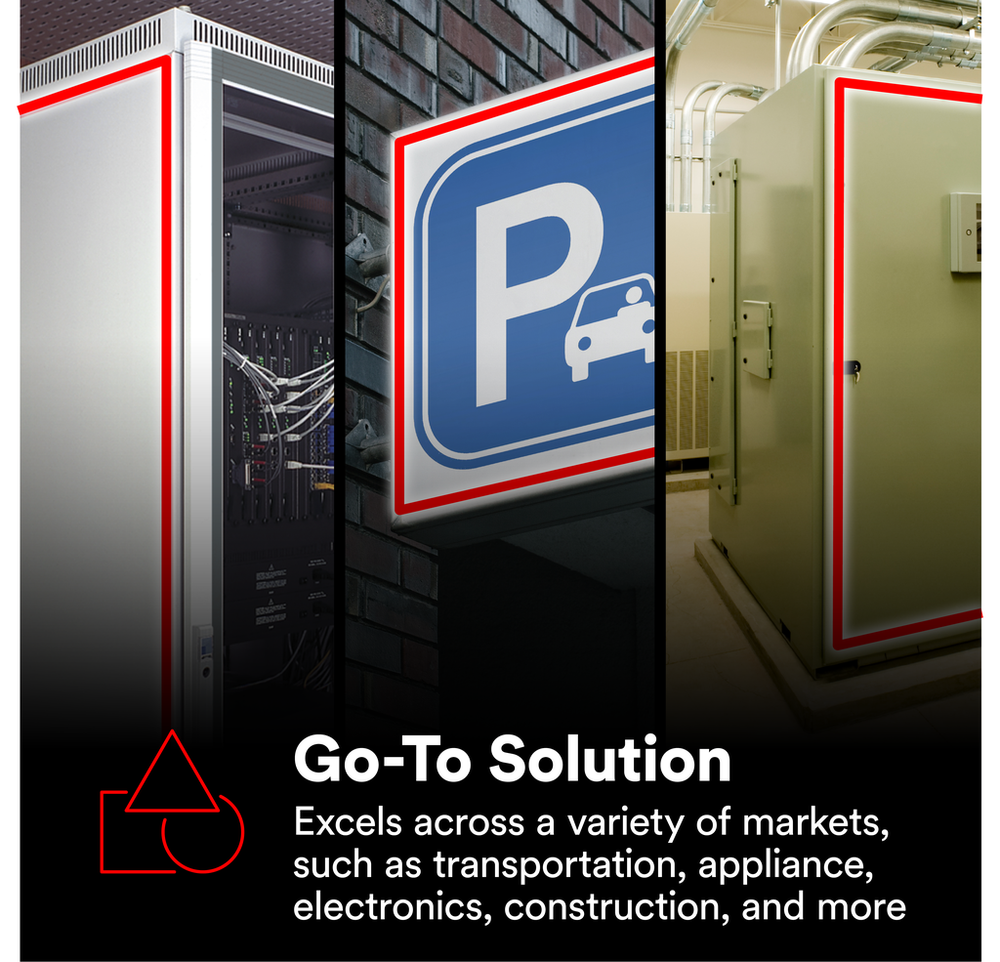

  • A GO-TO SOLUTION: Excels across a variety of markets, such as transportation, appliance, electronics, construction, signage, HVAC, maintenance and repair, and general industrial

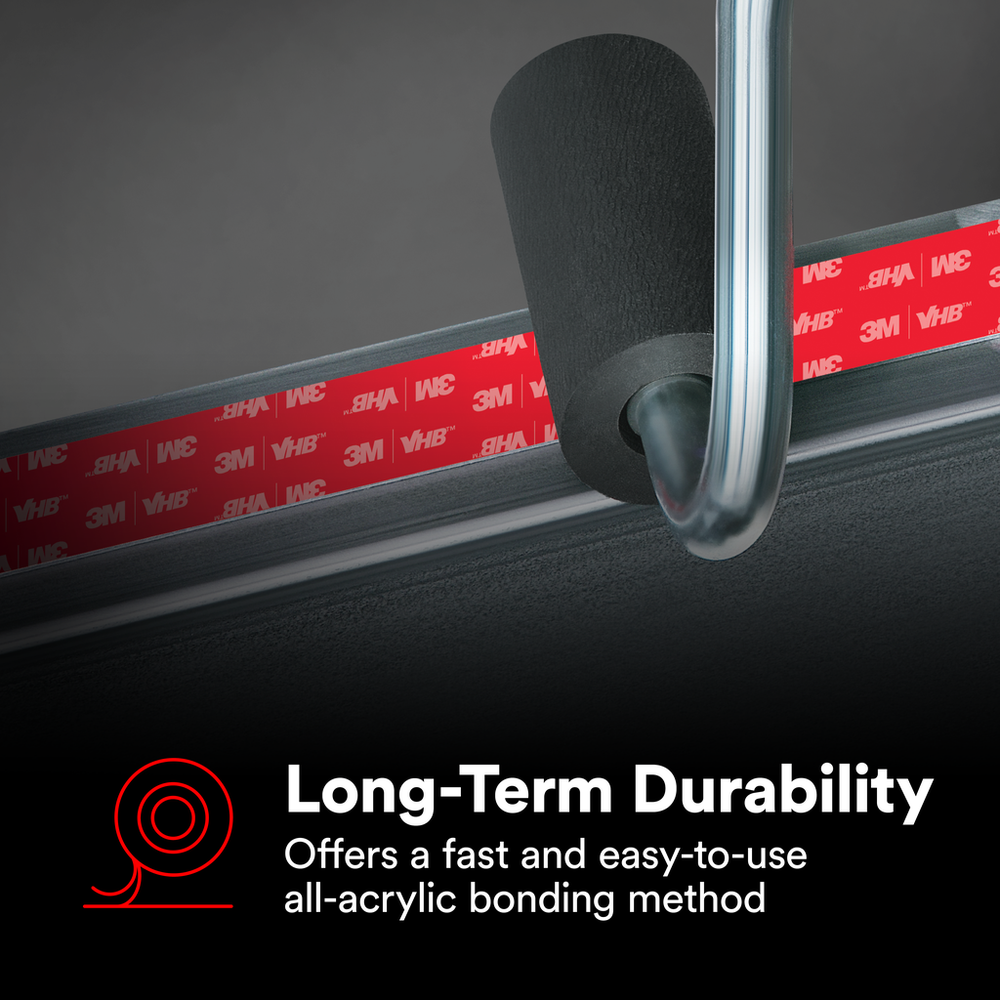

  • LONG-TERM DURABILITY: Offers a fast and easy-to-use all-acrylic bonding method that gives immediate handling strength — no need to fixture or wait for a cure
  • MULTI-SURFACE APPLICATIONS: Adheres to High Surface Energy (HSE) and Medium Surface Energy (MSE) metals and plastics with minimal surface preparation
  • SMOOTH AND SEAMLESS: With a thickness of 62 mil (1.6 mm), this tape is designed as an alternative to mechanical fasteners, such as rivets, welds, and screws, or liquid adhesives
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Overall Width (Imperial)22.0
IndustriesAppliance, Consumer Goods, Converter Solutions, General Industrial, MRO, Metalworking, Signage, Transportation
Overall Width (Imperial) UOMin
Core Size (Imperial) UOMin
Overall Length (Imperial) UOMyd
Core Size (Imperial)3.0
Core Size (Metric) UOMmm
Minimum Operating Temperature (Celsius)10.0
Maximum Operating Temperature (Fahrenheit)450.0
Package Quantity1.0
Adhesive TypeModified Acrylic
Maximum Operating Temperature (Celsius)230.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius) UOMDegree
Core Size (Metric)76.2
Minimum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Fahrenheit) UOMDegree
Product ColorGray
Overall Length (Imperial)36.0
Foam TypeConformable
Indoor/OutdoorIndoor/Outdoor
Minimum Operating Temperature (Fahrenheit)50.0
Units per Case1.0
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Metric)558.8
Total Tape Thickness without Liner (Metric)1.5
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Length (Metric)32.9
Shelf Life UOMMonth
Overall Width (Metric) UOMmm
Overall Length (Metric) UOMm
Total Tape Thickness without Liner (Imperial)62.0
