3M Products & Supplies

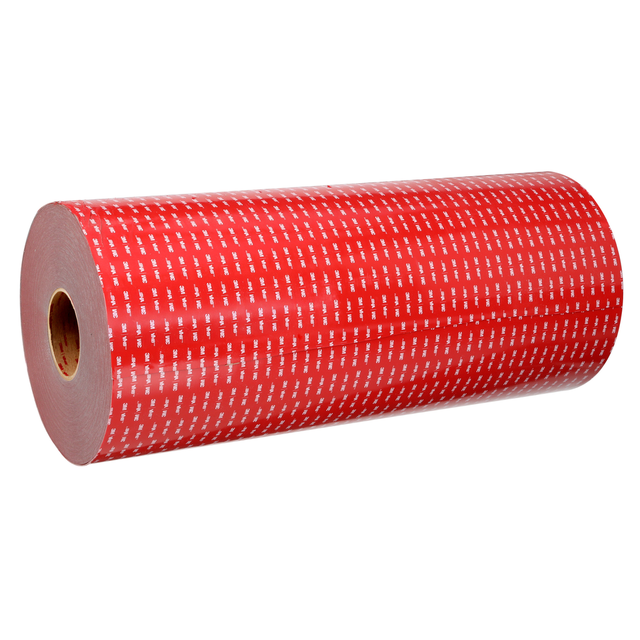

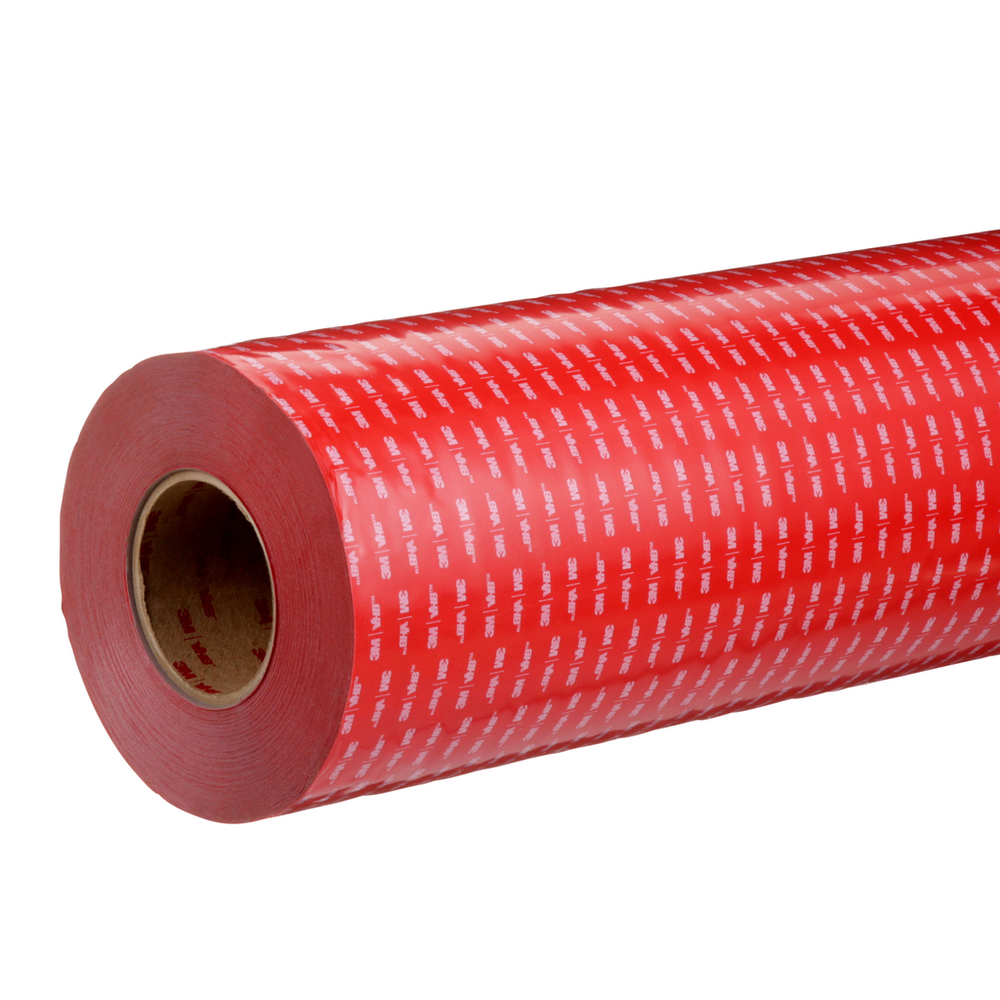

3M™ VHB™ Tape RP+230GF, Gray, 44 in x 36 yd, 90 mil, Film Liner, 1 Roll/Case - 7100273393

SKU: 7100273393
MPN: 7100273393
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00068060002846
3M ID: 70007557112
$2,781.85 each
Hurry up! Current stock:

Product Description

3M™ VHB™ Tape RP+230GF is a double-sided tape comprised of a multi-purpose acrylic adhesive with a PE film liner. With a conformable foam core, it has a total thickness of 90 mil (2.3 mm) when applied. This tape offers an excellent balance of strength, viscoelasticity, conformability, and adhesion to high and medium surface energy metals and plastics. It is compatible with various materials, including aluminum, stainless steel, galvanized steel, composites, plastics, acrylic, polycarbonate, and ABS. The pressure-sensitive adhesive technology ensures water resistance and tight sealing for long-term durability. It can withstand temperatures up to 450 °F (230 °C) for short-term use (up to four hours) and up to 250 °F (121 °C) for long-term use. These attributes make 3M™ VHB™ Tape RP+230GF a reliable choice for a wide range of bonding and sealing applications, such as attaching metal panels to frames and electronic displays. The seamless joining and minimal surface preparation of this tape make it easy to use and result in smooth and aesthetically pleasing surfaces. It is particularly suitable for bonding thin, lightweight, and dissimilar materials. Explore the versatile bonding potential of 3M™ VHB™ Tape RP+230GF.

Features

  • LONG-TERM DURABILITY: Offers a fast and easy-to-use all-acrylic bonding method that gives immediate handling strength — no need to fixture or wait for a cure
  • MULTI-SURFACE APPLICATIONS: Adheres to High Surface Energy (HSE) and Medium Surface Energy (MSE) metals and plastics with minimal surface preparation
  • SMOOTH AND SEAMLESS: With a thickness of 90 mil (2.3 mm), this tape is designed as an alternative to mechanical fasteners, such as rivets, welds, and screws, or liquid adhesives
  • A GO-TO SOLUTION: Excels across a variety of markets, such as transportation, appliance, electronics, construction, signage, HVAC, maintenance and repair, and general industrial
  • BUILT TO PERFORM: Delivers high shear strength, conformability, and surface adhesion due to an acrylic foam core and multi-purpose adhesive
  • RELIABLE AND TOUGH: Offers excellent indoor and outdoor durability and performance, withstanding long-term use at a temperature up to 250 °F (121 °C)
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Overall Length (Imperial) UOMyd
Indoor/OutdoorIndoor/Outdoor
Core Size (Imperial) UOMin
Package Quantity1.0
Overall Width (Imperial)44.0
Maximum Operating Temperature (Fahrenheit)450.0
Minimum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial) UOMin
IndustriesAppliance, Consumer Goods, Converter Solutions, General Industrial, MRO, Metalworking, Signage, Transportation
Minimum Operating Temperature (Fahrenheit)50.0
Adhesive TypeModified Acrylic
Core Size (Imperial)3.0
Overall Length (Imperial)36.0
Minimum Operating Temperature (Celsius)10.0
Foam TypeConformable
Overall Width (Metric) UOMmm
Total Tape Thickness without Liner (Imperial)90.0
Core Size (Metric)76.2
Minimum Operating Temperature (Fahrenheit) UOMDegree
Shelf Life UOMMonth
Overall Length (Metric)32.9
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Metric)1117.6
Total Tape Thickness without Liner (Imperial) UOMmil
Units per Case1.0
Maximum Operating Temperature (Celsius)230.0
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Metric) UOMm
Core Size (Metric) UOMmm
Total Tape Thickness without Liner (Metric)2.2
Product ColorGray
Maximum Operating Temperature (Fahrenheit) UOMDegree
