3M Products & Supplies

3M™ Vinyl Insulated Butted Seam Female Disconnect, 72F-250-32-P, Max. Temp. -40 to 221 °F (-40 to 105 °C) - 7100163774

Sold As: 1000-Pack
SKU: 7100163774
MPN: 7100163774
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007291695
3M ID: 80601388871
MPN: 72F-250-32-P
$111.54 ($0.11 / Count)
Hurry up! Current stock:

Product Description

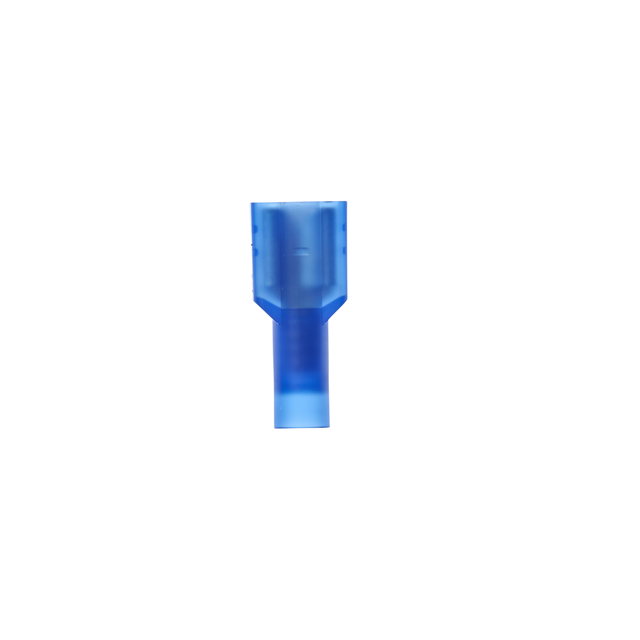

3M™ Standard Female Disconnect Terminals have dents and rolled edges to offer great holding force while allowing for quick and easy disconnect. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Allows for quick and easy disconnect of wires
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating

Downloads

Specifications

Disconnect TypeFemale
Country of OriginUnited States
Connection Width (Imperial) UOMin
Connection Width (Imperial)0.25
Minimum Conductor Size (Imperial)16 AWG
Terminal TypeDisconnect
Maximum Conductor Size (Imperial)14 AWG
Connection Width (Metric)6.35
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Conductor Size (Metric)2.5 mm²
Connection Width (Metric) UOMmm
Minimum Conductor Size (Metric)1.5 mm²
