3M Products & Supplies

3M™ Vinyl Insulated Butted Seam Flanged Block Fork Terminal BS-22-8-P, suitable for use in a terminal block - 7100163630

Sold As: 1000-Pack
SKU: 7100163630
MPN: 7100163630
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 10054007285875
3M ID: 80601385299
MPN: BS-33-10-P
$159.60 ($0.16 / Count)
Hurry up! Current stock:

Product Description

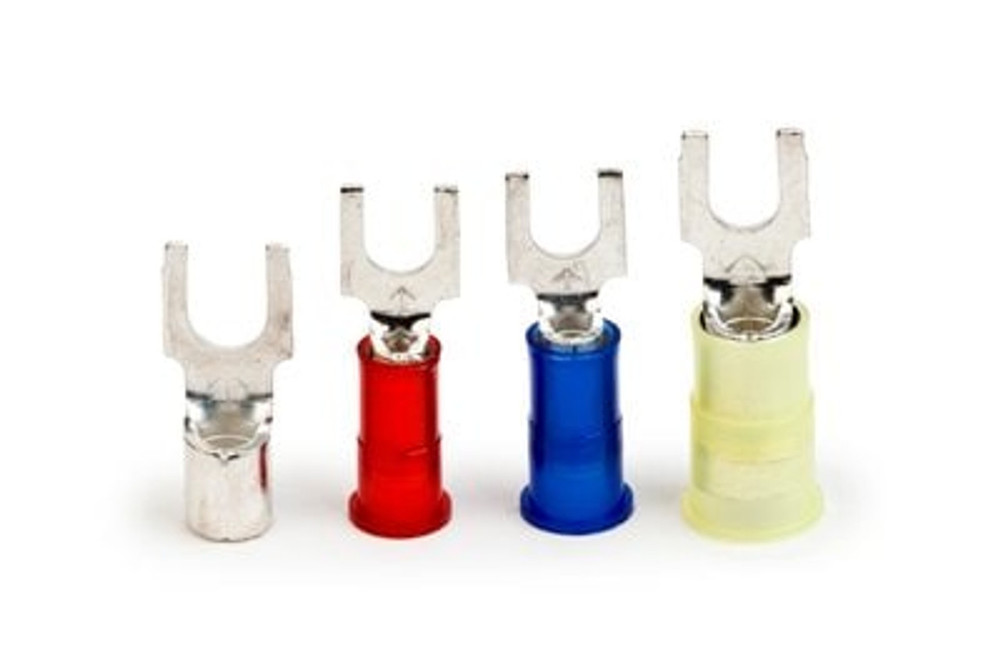

3M™ Flanged Block Fork Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Electrolytic copper construction offers good conductivity
  • Suitable for use in a terminal block
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)

Downloads

Specifications

RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Operating Temperature (Celsius) UOMDegree
Terminal StyleFlanged Block
Terminal TypeFork
Maximum Operating Temperature (Celsius)105.0
Country of OriginUnited States
Fork TypeFlanged Block
Insulation MaterialVinyl
Barrel StyleButted
