3M Products & Supplies

3M™ Vinyl Insulated Butted Seam Hook Tongue Terminal 41-10-P, 1000/case - 7100163540

Sold As: 1000-Pack
SKU: 7100163540
MPN: 7100163540
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007282341
3M ID: 80601379227
MPN: 41-10-P
$176.05 ($0.18 / Count)
Hurry up! Current stock:

Product Description

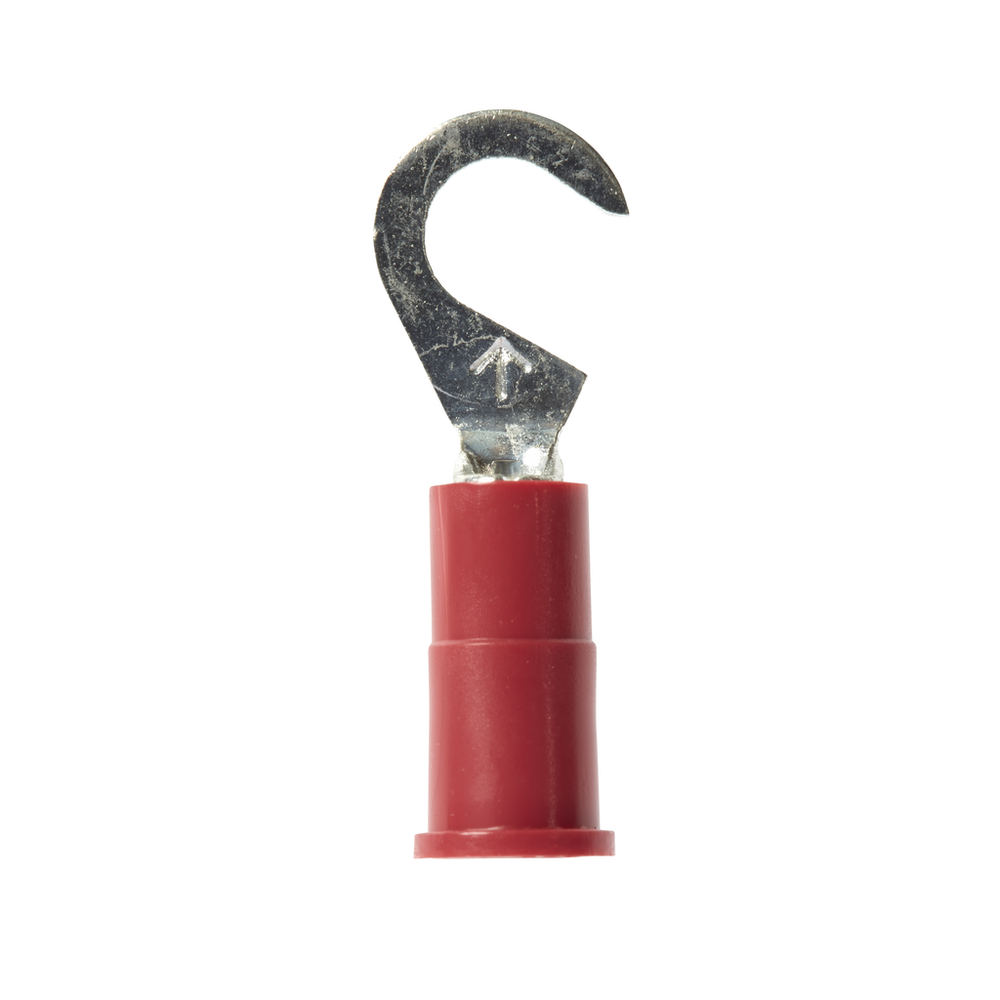

3M™ Hook Terminal allows terminal to wrap around a portion of a free-standing stud for a secure and reliable connection. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Funnel-designed sleeve offers easy insertion of wires
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Hook design allows for use on free-standing studs
  • Electrolytic copper construction offers good conductivity

Downloads

Specifications

Stud Diameter (Imperial) UOMin
Minimum Conductor Size (Metric).34 mm²
Country of OriginUnited States
Stud Diameter (Metric)4.826
Insulation MaterialVinyl
Stud Diameter (Metric) UOMmm
Minimum Conductor Size (Imperial)22 AWG
Stud Diameter (Imperial)0.19
Maximum Conductor Size (Imperial)18 AWG
Maximum Conductor Size (Metric)1 mm²
