3M Products & Supplies

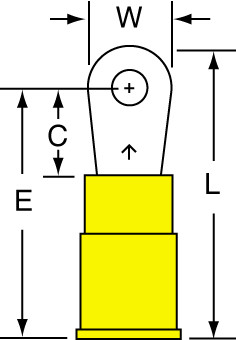

3M™ Vinyl Insulated Butted Seam Ring Tongue Terminal, 11-4S-P, standard-style ring tongue fits around the stud - 7100163468

Sold As: 1000-Pack
SKU: 7100163468
MPN: 7100163468
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007278948
3M ID: 80601375654
MPN: 11-4S-P
$111.54 ($0.11 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires

Downloads

Specifications

Minimum Conductor Size (Imperial)22 AWG
Country of OriginUnited States
Minimum Conductor Size (Metric)0.326 mm²
Connection TypeCrimp
Barrel StyleBrazed
Ring TypeStandard
UL File NumberE23438
Terminal StyleStandard
Minimum Stud Diameter (Imperial) UOMin
Maximum Conductor Size (Metric)0.823
Minimum Stud Diameter (Metric) UOMmm
Barrel Length (Imperial)0.25 Inch
Maximum Operating Temperature (Celsius) UOMDegree
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Insulation MaterialVinyl
Minimum Stud Diameter (Metric)2.5
Maximum Conductor Size (Imperial)18 AWG
Terminal TypeRing
Maximum Operating Temperature (Celsius)175.0
