3M Products & Supplies

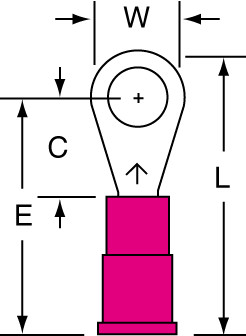

3M™ Vinyl Insulated Butted Seam Ring Tongue Terminal, L-11-10-P, standard-style ring tongue fits around the stud - 7100163475

Sold As: 1000-Pack
SKU: 7100163475
MPN: 7100163475
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007279044
3M ID: 80601375753
MPN: L-11-10-P
$111.54 ($0.11 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Standard-style ring tongue fits around the stud
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires

Downloads

Specifications

Minimum Conductor Size (Imperial)22 AWG
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Stud Diameter (Metric)5.0
Maximum Operating Temperature (Celsius)175.0
Country of OriginUnited States
Terminal TypeRing
Minimum Stud Diameter (Metric) UOMmm
Connection TypeCrimp
Ring TypeStandard
Minimum Stud Diameter (Imperial) UOMin
Insulation MaterialVinyl
Minimum Conductor Size (Metric)0.326 mm²
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Conductor Size (Imperial)18 AWG
Maximum Conductor Size (Metric)0.823
UL File NumberE23438
Barrel StyleBrazed
Terminal StyleStandard
Barrel Length (Imperial)0.25 Inch
