3M Products & Supplies

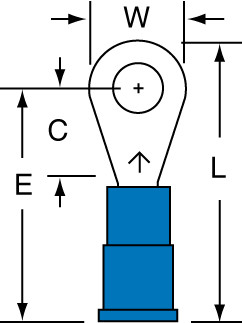

3M™ Vinyl Insulated Butted Seam Ring Tongue Terminal L-12-8-P, standard-style ring tongue fits around the stud - 7100163566

Sold As: 1000-Pack
SKU: 7100163566
MPN: 7100163566
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007283058
3M ID: 80601379979
MPN: L-12-8-P
$111.54 ($0.11 / Count)
Hurry up! Current stock:

Product Description

3M™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires

Downloads

Specifications

Maximum Conductor Size (Imperial)14 AWG
Terminal TypeRing
Insulation MaterialVinyl
Maximum Conductor Size (Metric)2.08
Minimum Stud Diameter (Metric) UOMmm
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Conductor Size (Imperial)16 AWG
Minimum Conductor Size (Metric)1.31 mm²
Minimum Stud Diameter (Metric)4.0
Minimum Stud Diameter (Imperial) UOMin
Connection TypeCrimp
Maximum Operating Temperature (Celsius)105.0
Country of OriginUnited States
