3M Products & Supplies

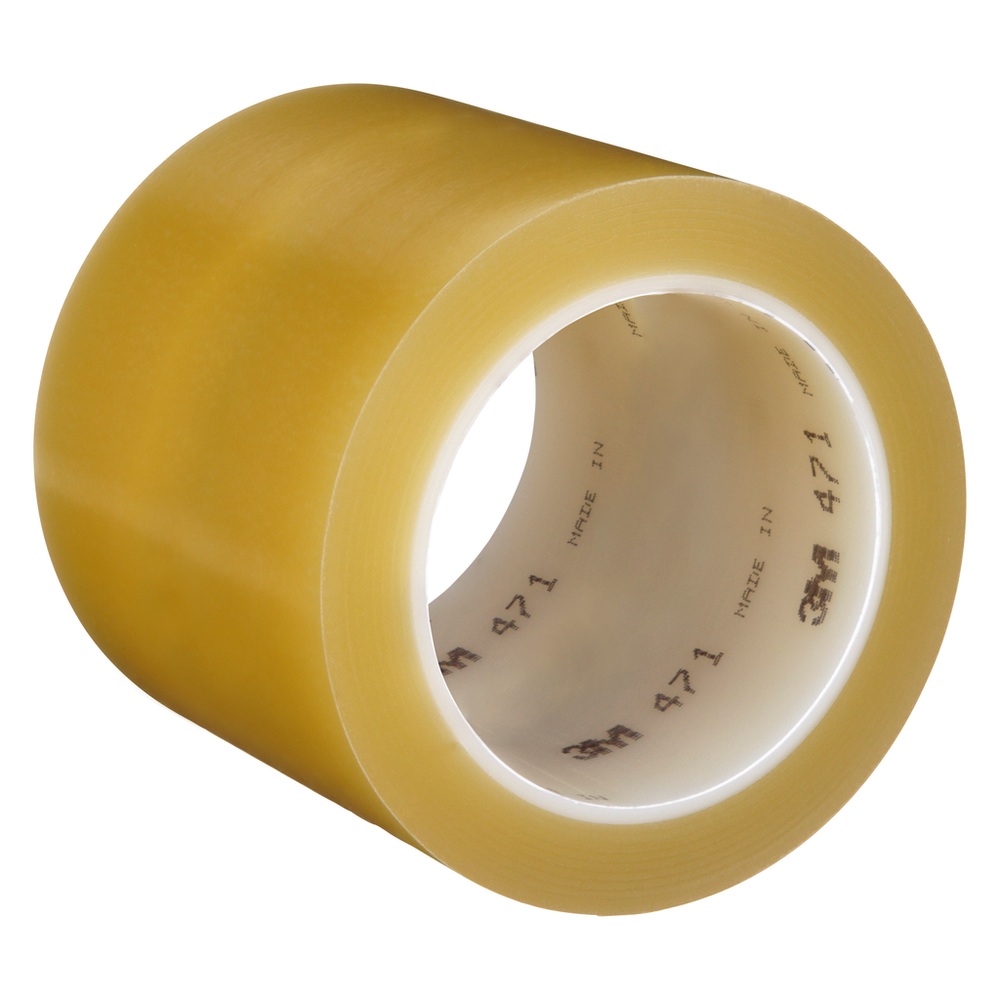

3M™ Vinyl Tape 471, Transparent, 4 in x 36 yd, 5.2 mil, 8 Roll/Case - 7000144702

Sold As: 8-Pack
SKU: 7000144702
MPN: 7000144702
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200411236
3M ID: 70006246063
5 Digit UPC: 41123
$739.26 ($92.41 / Count)
Hurry up! Current stock:

Product Description

3M™ Vinyl Tape 471 is a versatile tape that provides temporary or long-lasting surface protection and reliable seals in complex situations across a variety of industries. Engineered with unique stretch properties, this tape conforms to rough, irregular, curved, and convex surfaces without lifting. It uses a rubber adhesive that bonds immediately and removes cleanly on a wide variety of substrates. Made for high performance, the see-through backing resists abrasion, moisture, and solvents. Conformability, instant adhesion, and clean removal all make transparent 3M™ Vinyl Tape 471 an exceptional choice for sealing, general-purpose surface protection, and bundling.

Features

  • One-piece, clean removal from many surfaces which helps reduce clean-up and labor costs
  • Rubber adhesive provides excellent holding strength on many surfaces
  • This is the transparent version of the product
  • Available in a wide variety of vivid colors for diverse applications such as floor marking, paint masking, and surface protection
  • Good abrasion and solvent resistance for long service life
  • Unique stretch properties enable tape to remain stretched to conform to uneven surfaces without lifting and retracting
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginUnited States
Overall Height (Metric)0.1
IndustriesAutomotive, General Industrial, MRO, Military and Government, Specialty Vehicles, Transportation
Tensile Strength (Imperial) UOMlb/in
Maximum Operating Temperature (Fahrenheit)170.0
Back Side Adhesive Thickness (Metric)0.03
Total Tape Thickness without Liner (Metric)0.14
Overall Width (Metric)10.2
Backing Thickness (Imperial)4.1
Minimum Operating Temperature (Celsius)4.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Product FormRoll
Adhesion Strength (Metric) UOMN/100mm
Back Side Adhesive Thickness (Metric) UOMmm
Backing (Carrier) Thickness (Imperial) UOMmil
Minimum Operating Temperature (Fahrenheit)40.0
Overall Height (Imperial)5.2
Backing Thickness (Imperial) UOMmil
Shelf Life in Months (From Date of Manufacture)18.0
Tensile Strength (Metric) UOMN/100mm
Total Tape Thickness without Liner (Metric) UOMmm
Backing Thickness (Metric)0.1
Minimum Operating Temperature (Celsius) UOMDegree
Backing (Carrier) Thickness (Imperial)4.1
Total Tape Thickness without Liner (Imperial)5.2
Overall Length (Imperial) UOMyd
Units per Case8.0
Overall Length (Imperial)36.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Height (Metric) UOMmm
Maximum Operating Temperature (Celsius)77.0
Back Side Adhesive Thickness (Imperial)1.1
Overall Width (Metric) UOMcm
Shelf Life in Months (From Date of Manufacture) UOMMonths
Elongation at Break1.3%
Back Side Adhesive Thickness (Imperial) UOMmil
Backing (Carrier) Thickness (Metric)0.1
Adhesion Strength26.0
Tensile Strength (Imperial)14.0
Backing MaterialVinyl
Backing (Carrier) Thickness (Metric) UOMmm
Overall Length (Metric)32.9
Backing Thickness (Metric) UOMmm
Maximum Operating Temperature (Celsius) UOMDegree
Adhesion Strength (Metric)28.0
Product ColorTransparent
Tensile Strength (Metric)270.0
Overall Height (Imperial) UOMmil
Overall Thickness (Imperial)5.3
Adhesive TypeRubber
Backing (Carrier) MaterialPVC
Total Tape Thickness without Liner (Imperial) UOMmil
ApplicationColor Coding Tools & Equipment; Electroplating and Anodizing Processes; Fine Line Masking; Floor and Safety Marking; General Use Vinyl; Paint Masking; Safety & Hazard Marking; Sealing Plate Edges Against Ink Penetration
Overall Width (Imperial)4.0
Overall Length (Metric) UOMm
Performance LevelHigh Performance
Units per Case UOMRoll
Overall Width (Imperial) UOMin
Overall Thickness (Imperial) UOMmil
