3M Products & Supplies

3M™ Wraparound Heat Shrink Cable Repair Sleeve HDCW-55/15-250, Length 9.8 in (250 mm), 5/case - 7000138424

Sold As: 5-Pack
SKU: 7000138424
MPN: 7000138424
Stock Item: Stock items typically ship within 2-3 business days
UPC: 04001895590573
3M ID: DE999965366
5 Digit UPC: 59057
$206.11 ($41.22 / Count)
Hurry up! Current stock:

Product Description

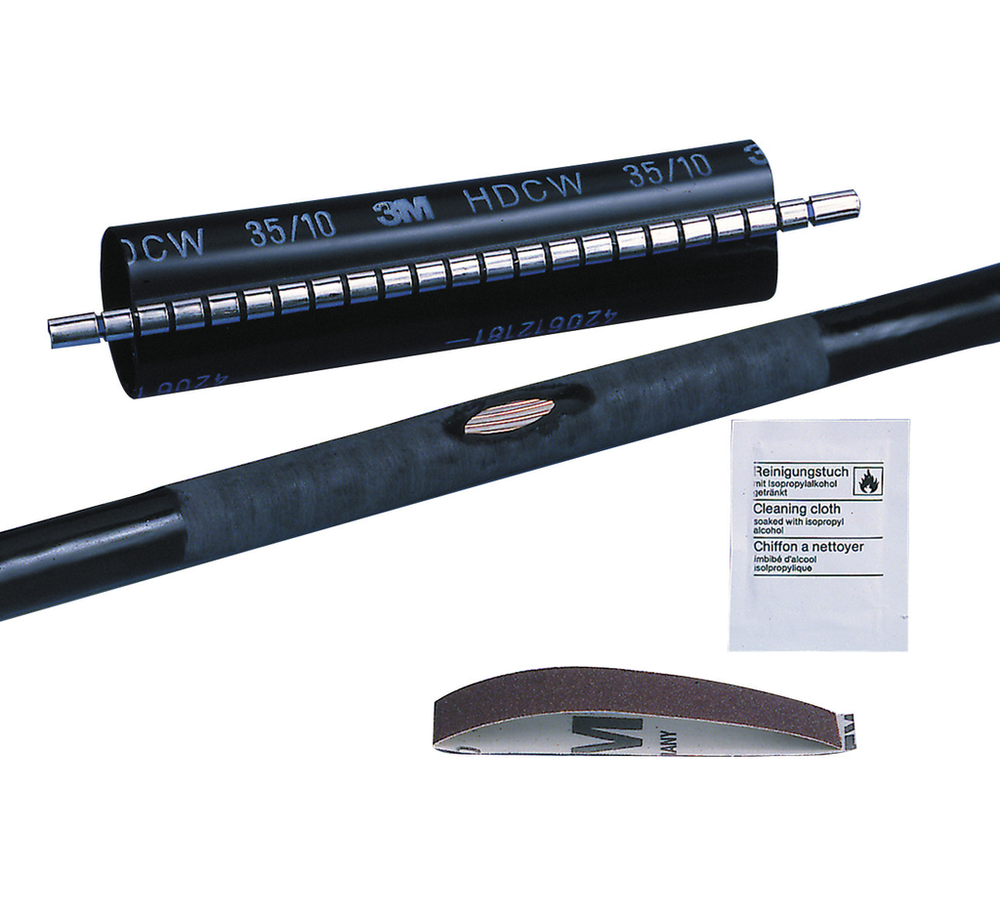

3M™ Heat Shrink Cable Repair Sleeve HDCW is designed to repair quickly damaged cable jacketing. This wraparound sleeve can be used as insulation material on cable and splices up to 1000V and as jacket repair material on cable up to 35 kV. The cross linked polyolefin construction has an adhesive that offers moisture seal protection.

Features

  • Made of adhesive-lined, cross-linked polyolefin
  • Rated for 35 kV applications
  • ANSI Certified and RoHS 2011/65/EU Compliant
  • Thick-walled sheet is tough and reliable
  • Excellent protection against mechanical stress
  • Offers excellent corrosion protection on undamaged cables

Downloads

Specifications

Shelf Life3600
Country of OriginGermany
Inner Diameter Before Shrink (Metric)75.0
Product TechnologyHeat Shrink
Inner Diameter After Shrink (Imperial) UOMin
Flame RetardantNo
Product ColorBlack
Voltage1 kV
Inner Diameter After Shrink (Metric)13.0
Cable TypeAny type of cable
Adhesive LinedYes
Splice ConfigurationHeat Shrink Cable Repair Wrap Sleeve (HDCW)
Inner Diameter Before Shrink (Imperial) UOMin
Elongation UOM%
Inner Diameter Before Shrink (Metric) UOMmm
Inner Diameter After Shrink (Imperial)0.5
Minimum Shrink Temperature (Celsius)125.0
UV ResistantYes
Jacket Repair Range0.59 to 2.17 Inch
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Inner Diameter Before Shrink (Imperial)2.95
Maximum Voltage Rating1 kV to 35 kV
Splice TypeHeat Shrink
Dielectric Strength (V/mil)16 kV/mm
Sleeve Length9.8
MaterialAdhesive-lined, Cross-Linked Polyolefin
Halogen FreeYes
Overall Length (Imperial) UOMin
Minimum Expanded Tubing I. D.2.68
Product TypeSplice
Overall Length (Metric) UOMmm
Inner Diameter After Shrink (Metric) UOMmm
Overall Length (Imperial)9.8
Units per Case5.0
Product FormSleeve-roll
Overall Length (Metric)250.0
Minimum Expanded Tubing I. D. UOMin
Heat Shrink TypeHeat Shrink Molded Shapes
Sleeve Length UOMin
Chemical ResistantYes
