3M Products & Supplies

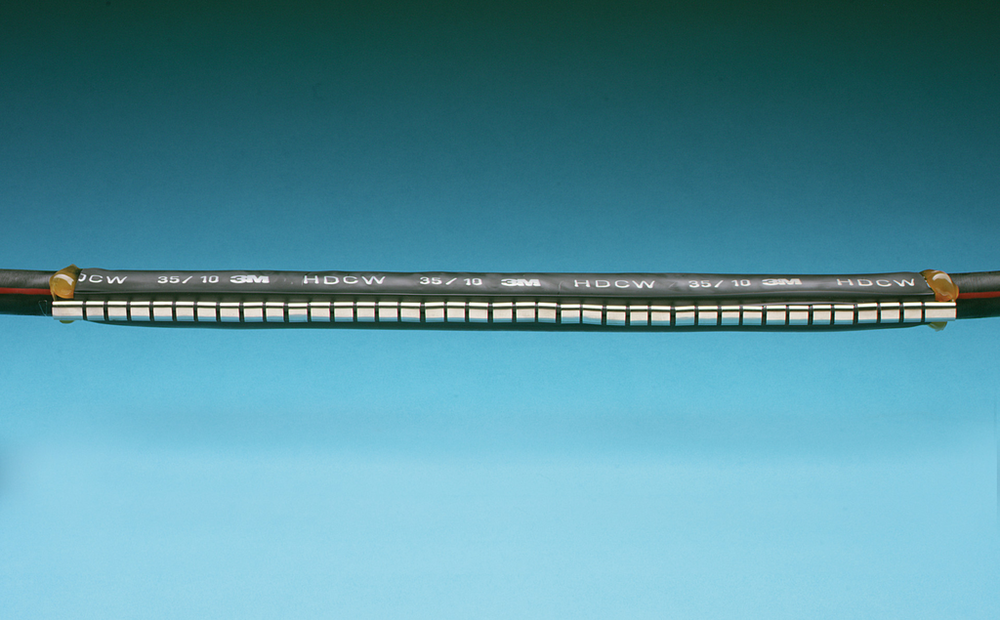

3M™ Wraparound Heat Shrink Cable Repair Sleeve HDCW-80/25-1200, Length 47.2 in (1200 mm), 5/case - 7000138431

Sold As: 5-Pack
SKU: 7000138431
MPN: 7000138431
Stock Item: Stock items typically ship within 2-3 business days
UPC: 04001895591006
3M ID: DE999965655
5 Digit UPC: 59100
$957.75 ($191.55 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Cable Repair Sleeve HDCW is designed to repair quickly damaged cable jacketing. This wraparound sleeve can be used as insulation material on cable and splices up to 1000V and as jacket repair material on cable up to 35 kV. The cross linked polyolefin construction has an adhesive that offers moisture seal protection.

Features

  • Excellent protection against mechanical stress
  • ANSI Certified and RoHS 2011/65/EU Compliant
  • Rated for 35 kV applications
  • Offers excellent corrosion protection on undamaged cables
  • Made of adhesive-lined, cross-linked polyolefin
  • Thick-walled sheet is tough and reliable

Downloads

Specifications

Country of OriginGermany
UV ResistantYes
Units per Case5.0
Product TypeSplice
Minimum Expanded Tubing I. D. UOMin
Adhesive LinedYes
Inner Diameter After Shrink (Metric) UOMmm
Inner Diameter Before Shrink (Metric) UOMmm
Maximum Voltage Rating1 kV to 35 kV
MaterialAdhesive-lined, Cross-Linked Polyolefin
Inner Diameter Before Shrink (Imperial) UOMin
Cable TypeAny type of cable
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Length (Metric)1200.0
Operating Temperature Range (Celsius)-40 °C to 100 °C
Product ColorBlack
Jacket Repair Range0.98 to 3.15 Inch
Inner Diameter Before Shrink (Imperial)3.94
Sleeve Length UOMin
Halogen FreeYes
Inner Diameter After Shrink (Imperial)0.9
Voltage1 kV
Flame RetardantNo
Inner Diameter After Shrink (Metric)23.0
Inner Diameter After Shrink (Imperial) UOMin
Heat Shrink TypeHeat Shrink Molded Shapes
Splice ConfigurationHeat Shrink Cable Repair Wrap Sleeve (HDCW)
Chemical ResistantYes
Overall Length (Imperial) UOMin
Elongation UOM%
Overall Length (Metric) UOMmm
Product TechnologyHeat Shrink
Product FormSleeve-roll
Inner Diameter Before Shrink (Metric)100.0
Splice TypeHeat Shrink
Overall Length (Imperial)47.2
Minimum Expanded Tubing I. D.3.66
Minimum Shrink Temperature (Celsius)125.0
Sleeve Length47.2
