Industrial 3M Products & Supplies 3M ZWB Series Housing 6ZWB3, 4550901, 1/Case 35523

$29,348 09 each

Made to Order:: Average lead time is 80 days
UPC:: 00638060355237
SKU:: 7100217757
3M ID:: 70020351774
5 Digit UPC:: 35523
Country of Origin:: USA
Manufacturer:: 3M

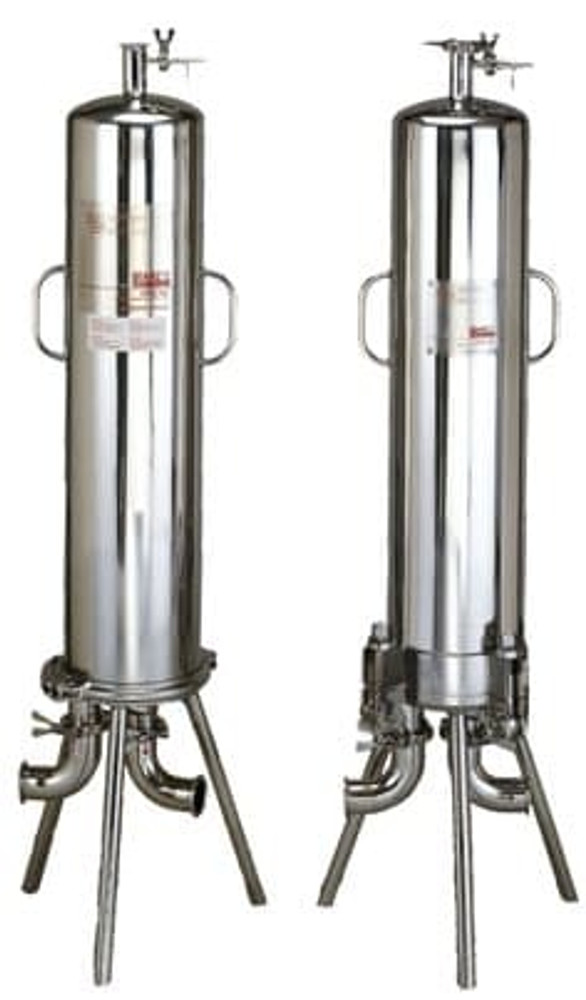

The 3M ZWB Series Housing is a multi-cartridge housing designed to accommodate three, five, eight or twelve Single Open End filter cartridges up to 40 inches long. Three-high housings are the most common with other configurations available upon request. The design uses swing bolt closures to secure the housing dome to the base for operation up to 150 psi (10.3 bar) at 212o F.

Accepts 3M Purification Inc. sanitary style 226 double O-ring filters, which lock into place assuring secure installation
Clean-in-place/steam-in-place design permits easy cleaning
Housings accommodate from three (3) to twelve (12) 10", 20", 30" or 40" cartridges, suitable for a broad range of flow rates
Optional sanitary vent valve available provides easy venting
Polished sanitary 316L stainless steel construction reduces bacterial/particle adhesion, eases cleaning, and increases resistance to corrosion
Swing bolt closures offer convenient secure sealing with the housings rated to 150 psi
User friendly vertical design with sanitary connections reduces floor space requirements and reduces disassembly time for cleaning
