3M ZWB Series Housing 8ZWB3, 7061603, 1/case 19292 Industrial 3M Products & Supplies

SKU: 7100066573
Made to Order: For a lead time estimate, please send your request to orders@strobelssupply.com
UPC: 00016145192920
3M ID: 70020205350
5 Digit UPC: 19292
Country of Origin: India
Manufacturer: 3M
$11,064.49 each
Hurry up! Current stock:
Product Description

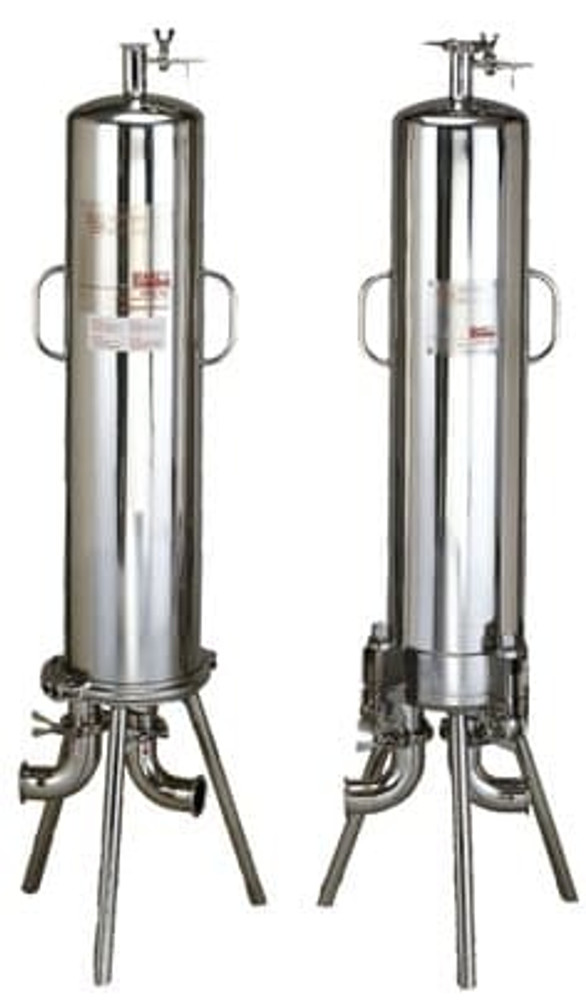

The 3M ZWB Series Housing is a multi-cartridge housing designed to accommodate three, five, eight or twelve Single Open End filter cartridges up to 40 inches long. Three-high housings are the most common with other configurations available upon request. The design uses swing bolt closures to secure the housing dome to the base for operation up to 150 psi (10.3 bar) at 212o F.

Extra Details

  • Accepts 3M Purification Inc. sanitary style 226 double O-ring filters, which lock into place assuring secure installation
  • Clean-in-place/steam-in-place design permits easy cleaning
  • Housings accommodate from three (3) to twelve (12) 10, 20", 30" or 40" cartridges, suitable for a broad range of flow rates"
  • Optional sanitary vent valve available provides easy venting
  • Polished sanitary 316L stainless steel construction reduces bacterial/particle adhesion, eases cleaning, and increases resistance to corrosion
  • Swing bolt closures offer convenient secure sealing with the housings rated to 150 psi
  • User friendly vertical design with sanitary connections reduces floor space requirements and reduces disassembly time for cleaning

Data Sheet

  1. Safety Data Sheet
