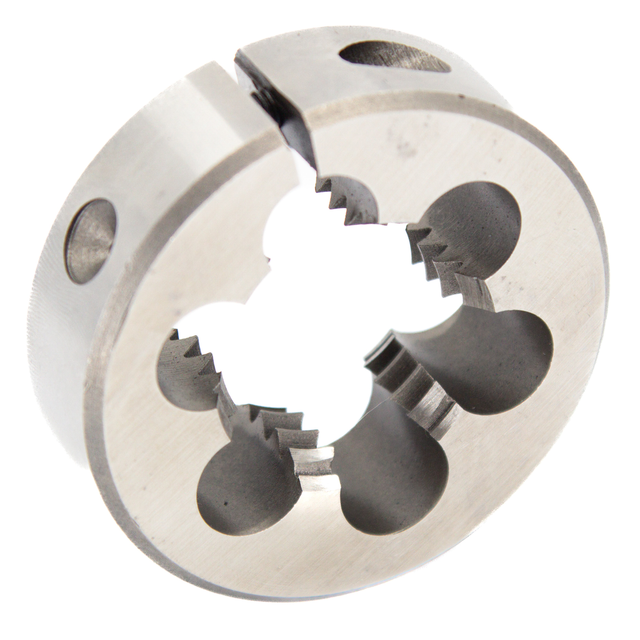

5/16"-27 UNS X 13/16" OD HSS Round Adjustable Die - DWTSR1316-51627

Name: 5/16"-27 UNS X 13/16" OD HSS Round Adjustable Die - DWTSR1316-51627
Brand: Drill America
SKU: DWTSR1316-51627
Price: 20.37 USD
Availability: InStock

SKU: DWTSR1316-51627

MPN: DWTSR1316-51627

Stock Item: Stock items typically ship within 2-3 business days

UPC: 887861113533

$20.37 each

Hurry up! Current stock:

Quantity:

Product Description

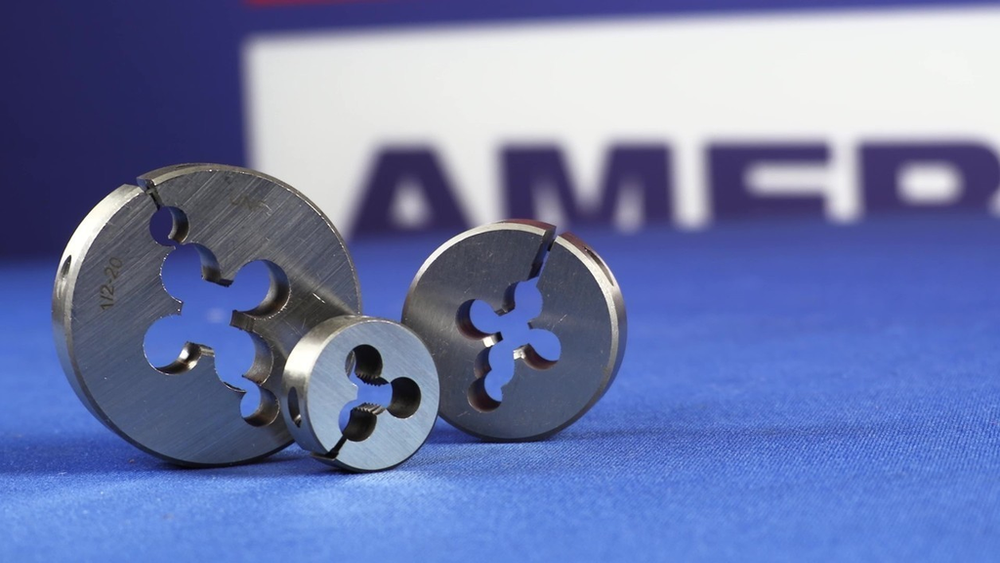

HSS Round Dies are for use in making new threads or re-threading existing threads. They are good for most general purpose applications, offering a combination of hardness and toughness for wear resistance. Round dies are chamfered on both faces, one side has a 2 to 3 thread chamfer for threading and the other side has a 1 to 1-1/2 thread chamfer for threading close to a shoulder. Adjustments are made by a fine pitch screw which forces the sides of the die apart, or allows them to spring together. The slot is beveled so that when the dies are used in a machine holder the adjusting screw can be removed and adjustment made by the adjusting screws in the holder.

Features

Round die is chamfered on both faces
One side has a 2 to 3 thread chamfer for threading, the other side has a 1 to 1-1/2 thread chamfer for threading close to a shoulder
Adjustment is obtained by a fine pitch screw which forces the sides of the die apart, or allows them to spring together
The slot is beveled so that when the dies are used in a machine holder the adjusting screw can be removed and adjustment made by the adjusting screws in the holder
Good for most general purpose applications, offering a combination of hardness and toughness for wear resistance

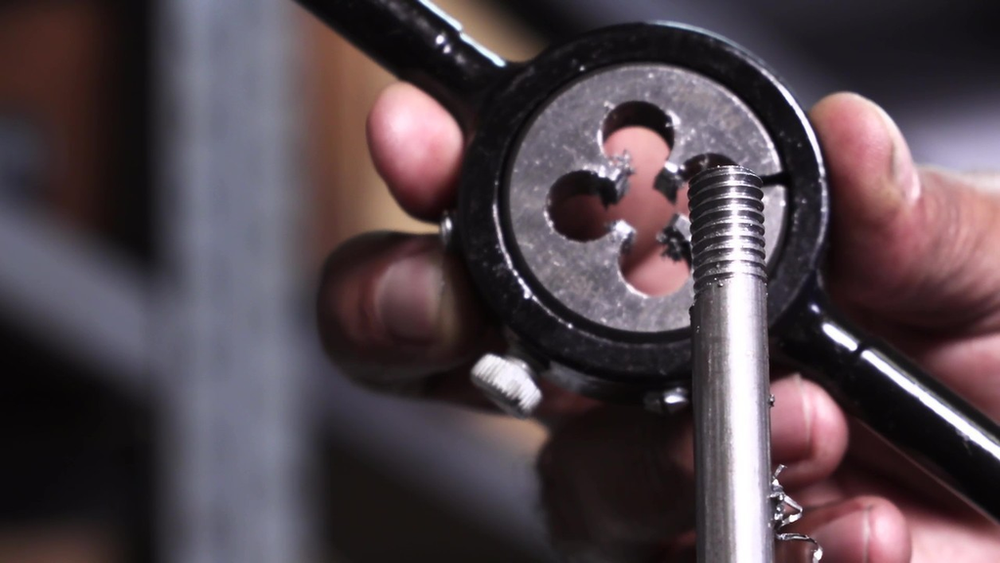

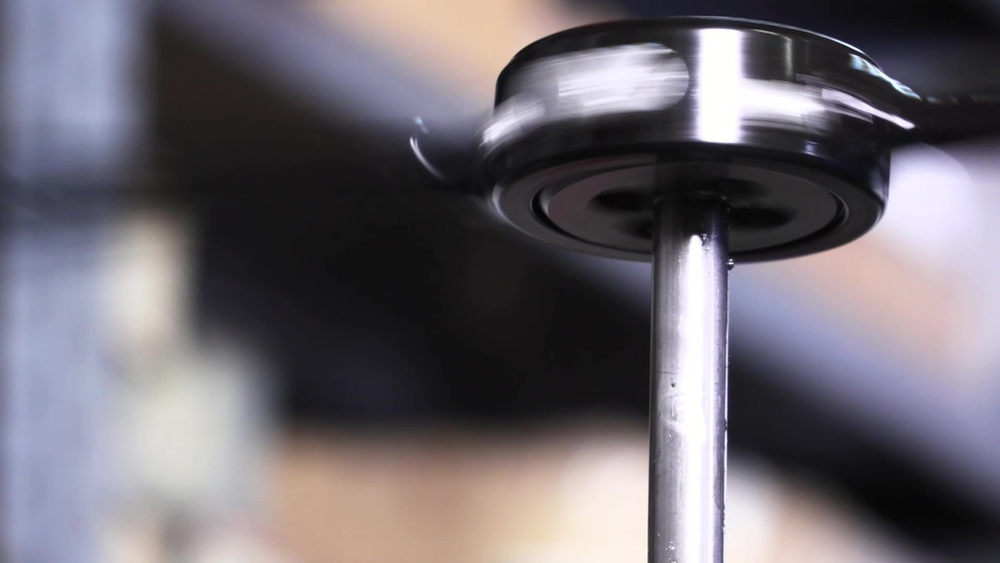

For use in making new threads or re-threading existing threads

Prop 65

WARNING: This product contains Cobalt and/or Nickel and/or Lead a chemical known to the state of California to cause cancer, or birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov

Specifications

Material	High Speed Steel
Finish	Uncoated (Bright)
Thread Size	5/16"
Outer Diameter	13/16"
Corresponding Die Stock	13/16"
Size	5/16"-27
Thread Type	UNS
Country of Origin	China
