Drill America

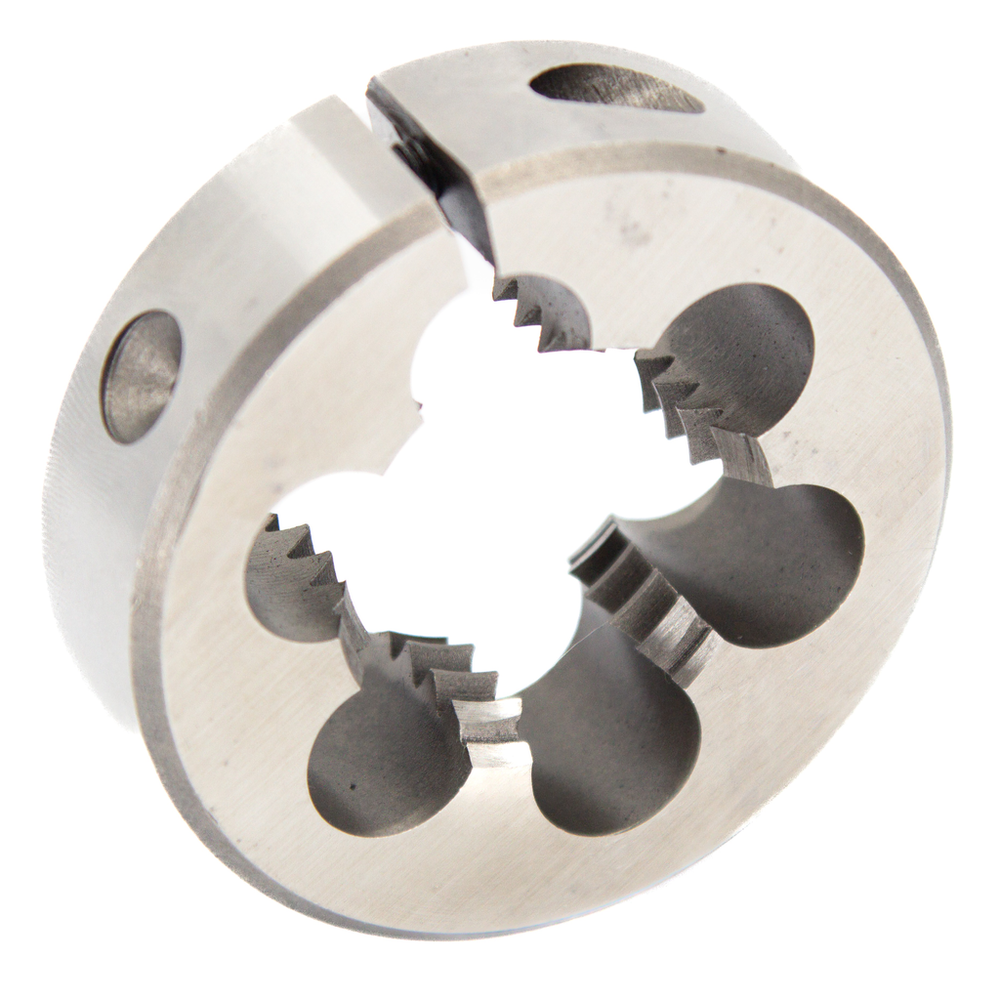

5/8"-18 UNF X 2" OD HSS Left Round Adjustable Die - DWTH2-5818LH

Name: 5/8"-18 UNF X 2" OD HSS Left Round Adjustable Die - DWTH2-5818LH
Brand: Drill America
SKU: DWTH2-5818LH
Price: 70.69 USD
Availability: InStock

SKU: DWTH2-5818LH

MPN: DWTH2-5818LH

Stock Item: Stock items typically ship within 2-3 business days

UPC: 887861102902

$70.69 each

Hurry up! Current stock:

Quantity:

Product Description

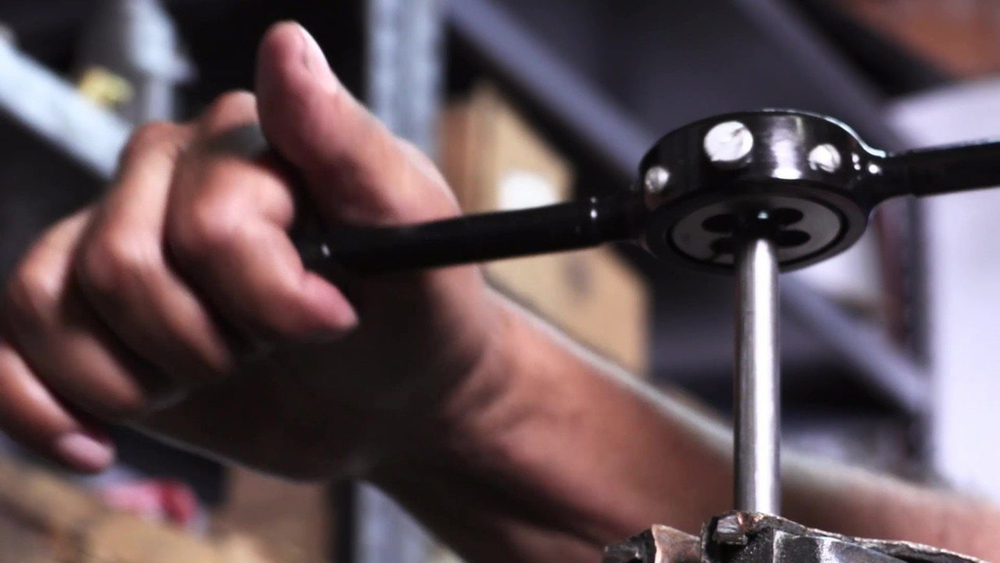

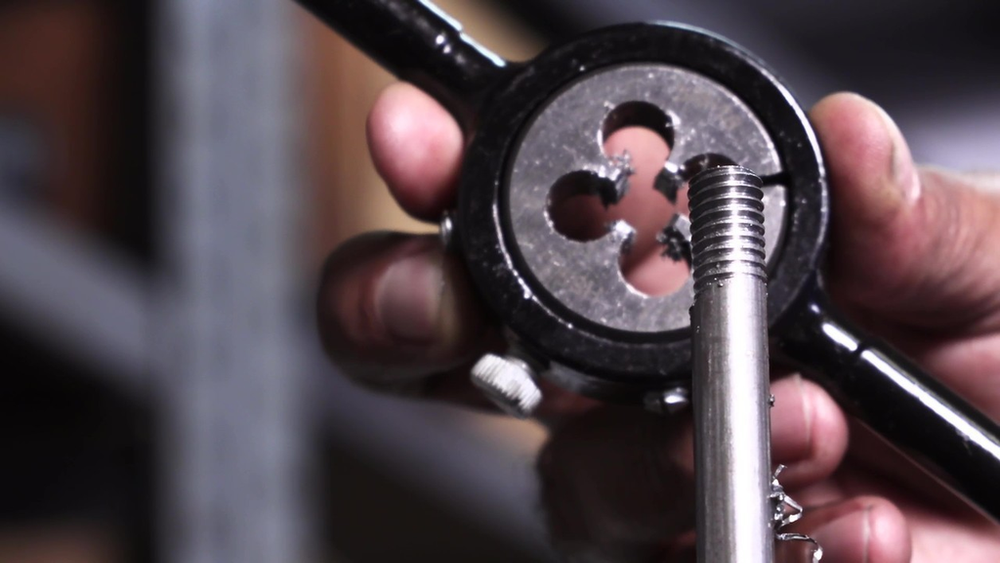

HSS Round Dies are for use in making new threads or re-threading existing threads. They are good for most general purpose applications, offering a combination of hardness and toughness for wear resistance. Round dies are chamfered on both faces, one side has a 2 to 3 thread chamfer for threading and the other side has a 1 to 1-1/2 thread chamfer for threading close to a shoulder. Adjustments are made by a fine pitch screw which forces the sides of the die apart, or allows them to spring together. The slot is beveled so that when the dies are used in a machine holder the adjusting screw can be removed and adjustment made by the adjusting screws in the holder.

Prop 65

WARNING: This product contains Cobalt and/or Nickel and/or Lead a chemical known to the state of California to cause cancer, or birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov

Features

Good for most general purpose applications, offering a combination of hardness and toughness for wear resistance
Round die is chamfered on both faces
For use in making new threads or re-threading existing threads
One side has a 2 to 3 thread chamfer for threading, the other side has a 1 to 1-1/2 thread chamfer for threading close to a shoulder
Adjustment is obtained by a fine pitch screw which forces the sides of the die apart, or allows them to spring together
The slot is beveled so that when the dies are used in a machine holder the adjusting screw can be removed and adjustment made by the adjusting screws in the holder

Specifications

Material	High Speed Steel
Finish	Uncoated (Bright)
Outer Diameter	2"
Corresponding Die Stock	2"
Country of Origin	China
Size	5/8"-18
Thread Size	5/8"
Thread Type	UNF
