7/16"-20 UNF HSS Left 4 Flute Taper Tap - DWT60795

Name: 7/16"-20 UNF HSS Left 4 Flute Taper Tap - DWT60795
Brand: Drill America
SKU: DWT60795
Price: 10.06 USD
Availability: InStock

SKU: DWT60795

MPN: DWT60795

Stock Item: Stock items typically ship within 2-3 business days

UPC: 887861078566

$10.06 each

Hurry up! Current stock:

Quantity:

Product Description

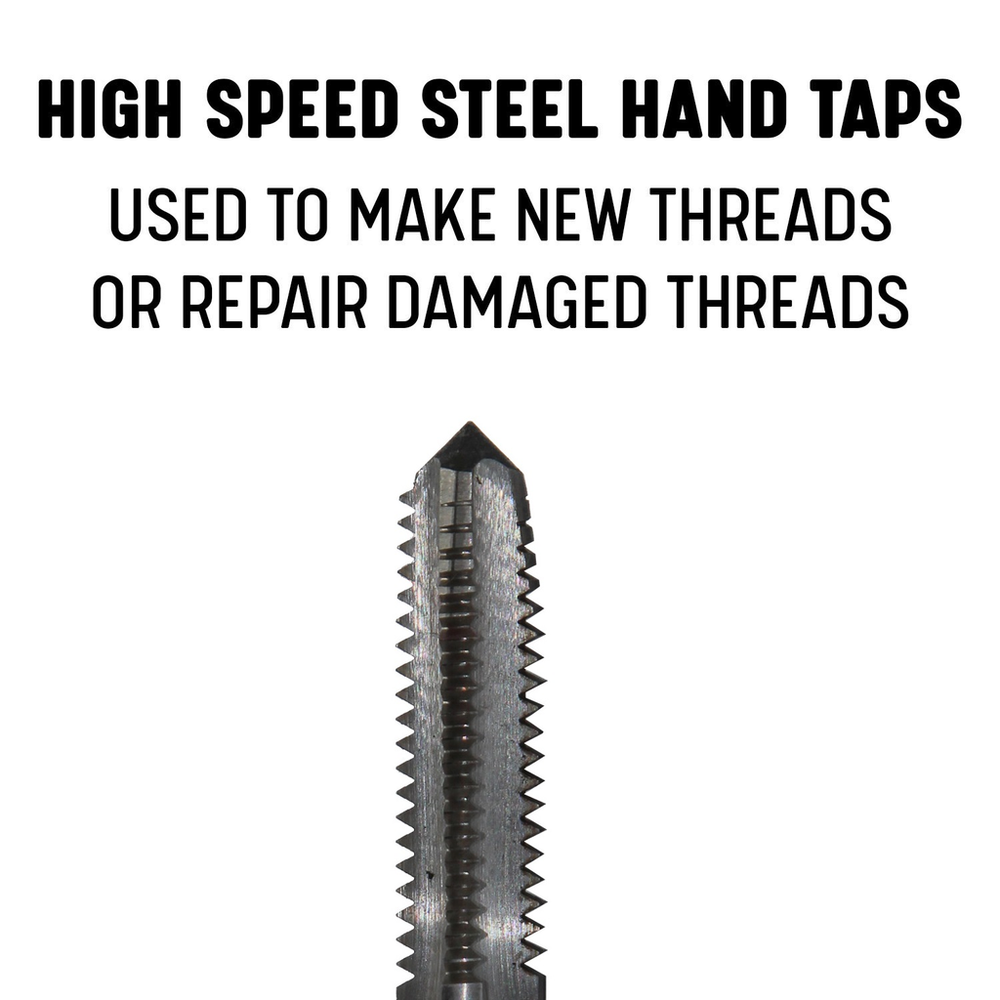

HSS reverse thread, also called left hand thread taps are used to make new threads or re-thread damaged and or jammed threads. Hand Taps are the most versatile taps for hand use. They are popular for use in general machine tapping Appropriate for tapping the vast majority of materials in through or blind holed conditions. Hand Taps come in three styles Taper, Plug or Bottoming.

Features

Reverse (left hand) thread tap

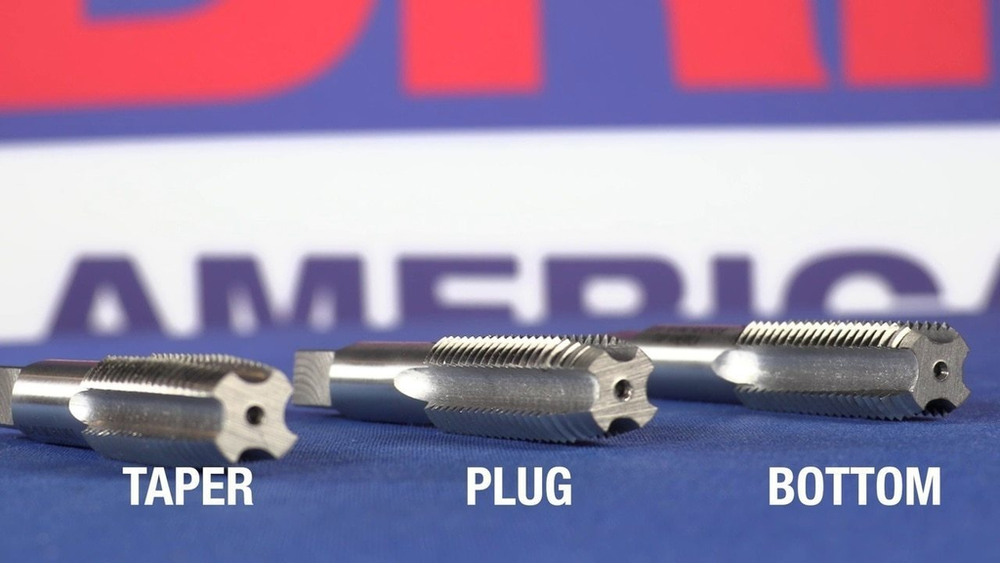

Taper Style: Starts the thread square with the workpiece. Plug Style: Generally used in thru holes. Bottom Style: Generate the thread to the bottom of the hole. A tap set contains 1 taper, 1 plug and 1 bottoming tap.
Hand Taps are the most versatile taps for hand use
They are popular for use in general machine tapping
Hand Taps come in three styles Taper, Plug or Bottoming
Used to make new threads or re-thread damaged and or jammed threads
Appropriate for tapping the vast majority of materials in through or blind holed conditions

Prop 65

WARNING: This product contains Cobalt and/or Nickel and/or Lead a chemical known to the state of California to cause cancer, or birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov

Specifications

Material	High Speed Steel
Finish	Uncoated (Bright)
Size	7/16"-20
Country of Origin	China
Overall Length	3-5/32"
Shank Type	Square
Type	Taper
Thread Standard	UNF
Number of Flutes	4
Tap Drill Size	25/64"
