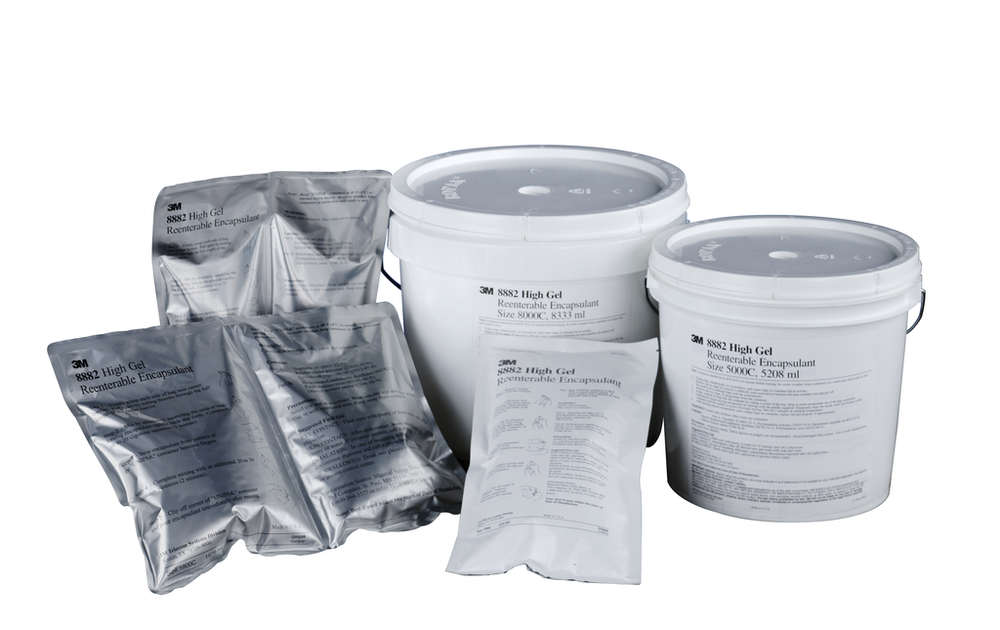

8882-5000C 5208ML High Gel Reenterable Encapsulant
8882-5000C 5208ML High Gel Reenterable Encapsulant
8882-5000C 5208ML High Gel Reenterable Encapsulant
Previous Next

3M Products & Supplies

8882-5000C 5208ML High Gel Reenterable Encapsulant

SKU: 7100043406
MPN: 7100043406
Made to Order: For a lead time estimate, please send your request to orders@strobelssupply.com
UPC: 00051138754761
3M ID: 80611166101
Case Qty: 2
$436.22
Hurry up! Current stock:
Product Description
3M Scotchcast Re-Enterable Electrical Insulating Resin 2123 is a soft, two-part polybutadiene resin encapsulant. This resin has good handling and performance characteristics and is formulated for re-enterable splice protection. This multi purpose, moisture sealing resin bonds to nearly all cable jackets.
3M Scotchcast Electrical Insulating Resin 2123 has good wetting and low viscosity properties. This soft flexible resin ensures curing at room temperature and acts as an insulating material for cable splices operating up to 1 kV. It flows easily, even at low temperatures, while filling the enclosure and minimizing voids. It is tested according to ASTM, CENELEC HD 623.S1 (EN50393) standard and is 2011/65/EU (RoHS) as well as 1907/2007/EC (REACH) compliant.

Extra Details

  • 3M Scotchcast Easy Dispenser 250: Mixing of resin components is by a static mixer and delivered together with cartridge
  • Elongates 300% longer than its original size for easy insulation or wrapping
  • Excellent wetting properties and low viscosity
  • Has 62 minute gel time at 23 °C (73 °F)
  • High performance re-enterable resin in bag package for sealing and insulating low voltage cables connections in electrical boxes
  • Rated up to 1 kV
  • RoHS 2011/65/EU and REACH Compliant
  • Typical hardness (ASTM D2240) - 0 Shore A
  • Useful for sealing and electrical insulation in potting applications
  • Withstands a max temperature in continuous use of 90 °C (194 °F)

Data Sheet
