m6.3 X 1 1" OD HSS Round Adjustable Die Special - DWTSMR1-6.3X1

Name: m6.3 X 1 1" OD HSS Round Adjustable Die Special - DWTSMR1-6.3X1
Brand: Drill America
SKU: DWTSMR1-6.3X1
Price: 28.53 USD
Availability: InStock

SKU: DWTSMR1-6.3X1

MPN: DWTSMR1-6.3X1

Stock Item: Stock items typically ship within 2-3 business days

UPC: 887861109888

$28.53 each

Hurry up! Current stock:

Quantity:

Product Description

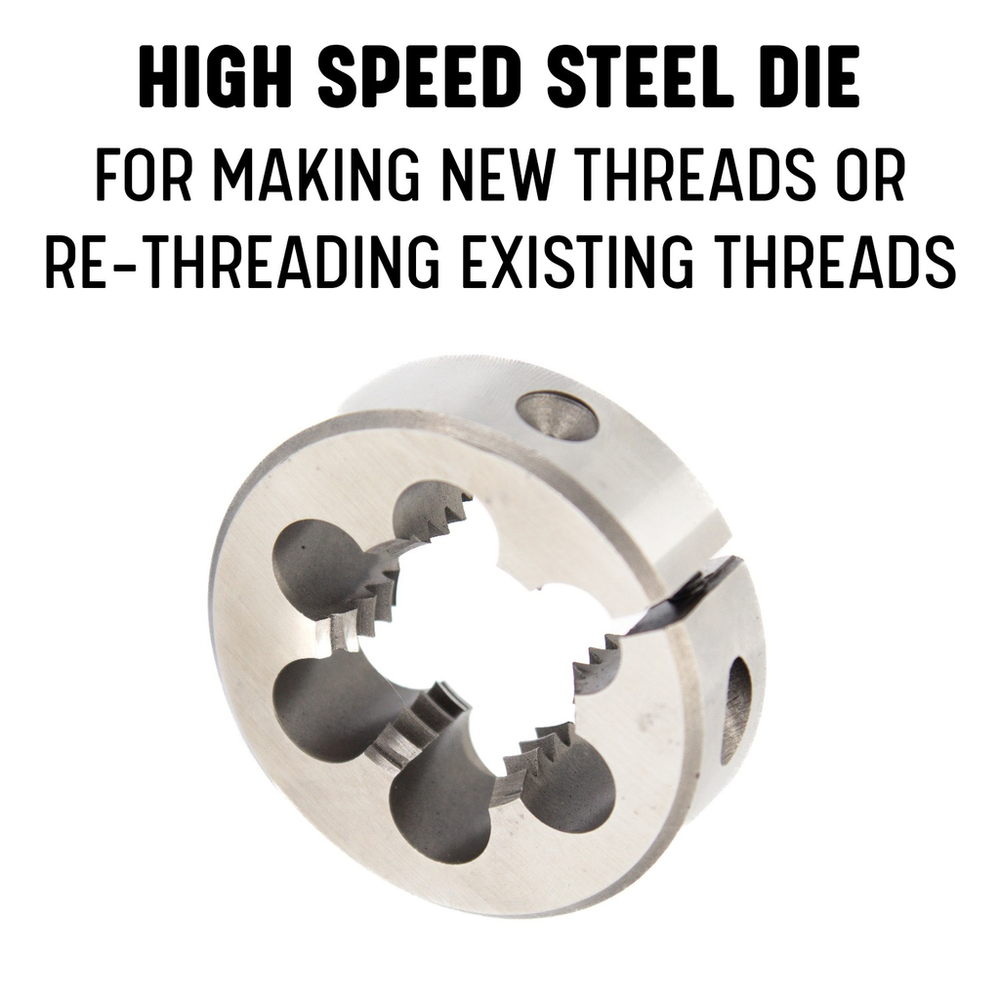

HSS Round Dies are for use in making new threads or re-threading existing threads. They are good for most general purpose applications, offering a combination of hardness and toughness for wear resistance. Round dies are chamfered on both faces, one side has a 2 to 3 thread chamfer for threading and the other side has a 1 to 1-1/2 thread chamfer for threading close to a shoulder. Adjustments are made by a fine pitch screw which forces the sides of the die apart, or allows them to spring together. The slot is beveled so that when the dies are used in a machine holder the adjusting screw can be removed and adjustment made by the adjusting screws in the holder.

Prop 65

WARNING: This product contains Cobalt and/or Nickel and/or Lead a chemical known to the state of California to cause cancer, or birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov

Features

For use in making new threads or re-threading existing threads
One side has a 2 to 3 thread chamfer for threading, the other side has a 1 to 1-1/2 thread chamfer for threading close to a shoulder
Good for most general purpose applications, offering a combination of hardness and toughness for wear resistance
Round die is chamfered on both faces
The slot is beveled so that when the dies are used in a machine holder the adjusting screw can be removed and adjustment made by the adjusting screws in the holder
Adjustment is obtained by a fine pitch screw which forces the sides of the die apart, or allows them to spring together

Specifications

Material	High Speed Steel
Finish	Uncoated (Bright)
Country of Origin	China
Thread Type	UNS
Thread Size	m6.3
Outer Diameter	1"
Corresponding Die Stock	1"
Size	m6.3 x 1
