Fein Power Tools

Nibbler up to 10 gauge|BLK 3.5 - 72323000628

SKU: 72323000628
MPN: 72323000628
Stock Item: Stock items typically ship within 2-3 business days
UPC: 4014586853505
$2,635.27 each
Hurry up! Current stock:

Product Description

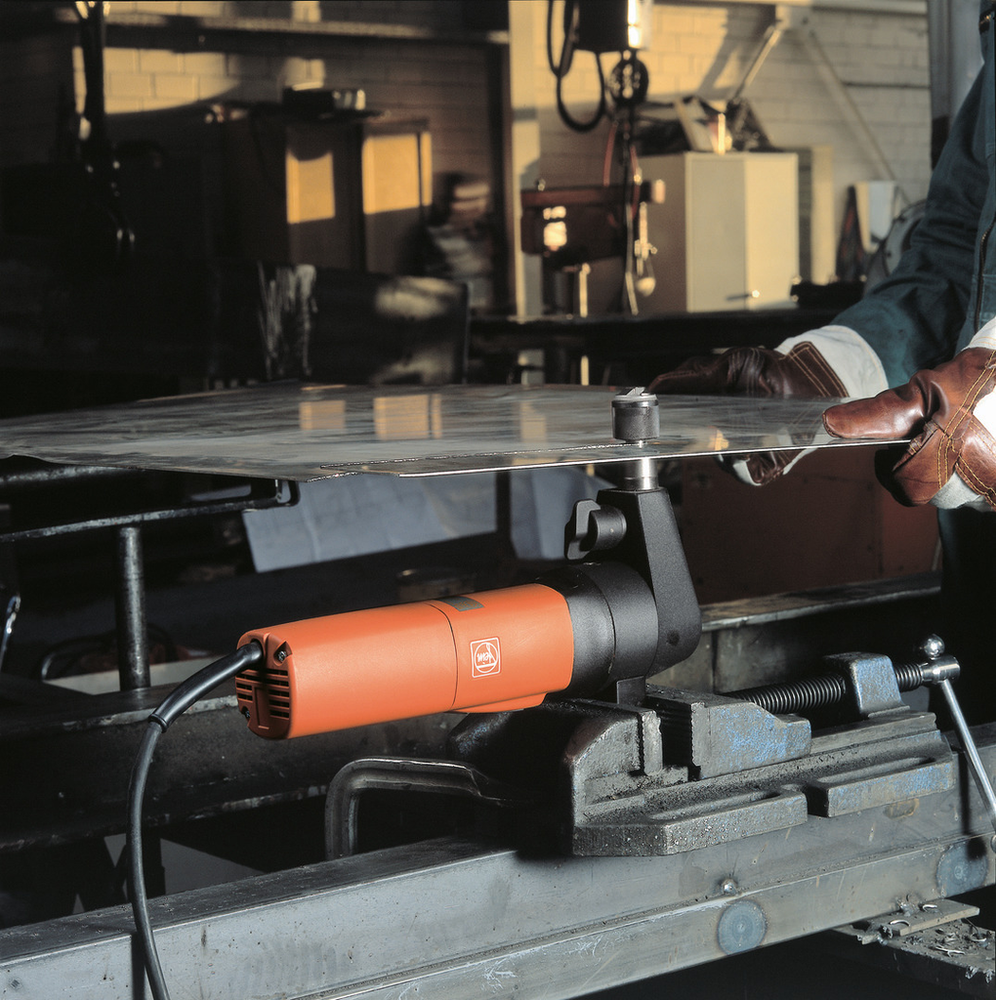

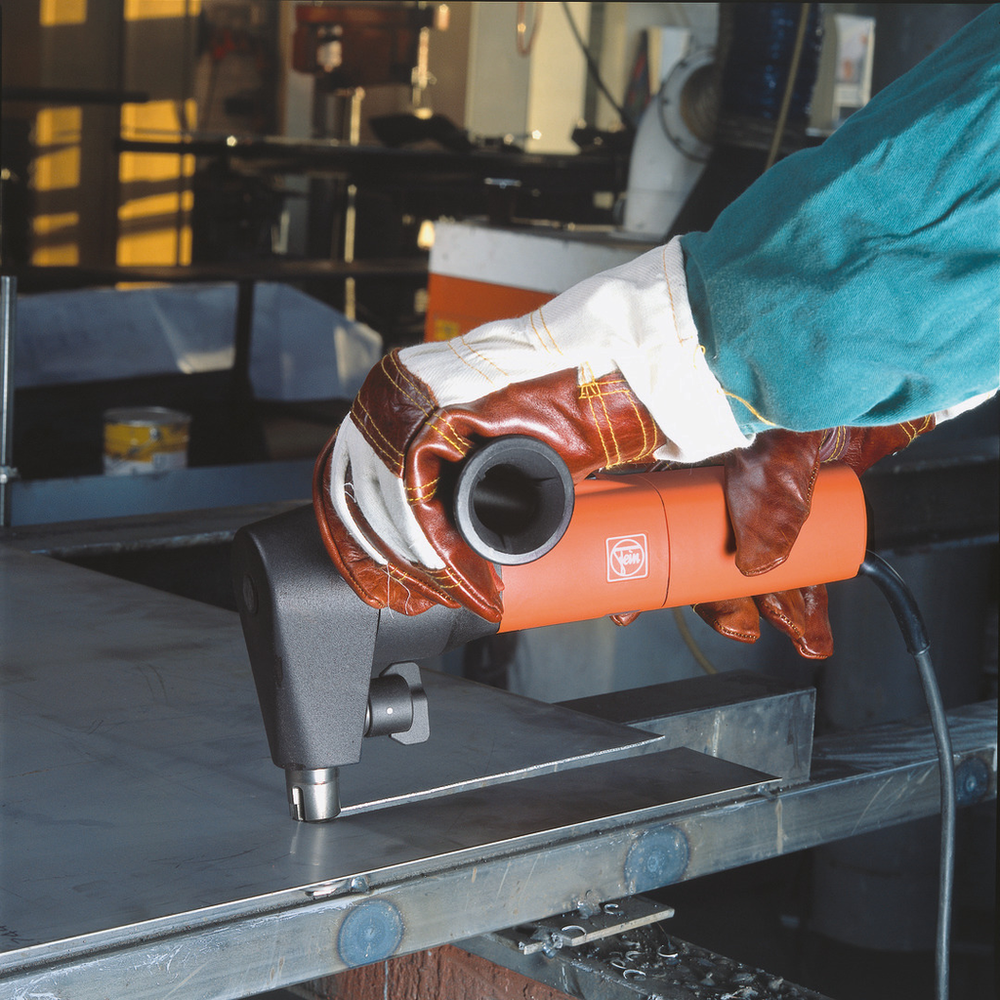

Nibbler up to 10 gauge|BLK 3.5|Powerful nibbler with unlimited curve-compatibility for grooves and cut-outs.

Features

  • Motor with outstanding performance and durability.
  • Optimum power-to-weight ratio.
  • Long tool life, punches can be reground.
  • Warp-free cutting of flat and bent sheet metal.
  • Best suited for grooves and cut-outs in sheet metals, tool can turn on the spot.
  • QuickIN rapid change system for rapid, tool-free punch and die changes.
  • Cutting direction can be adjusted in three 90° steps without the need for tools.

Specifications

Non-ferrous metals up to 36,000 lbf/in² (mm)3.5
Power consumption1,200 W
Weight (kg)3.50
Cutting speed (ft/min)4.3
Steel 116,000 lbf/in² (in)0.0709
Cable with plug (m)5
Immersion Ø with die (mm)30
Cutting width (mm)14
Power output750 W
Strokes750 spm
Cutting width (in)9/16
Cable with plug (ft)16.4
Steel 58,000 lbf/in² (in)0.1378
Cutting speed (m/min)1.3
Steel 87,000 lbf/in² (in)0.0906
Steel 116,000 lbf/in² (mm)1.8
Radius of smallest curve (inside/outside)1/4 [7] / in[mm]
Non-ferrous metals up to 36,000 lbf/in² (in)0.1378
Immersion Ø with die (in)1-3/16
Steel 87,000 lbf/in² (mm)2.3
Weight (lbs)7.72
Steel 58,000 lbf/in² (mm)3.5
