Fein Power Tools

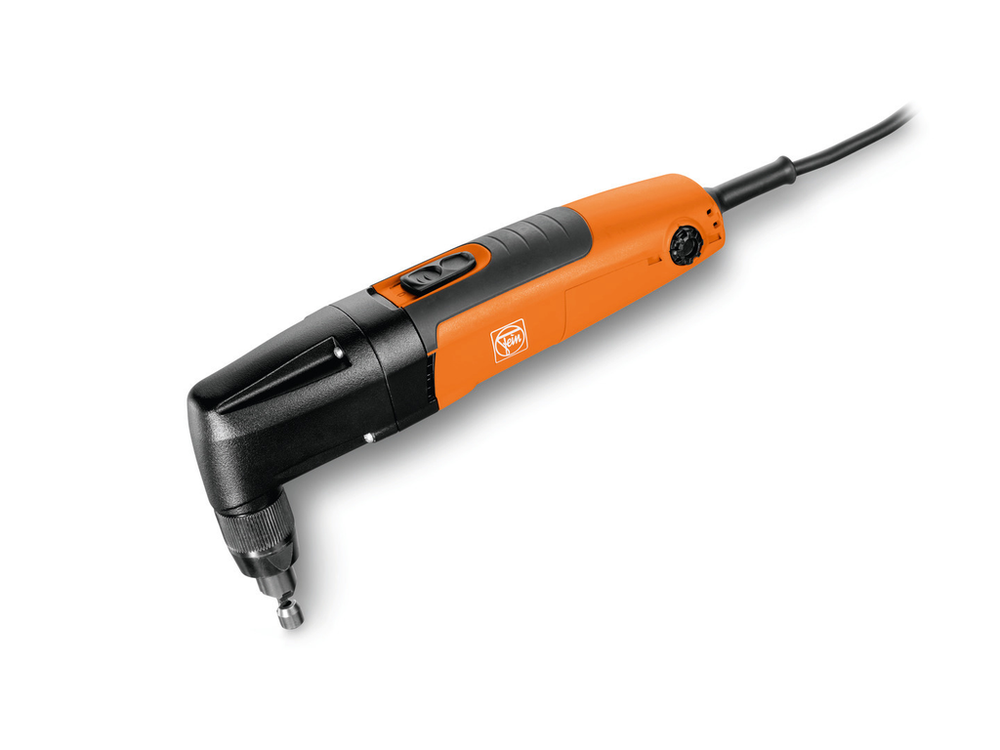

Nibbler up to 18 gauge|BLK 1.3 TE - 72324160120

SKU: 72324160120
MPN: 72324160120
Stock Item: Stock items typically ship within 2-3 business days
UPC: 4014586870090
$773.48
Hurry up! Current stock:

Product Description

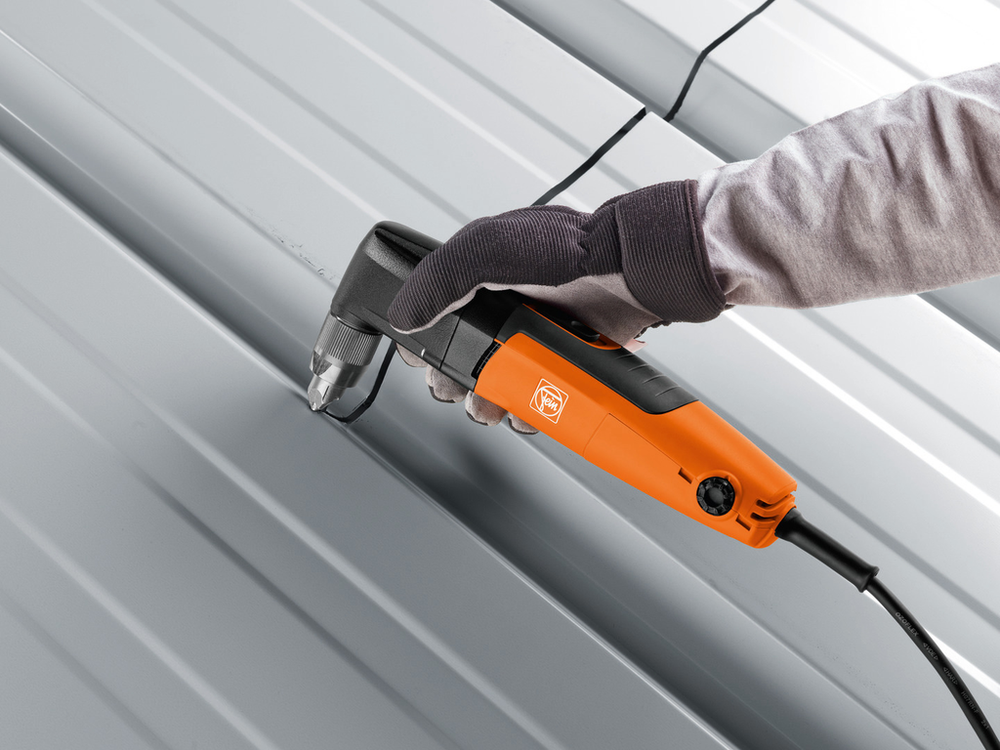

Nibbler up to 18 gauge|BLK 1.3 TE|Compact and rapid nibbler for trapezoid sheet metals.

Features

  • Rotating punch for up to 30% longer service life.
  • Cutting direction setting can be changed in 45° increments up to 360° using tool-free rotating cutting head.
  • 7.5 ft./min [2.3 m/min] cutting speed for excellent performance.
  • Chip protection mesh on vent slots.
  • Optimum ergonomics, including a motor housing that is up to 20% slimmer due to an extremely narrow drive head.
  • Low operating costs due to long tool life of punch and die.
  • Brief overlapping area up to 12 gauge [2.6 mm].

Specifications

Steel 116,000 lbf/in² (mm)0.6
Cutting speed (m/min)2.3
Steel 58,000 lbf/in² (mm)1.3
Cutting width (mm)4
Non-ferrous metals up to 36,000 lbf/in² (in)0.0787
Cable with plug (ft)16.4
Weight (kg)1.80
Steel 116,000 lbf/in² (in)0.0236
Steel 58,000 lbf/in² (in)0.0512
Power consumption350 W
Cutting width (in)3/16
Steel 87,000 lbf/in² (mm)0.8
Steel 87,000 lbf/in² (in)0.0315
Immersion Ø with die (mm)19
Cutting speed (ft/min)7.5
Radius of smallest curve (inside/outside)1 [25] / 1-1/4 [30] in[mm]
Power output210 W
Cable with plug (m)5
Non-ferrous metals up to 36,000 lbf/in² (mm)2.0
Strokes1,000 - 1,800 spm
Weight (lbs)3.97
Immersion Ø with die (in)3/4
