Pferd

PFERD Bearing Carbide Bur SK-6 EDGE Cut 45° 5/8" x 1/8", 1/4

Sold As: 50-Pack
SKU: 21725177
Stock Item: Stock items typically ship within 2-3 business days
UPC: 4007220140543
$128.09 ($2.56 / Count)
Hurry up! Current stock:

Product Description

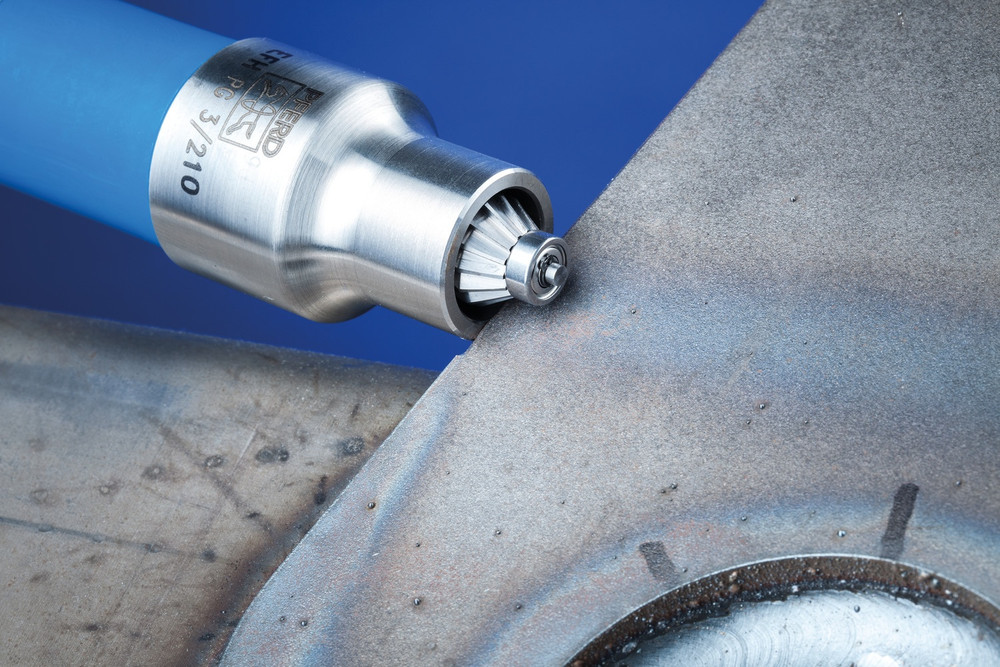

EDGE cut tungsten carbide burs have been specifically developed for precise work on edges. The special design allows the bur to run directly along edges without damaging the workpiece. Exact edges can be created in a single step - with either defined chamfers of 30° or 45°, or to a defined radius of 1/8". Rounding edges is a precautionary measure against corrosion according to: ISO 129443, ISO 85013, SOLAS XII/6.3 (Ref. T4/3.01 MSC.1/Circ.1198). Cone counterbore bur for producing precisely defined chamfers. Designed for counterboring and chamfering of defined 45° chamfer angles. The EDGE Cutting System includes EDGE cut burs and a special guide sleeve that can be mounted into a conventional power tool collet to ensure optimal guidance during light deburring work. The chamfers created using the EDGE Cutting System (ECS) are .047" (+/- .007") wide.

Specifications

Size5/8 Inch
ShapeEDGE

Features

  • Improved guidance.
  • Can be used with any conventional straight grinder.
  • Bur is interchangeable.
  • Special design allows for precise handling.
  • Safe and comfortable to guide.
  • Creates exact edge shapes in one single step.
  • The highly accurate concentricity enables precise work free from chatter marks. This considerably reduces wear on the bur and power tool or machine.
