Makita

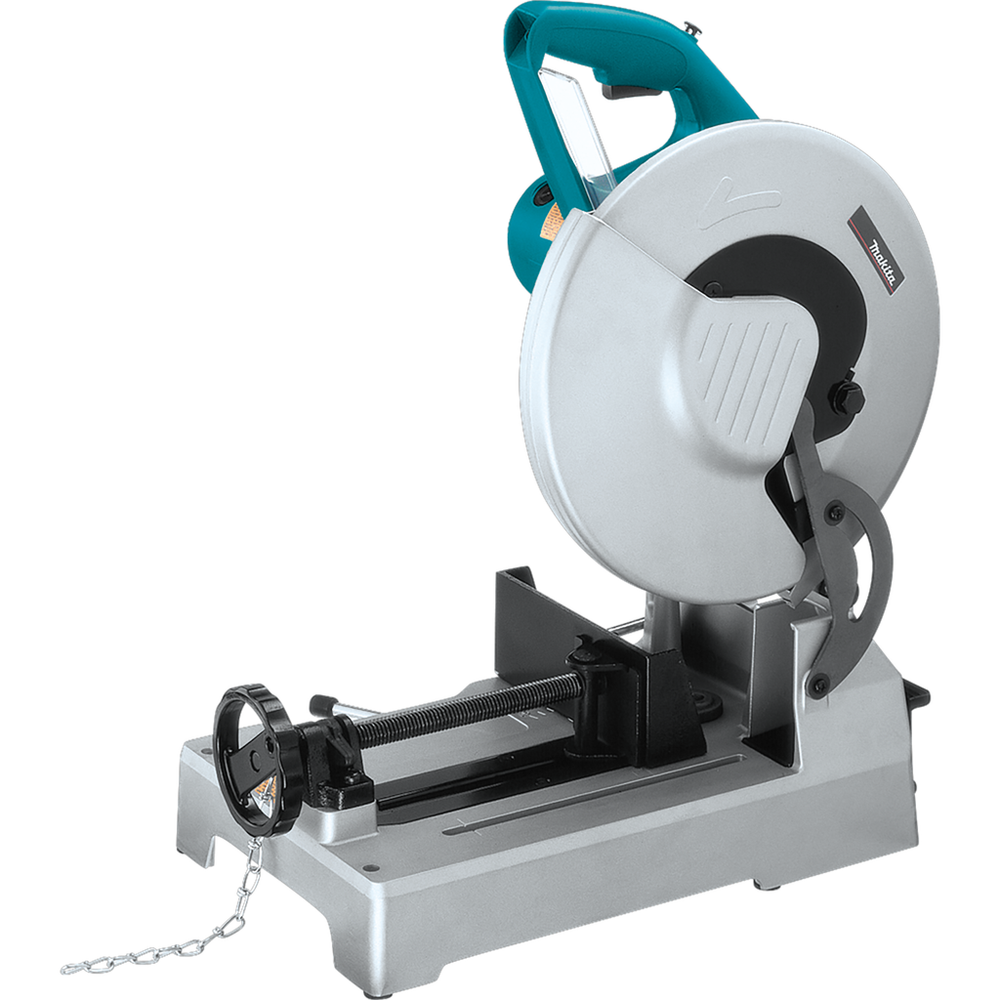

12" Metal Cutting Saw - LC1230

SKU: LC1230
MPN: LC1230
Stock Item: Typical lead time for Makita products is 1-2 weeks.
UPC: 088381029797
$719.00 each
Hurry up! Current stock:

Product Description

Makita's 12-Inch Metal Cutting Saw (model LC1230) delivers power and ease-of-use features for a range of industrial metal-cutting applications. It is ideal for cutting in pipe, angle iron, conduit, and more. 15 AMP Motor Delivers 1,700 RPM The LC1230 is powered by a Makita-built 15 amp motor that delivers 1,700 rpm for improved performance. The quick release "tool-less" guide plate adjusts from 0 degrees to 45 degrees for quick and easy miter cutting. Cutting capacities range from 4-1/2 inches at 90 degrees to 3-1/2 inches at 45 degrees. Ease of Use Features for Improved Performance Ease of use features include a quick release vise for secure material retention and fast repeated cut-offs, a socket wrench that stores on the base for convenient blade changes, and a shavings collection tray for easy waste disposal and a cleaner work environment. The LC1230 has a D-shaped handle with a 2-finger trigger and a lock-off button engineered to prevent accidental start-ups. The saw includes a carbide-tipped blade that lasts 50X longer than abrasive wheels and is engineered to cut clean, accurate and virtually burr-free.

Features

  • Socket wrench stores on base for convenient blade changes
  • Powerful 15.0 AMP motor for the most demanding applications
  • Lock-off button for user convenience
  • Large cast aluminum base for stability
  • Maximum cutting depth of 4-1/2" with carbide tipped blade
  • D-shape handle for user comfort
  • Quick release vise for secure material retention and fast, repeated cut-offs
  • 4x faster cutting in light pipe, angle iron, tubing, conduit and channel than abrasive cut-off saws
  • Carbide-tipped blade lasts 50x longer than abrasive wheels; cuts clean, accurate and virtually burr-free
  • Quick release support fence adjusts 0-45° for miter cutting
  • Externally accessible brushes for greater serviceability
  • Shaft lock for easy blade changes with just one wrench

Documents

Manuals

Specifications

No Tool Blade ChangeNo
AMPS15
Power TypeCorded
No Load Speed1,700 RPM
Power Tool Product TypeCorded
Blade Diameter12"
Arbor1"
Max. Cutting Capacity (at 45°)3-1/2"
Max. Cutting Capacity at 90° (mild steel)4-1/2"
Max. Cutting Capacity at 90° (aluminum)4-1/2"
Max. Cutting Capacity (at 90°)4-1/2"
Weight42.5 lbs
Length20-1/4 in
