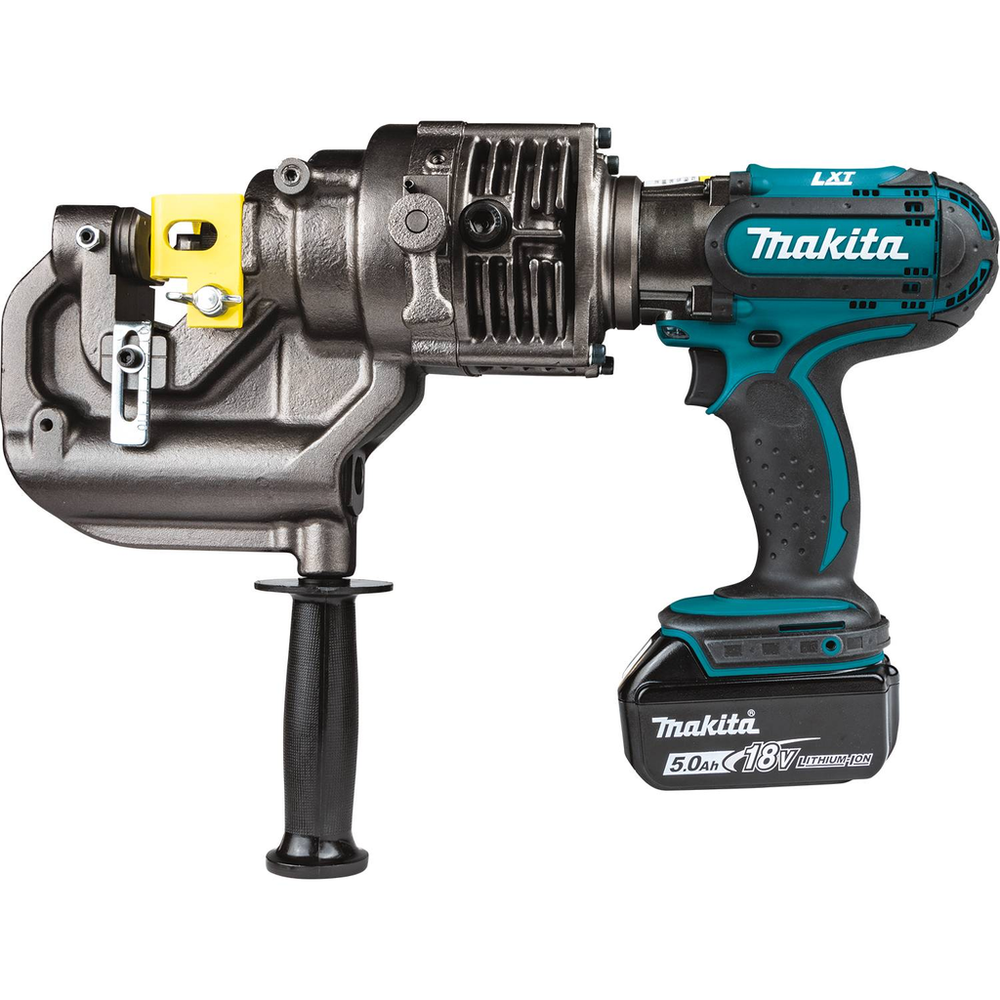

Punch holes in ¼” metal in under 5 seconds with the 18V LXT® Lithium-Ion Cordless 5/16" Hole Puncher Kit (XPP01T1K). The XPP01T1K allows hole punching with complete cordless mobility. It can punch up to 180 20MM (25/32”) diameter holes in 15/64” thick steel with a 5.0Ah 18V LXT Battery. The punch stop mechanism automatically retracts the die once a punch is complete to quickly continue operation. For select applications, hole punching just became fast and effortless! The ergonomic grip handle rotates 360°, allowing for optimal positioning in a variety of spaces. It features a rubberized soft grip for increased comfort on the job and a convenient side handle for additional support. The XPP01T1K is ideal for fabrication, HVAC, plumbing, electrical, mechanical and many more applications. It’s part of Makita’s expanding 18V LXT® System, the world’s largest cordless tool system powered by 18V lithium-ion slide-style batteries. Makita® 18V LXT® Lithium-Ion Batteries have the fastest charge times in their categories, so they spend more time working and less time sitting on the charger. For improved tool performance and extended battery life, Makita created Star Protection Computer Controls™. Star Protection is communication technology that allows the Star Protection-equipped tool and battery to exchange data in real time and monitor conditions during use to protect against overloading, over-discharging and overheating. For increased versatility, the tool can also be powered by Makita® 18V LXT® Lithium-Ion Batteries with the star symbol on the battery indicating Star Protection inside.
Features

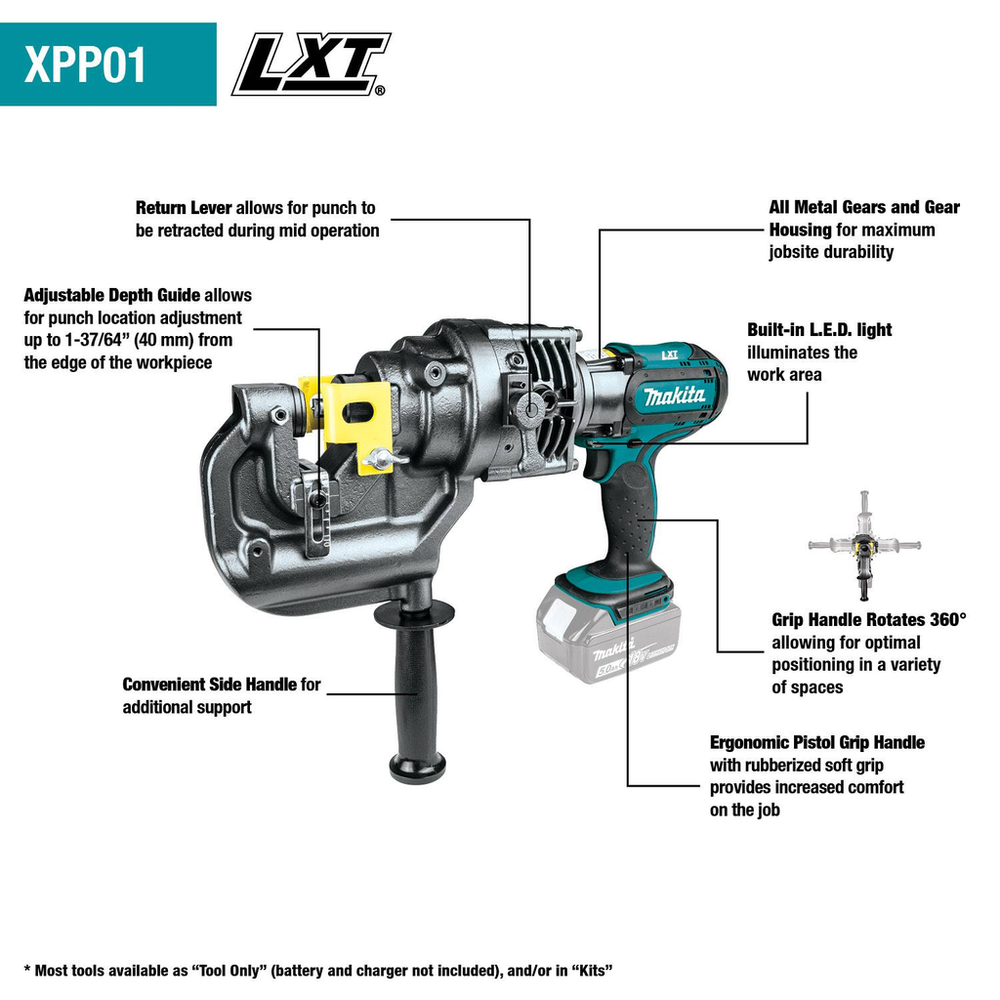

- Adjustable depth guide allows for punch location adjustment up to 1-37/64" (40 mm) from the edge of the workpiece
- Rapid Optimum Charger communicates with the battery's built-in chip throughout the charging process to optimize battery life by actively controlling current, voltage and temperature
- PRODUCTIVITY - Punch stop mechanism automatically retracts the die once a punch is complete
- Spanner Wrench 8mm/10mm (SC00000166)
- Equipped with Star Protection Computer Controls™ to protect against overloading, over-discharging and over-heating
- 18V LXT® Lithium-Ion 5.0Ah battery BL1850B reaches a full charge in 45 minutes or less
- INCLUDES - (1) 18V LXT® Lithium-Ion 5.0 Ah battery, rapid charger and tool case
- Return lever allows for the punch to be retracted during mid operation
- Hex Wrench 8mm
- Tool Case
- CAPACITY - Max metal plate thickness capacity of 5/16" in general steel and 15/64" in stainless steel
- Side Handle (SC00000155)
- Ergonomic pistol grip handle with rubberized soft grip provides increased comfort on the job
- Max metal plate thickness capacity of 5/16" in general steel and 15/64" in stainless steel
- 18V LXT® Lithium-Ion Rapid Optimum Charger (DC18RC)

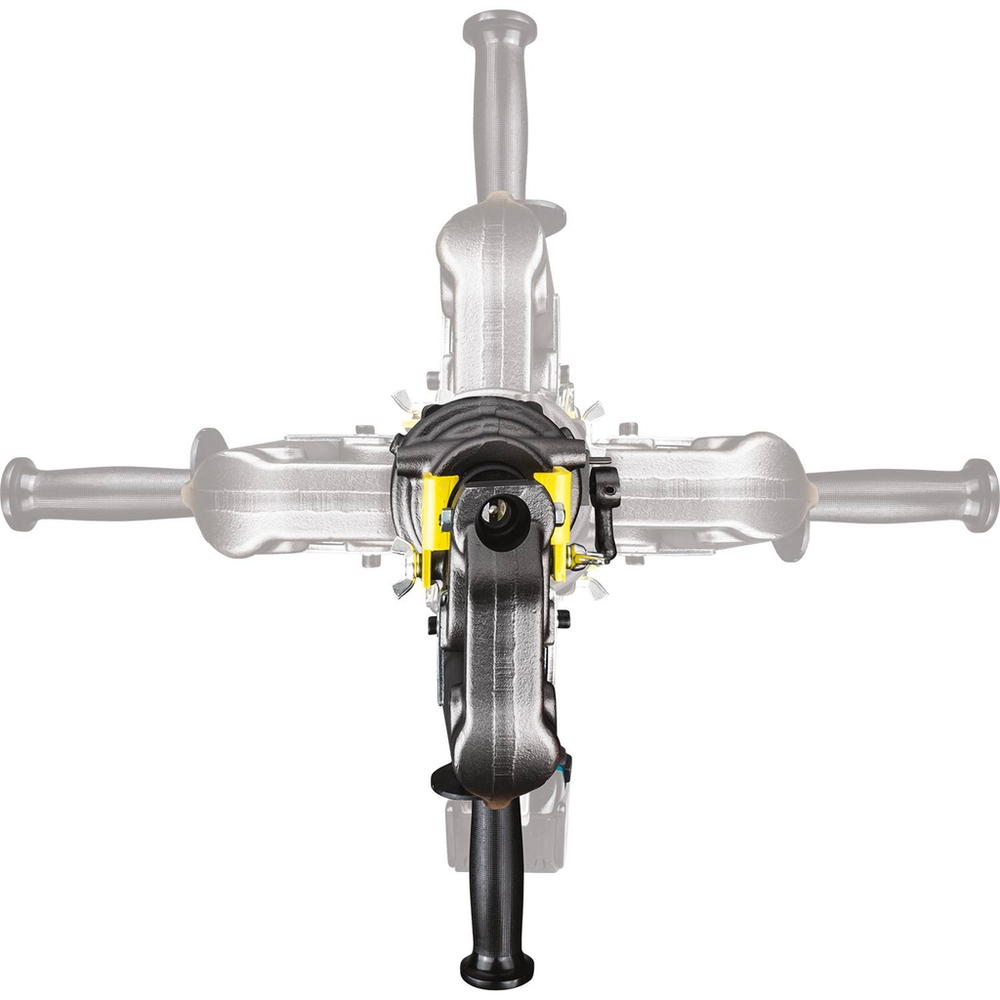

- CONVENIENCE - Grip handle rotates 360° allowing for optimal positioning in a variety of spaces
- 18V LXT® Lithium-Ion 5.0Ah battery BL1850B, features an integrated L.E.D. battery charge level indicator
- Makita technology delivers category-leading charge time so the battery spends more time working and less time sitting on the charger
- 18V LXT® Lithium-Ion 5.0Ah Battery (BL1850B)
- Round Die, 15/32" (12 mm) - SB, XPP01 (SC00000215)
- Built-in L.E.D. light illuminates the work area
- 3-year limited warranty on tool, battery and charger
- Only use genuine Makita batteries and chargers
- Makita 18V LXT® Lithium-Ion battery allows for complete cordless hole punching mobility without the hassles of a cord
- Oil, 35 ml (SC00000106)
- PORTABILITY - Makita 18V LXT® battery allows for complete cordless hole punching mobility without the cord
- Hex Wrench, 4mm (SC00000104)
- All metal gears and gear housing for maximum job site durability
- Fast and effortless hole punching speed in under 5 seconds
- Punch stop mechanism automatically retracts the die once a punch is complete to quickly continue operation
- *Tested in mild steel of 65,000 PSI tensile strength with BL1830B 18V LXT® Lithium-Ion 3.0Ah battery
- Punches up to (180) 25/32" diameter holes in 15/64" thick steel with a 5.0Ah 18V LXT® Battery
- Convenient side handle for additional support
- Hex Wrench, 3mm (SC00000103)
- Weighs only 23.8 lbs. with battery for reduced operator fatigue
- Round Punch, 15/32" (12 mm), XPP01 (SC05340100)
- Grip handle rotates 360° allowing for optimal positioning in a variety of spaces
- Nut Bar (SC03505300)
- 18V LXT® 5/16" Metal Hole Puncher (XPP01ZK)
- Compatible with Makita 18V Lithium-Ion batteries with a Star symbol
Prop 65
- WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: lead from lead-based paints, crystalline silica from bricks and cement and other masonry products, and arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles. For more information, visit www.P65warnings.ca.gov.
Downloads
Makita Punches and Dies New Tool Flyers (English)XPP01 Instruction ManualXPP01 Parts BreakdownMakita New Tool Flyers (English)
