18V LXT® Lithium-Ion Brushless Cordless 2-Pc. Combo Kit (2.0Ah/4.0Ah) - XT296SMR

The 18V LXT® 2-Piece Combo Kit (XT296SMR) delivers two premium brushless tools for drilling, driving, and fastening. The Kit includes two fast-charging 18V LXT® batteries (one 2.0Ah Battery (BL1820B) and one 4.0Ah Battery (BL1840B)), which are compatible with the full range of Makita tools and products. The kit includes an 18V LXT® Brushless 4-Speed Impact Driver (XDT14Z), that combines power and speed in a compact size. The XDT14 delivers 1,550 in.lbs. of Max Torque and weighs only 2.7 lbs. with a 2.0Ah battery, with a 3-speed power selection switch (0-1,100 / 0-2,100 / 0-3,600 RPM & 0-1,100 / 0-2,600 / 0-3,800 IPM) and Makita’s exclusive Quick-Shift Mode™ for increased fastening control. Quick-Shift Mode uses the brushless motor’s electronic controls to find the best balance of speed and torque for each application for more efficient fastening. Another precision setting is Tightening Mode (T-mode), which downshifts and reduces rotation and impact speed prior to driving the screw into place, and is engineered to minimize screw thread stripping, screw breakage, and damage to work. The 18V LXT® Brushless Variable 2-Speed Hammer Driver-Drill (XPH16Z) combines power and run-time for more drilling, driving, and fastening tasks in wood, metal, and masonry. It delivers up to 1,800 RPM and a full 970 in.lbs. of Max Torque and weighs only 4.9 lbs. with battery. Both tools feature an efficient Makita-built brushless motor for longer run time, increased power and speed, and longer tool life. Extreme Protection Technology (XPT™) provides improved dust and water resistance for operation in harsh conditions. Both tools are part of Makita’s expanding 18V LXT® System, the world’s largest cordless tool system powered by 18V lithium-ion slide-style batteries. Makita® 18V LXT® Lithium-Ion Batteries have the fastest charge times in their categories, so they spend more time working and less time sitting on the charger. For improved tool performance and extended battery life, Makita created Star Protection Computer Controls™. Star Protection is a communication technology that allows the Star Protection-equipped tool and battery to exchange data in real time and monitor conditions during use to protect against overloading, over-discharging, and overheating. For increased versatility, the tool can also be powered by Makita 18V LXT® and Compact Lithium-Ion batteries with the star symbol on the battery indicating Star Protection inside.

Features

• The electronically-controlled brushless motor efficiently uses energy to match torque and RPM to the changing demands of the application
• *Compared to XPH12
• Impact Driver with 3-speed power selection switch (0-1,100 / 0-2,100 / 0-3,600 RPM & 0-1,100 / 0-2,600 / 0-3,800 IPM); delivers 1,550 in.lbs. of Max Torque and weighs only 3.3 lbs. with battery
• Variable 2-speed 1/2" Hammer Driver-Drill (0-550 & 0-1,800 RPM)(0-8,250 & 0-27,000 BPM) delivers 970 in.lbs. of Max Torque for up to 70% more power*
• DURABILITY - Hammer Driver-Drill and Impact Driver feature XPT™, providing increased dust and water resistance
• Batteries come with Impact-resistant outer casings and shock-absorbing inner-liners that are engineered to protect the battery
• Impact Driver features Tightening Mode (T-mode) for faster tightening of self-drilling screws; helps prevent damage to the screw or work piece
• Tool Bag
• 18V LXT® Lithium-Ion 4.0Ah battery BL1840B provides up to 35% more run time per charge

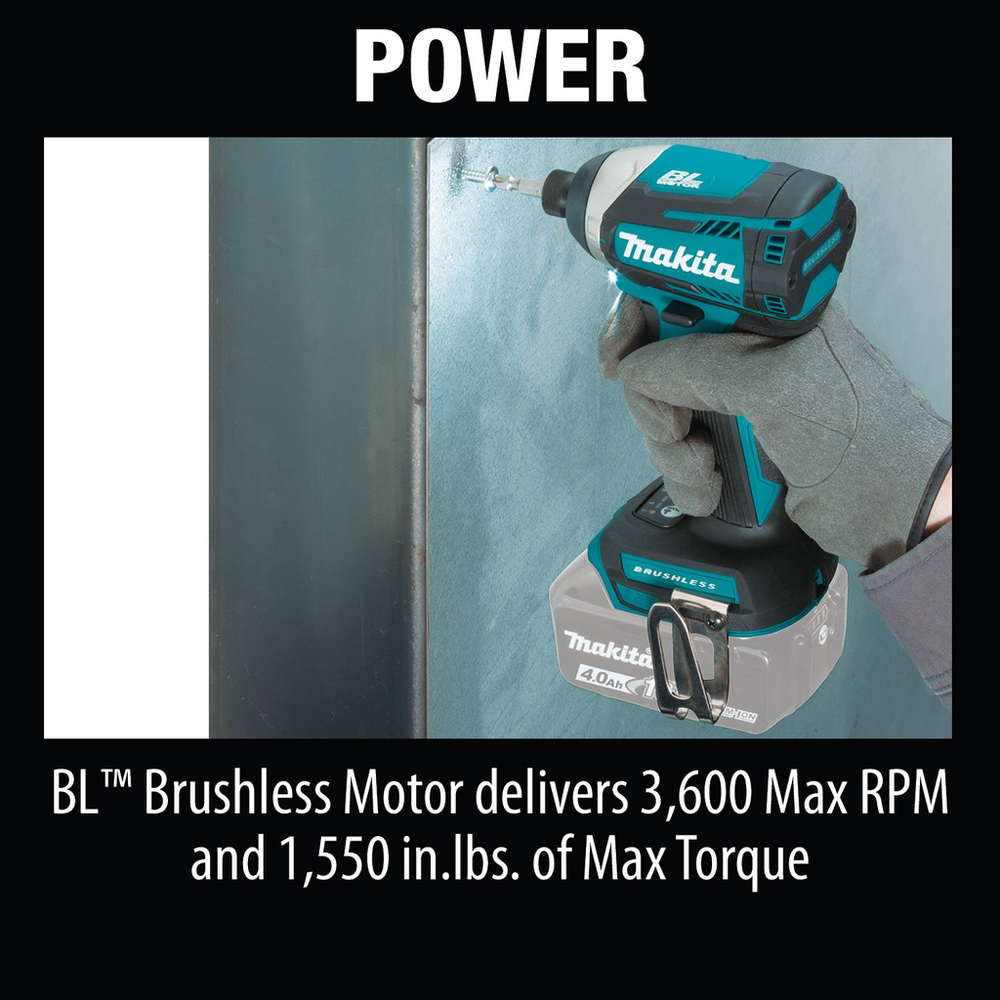

• IMPACT DRIVER - 3-speed (0-1100/0-2100/0-3600 RPM & 0-1100/0-2600/0-3800 IPM) provides 1,550 in. lbs. of Max Torque
• Efficient Makita-built brushless motor is electronically controlled to optimize battery energy use for up to 50% longer run time per charge
• Both 18V LXT® Lithium-Ion 4.0Ah battery BL1840B and 2.0Ah battery BL1820B feature an integrated L.E.D. battery charge level indicator

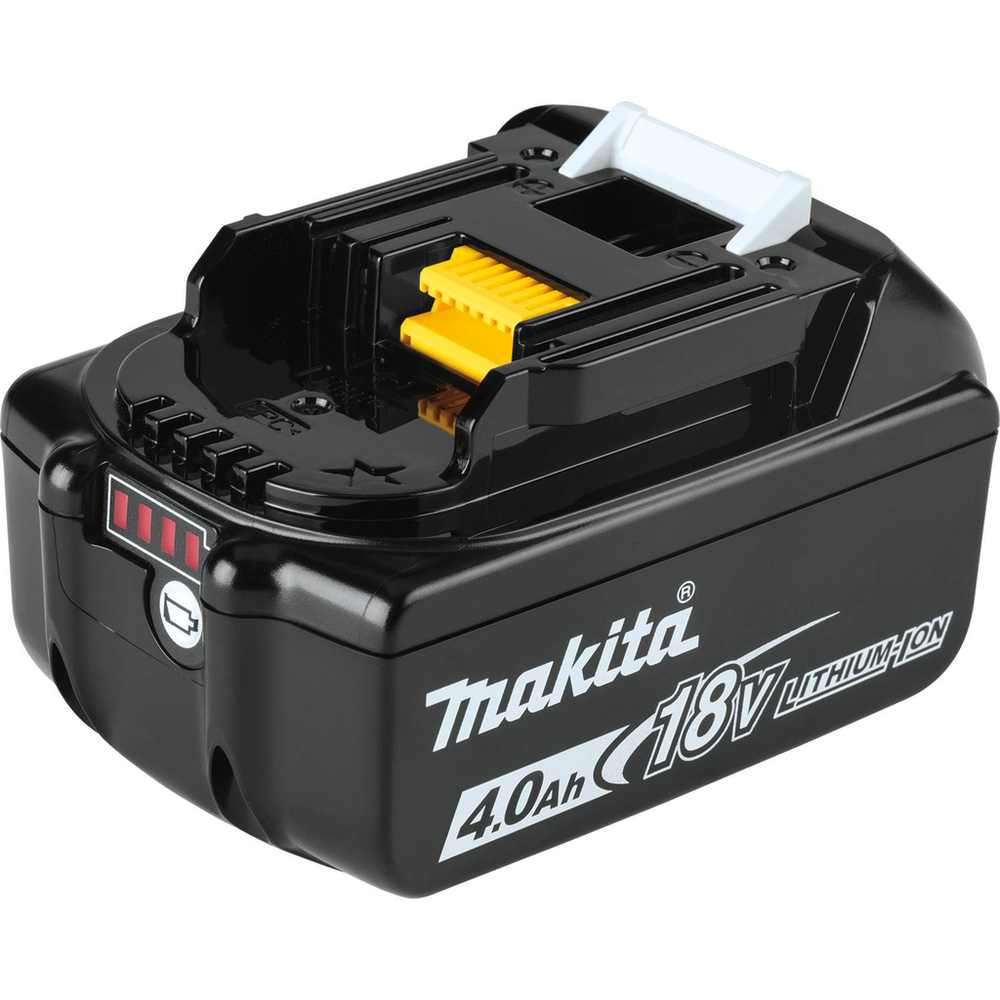

• 18V LXT® Lithium-Ion 4.0Ah Battery (BL1840B)

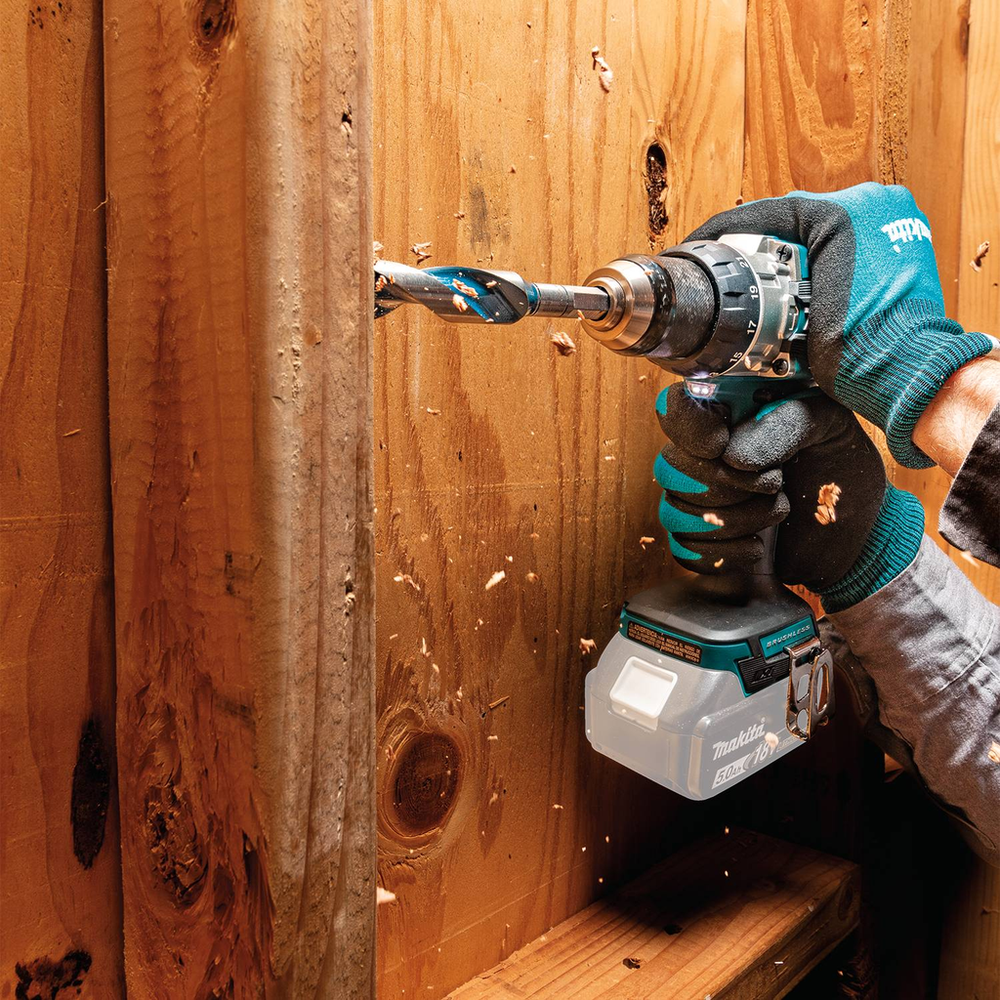

• Variable 2-speed 1/2" Hammer Driver-Drill (0-550 & 0-1,800 RPM)(0-8,250 & 0-27,000 BPM) with brushless motor delivers 970 in.lbs. of Max Torque for up to 70% more power*; weighs only 4.9 lbs. with battery for a wide range of drilling, fastening and hammer drilling applications
• The brushless motor eliminates carbon brushes, enabling the motor to run cooler and more efficiently for longer life
• Extreme Protection Technology (XPT™) which is engineered to provide increased dust and water resistance in harsh job site conditions.
• Impact Driver with 3-speed power selection (0-1,100 / 0-2,100 / 0-3,600 RPM & 0-1,100 / 0-2,600 / 0-3,800 IPM); delivers 1,550 in.lbs. of torque
• 3-year limited warranty on tool, battery and charger
• Only use genuine Makita batteries and chargers

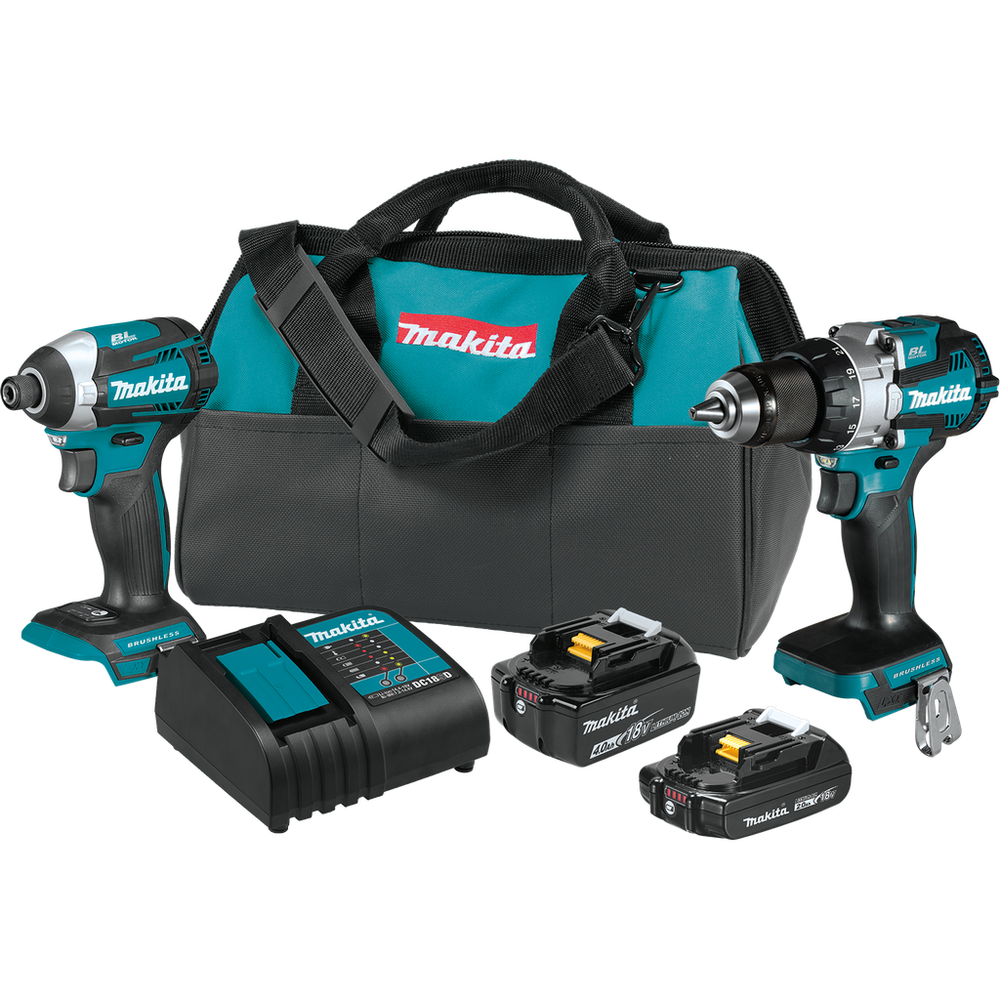

• INCLUDES - XPH16Z, XDT14Z, (2) 18V LXT® Lithium-Ion batteries, charger and tool bag
• HAMMER DRILL - Variable 2-speed 1/2" Hammer Driver-Drill (0-550& 0-1,800 RPM); 970 in.lbs. of Max Torque

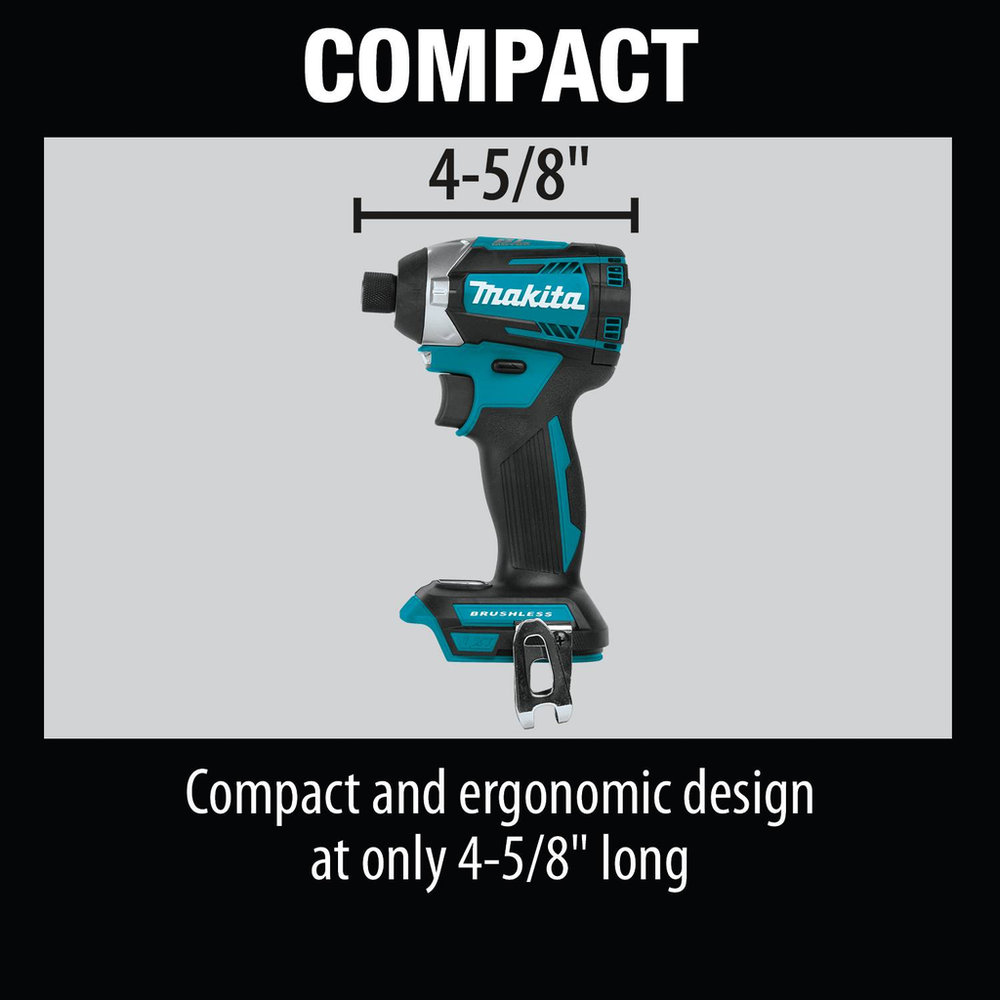

• Compact and ergonomic design at only 4-5/8" long, the Impact Driver can fit in tight and reduced spaces
• Impact Driver features Tightening Mode (T-mode) for faster tightening of self-drilling screws; helps prevent damage to the screw or workpiece

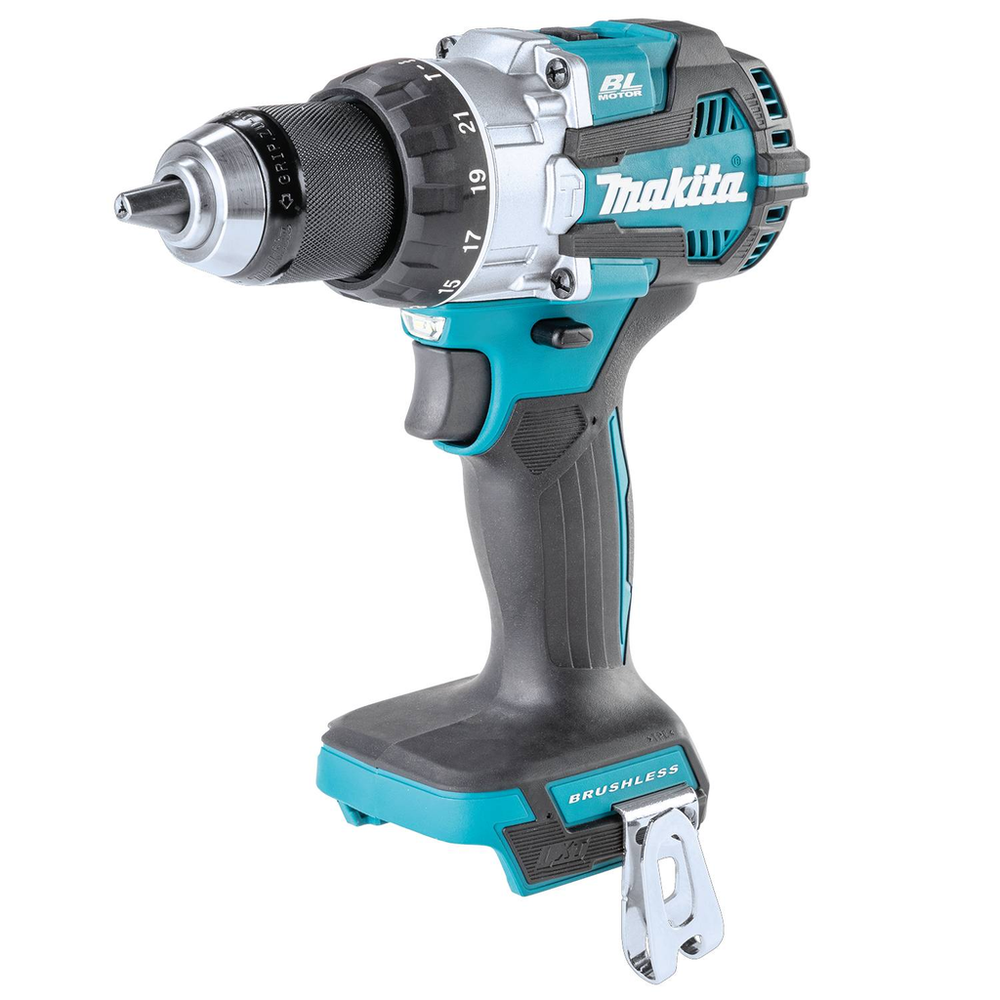

• 18V LXT® Compact Brushless 1/2" Hammer Driver-Drill (XPH16Z)
• Quick-Shift Mode™ uses the brushless motor’s electronic controls to find the best balance of speed and torque for each application for more efficient fastening

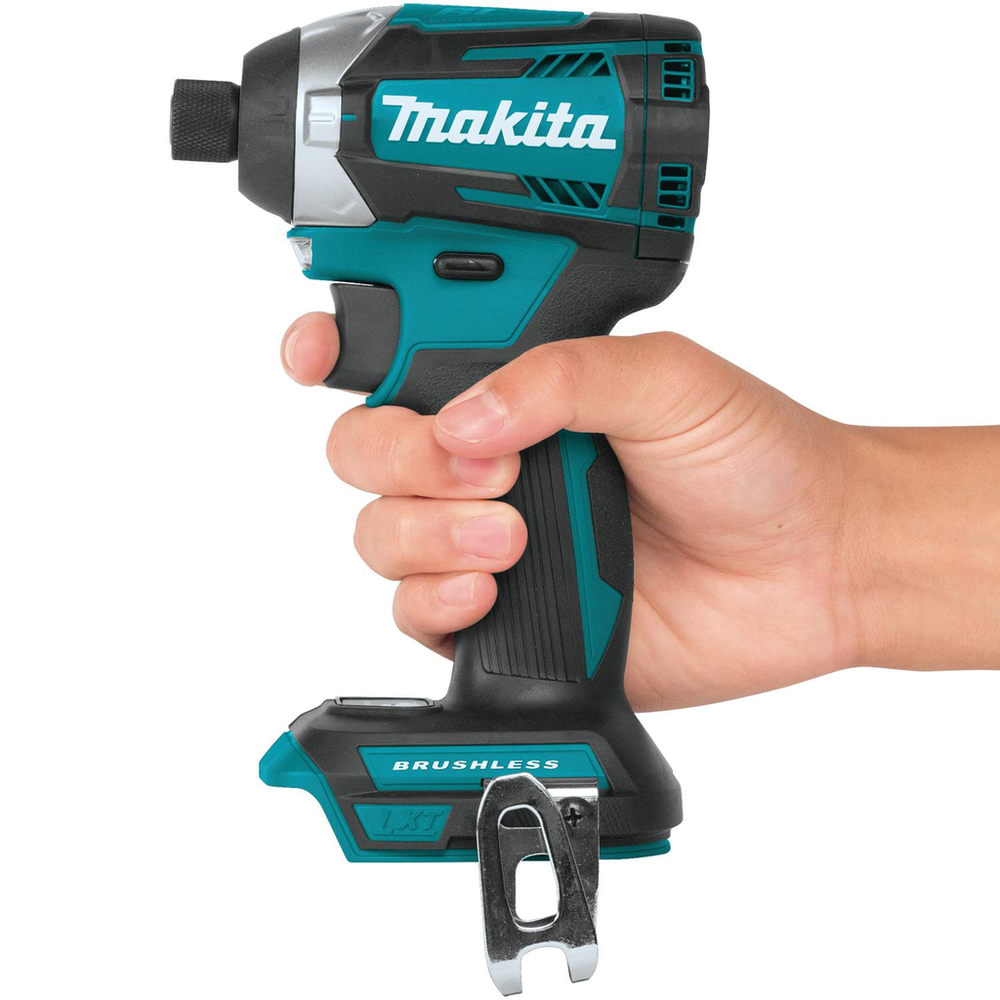

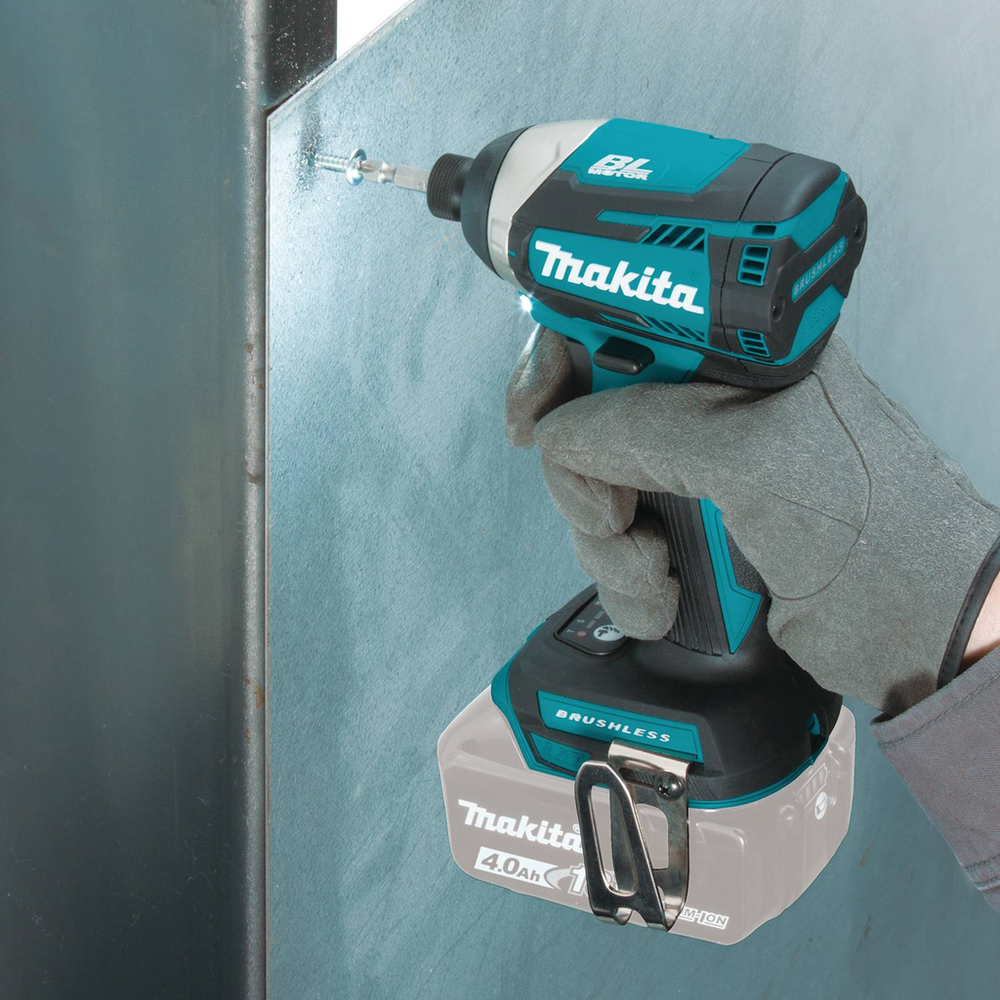

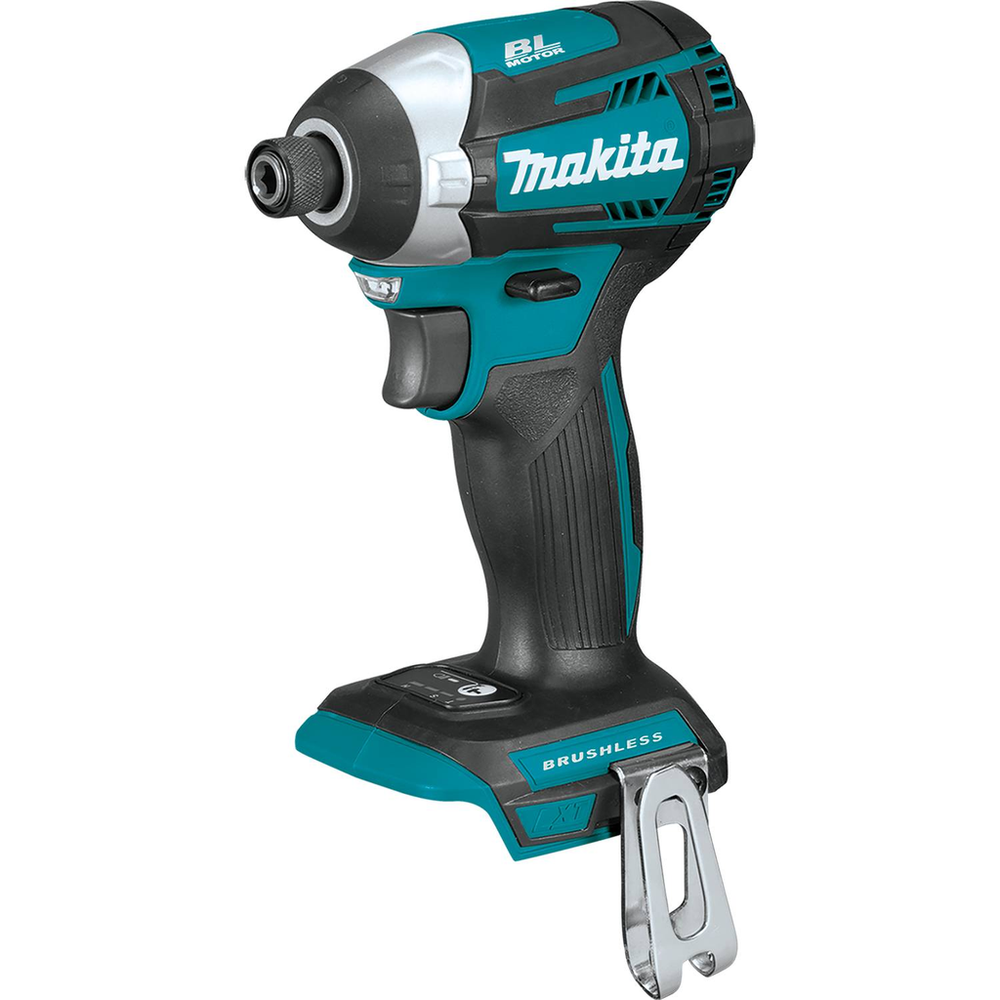

• 18V LXT® Brushless 3-Speed Impact Driver (XDT14Z)
• Optimization of motor specifications and gear ratios improves efficiency and allows the Hammer Driver-Drill to drill into 2x dimensional lumbers in high speed
• EFFICIENCY - Makita-built brushless motor optimizes battery energy use for up to 50% longer run time per charge
• 18V LXT® Lithium-Ion Charger (DC18SD)
• STAR Protection Computer Controls™ allow the tool and battery to monitor conditions during use and exchange data in real time to protect against overloading, over-discharging and overheating
• Hammer Driver-Drill features XPT™ which is engineered to provide increased dust and water resistance in harsh job site conditions

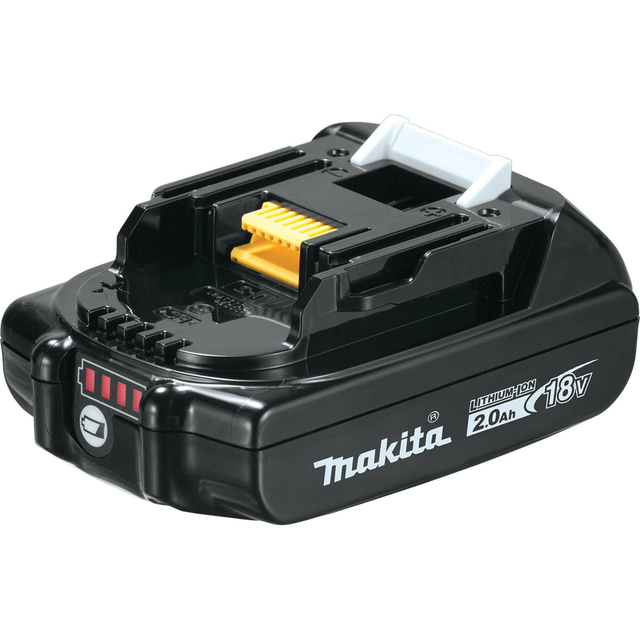

• 18V LXT® Lithium-Ion Compact 2.0Ah Battery (BL1820B)

Prop 65

• WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: lead from lead-based paints, crystalline silica from bricks and cement and other masonry products, and arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles. For more information, visit www.P65warnings.ca.gov.

Downloads

XPH16 Instruction Manual
XDT14 Instruction Manual
XDT14 Parts Breakdown
