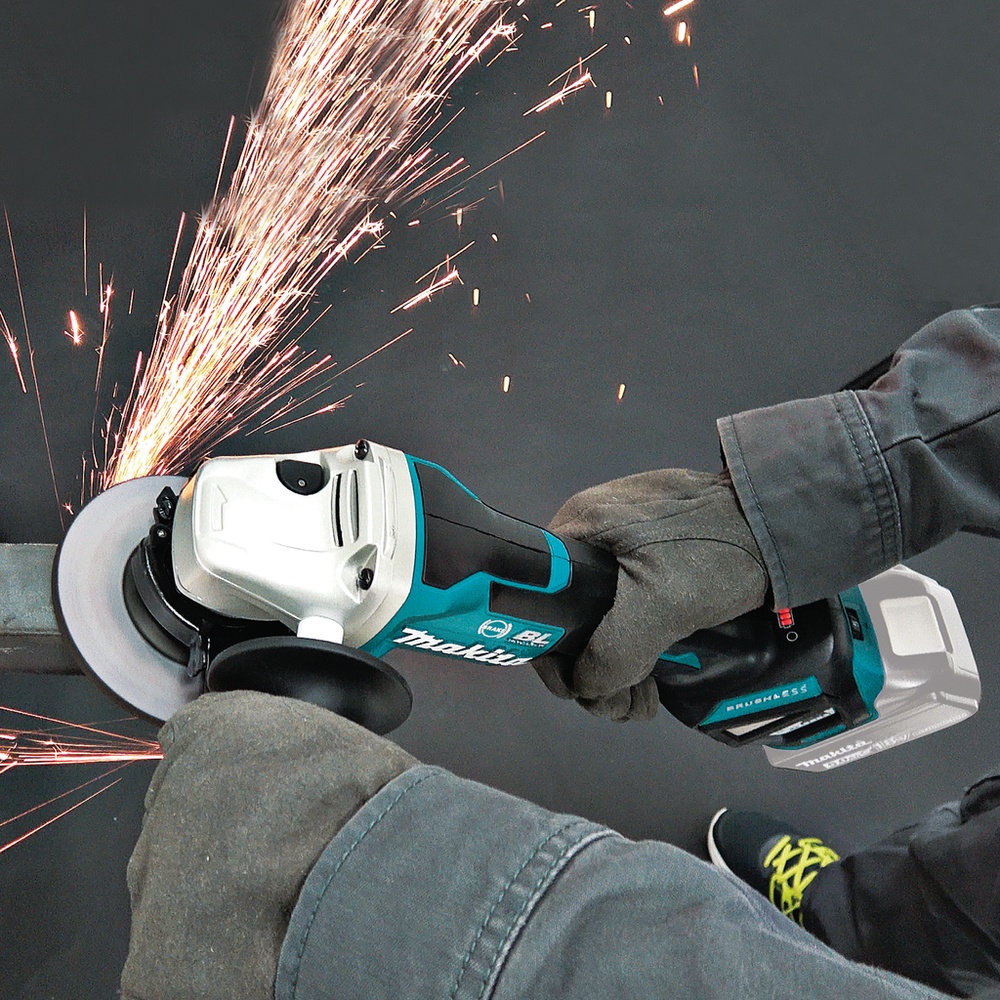

Makita delivers corded grinding performance without the cord with the 18V LXT® Lithium-Ion Brushless 4-1/2" / 5” Paddle Switch Cut-Off/Angle Grinder with Electric Brake (tool only, battery and charger sold separately). It's powered by a Makita brushless motor for longer run time, increased power and speed, and longer tool life. For the most demanding applications, Makita’s exclusive Automatic Speed Change™ technology automatically adjusts speed and torque during operation for optimal performance. The XAG20Z is ideal for grinding and cutting a wide range of materials including tile, concrete, pipe, conduit, and more. Additional features include an electric brake that stops the grinding or cut-off wheel in 2 seconds or less, and Electronic Torque Control that turns the motor off if rotation speed suddenly slows or the wheel is forced to a stop. The variable speed control dial allows manual RPM adjustment (3,000 – 8,500), allowing the user to match the speed to the application. It’s part of Makita’s expanding 18V Lithium-Ion system, the world’s largest cordless tool system powered by 18V Lithium-Ion slide-style batteries. Makita 18V Lithium-Ion batteries have the fastest charge times in their categories, so they spend more time working and less time sitting on the charger. For improved tool performance and extended battery life, Makita created Star Protection Computer Controls™. Star Protection is communication technology that allows the Star Protection-equipped tool and battery to exchange data in real time and monitor conditions during use to protect against overloading, over-discharging and overheating. For increased versatility, the tool can also be powered by Makita 18V LXT® and Compact Lithium-Ion batteries with the star symbol on the battery indicating Star Protection inside.
Features
- Rapid Optimum Charger has a built-in fan to cool the battery for faster, more efficient charging (battery and charger sold separately)

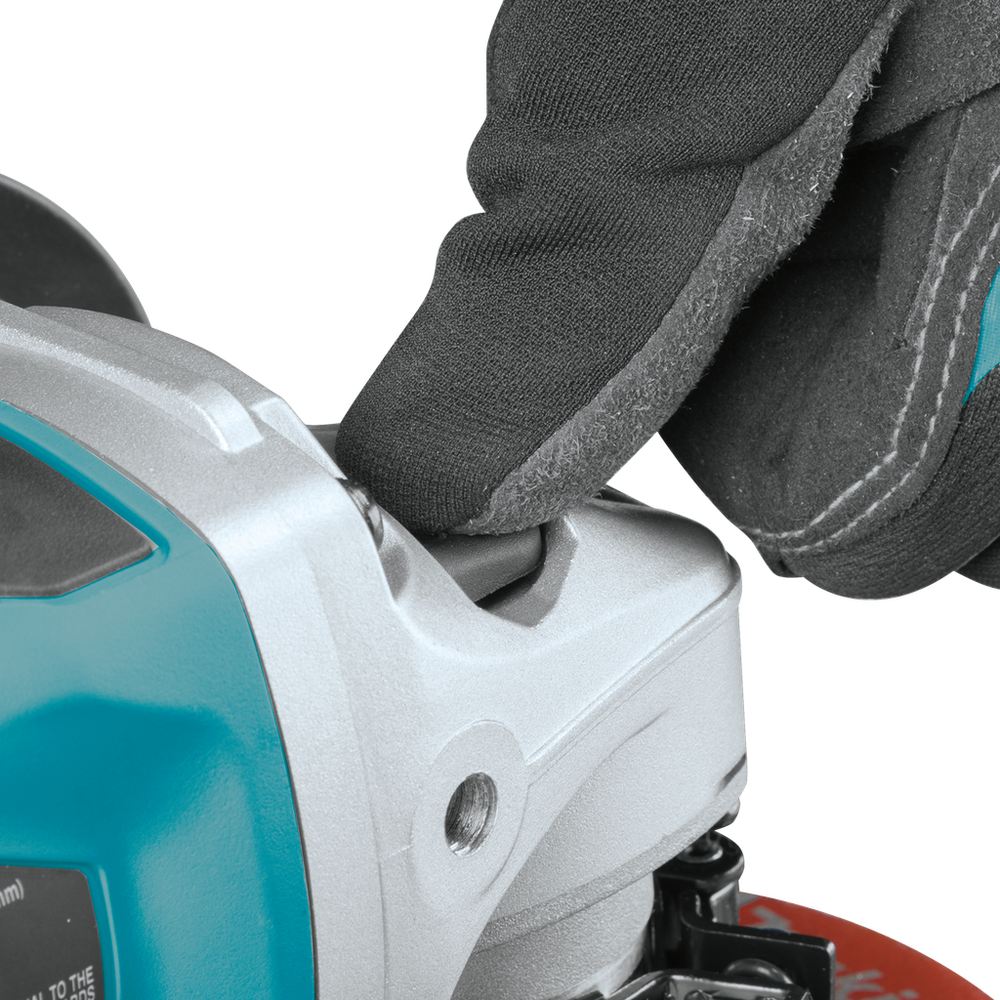

- Paddle switch with no lock-on for operator convenience
- 5" Clip-On Cut-Off Wheel Guard Cover (199710-5)
- Equipped with Star Protection Computer Controls™ to protect against overloading, over-discharging and over-heating
- The BL™ Brushless Motor eliminates carbon brushes, enabling the BL™ Motor to run cooler and more efficiently for longer life
- Spiral bevel gears for smoother rotations and a more efficient transfer of energy
- 5" x 1/4" x 7/8" INOX Grinding Wheel, 36 Grit (A-95962)
- Efficient BL™ Brushless motor is electronically controlled to optimize battery energy use for up to 50% longer run time per charge
- Side Handle (158237-4)
- TECHNOLOGY - The Brushless Motor eliminates carbon brushes, enabling the Motor to run cooler and more efficiently
- Automatic Speed Change™ technology adjusts speed and torque during operation for optimum performance
- INCLUDES - Grinding wheel, wheel guard and cut-off wheel guard (battery and charger not included)
- VERSATILITY - Variable speed control dial allows manual RPM adjustment (3,000-8,500)
- Soft start suppresses start-up reaction for smooth start-ups and longer gear life
- Anti-restart protection engineered to prevent motor start up when battery is inserted with switch locked on
- Anti-restart protection engineered to prevent motor start up when battery is inserted with the paddle switch in the on position
- 3-year limited warranty
- Rapid Optimum Charger communicates with the battery's built-in chip throughout the charging process to optimize battery life by actively controlling current, voltage and temperature (battery and charger sold separately)
- Lock Nut Wrench (782424-9)
- Battery and charger sold separately

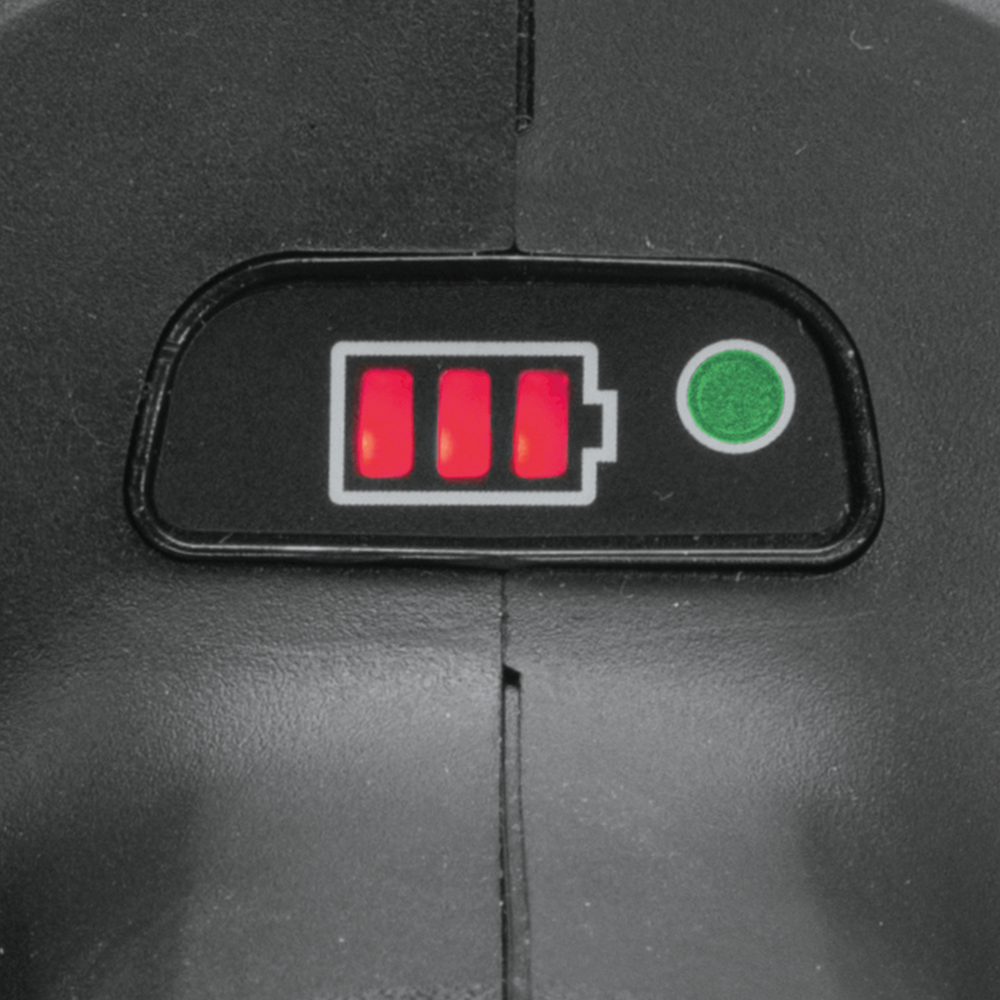

- 3-stage L.E.D. gauge indicates battery charge level
- PRODUCTIVITY - Electric Brake stops the grinding or cut-off wheel in 2 seconds or less for maximum productivity
- The electronically-controlled BL™ Brushless Motor efficiently uses energy to match torque and RPM to the changing demands of the application
- CONTROL - AFT® turns the motor off if rotation of the wheel is suddenly forced to stop
- 5" Tool-less Wheel Guard (126687-1)
- Compact and ergonomic design at only 15" long
- Only use genuine Makita batteries and chargers
- Weighs only 5.7 lbs. with battery (battery not included) for reduced operator fatigue
- Wire mesh intake covers are engineered to prevent debris from entering motor
- Rubberized soft grip provides increased comfort on the job
- Variable speed control dial allows manual RPM adjustment (3,000-8,500) to match the speed to the application
- Extreme Protection Technology (XPT™) is engineered for improved dust and water resistance for operation in harsh conditions
- Active Feedback-sensing Technology (AFT®) turns the motor off if rotation of the wheel is suddenly forced to stop
- Compatible with Makita 18V Lithium-Ion batteries with a Star symbol (battery sold separately)
- Electric Brake stops the grinding or cut-off wheel in 2 seconds or less for maximum productivity
- Makita technology delivers category-leading charge time so the battery spends more time working and less time sitting on the charger (battery and charger sold separately)
Prop 65
- WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: lead from lead-based paints, crystalline silica from bricks and cement and other masonry products, and arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles. For more information, visit www.P65warnings.ca.gov.
Downloads
Parts BreakdownMakita New Tool Flyers (English)XAG20_XAG21 Instruction Manual
