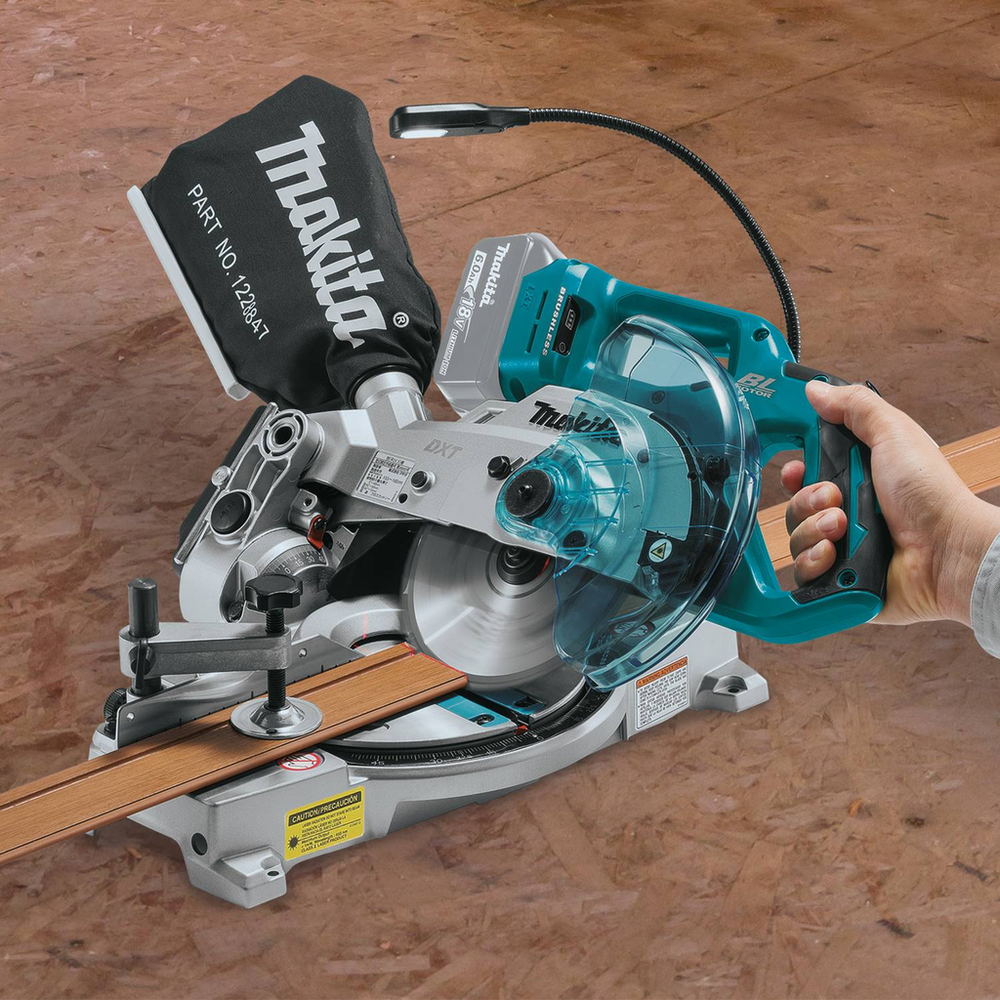

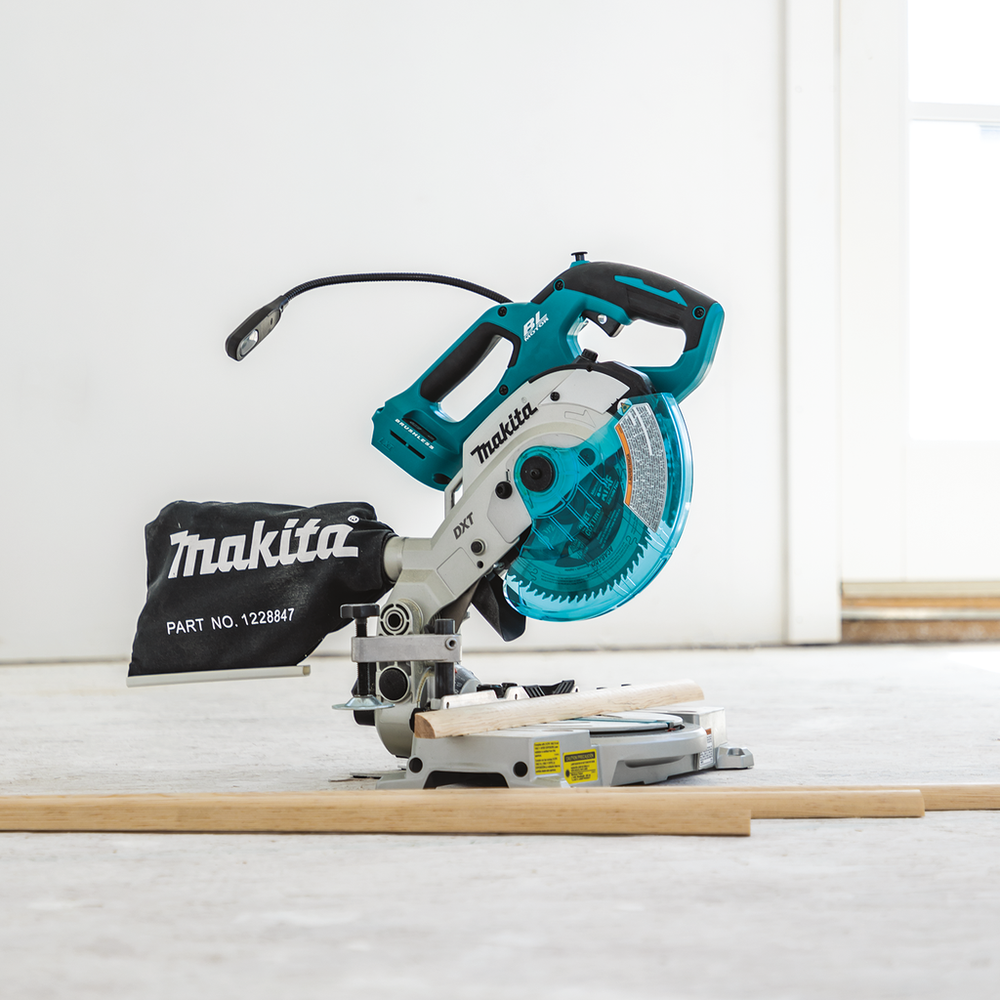

Makita offers a portable cutting solution with the 18V LXT® Lithium-Ion Brushless 6-1/2" Compact Dual-Bevel Compound Miter Saw with Laser (tool only). The efficient BL™ Brushless Motor is engineered for up to 50% longer run time, increased power and speed, and longer tool life with no brushes to replace. The XSL05Z combines performance and portability: it weighs only 14.6 lbs. with battery (sold separately), and is equipped with Automatic Speed Change™ technology which adjusts cutting speed and torque for optimum performance under load. This compact cordless miter saw is engineered for cutting a variety of materials including wood and aluminum extrusion (aluminum blade and cutting lubricant sold separately). It is ideal for room-to-room applications including baseboard and ceiling trim. It has a cutting capacity of Cutting capacity of 1-13/16" x 3-5/8" at 90° and 1-13/16" x 2-9/16" at 45°. It miters 0-52° left and right; bevels 0-46° left and right, with miter detents at: 0°, 15°, 22.5°, 30° and 45° left and right. Added features include a built-in L.E.D. light, and a see-through blade guard system for greater visibility of blade and line of cut. It has a direct-drive gear system so there’s no belt to slip or replace. It’s part of Makita’s expanding 18V Lithium-Ion system, the world’s largest cordless tool system powered by 18V Lithium-Ion slide-style batteries. Makita 18V Lithium-Ion batteries have the fastest charge times in their categories, so they spend more time working and less time sitting on the charger. For improved tool performance and extended battery life, Makita created Star Protection Computer Controls™. Star Protection is communication technology that allows the Star Protection-equipped tool and battery to exchange data in real time and monitor conditions during use to protect against overloading, over-discharging and overheating. For increased versatility, the tool can also be powered by Makita 18V LXT® and Compact Lithium-Ion batteries with the star symbol on the battery indicating Star Protection inside.
Features
- Built-in laser clearly indicates line-of-cut whether or not blade is turning; on-off switch and micro-adjustments for precise cutting "left-of-blade" or "right-of-blade"

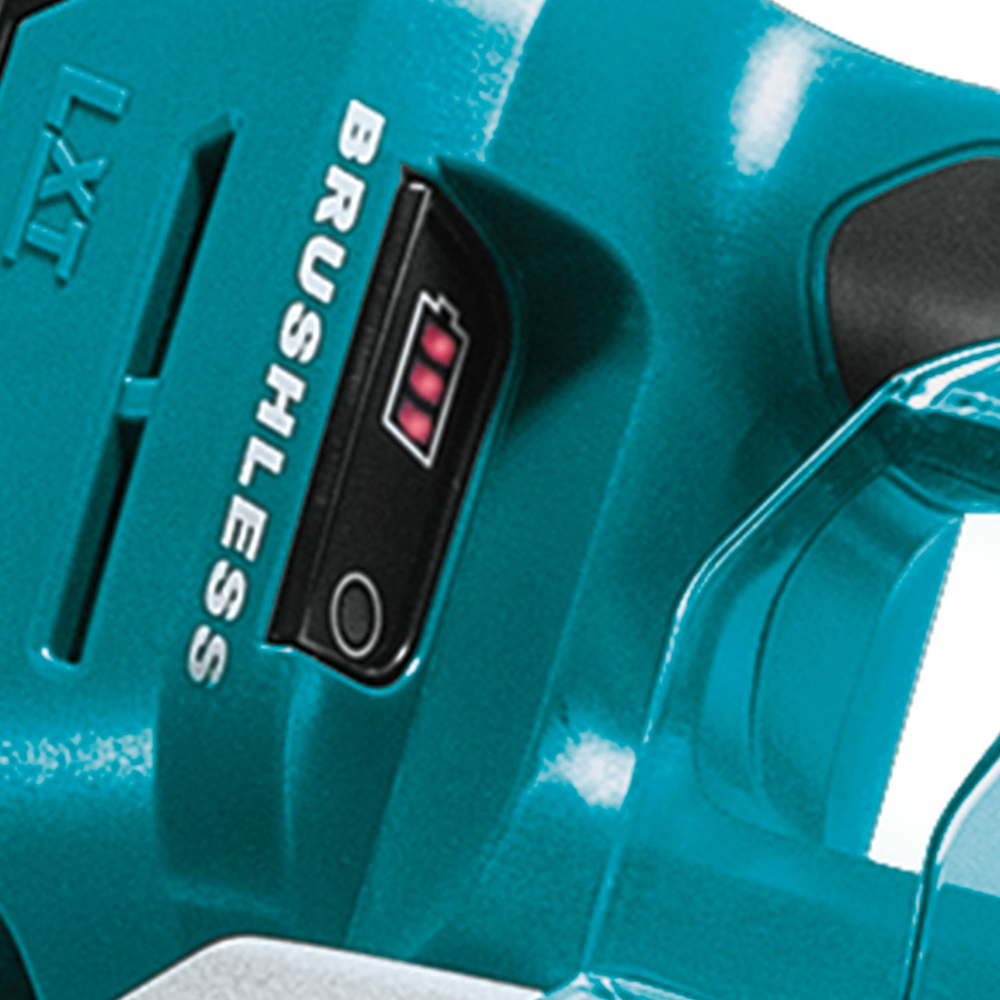

- 3-stage L.E.D. gauge on the tool indicates battery charge levels
- Vertical Vise
- Efficient BL™ Brushless motor is electronically controlled to optimize battery energy use for up to 50% longer run time per charge
- LXT® technology delivers up to 270 cuts per charge in 1/2" x 3-1/2" baseboard using one 6.0Ah battery (battery not included)
- 3-year limited warranty

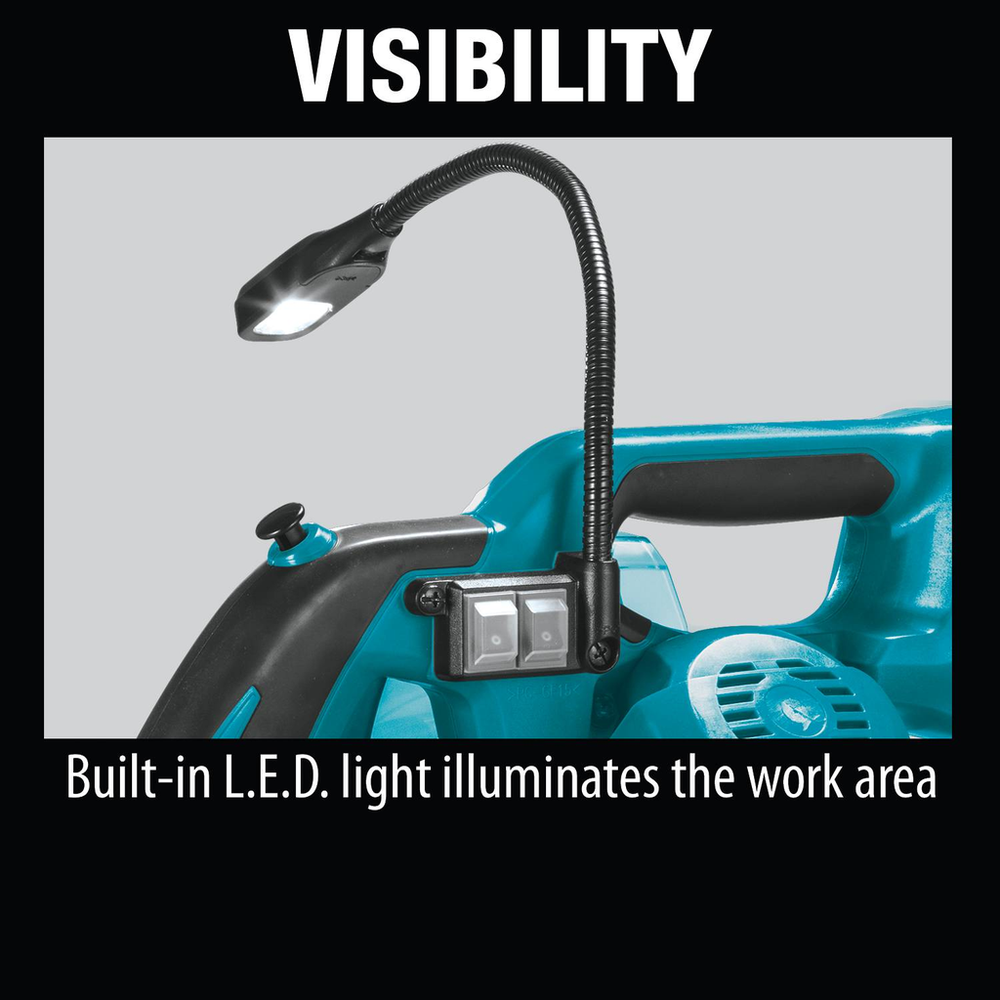

- VISIBILITY - Built-in L.E.D. light illuminates the work area
- Built-in L.E.D. light illuminates the work area
- Rapid Optimum Charger communicates with the battery's built-in chip throughout the charging process to optimize battery life by actively controlling current, voltage and temperature (battery and charger sold separately)
- Compatible with Makita 18V Lithium-Ion batteries with a Star symbol (battery sold separately)
- 6-1/2" x 5/8" 64T Micro-Polished Miter Saw Blade
- Hex Wrench

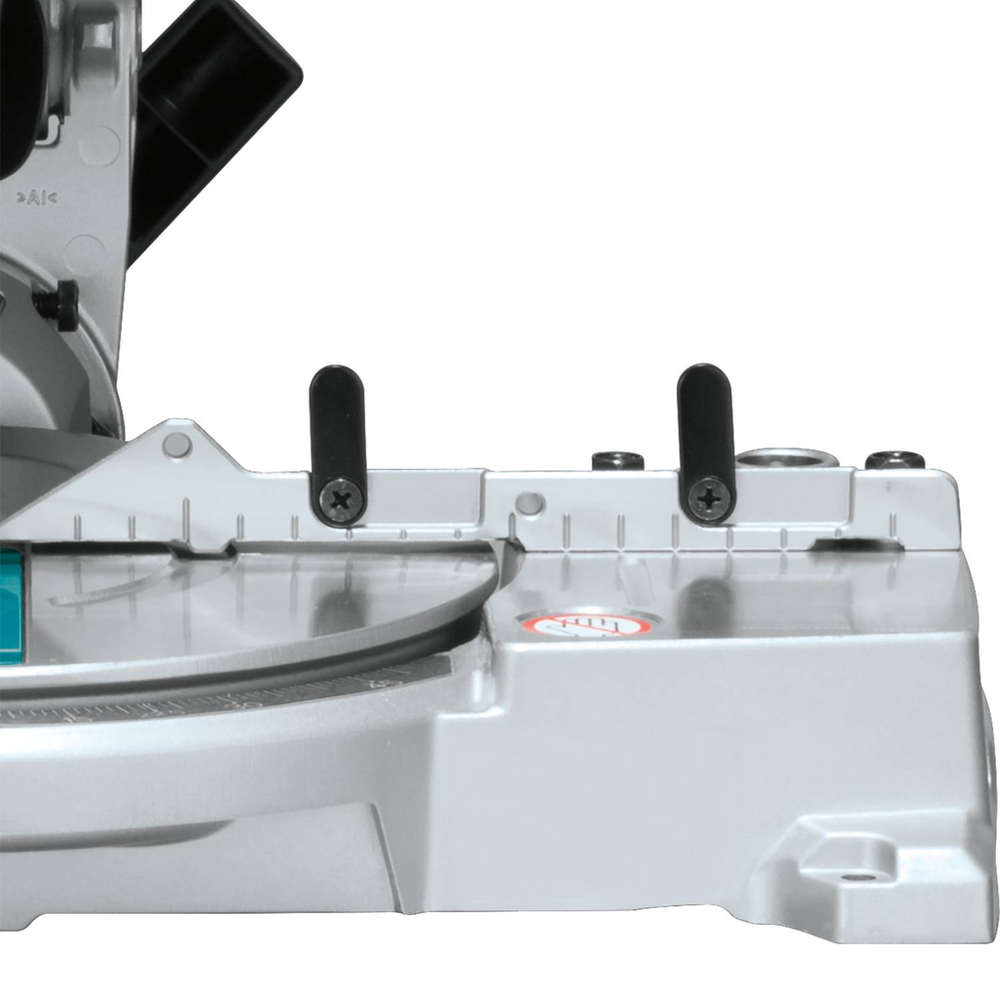

- DESIGN - Mini sub-fence provides wide support when performing vertical cuts or left bevel cuts

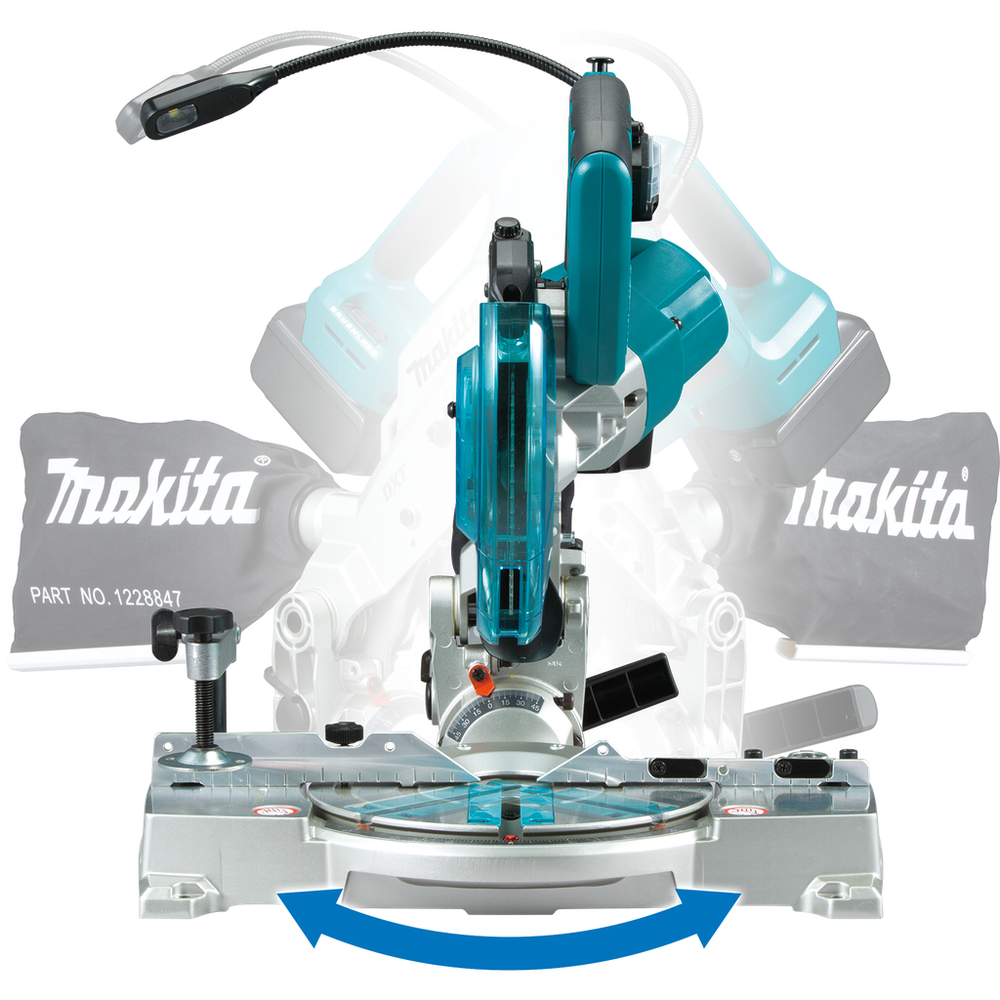

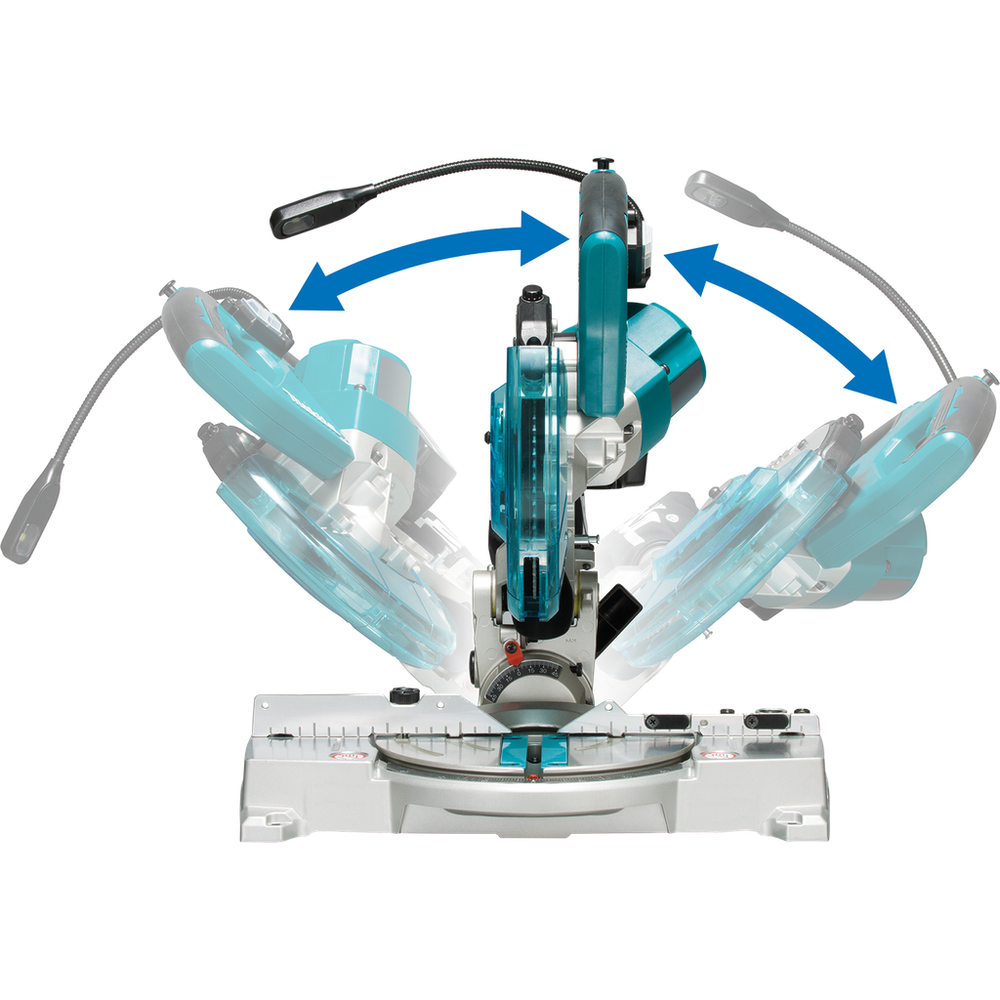

- Miters 0-52° left and right; bevels 0-46° left and right
- Automatic Speed Change™ technology adjusts cutting speed and torque during cut for optimum performance

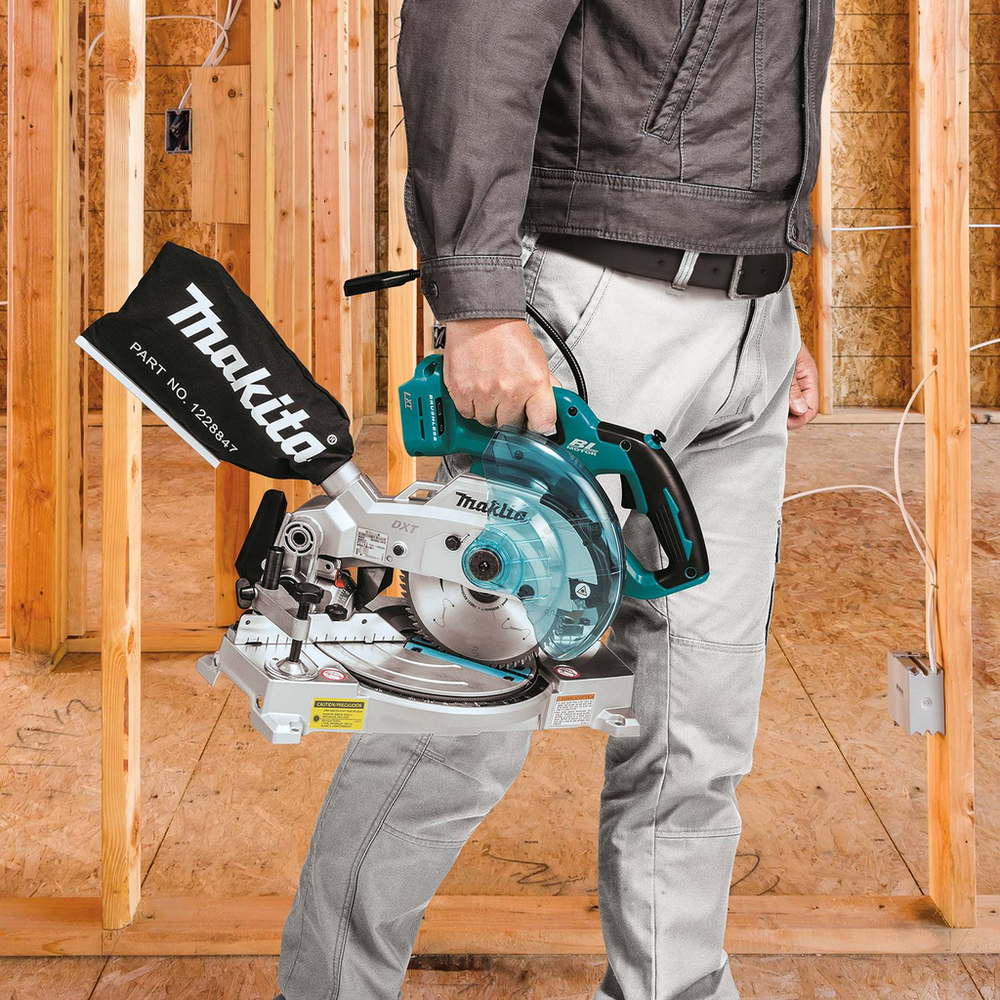

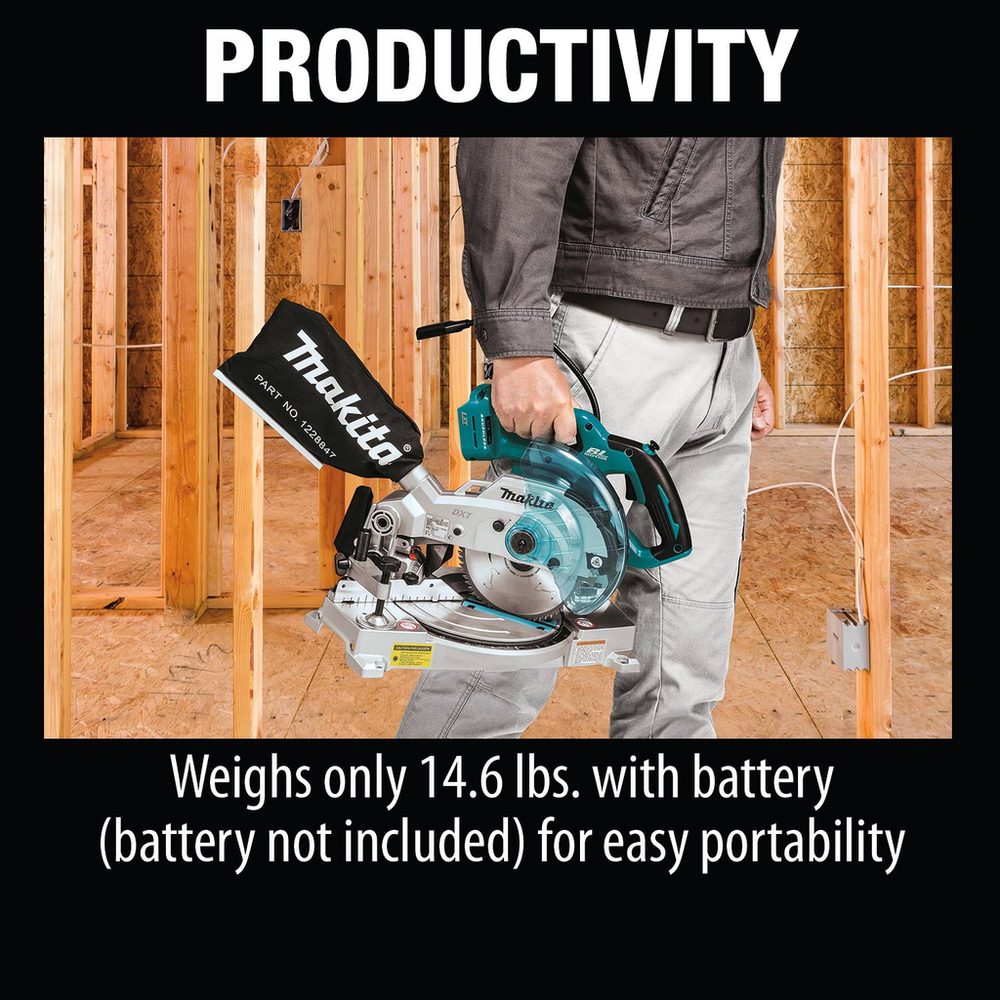

- PORTABILITY - Weighs only 14.6 lbs. with battery (battery not included) for easy portability
- Aluminum base improves stability of material for efficient cutting
- High power provides efficient cutting in a variety of different materials including wood and aluminum extrusion (aluminum blade and cutting lubricant sold separately)
- Cutting capacity of 1-13/16" x 3-5/8" at 90° and 1-13/16" x 2-9/16" at 45°

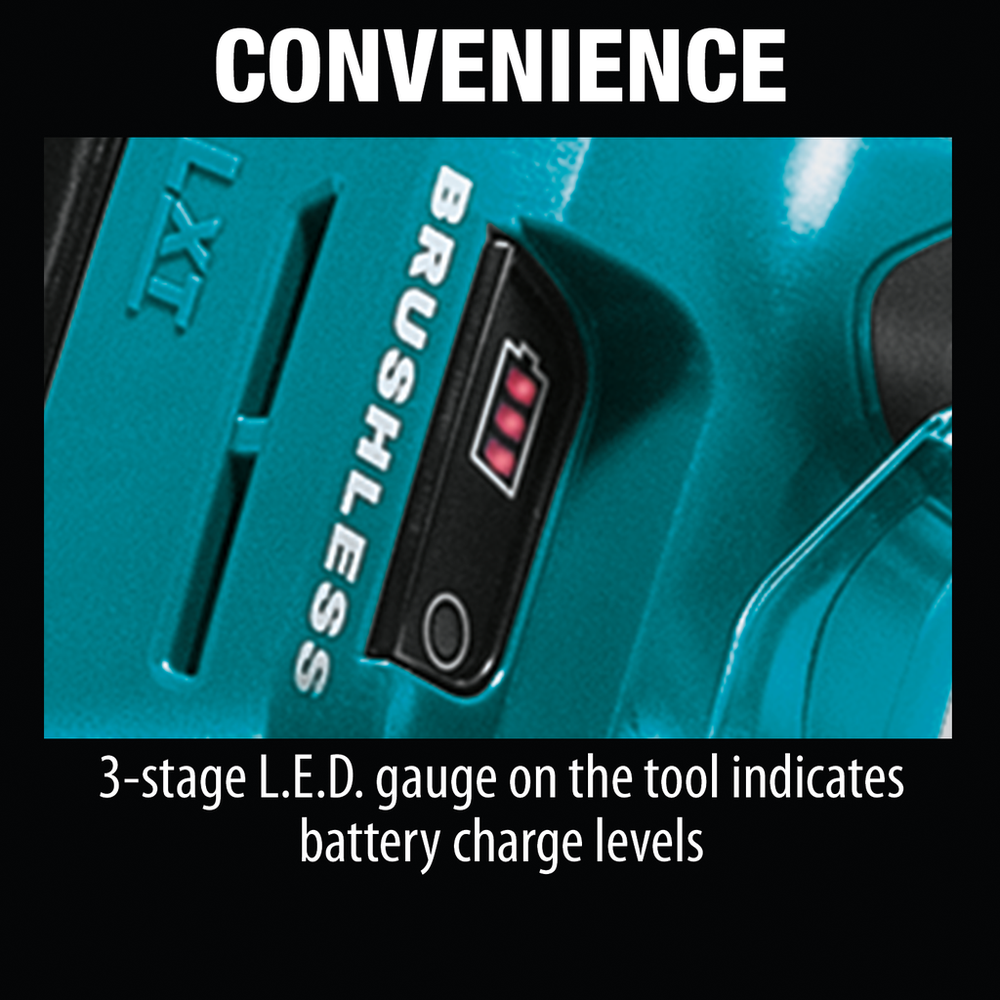

- CONVENIENCE - 3-stage L.E.D. gauge on the tool indicates battery charge levels
- Makita technology delivers category-leading charge time so the battery spends more time working and less time sitting on the charger (battery and charger sold separately)
- Only use genuine Makita batteries and chargers
- Rubberized soft grip handle provides increased comfort on the job
- Equipped with Star Protection Computer Controls™ to protect against overloading, over-discharging and over-heating
- High power provides efficient cutting in wood and aluminum extrusion (aluminum blade and cutting lubricant sold separately)
- See-through blade guard system for greater visibility of blade and line of cut
- Built-in laser clearly indicates line-of-cut whether or not blade is turning
- Miter detents at: 0°, 15°, 22.5°, 30° and 45° left and right
- 18V LXT® Lithium-Ion Battery delivers the power and performance of a corded miter saw without leaving the 18V LXT® platform (battery not included)
- INCLUDES - Blade, dust bag, vertical vise, wrench, and triangle
- Dust Bag (122852-0)
- Rapid Optimum Charger has a built-in fan to cool the battery for faster, more efficient charging (battery and charger sold separately)
- Triangular Rule (762001-3)
- The BL™ Brushless Motor eliminates carbon brushes, enabling the BL Motor to run cooler and more efficiently for longer life
- Weighs only 14.6 lbs. with battery (battery not included) for easy portability
- Mini sub-fence provides wide support when performing vertical cuts or left bevel cuts
- Electric brake for maximum productivity
Prop 65
- WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: lead from lead-based paints, crystalline silica from bricks and cement and other masonry products, and arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles. For more information, visit www.P65warnings.ca.gov.
Downloads
Makita New Tool Flyer (English)XSL05 Parts BreakdownXSL05 Instruction Manual
