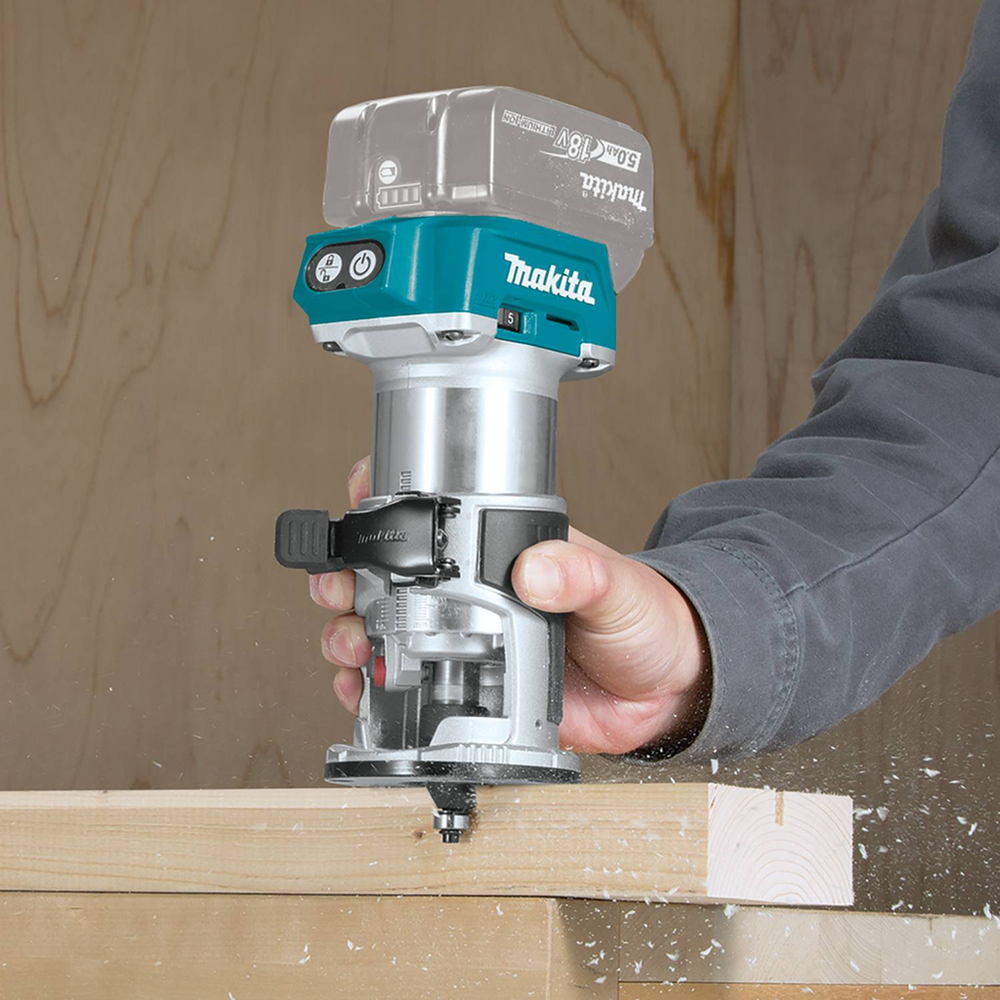

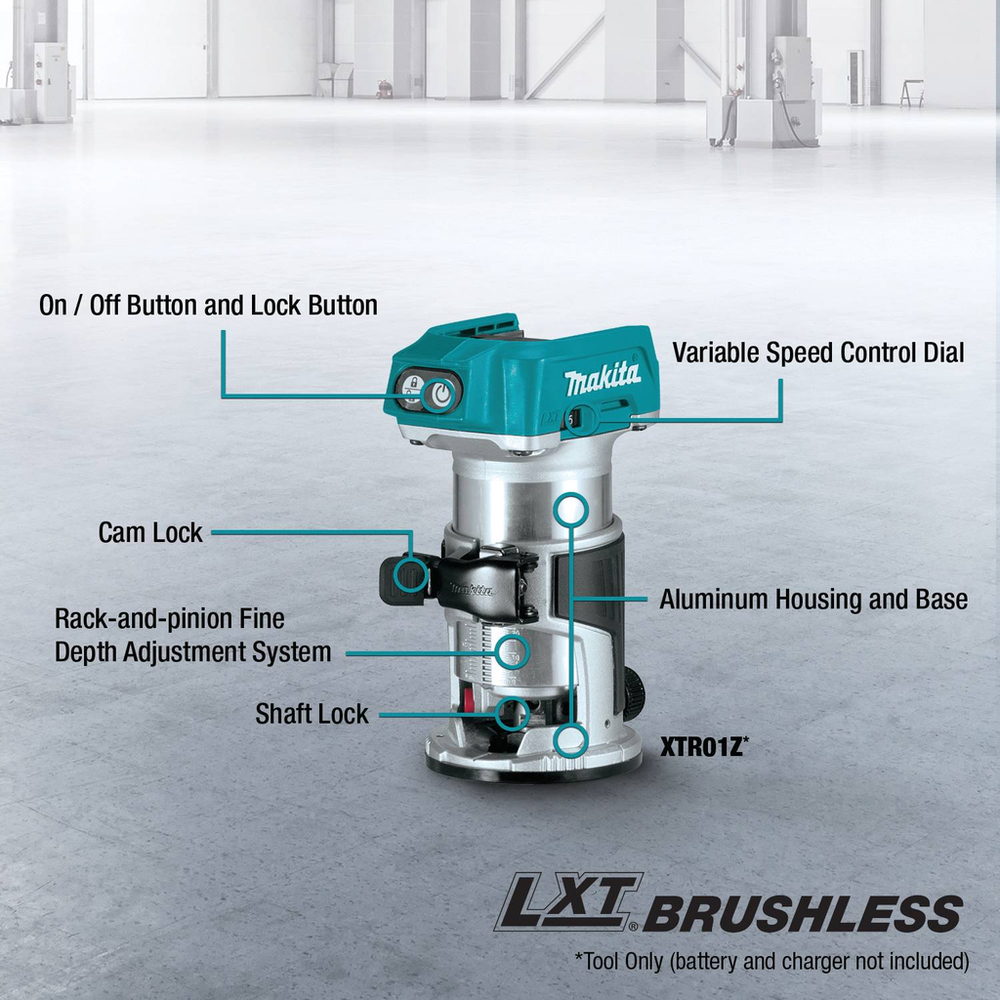

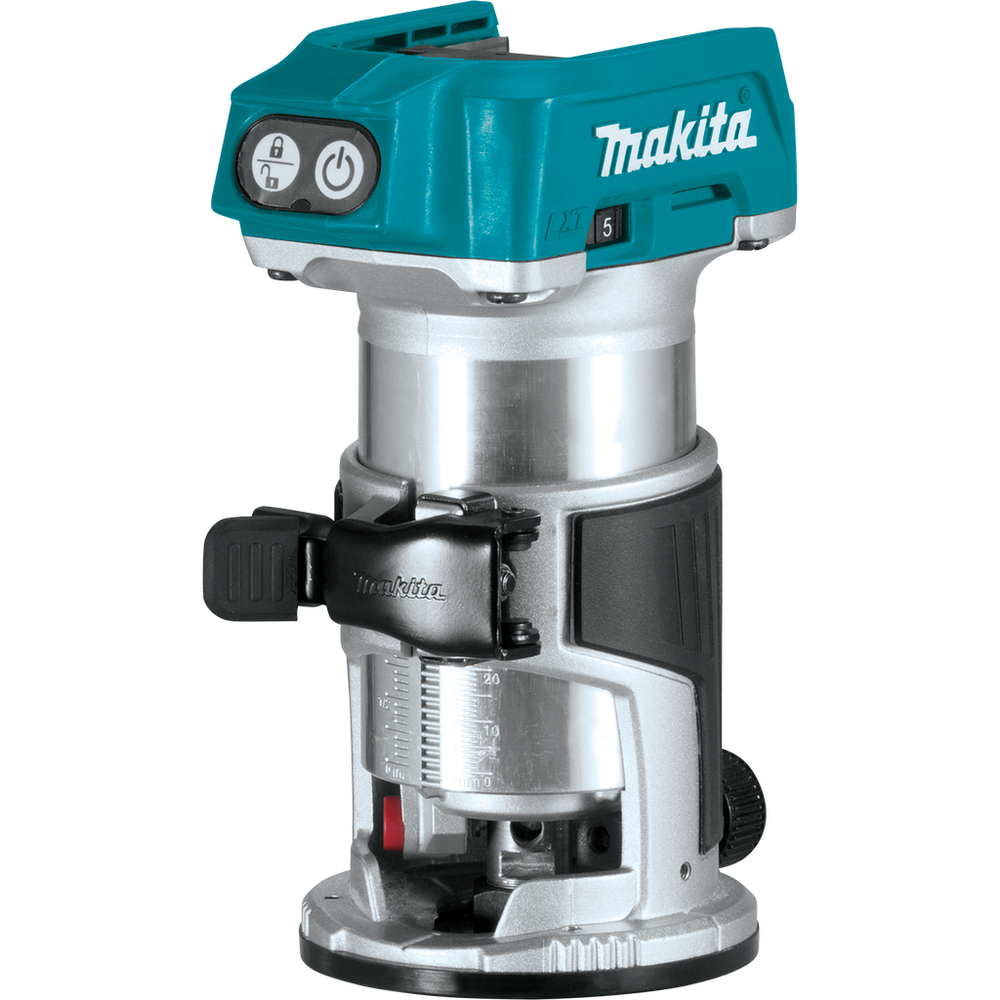

Corded power meets cordless convenience with the 18V LXT Brushless Compact Router (model XTR01Z, tool only, batteries and charger sold separately). The 18V LXT Router has an efficient Makita BL™ Brushless Motor for up to 50% longer run time, increased power and speed, and longer tool life. It is compatible with Makita 18V LXT Lithium-Ion batteries (sold separately). The XTR01Z is engineered for a full range of cabinetry and woodworking applications. It has a variable speed control dial (10,000 – 30,000) RPM) to match the speed to the application, with electronic speed control to maintain constant speed under load and soft start feature for smoother start-ups and better accuracy. Convenience features include the smooth rack-and-pinion fine depth adjustment system for more precise settings, dual L.E.D. lights to illuminate the work surface, and a quick release cam lock system for convenient depth adjustments and base removal/installation. Additional bases and attachments are available (sold separately). For users of corded Makita Compact Routers (models RT0700C, RT0701C), the bases used with these corded routers are fully compatible with the XTR01Z. In addition, the XTR01Z easily connects to Makita vacuum cleaners with the optional dust nozzle for improved dust extraction. It’s part of Makita’s expanding 18V Lithium-Ion system, the world’s largest cordless tool system powered by 18V Lithium-Ion slide-style batteries. Makita 18V Lithium-Ion batteries have the fastest charge times in their categories, so they spend more time working and less time sitting on the charger. For improved tool performance and extended battery life, Makita created Star Protection Computer Controls™. Star Protection is communication technology that allows the Star Protection-equipped tool and battery to exchange data in real time and monitor conditions during use to protect against overloading, over-discharging and overheating. For increased versatility, the tool can also be powered by Makita 18V LXT® and Compact Lithium-Ion batteries with the star symbol on the battery indicating Star Protection inside.
Features
- High visibility base design for improved handling and performance

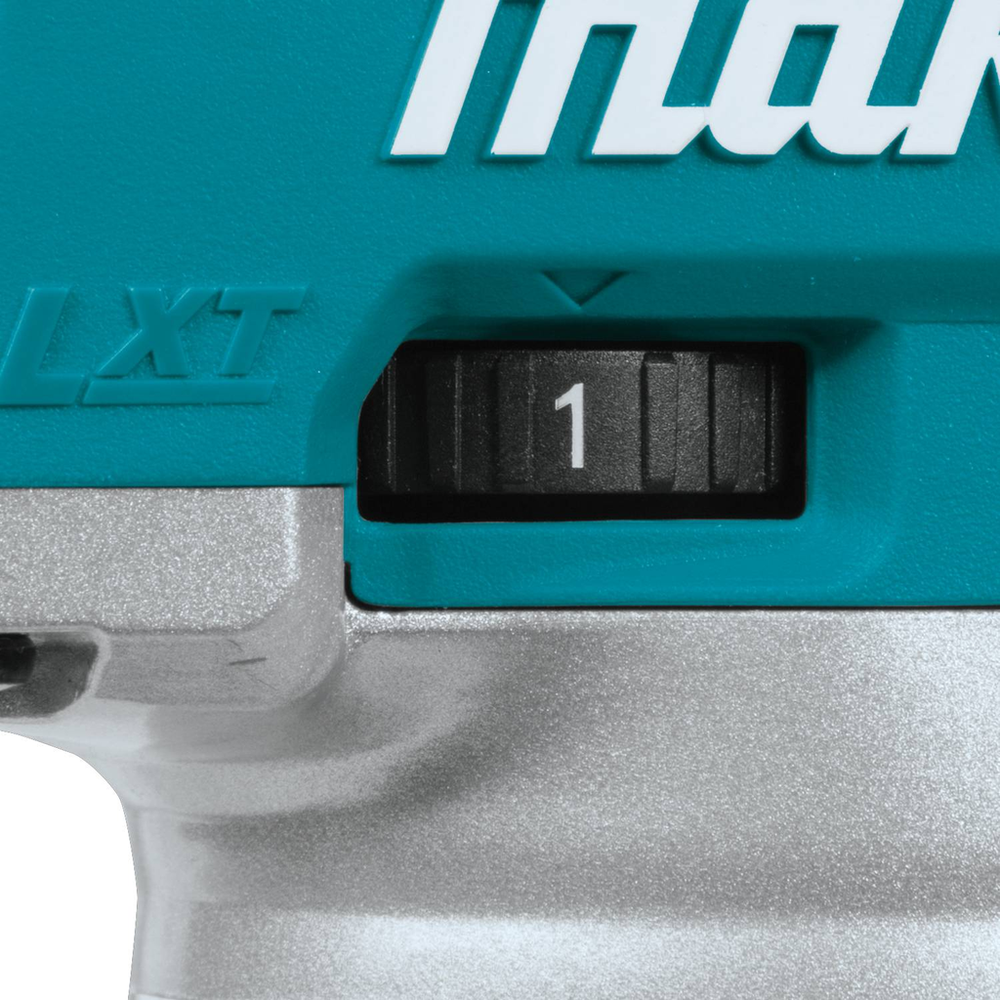

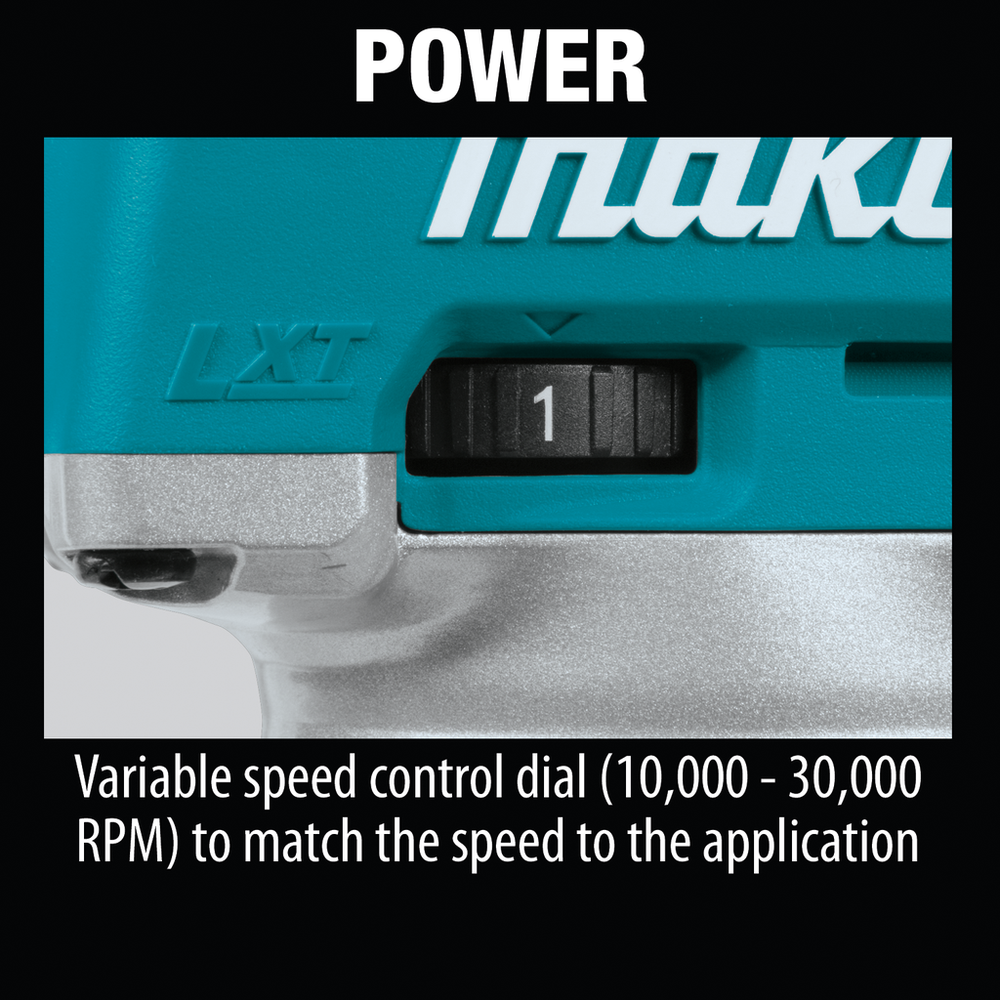

- Variable speed control dial (10,000 - 30,000 RPM) to match the speed to the application

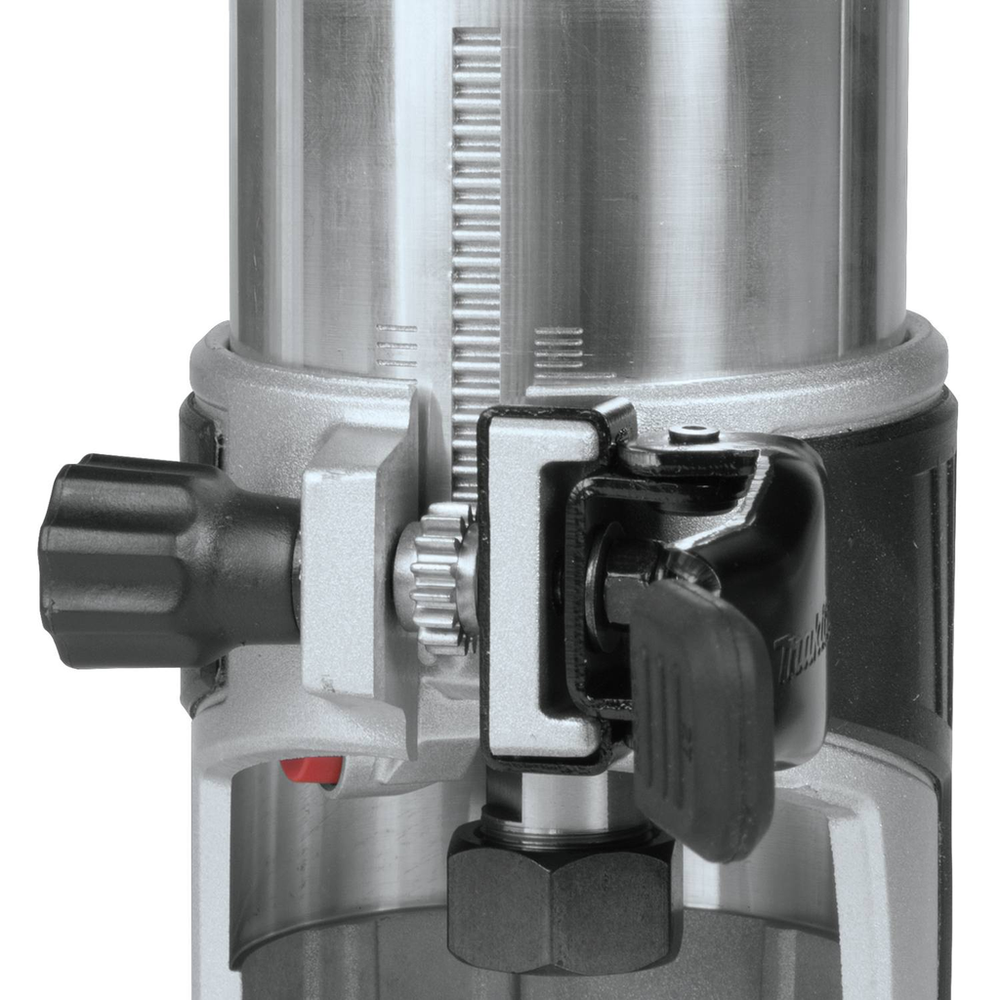

- Smooth rack-and-pinion fine depth adjustment system for more precise settings

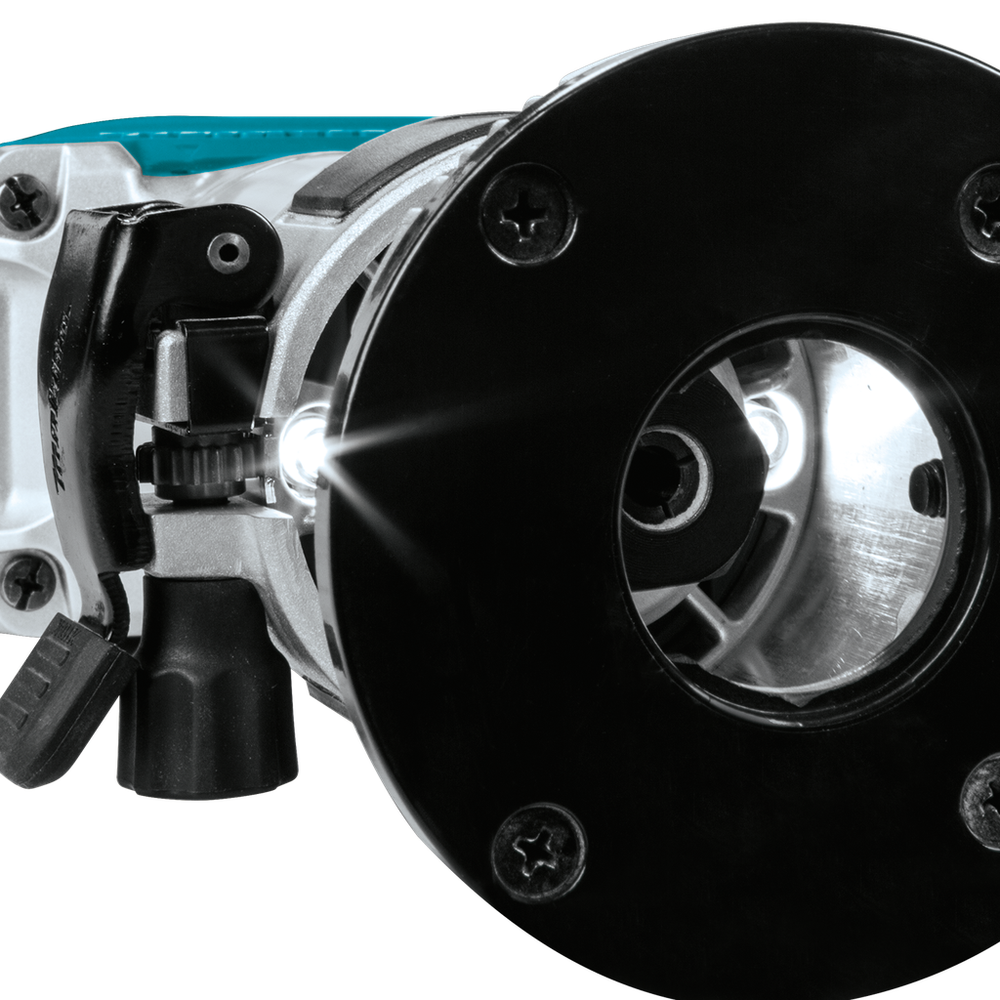

- Dual L.E.D. lights illuminate the work area
- Template Guide (343577-5)
- Plunge capacity of 0 - 1-3/8" with plunge base attached and 0 - 1-9/16" with trimmer base attached (bases sold separately)
- Spanner Wrench (781011-1)
- Aluminum housing and base for increased durability and accuracy
- Rapid Optimum Charger and Dual Port Rapid Optimum Chargers communicate with the battery's built-in chip throughout the charging process to optimize battery life by actively controlling current, voltage and temperature (battery and chargers sold separately)
- Slim and ergonomically designed body with rubberized grip for increased comfort and control
- Compact and ergonomic design at 8-7/8" tall; weighs only 4.6 lbs. with battery (battery not included) for reduced operator fatigue

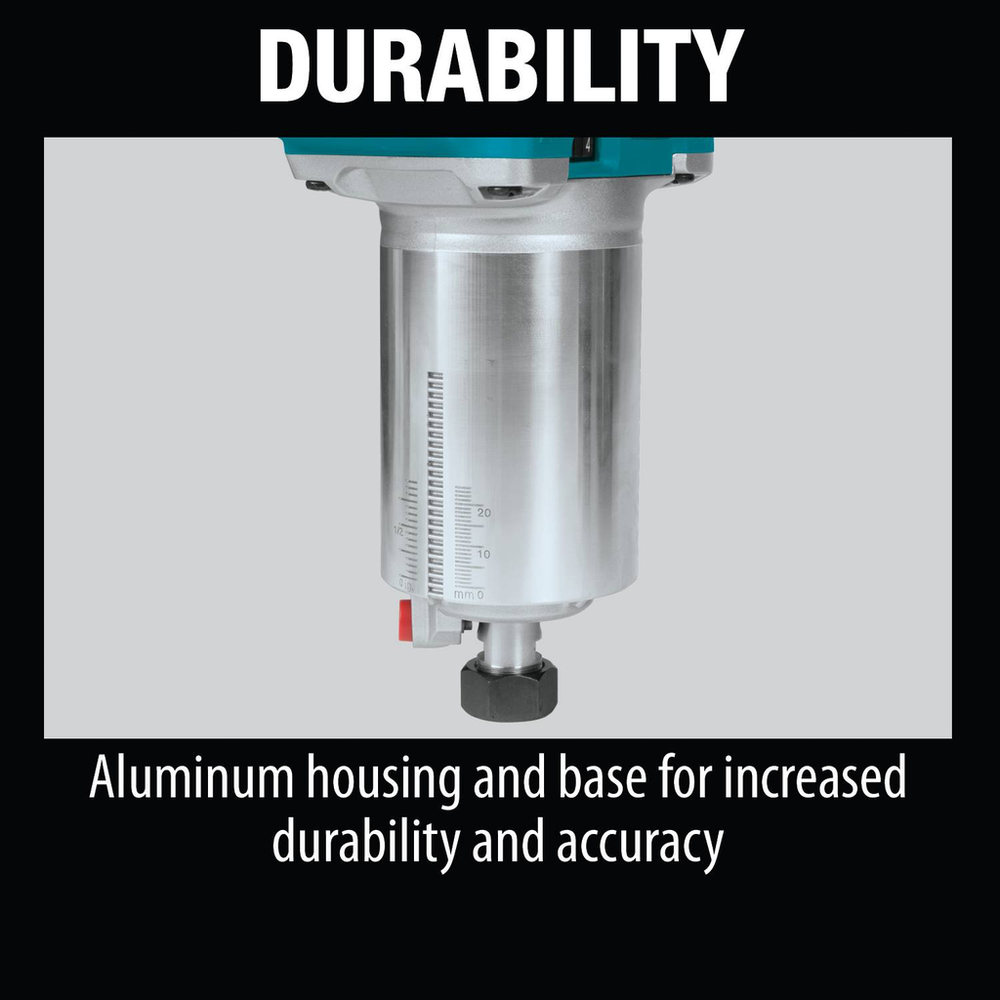

- DURABILITY - Aluminum housing and base for increased durability and accuracy
- Trimmer Base (196613-4)

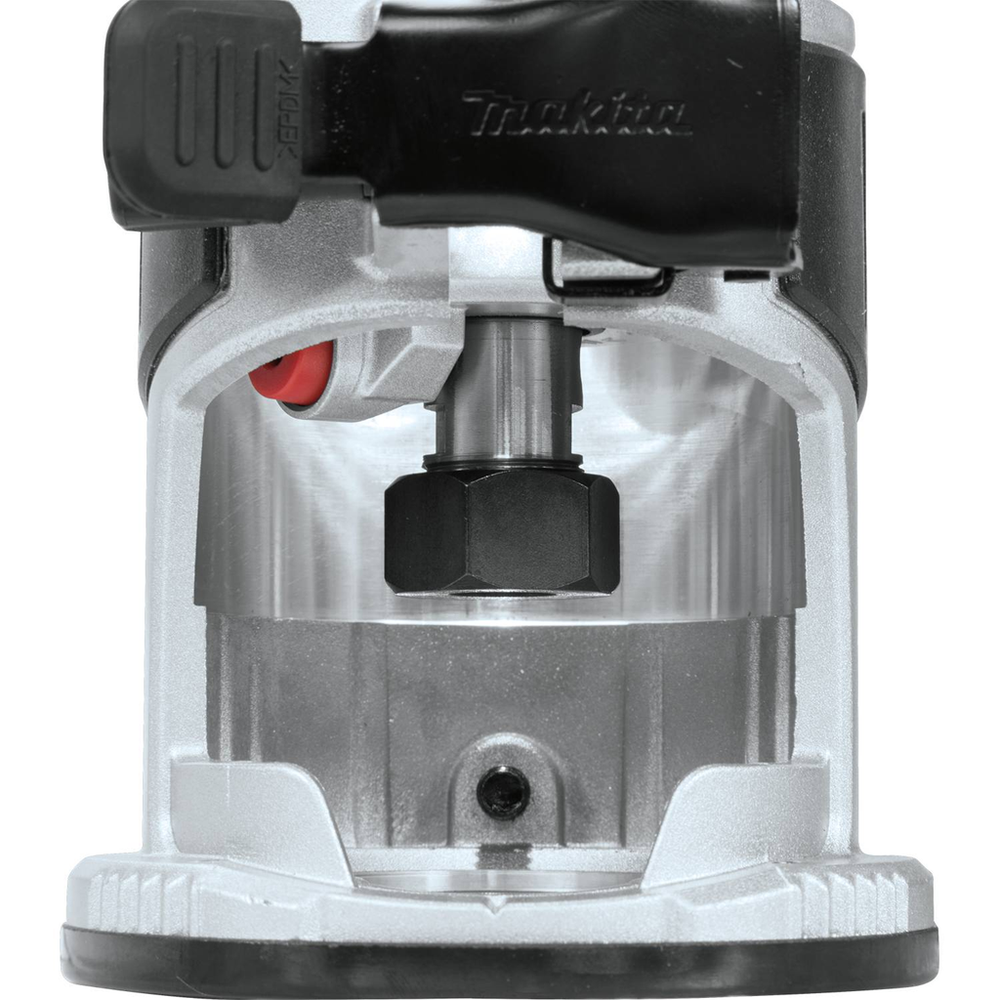

- Non-marring high-durability base insert for increased work piece protection
- Base can be removed quickly to install other bases
- Straight Guide (122965-7)

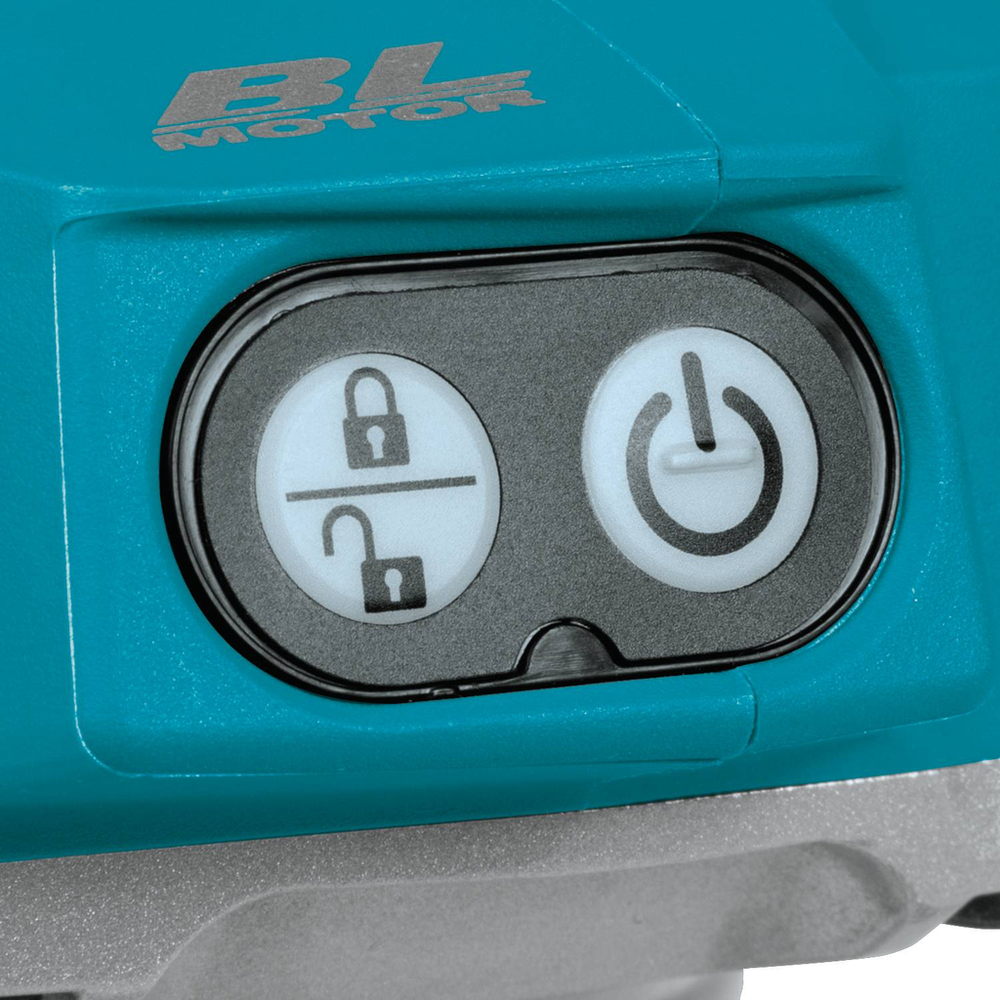

- On/Off button with separate lock button helps prevent accidental start-up of the tool for user and workpiece protection
- Uses 1/4" shank routers bits
- Accepts industry standard template guides

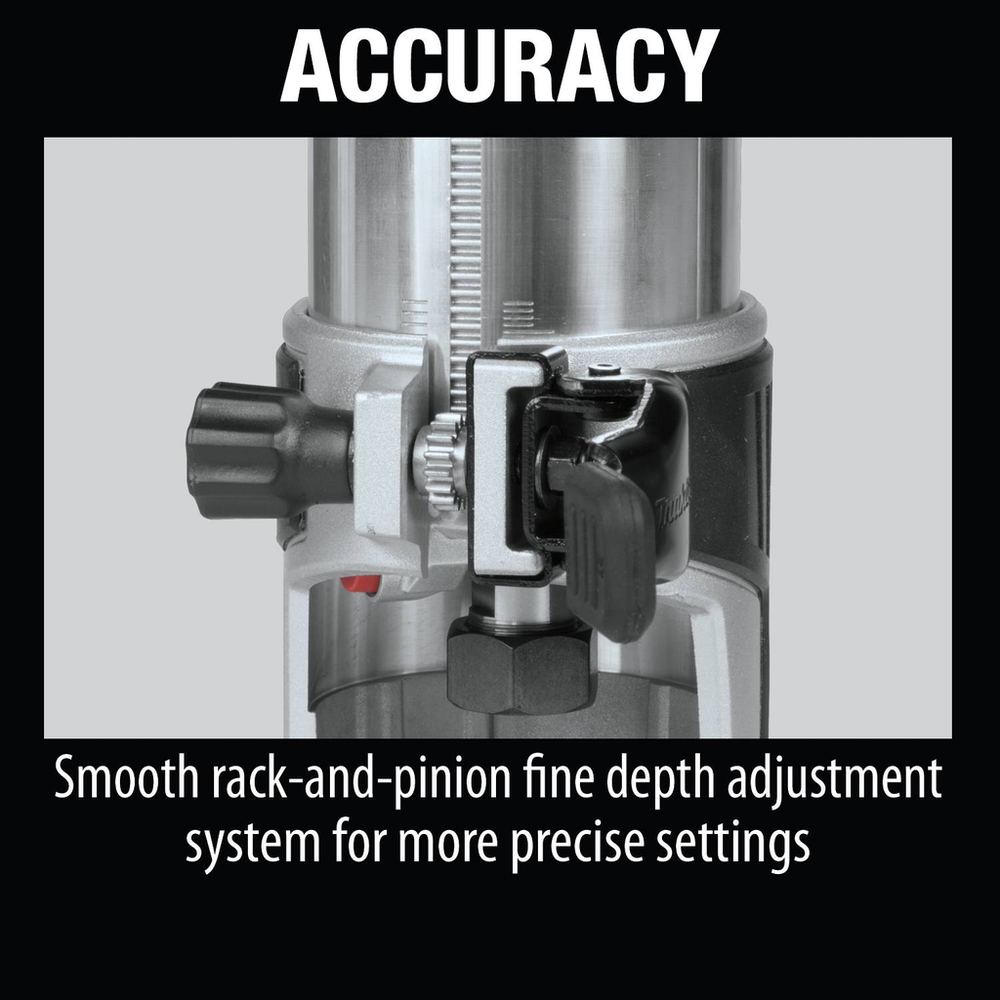

- ACCURACY - Smooth rack-and-pinion fine depth adjustment system for more precise settings
- POWER - Variable speed control dial (10,000 - 30,000 RPM) to match the speed to the application
- LXT® technology delivers 380 feet of cutting performance in red oak using a 1/4" (6mm) straight bit at a 5/32" (4mm) depth with a 5.0Ah battery (battery not included)
- Available in various combinations for added versatility (additional bases and attachments sold separately)

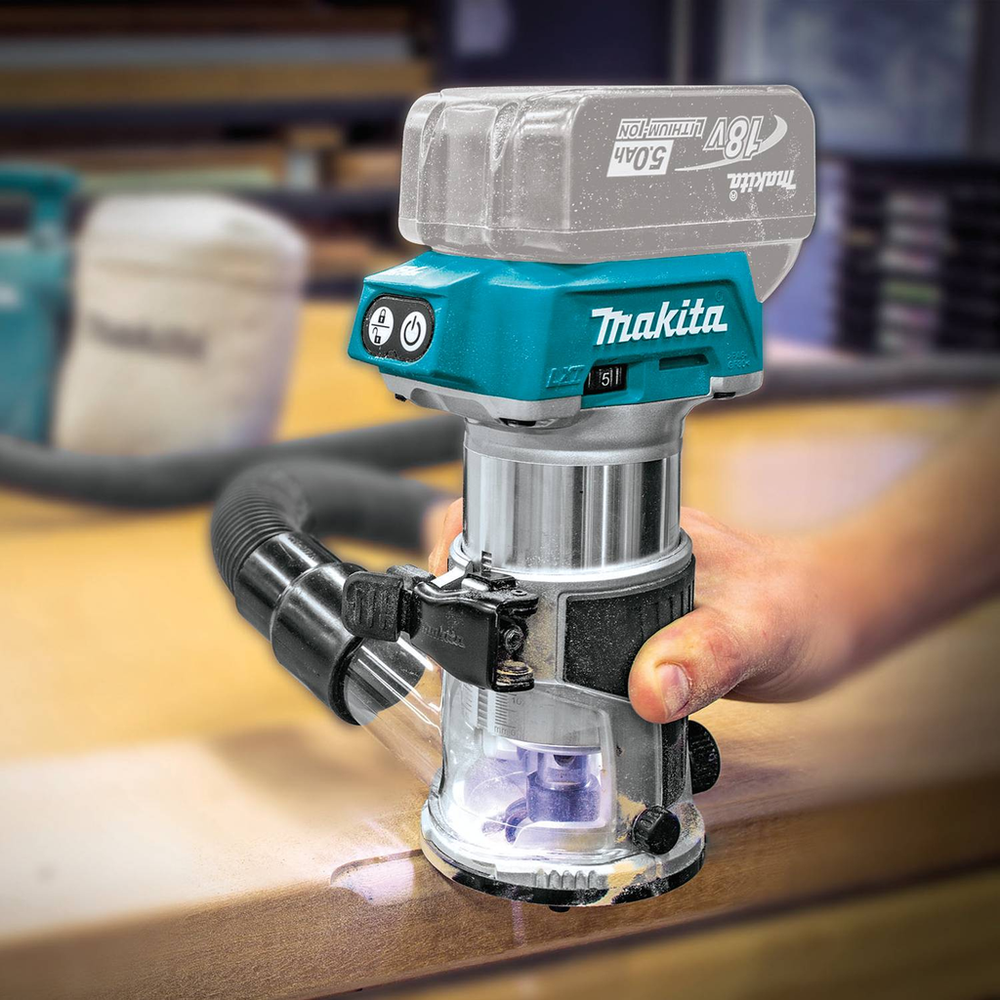

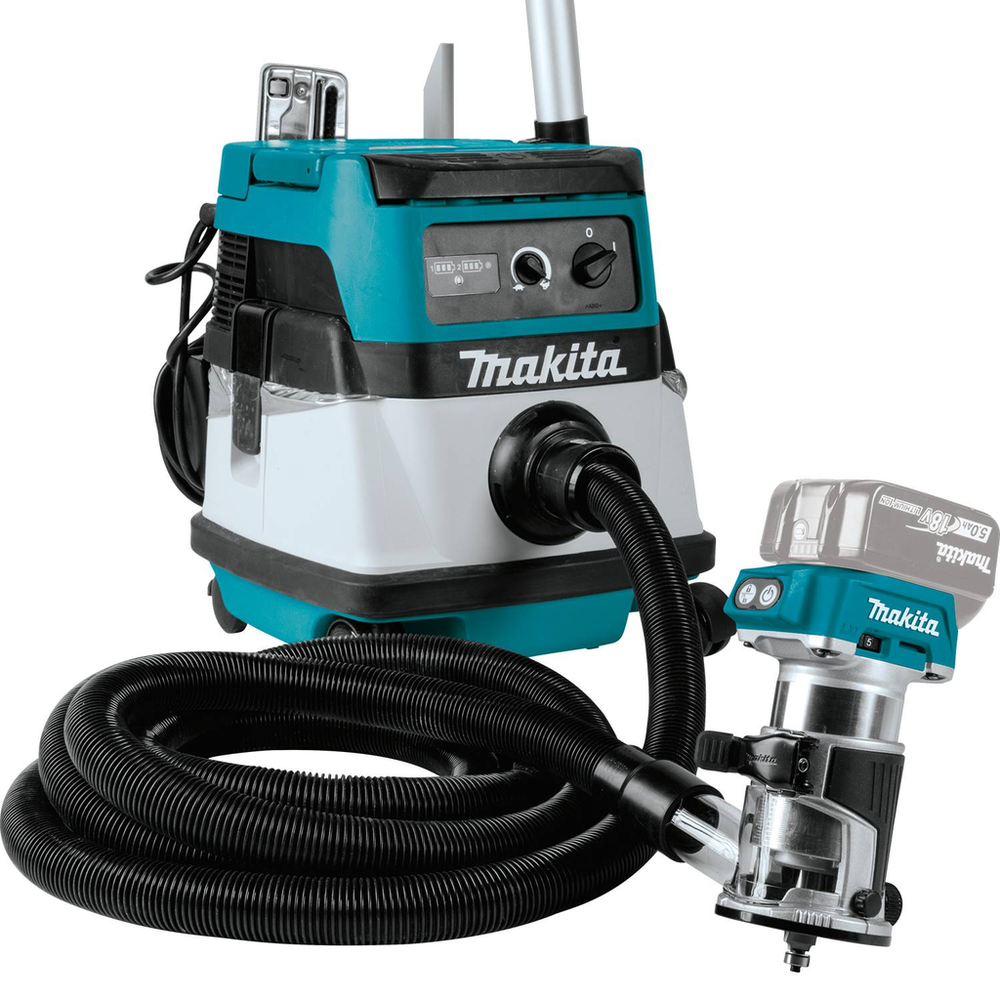

- Connects to Makita vacuum cleaners with optional dust nozzle for a cleaner work environment
- 1/4" Collet (763637-1)
- Delivers 380 feet of cutting performance in red oak using a 1/4" (6mm) straight bit at a 5/32" (4mm) depth with a 5.0Ah battery (battery not included)

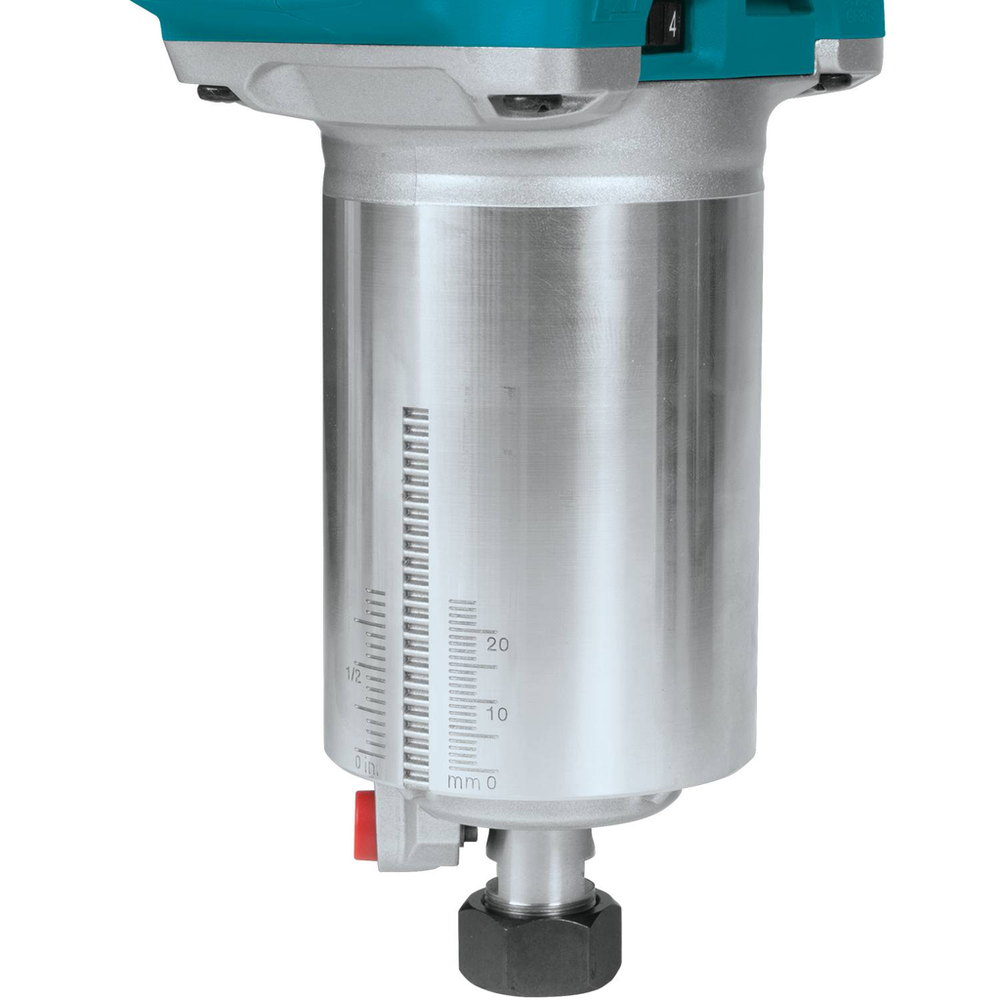

- Easy-to-read depth scales
- Spanner Wrench (781039-9)
- Quick release cam lock system for convenient depth adjustments and base removal/installation

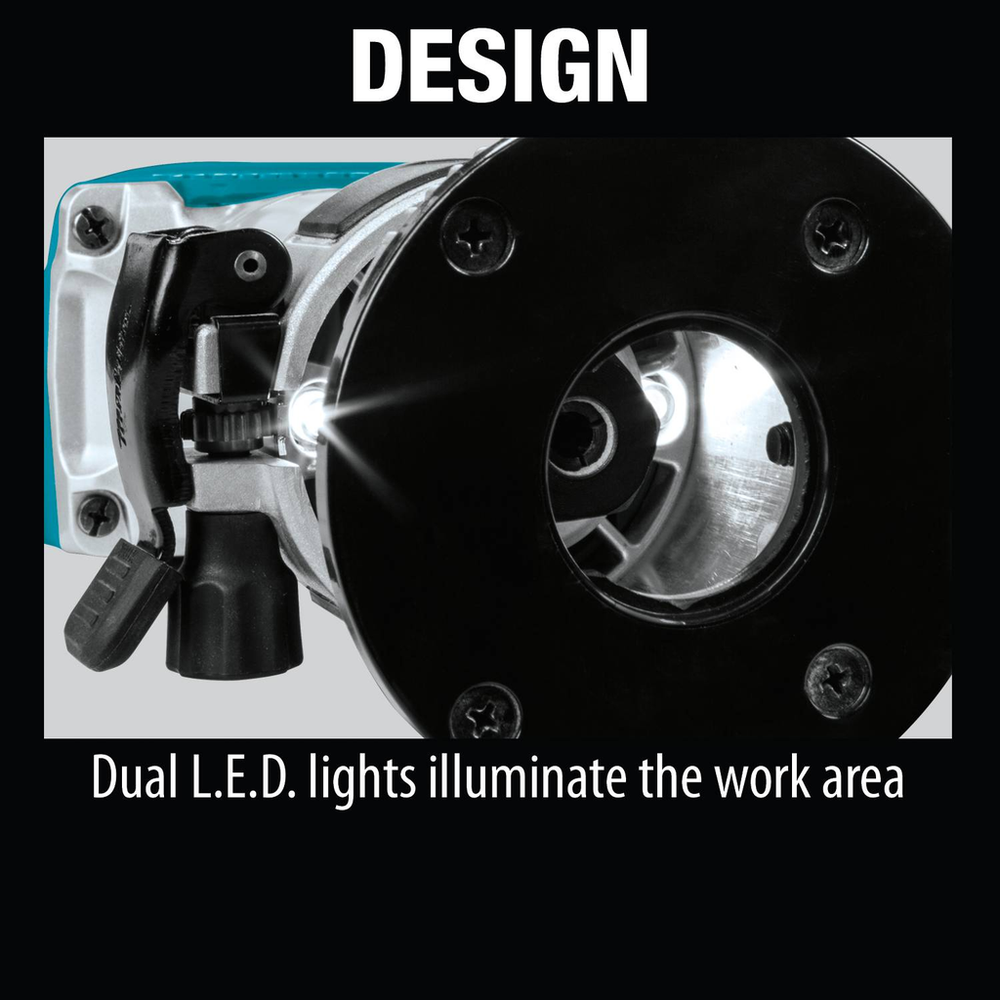

- DESIGN - Dual L.E.D. lights illuminate the work area
- Electronic speed control maintains constant speed under load
- Soft start feature for smoother start-ups and better accuracy
- 3/8" Collet (763619-3)
- Makita-built brushless motor delivers faster and more accurate cuts in a variety of materials
- Shaft lock for quick and easy bit changes

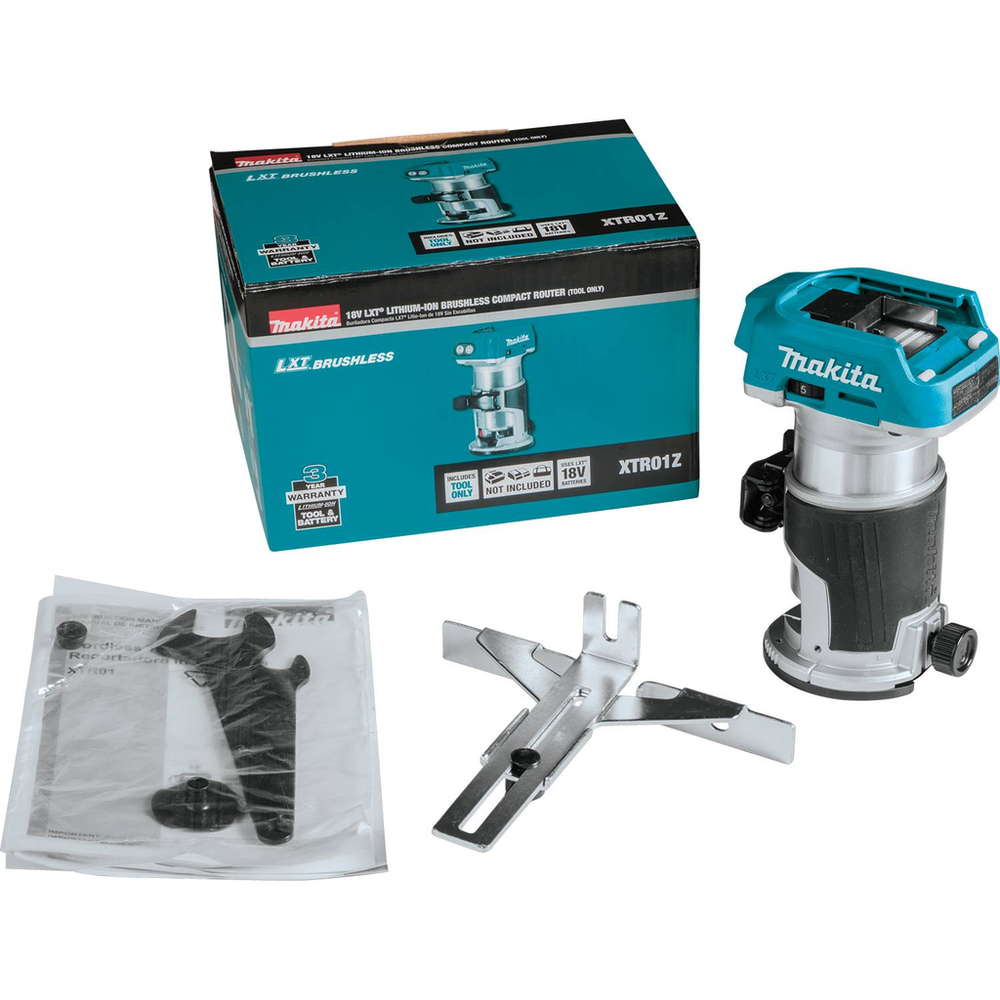

- INCLUDES - 1/4" and 3/8" collet, straight guide, template guide, wrenches (battery and charger not included)
- Equipped with Star Protection Computer Controls™ to protect against overloading, over-discharging and over-heating
- The electronically-controlled BL™ Brushless Motor efficiently uses energy to match torque and RPM to the changing demands of the application
Prop 65
- WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: lead from lead-based paints, crystalline silica from bricks and cement and other masonry products, and arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles. For more information, visit www.P65warnings.ca.gov.
Downloads
XTR01 Parts BreakdownMakita XTR01T7 New Tool Flyer (English)XTR01 Instruction Manual
