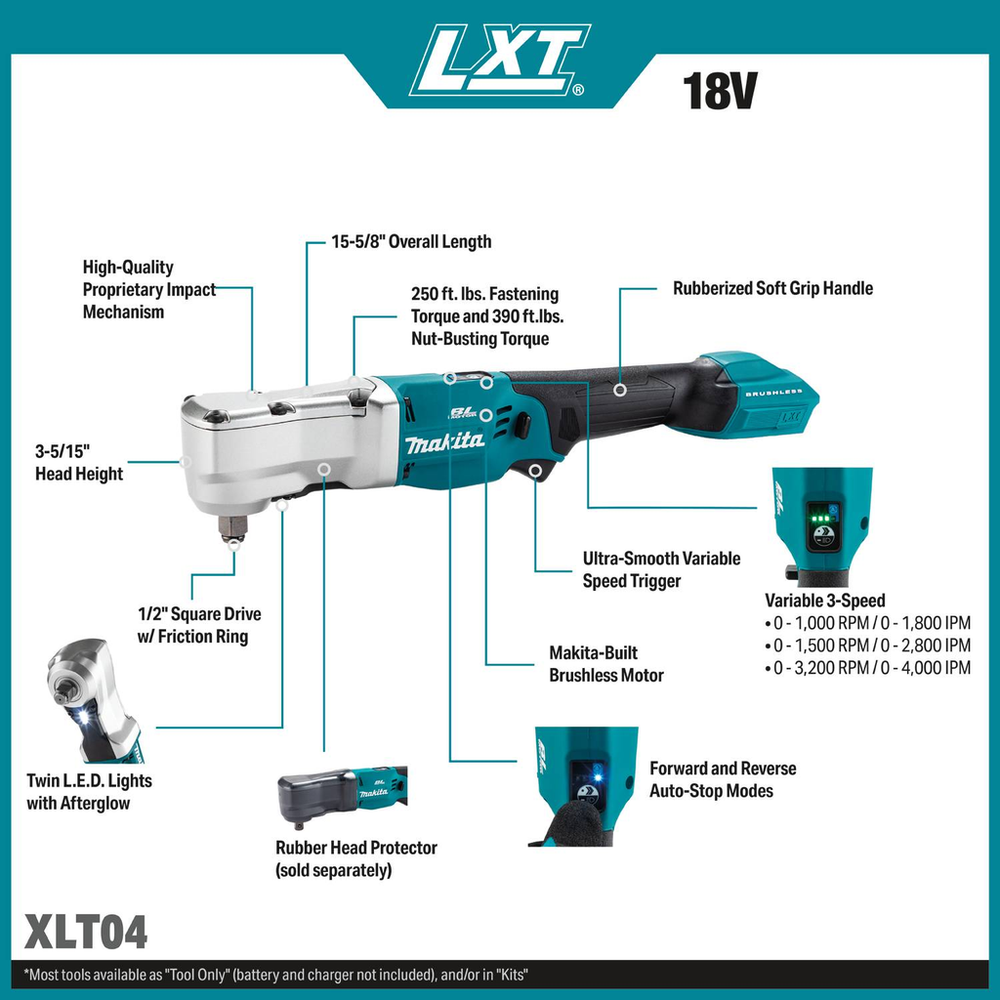

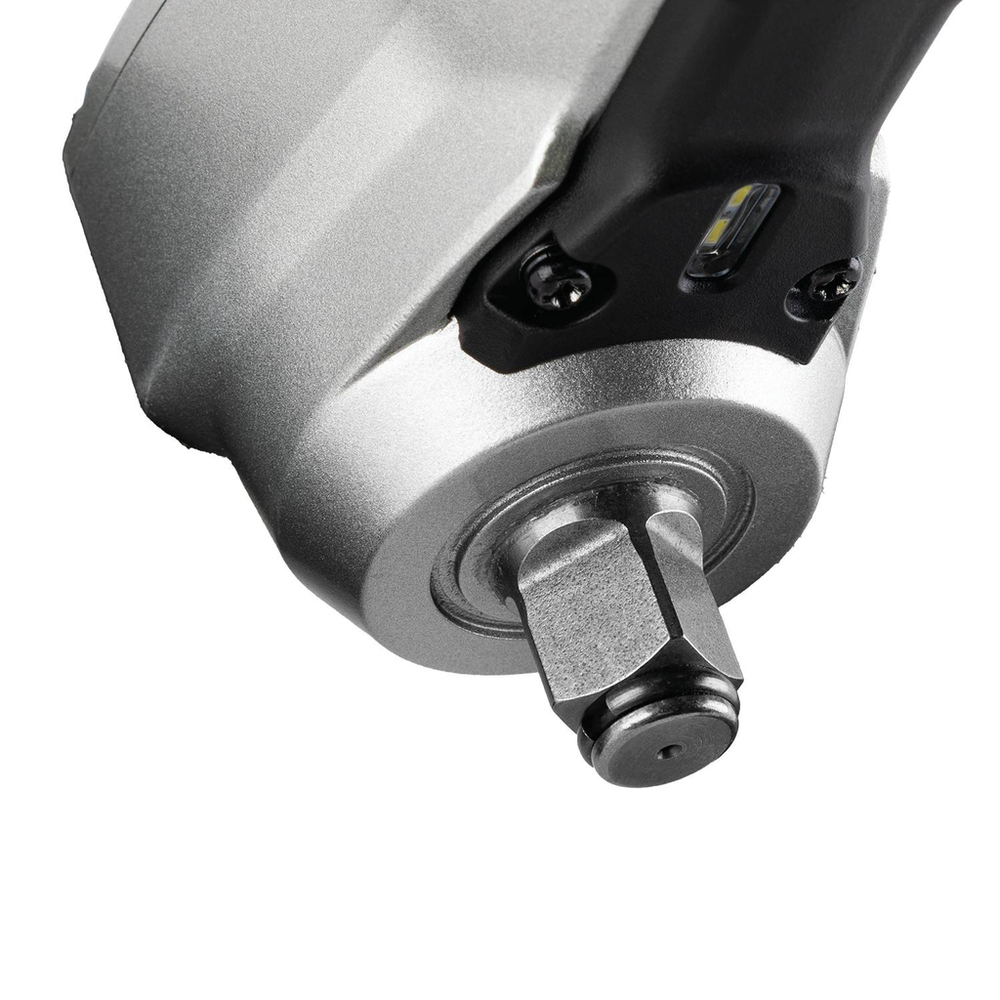

The 18V LXT® High Torque 1/2" Sq. Drive Angle Impact Wrench w/ Friction Ring (XLT04) is a compact angle impact wrench that delivers 250 ft. lbs. fastening torque and 390 ft. lbs. of nut-busting torque. The 1/2" Sq. Drive Angle Impact Wrench features a Makita-built brushless motor that delivers 390 ft.lbs. of nut-busting torque. It features three speeds (0-1,000 / 0-1,500 / 0-3,200 RPM & 0-1,800 / 0-2,800 / 0-4,000 IPM) for a wide range of fastening applications. An ultra-smooth variable speed trigger provides optimum control. The XLT04 utilizes Makita's proprietary hammer and anvil impact mechanism, which are manufactured using the best raw materials with the highest quality steel and unique heat hardening process for maximum fastening and driving power. The 1/2" Sq. Drive Angle Impact Wrench is engineered with a compact 3-3/8” angle head height for use in close quarters. It features Auto-Stop modes in both forward and reverse for increased efficiency. Convenience features include Twin L.E.D. lights with afterglow illuminates the work area, a rubberized soft grip handle that provides increased comfort on the job. It weighs only 4.0 lbs. with battery (battery not included) for reduced operator fatigue. It’s part of Makita’s expanding 18V LXT® System, the world’s largest cordless tool system powered by 18V lithium-ion slide-style batteries. Makita® 18V LXT® Lithium-Ion Batteries have the fastest charge times in their categories, so they spend more time working and less time sitting on the charger. For improved tool performance and extended battery life, Makita created Star Protection Computer Controls™. Star Protection is communication technology that allows the Star Protection-equipped tool and battery to exchange data in real time and monitor conditions during use to protect against overloading, over-discharging and overheating. For increased versatility, the tool can also be powered by Makita® 18V LXT® Lithium-Ion Batteries with the star symbol on the battery indicating Star Protection inside.
Features
- Makita's proprietary hammer and anvil impact mechanism are manufactured using the best raw materials with the highest quality steel and unique heat hardening process for maximum fastening and driving power
- INCLUDES - Tool only (battery and charger not included)
- Rubberized soft grip handle provides increased comfort on the job
- COMFORT - Weighs only 4.0 lbs. with battery (battery not included) for reduced operator fatigue
- Ergonomically designed for better control and balance
- Makita-built brushless motor delivers 390 ft.lbs. of Nut-Busting Torque
- Extreme Protection Technology (XPT™) is engineered to provide improved dust and water resistance for operation in harsh conditions
- Equipped with Star Protection Computer Controls™ to protect against overloading, over-discharging and over-heating

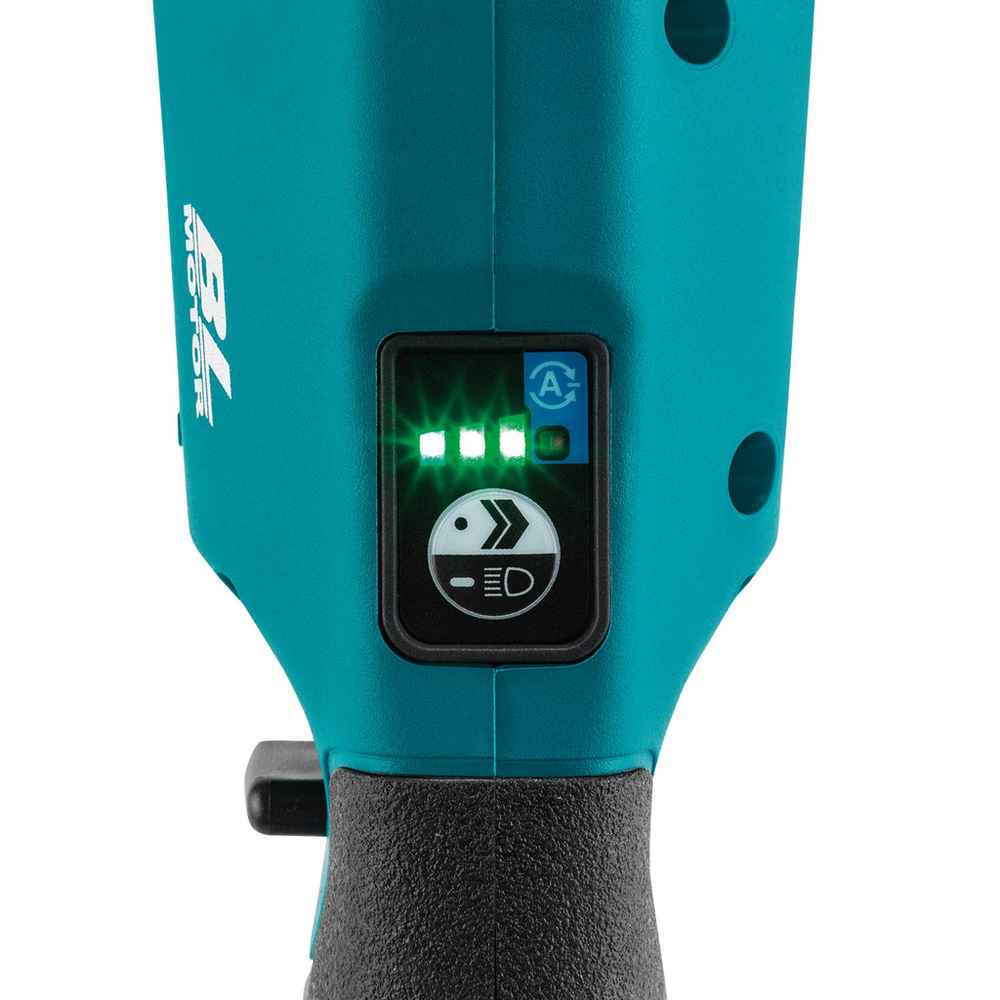

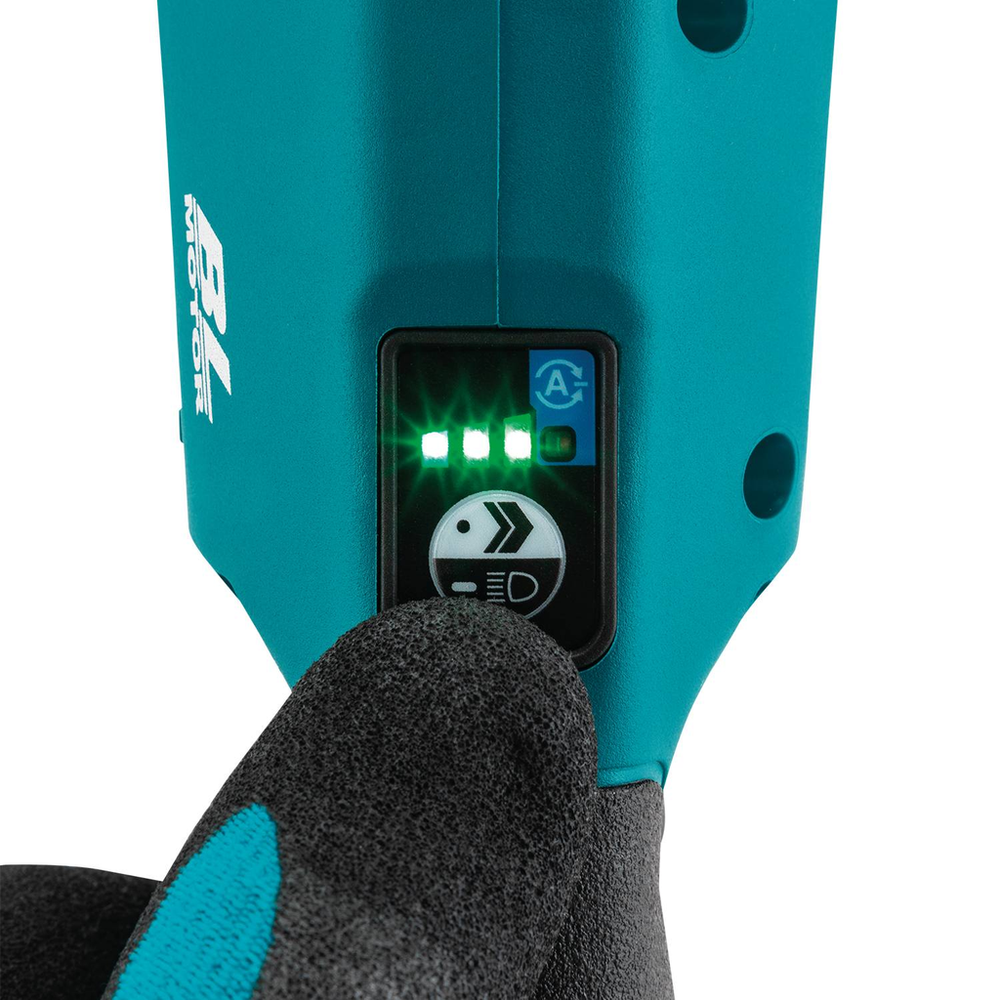

- Variable 3-speed (0-1,000 / 0-1,500 / 0-3,200 RPM & 0-1,800 / 0-2,800 / 0-4,000 IPM) for a wide range of fastening applications
- Weighs only 4.0 lbs. with battery (battery not included) for reduced operator fatigue

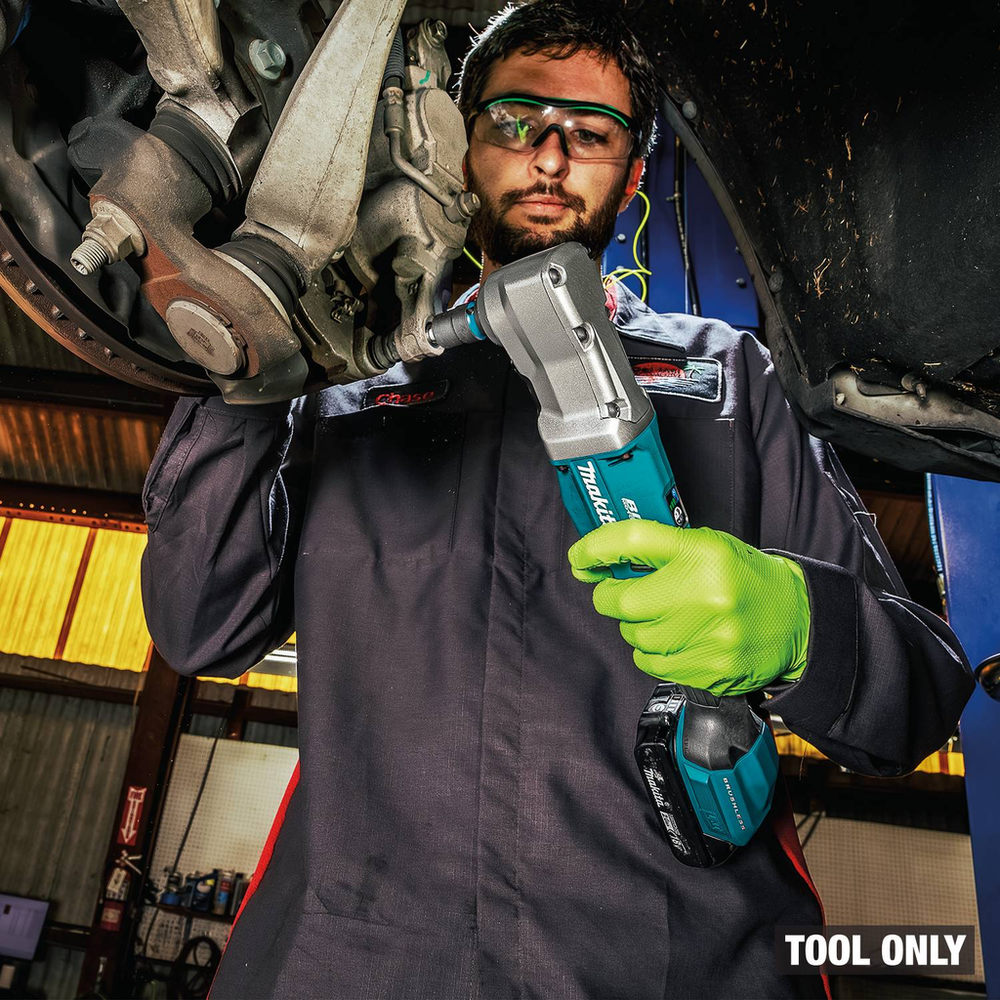

- Compact 3-3/8" angle head height for use in close quarters
- Twin L.E.D. lights with afterglow illuminates the work area
- Only use genuine Makita batteries and chargers
- CONTROL - Variable 3-speed (0-1,000 / 0-1,500 / 0-3,200 RPM & 0-1,800 / 0-2,800 / 0-4,000 IPM)

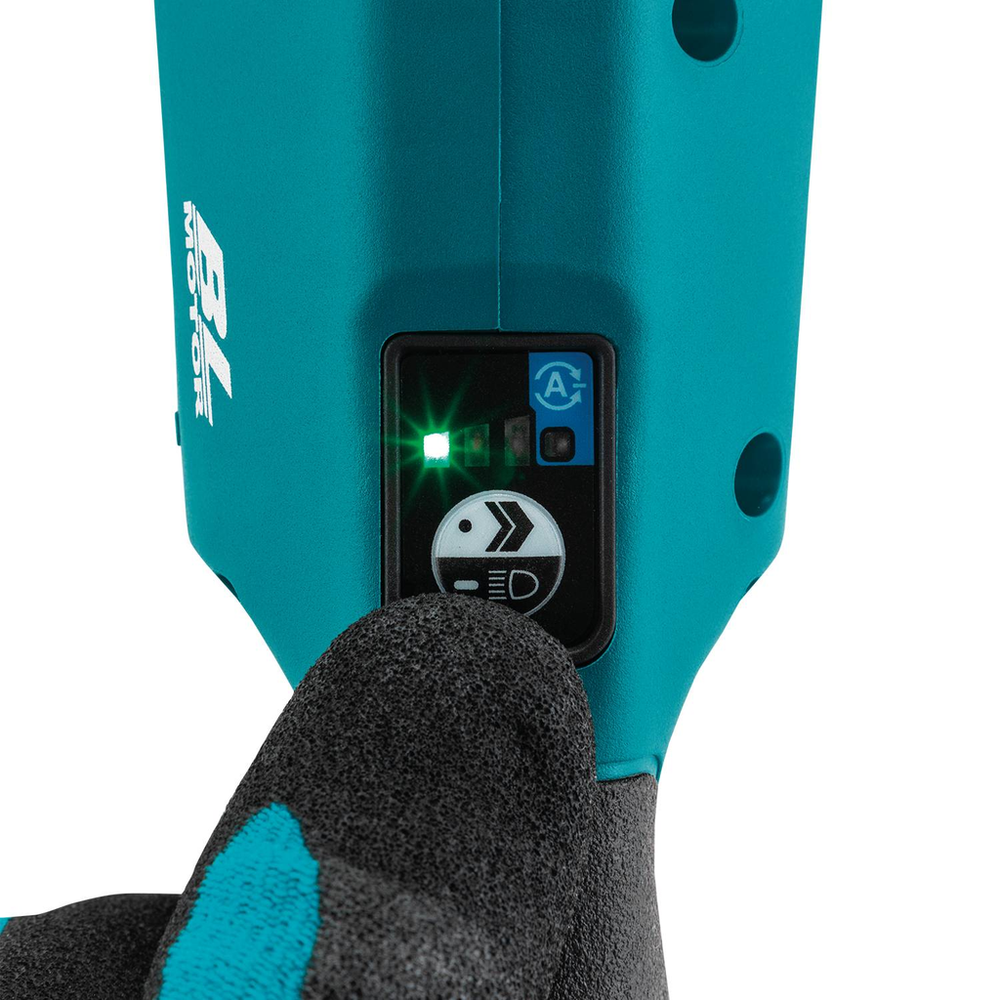

- INNOVATION - Forward and Reverse Auto-Stop modes for increased efficiency
- 3-year limited warranty
- Forward and Reverse Auto-Stop modes for increased efficiency
- Compatible with Makita 18V Lithium-Ion batteries with a Star symbol (battery sold separately)
- POWER - Delivers 250 ft. lbs. Fastening Torque and 390 ft. lbs. of Nut-Busting Torque
- Ultra-smooth variable speed trigger provides optimum control
Prop 65
- WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: lead from lead-based paints, crystalline silica from bricks and cement and other masonry products, and arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles. For more information, visit www.P65warnings.ca.gov.
Downloads
Makita XLT04Z Parts BreakdownMakita XLT03, XLT04, XLT05 Instruction Manual
