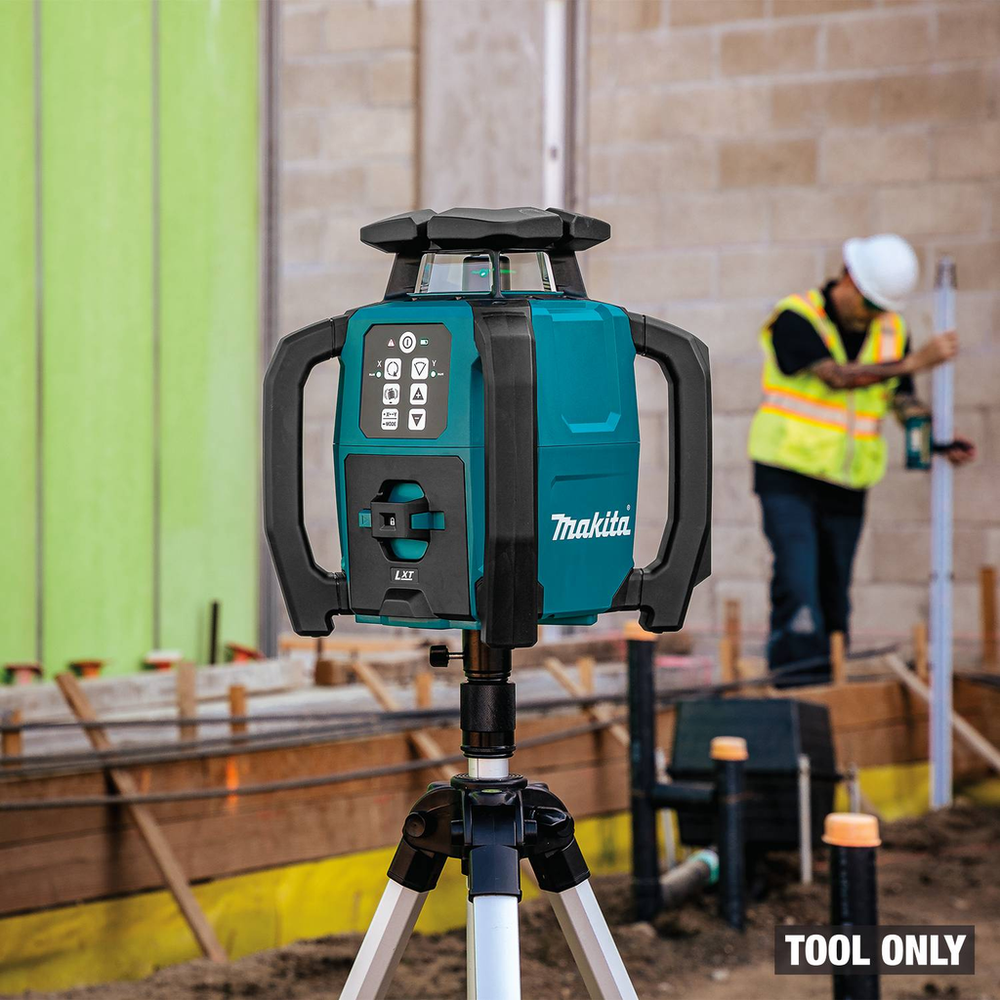

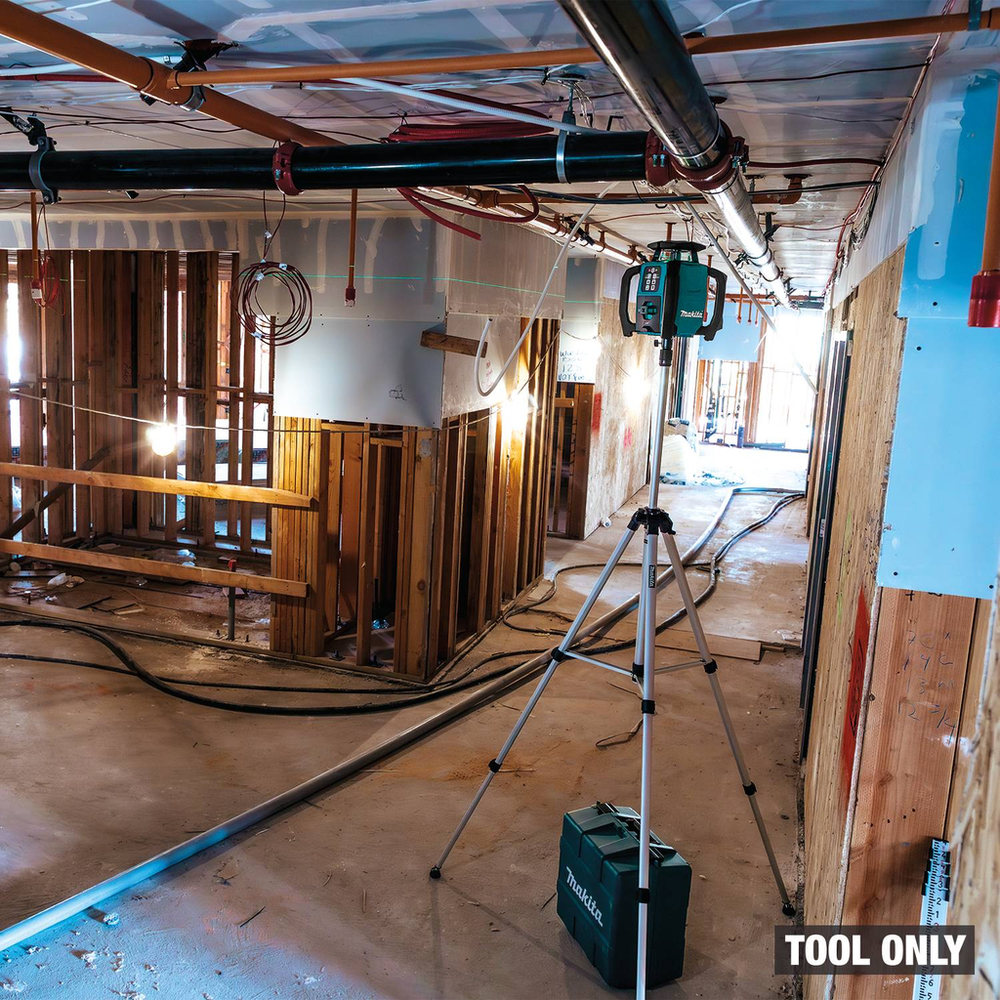

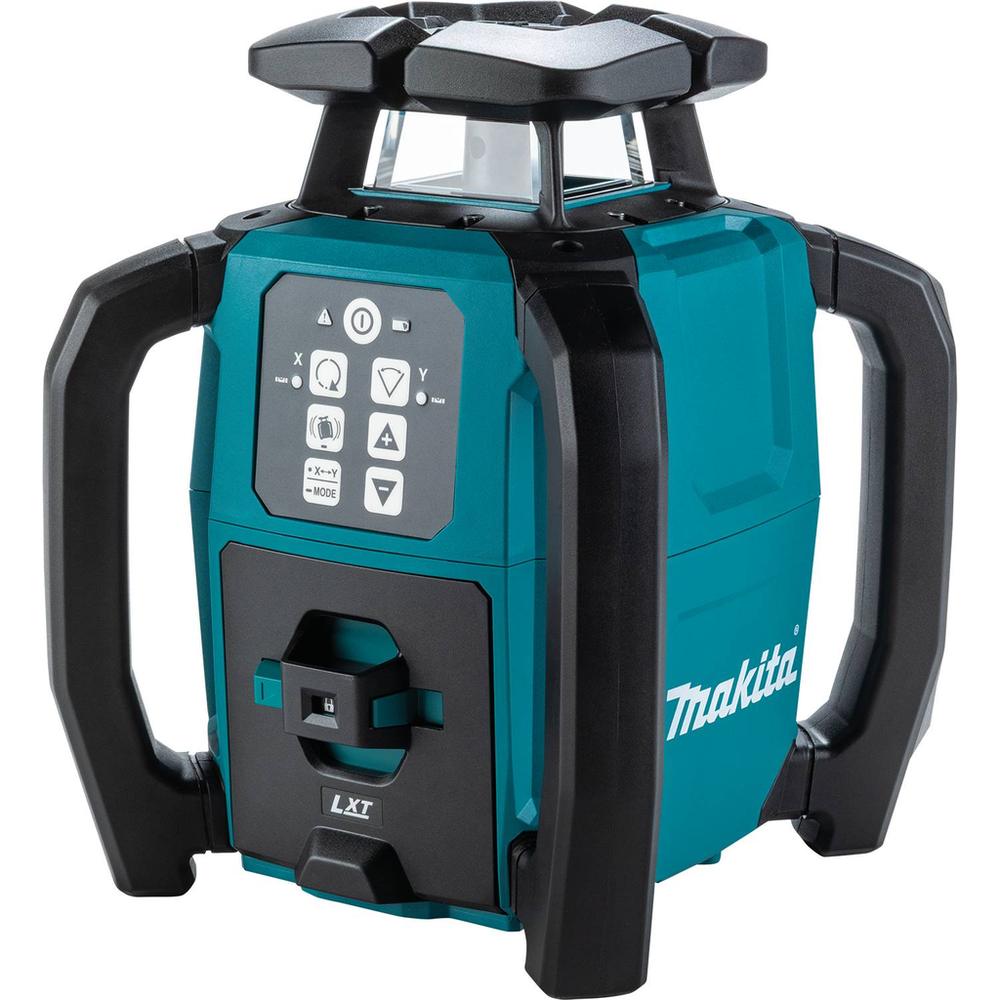

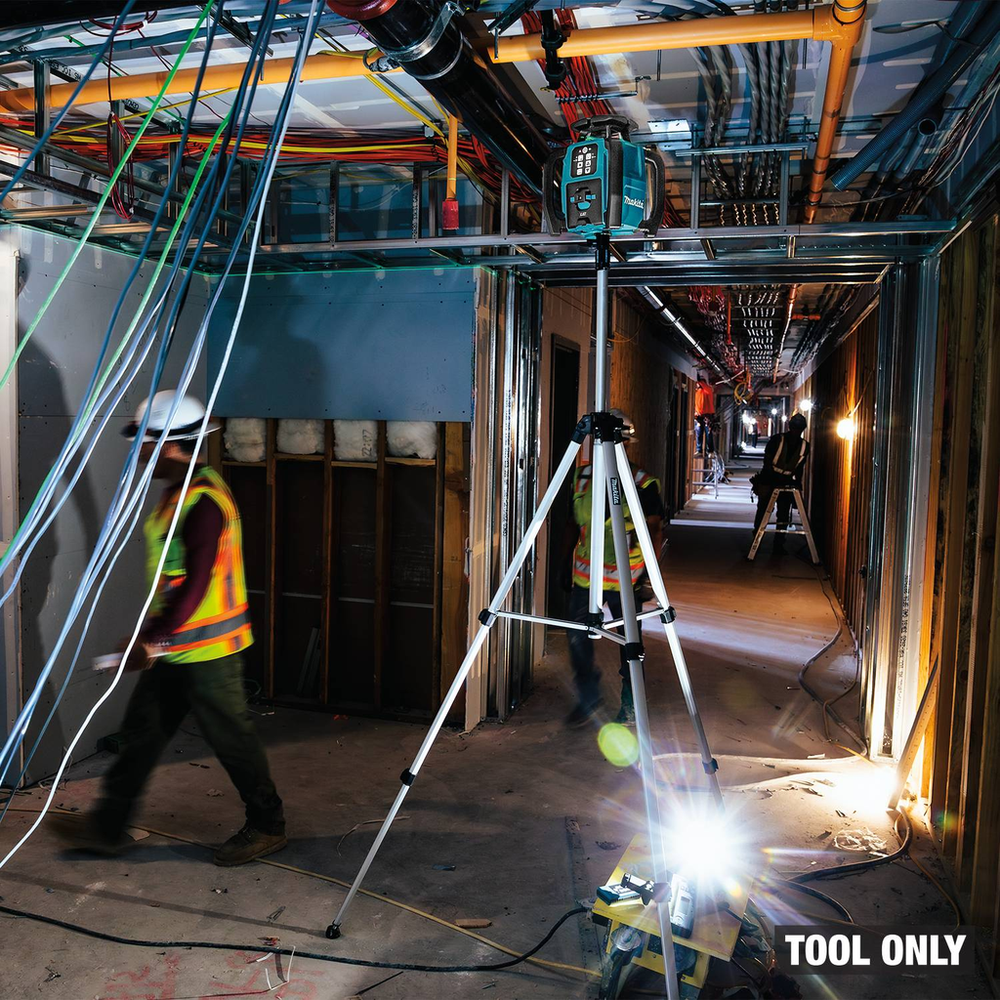

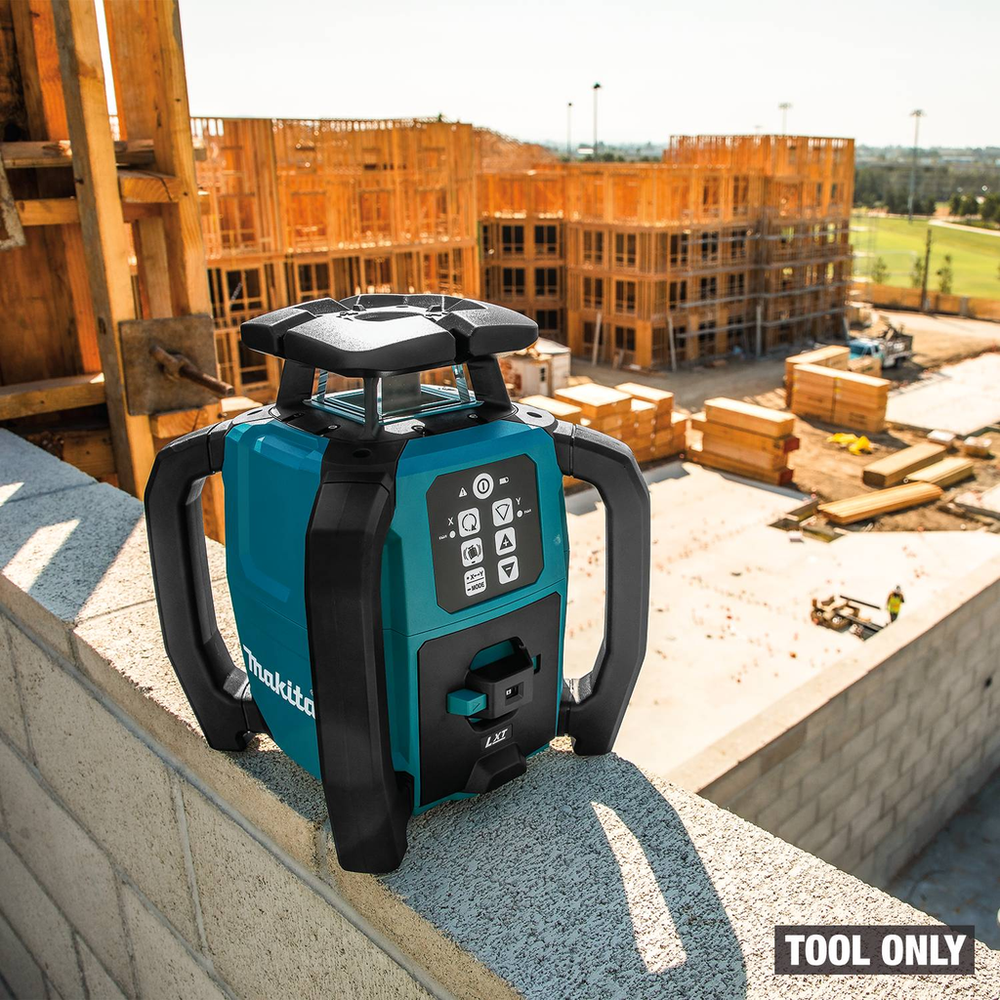

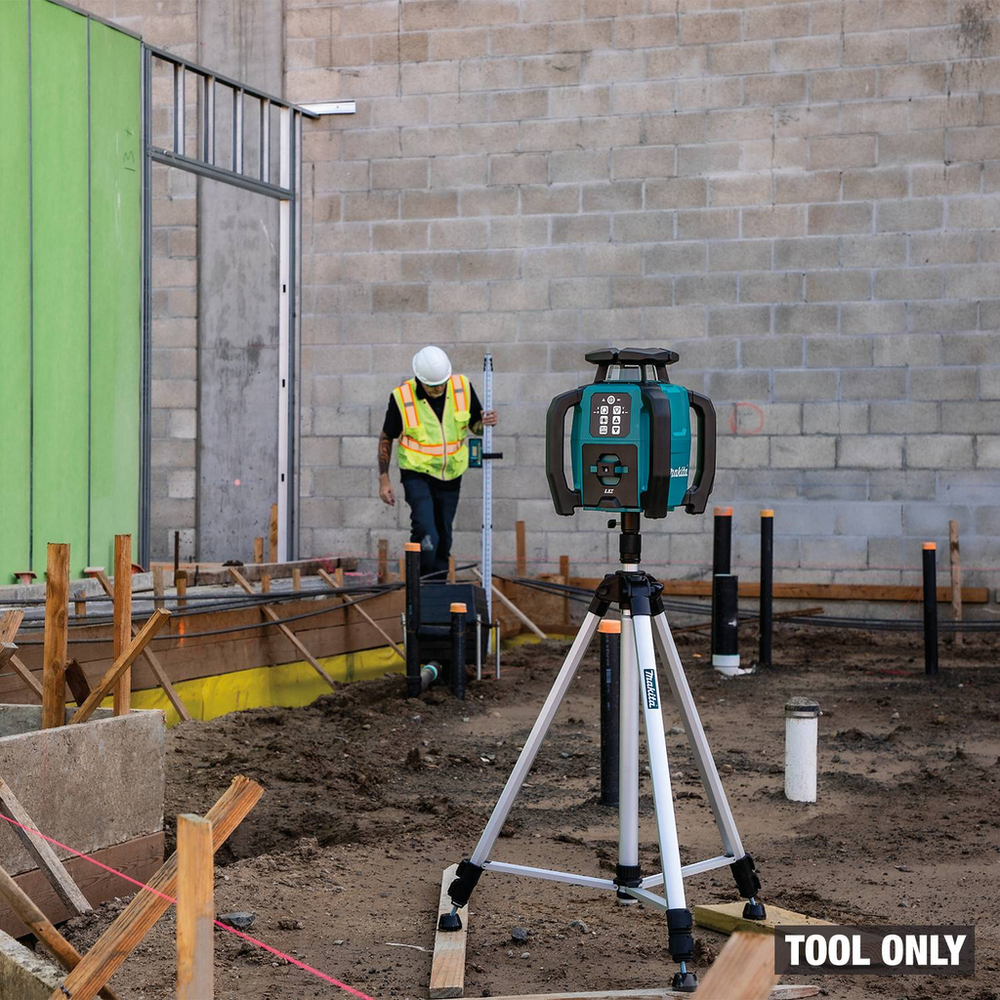

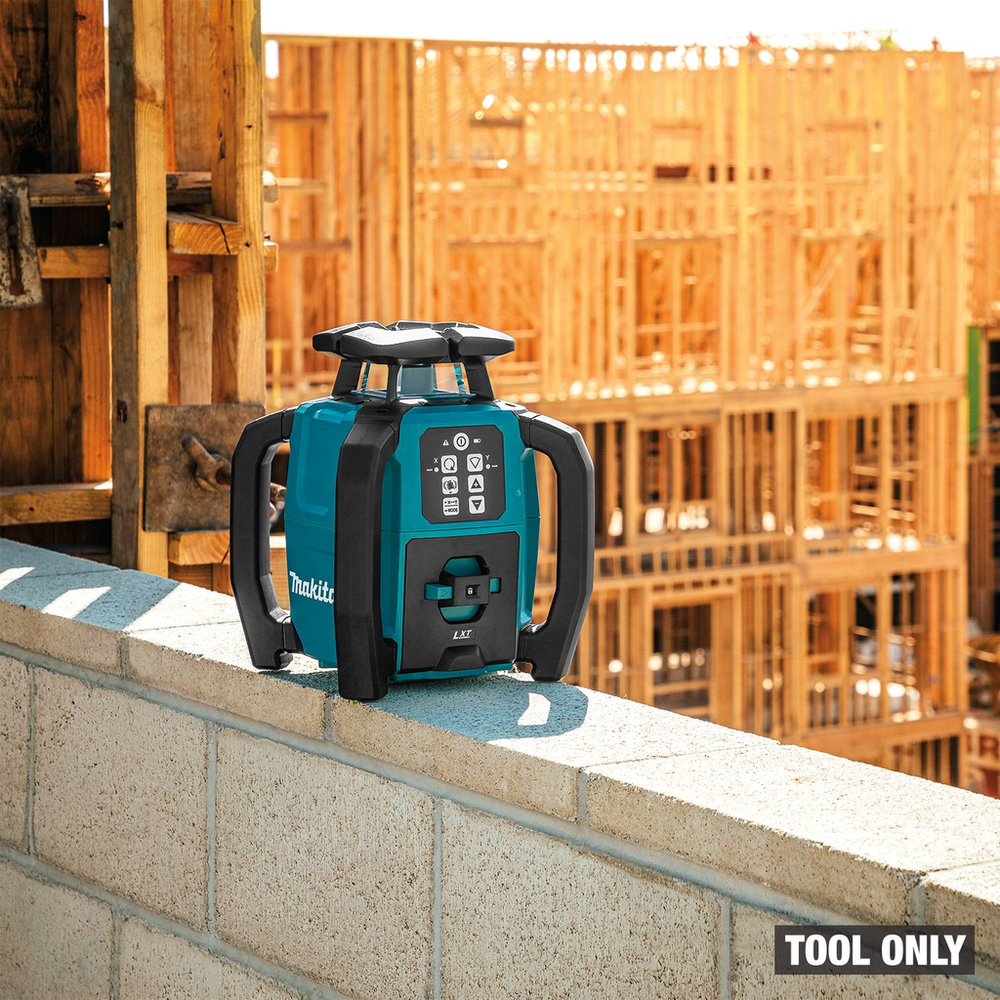

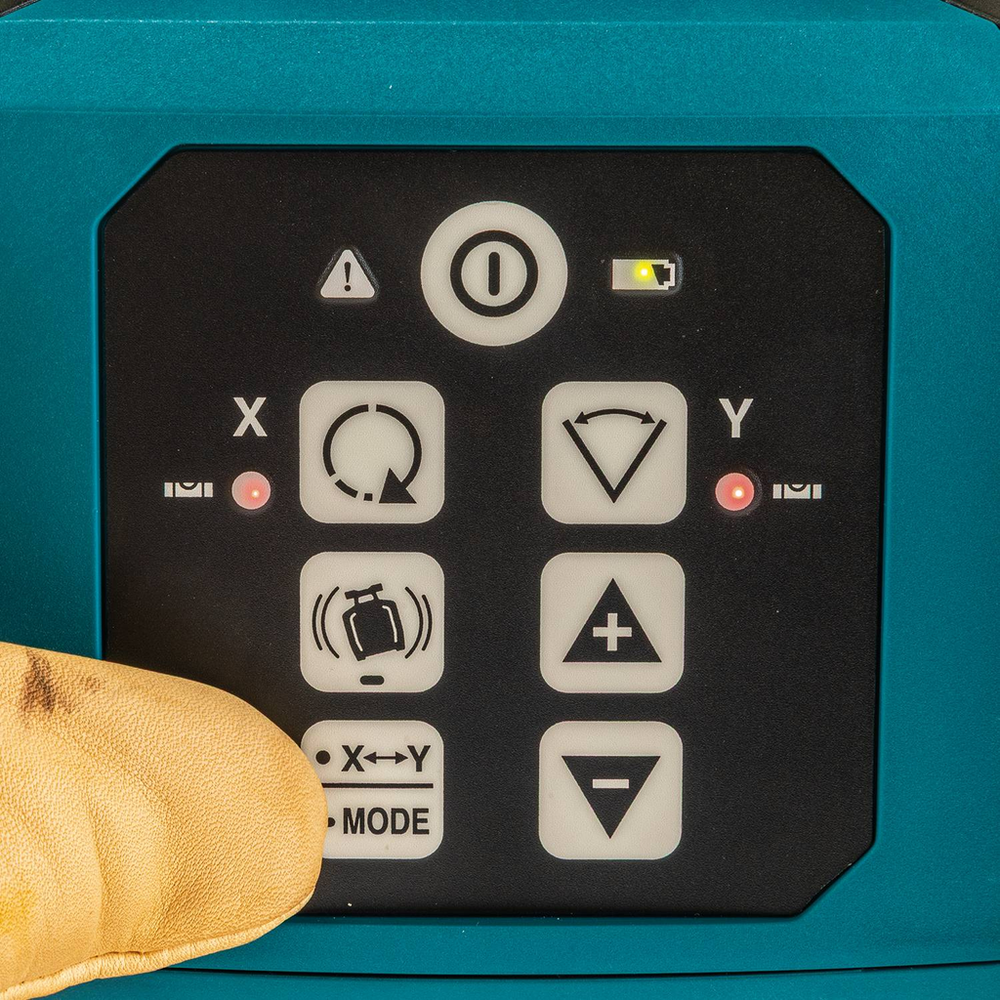

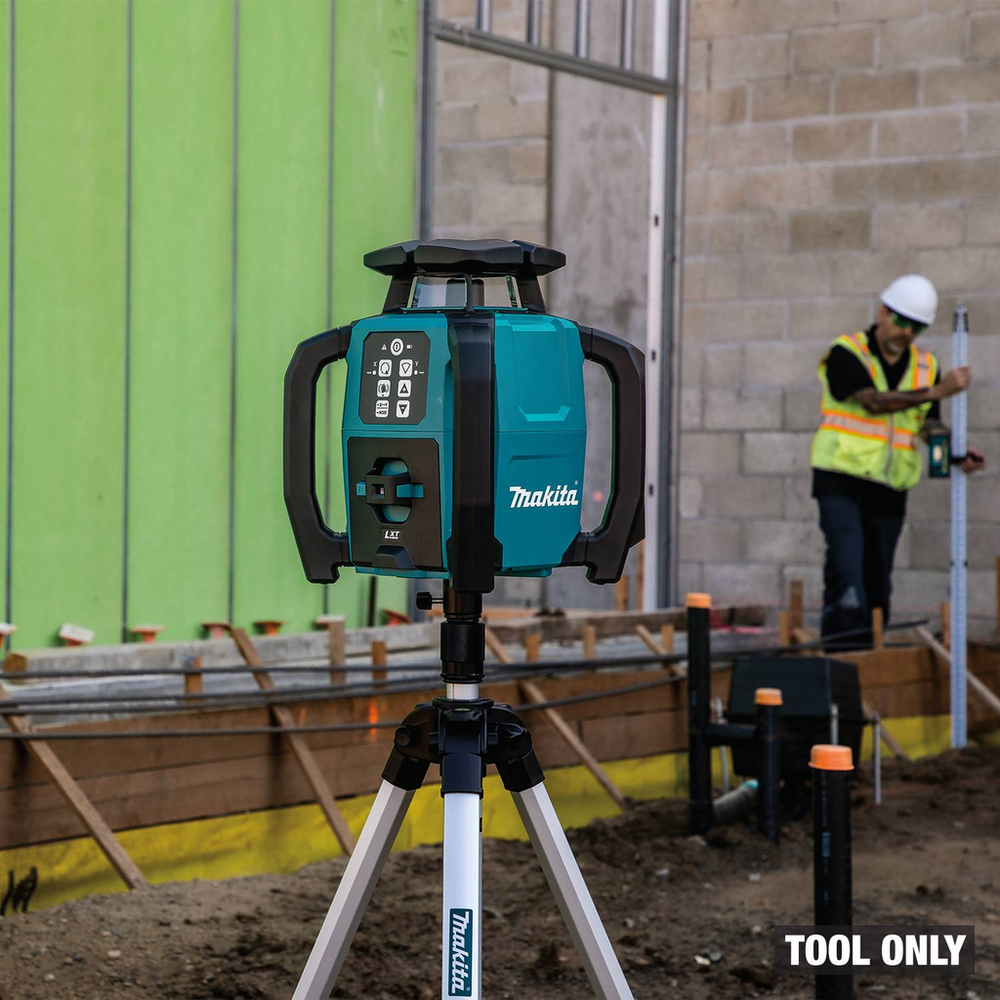

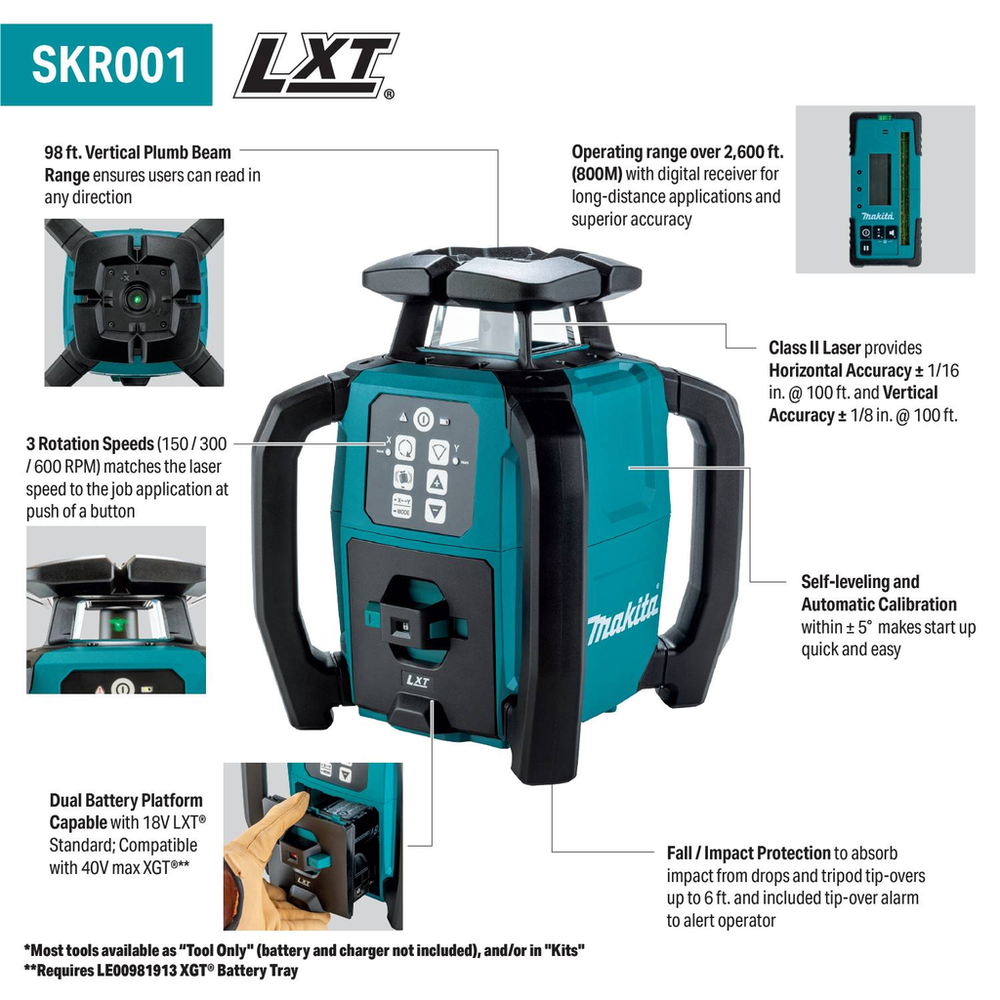

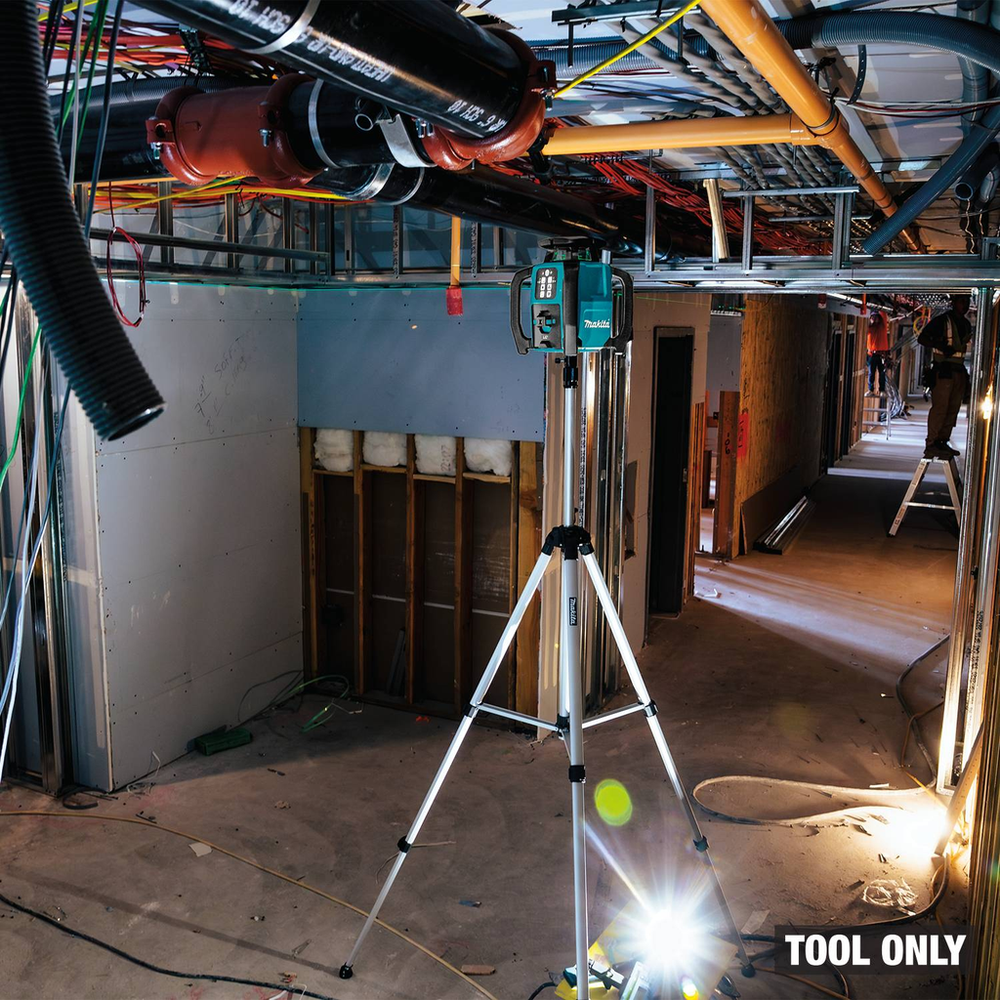

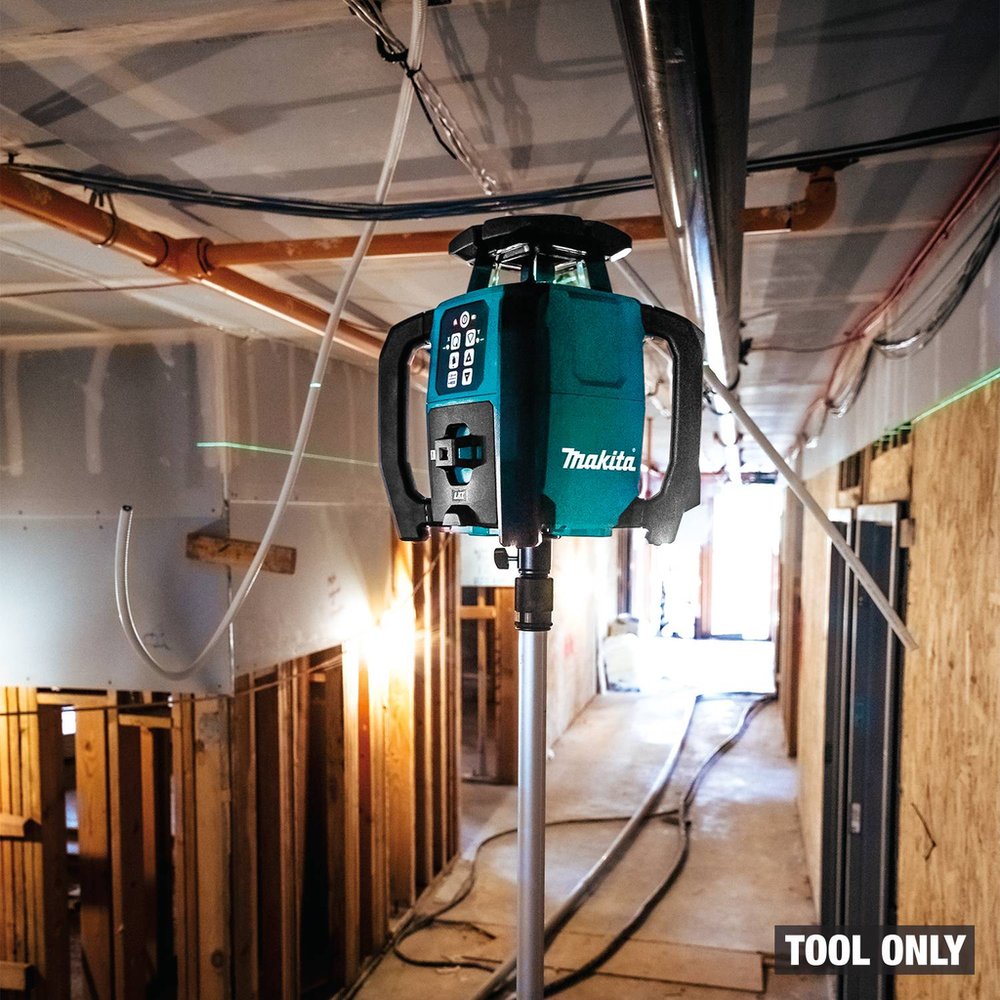

The 18V LXT® Green Exterior Dual Slope 360° Rotary Laser with Case (SKR001) is a versatile dual slope green rotary laser that ensures accurate long distance leveling up to 2,600 ft. in a robust package to handle challenging jobsite conditions. The Dual Slope Laser is ideal for leveling and grading ramps, pipes, and jobsite measuring. The SKR001Z is a versatile measuring tool that is essential to just about any job site, offering accurate measuring, leveling, and superior accuracy. The Rotary Laser features a Green Laser for higher visibility in outdoor conditions and delivers Horizontal Accuracy ± 1/16 in. at 100 feet and Vertical Accuracy ± 1/8 in. @ 100 feet. The Rotary Laser features three rotation speeds (150 / 300 / 600 RPM) to match the laser speed to the job application at the push of a button. It features up to 135 hours of run time with an 18V LXT® 6.0Ah Battery at maximum rotation speed; up to 160 hours using a 40V max XGT® 4.0Ah Battery. The Rotary Laser features fall protection to absorb impact from drops and tripod tip-overs up to 6 feet, as well as a tip-over alarm feature to alert the operator if a tip-over occurs. The SKR001Z features three scan modes of 10° / 20° / 30°, with a self-leveling and automatic calibration within ± 5 degrees, making start-ups quick and easy. It also features a 98 feet vertical plumb beam range, ensuring users can read in any direction. Convenience features include dual battery platform capabilities; 18V LXT®, and 40V max XGT® with Battery Tray (LE00981913). The Rotary Laser features 100 ft. Remote Control range via Bluetooth, compatibility with common tripods with 5/8" threaded screw mounts in both horizontal and vertical positions, as well as 4-sided rubber handles for grip and impact protection from drops or tripod tip-overs. Additional convenience features include a hard plastic case to protect laser and accessories during transport, and a wall mount included for maximum mounting and positioning versatility. The SKR001Z weighs only 8 lbs without a battery for easy transport. The Dual Slope Laser is ideal for a full range of trades and applications including commercial construction, road grading, foundation plotting, hardscape layout, drain pitch, slope detection, plumbing walls and frames, and interior layout as well as cabinet installation, hanging drop ceiling frames, setting joists, and more.
Features
- Dual Slope Laser for leveling and grading ramps, pipes, and jobsites
- 3-year limited warranty

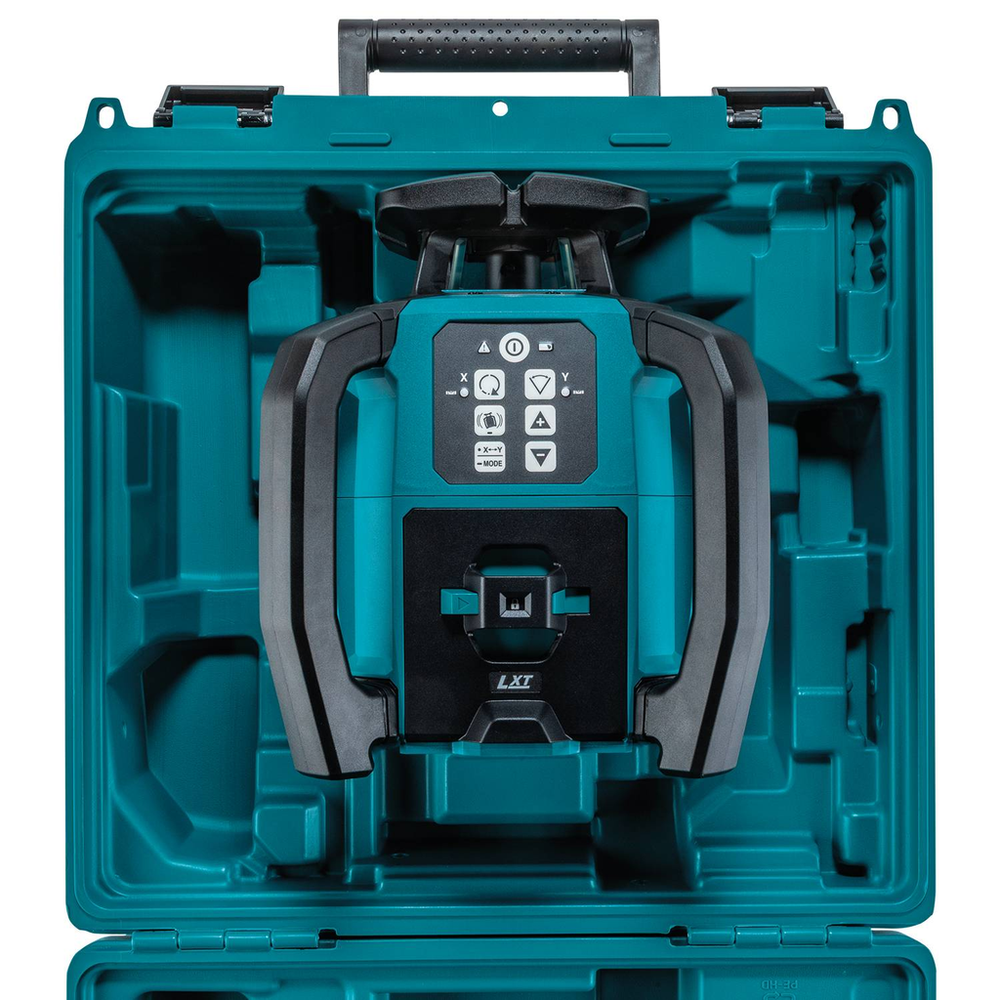

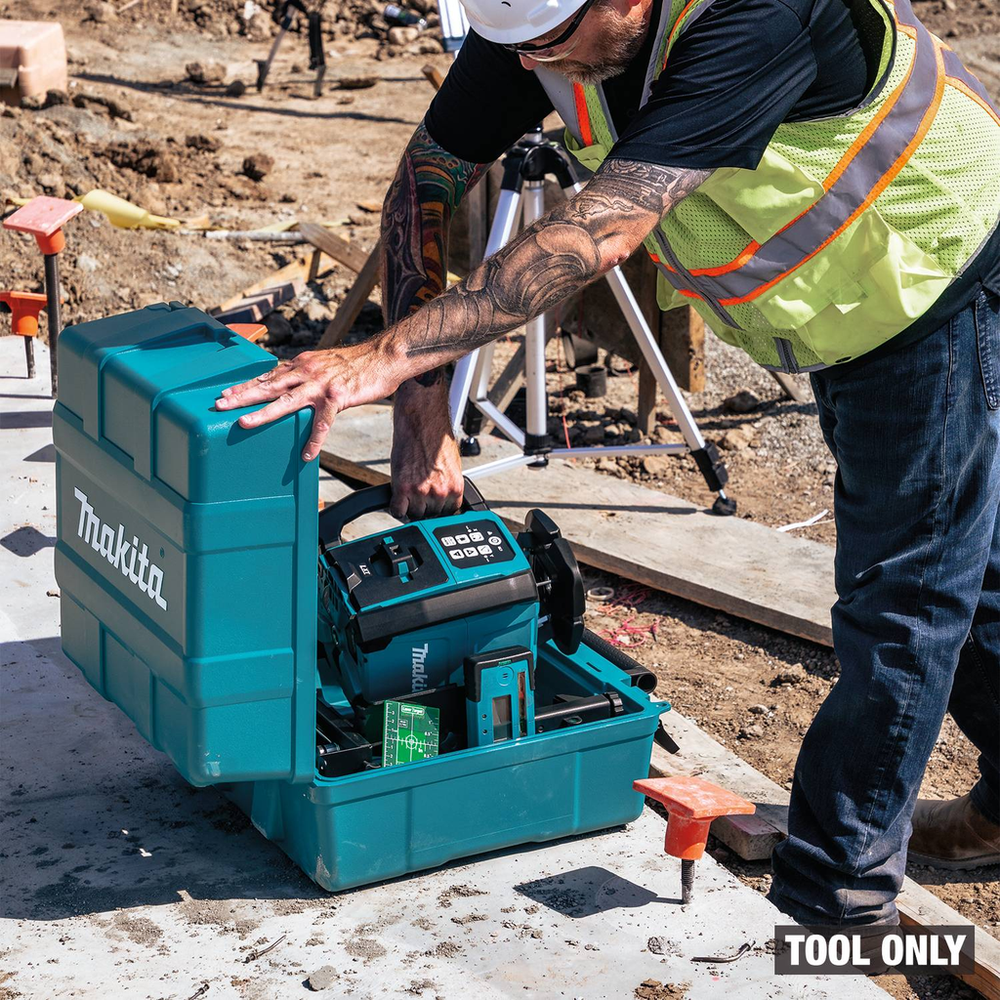

- Includes hard plastic case to protect laser and accessories during transport
- Rapid Optimum Charger communicates with the battery's built-in chip throughout the charging process to optimize battery life by actively controlling current, voltage and temperature (battery and charger sold separately)
- Equipped with Star Protection Computer Controls™ to protect against overloading, over-discharging and over-heating
- INCLUDES - Tool only and case (battery and charger not included)
- Only use genuine Makita batteries and chargers
- Weighs only 8.8 lbs. without battery for easy transport

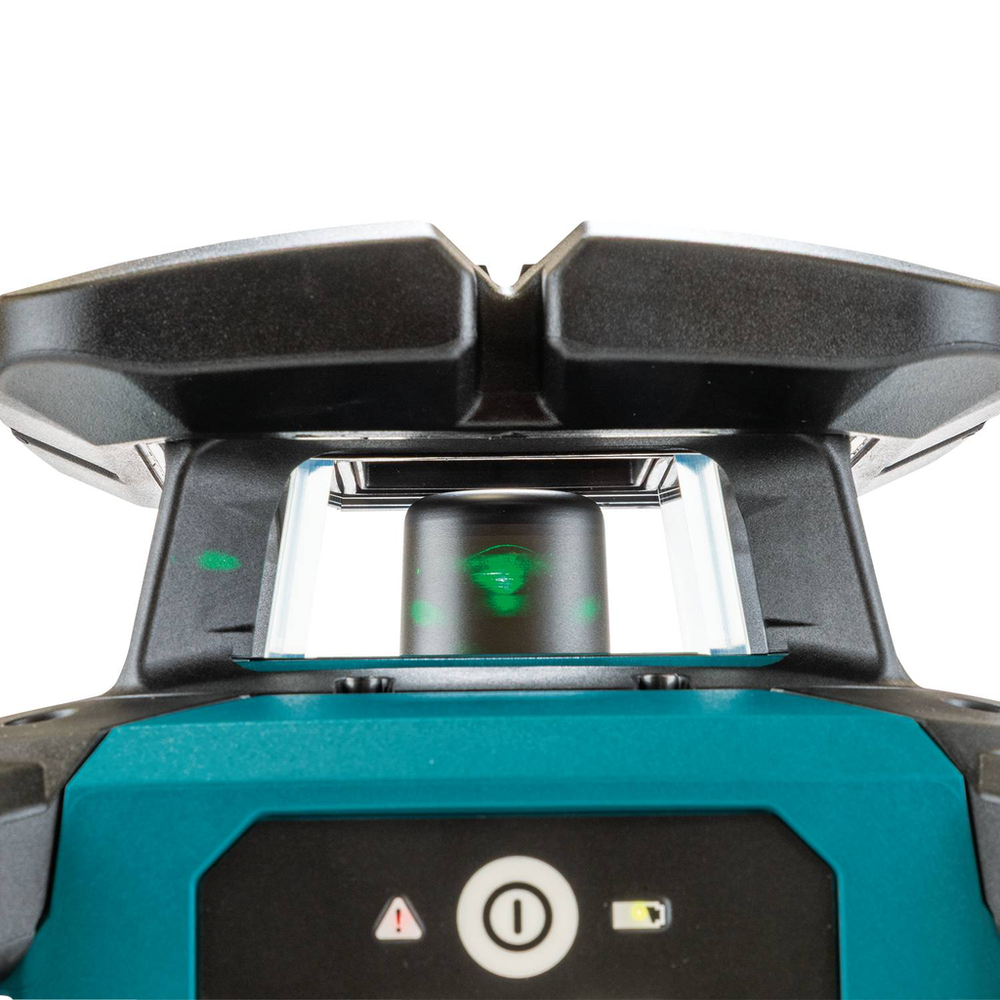

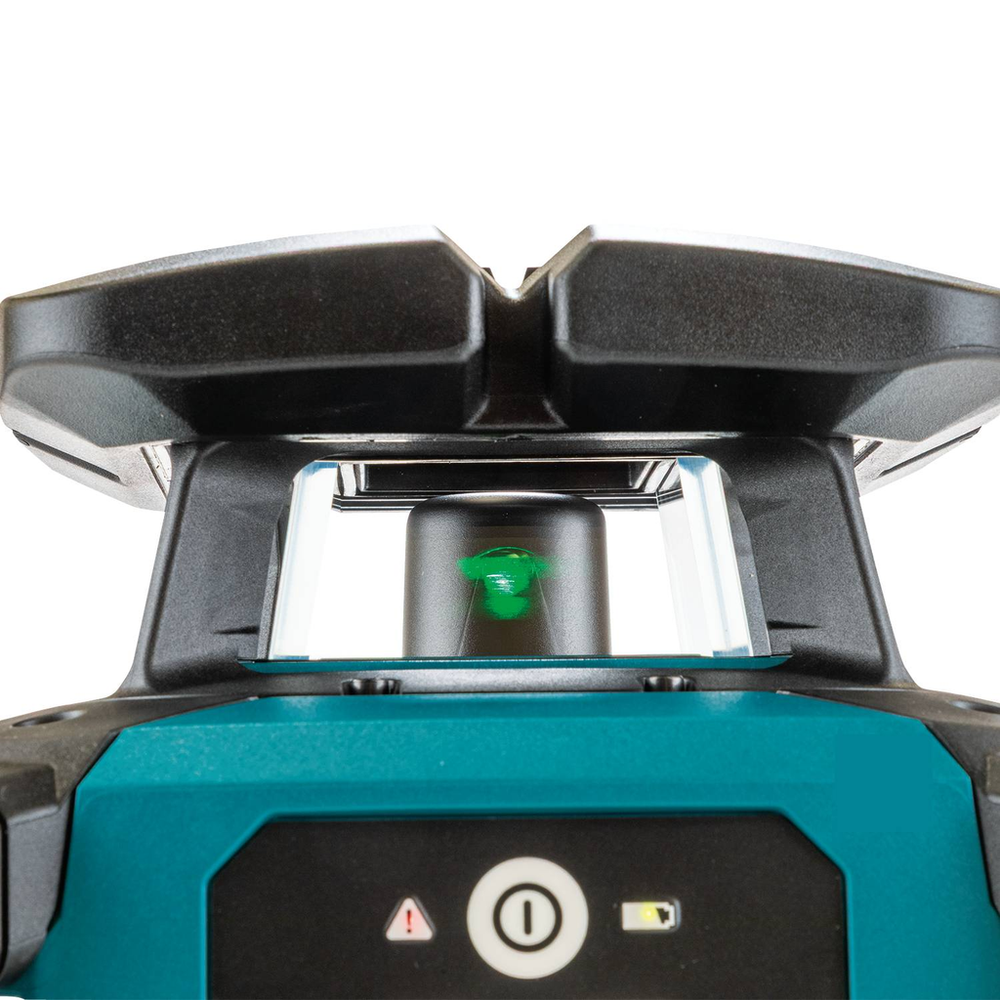

- Green Laser for higher visibility in outdoor conditions
- 3 Scan Modes include 10° / 20° / 30°
- RUN TIME - Up to 135 hours of run time with 6.0Ah 18V LXT® Battery at maximum rotation speed

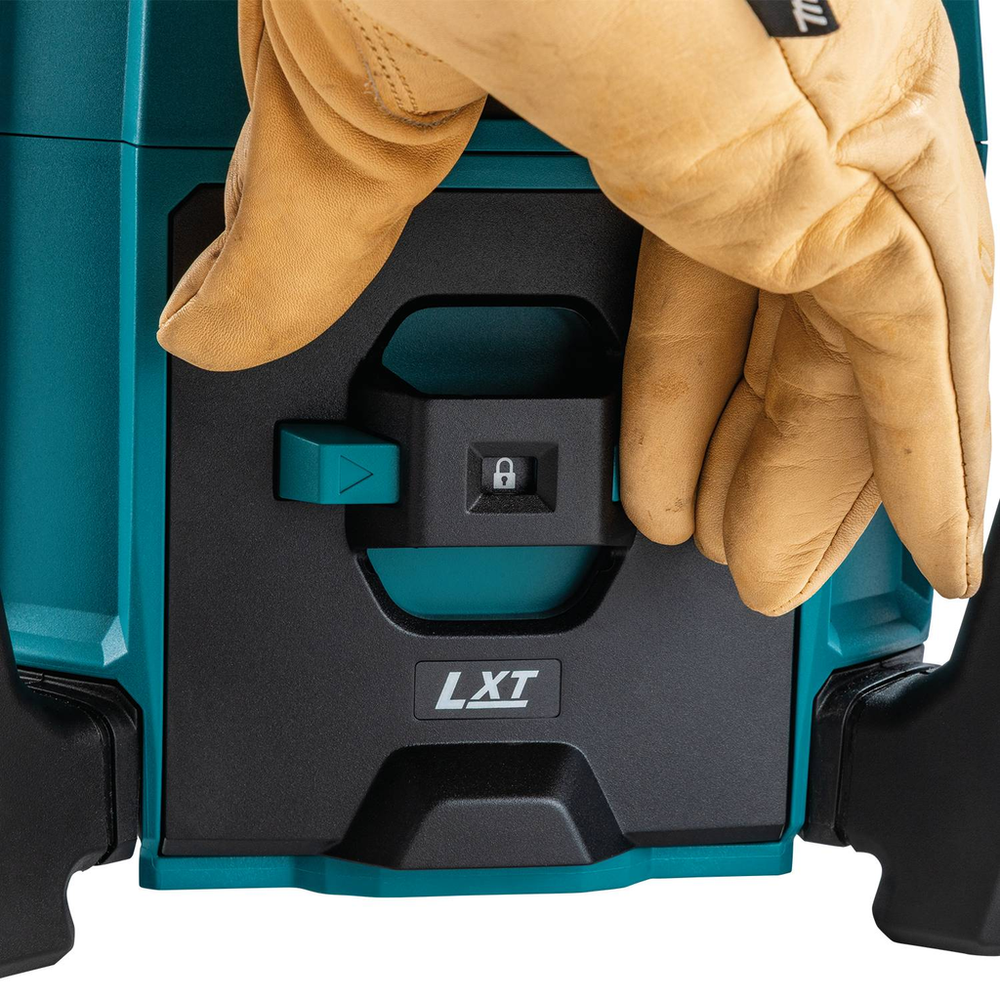

- Dual battery platform capability; 18V LXT® and also compatible with 40V max XGT® with Battery Tray (LE00981913)
- Class 2 Laser Classification, IEC60825-1: 2014

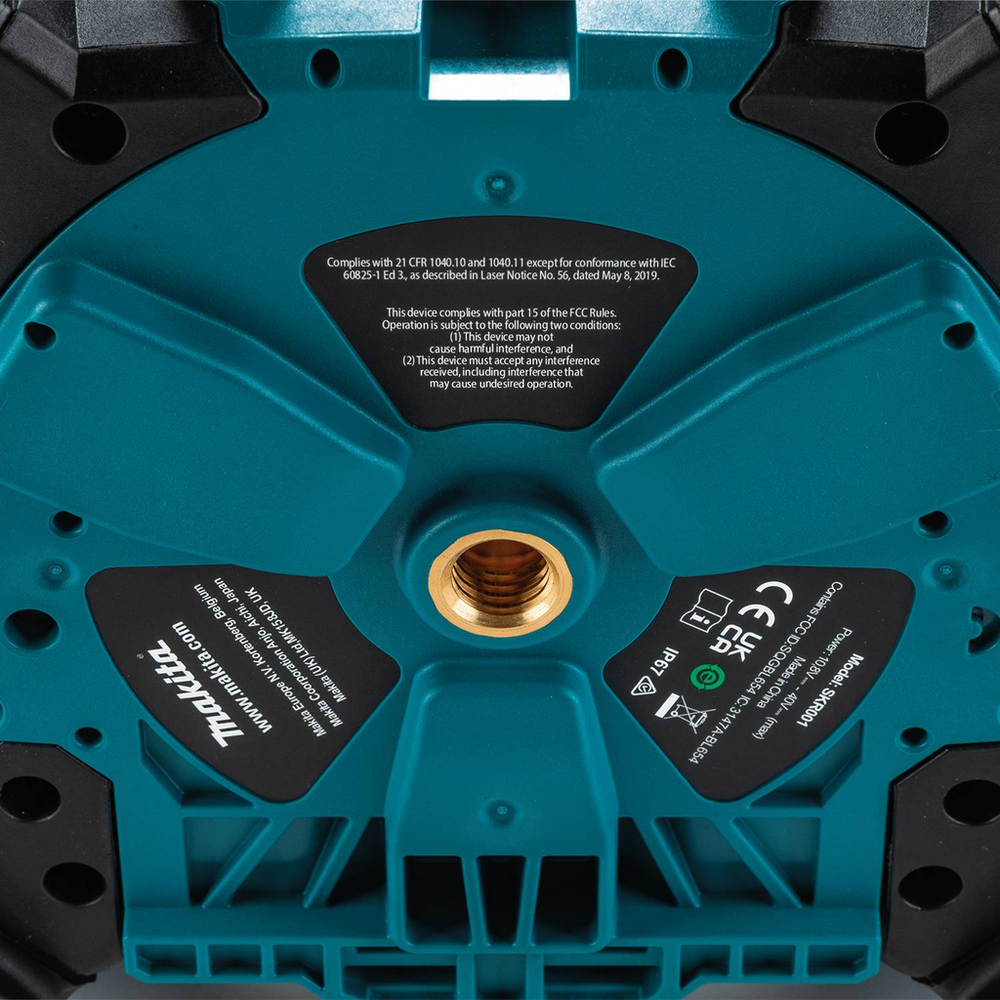

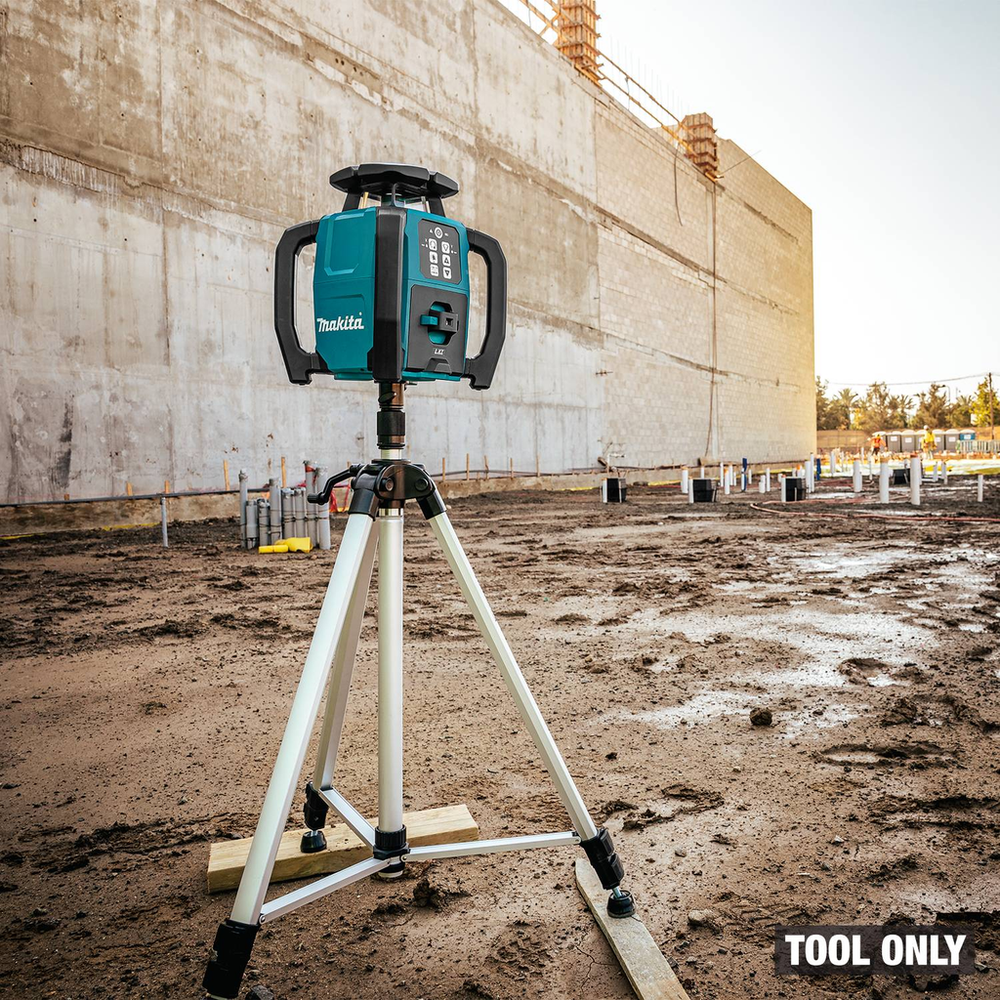

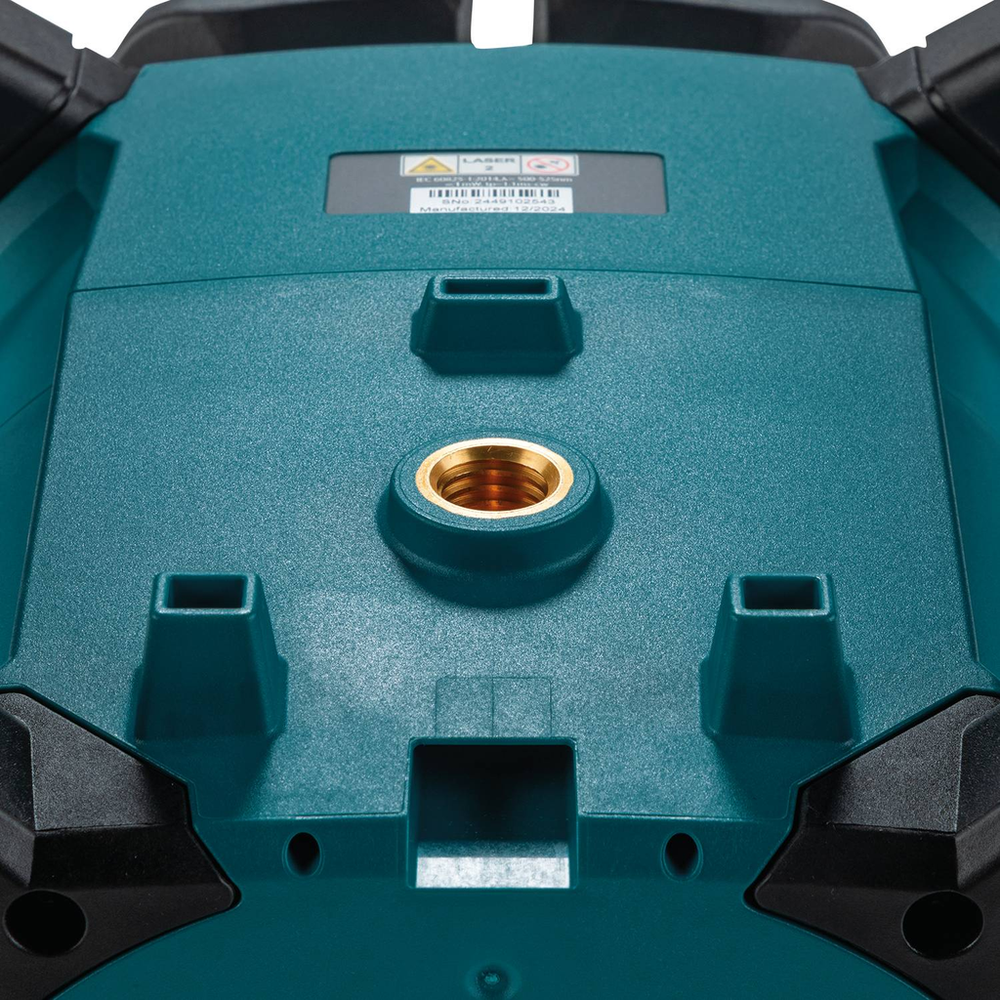

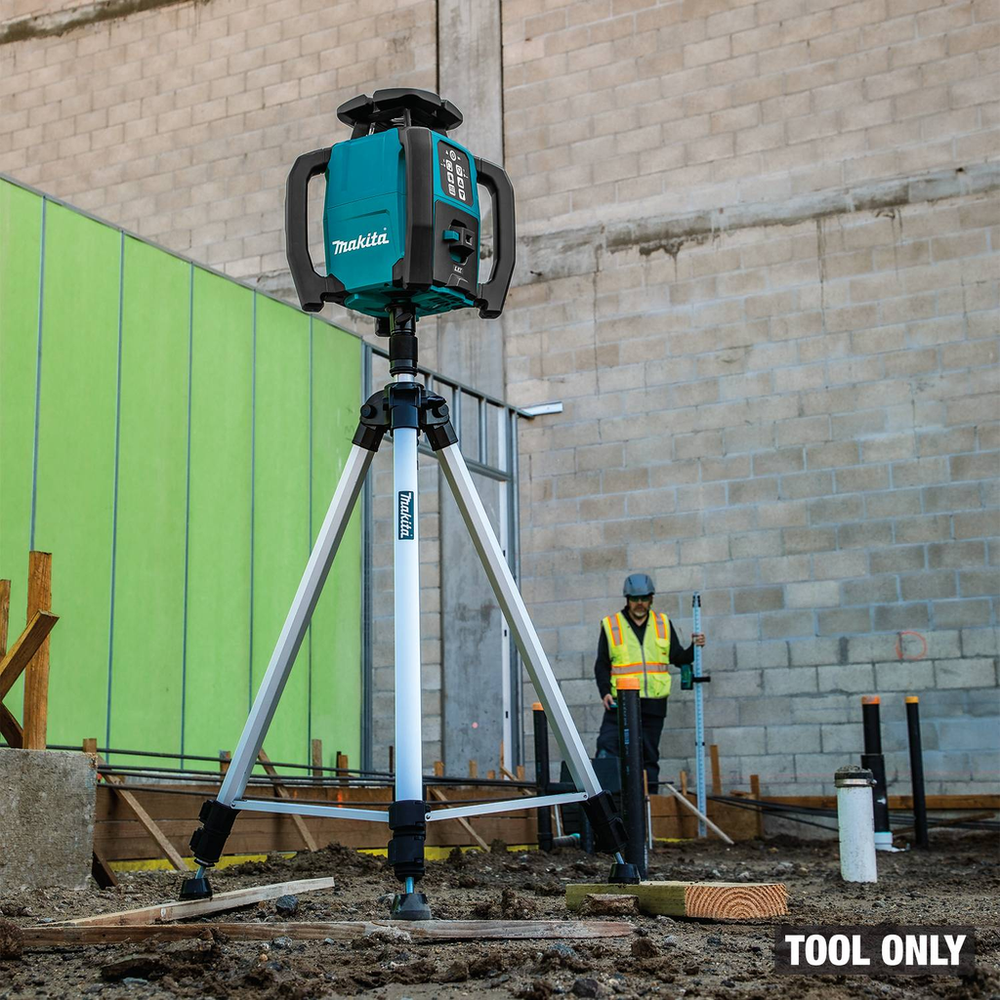

- Compatible with common tripods with 5/8" threaded screw mounts in both horizontal and vertical positions

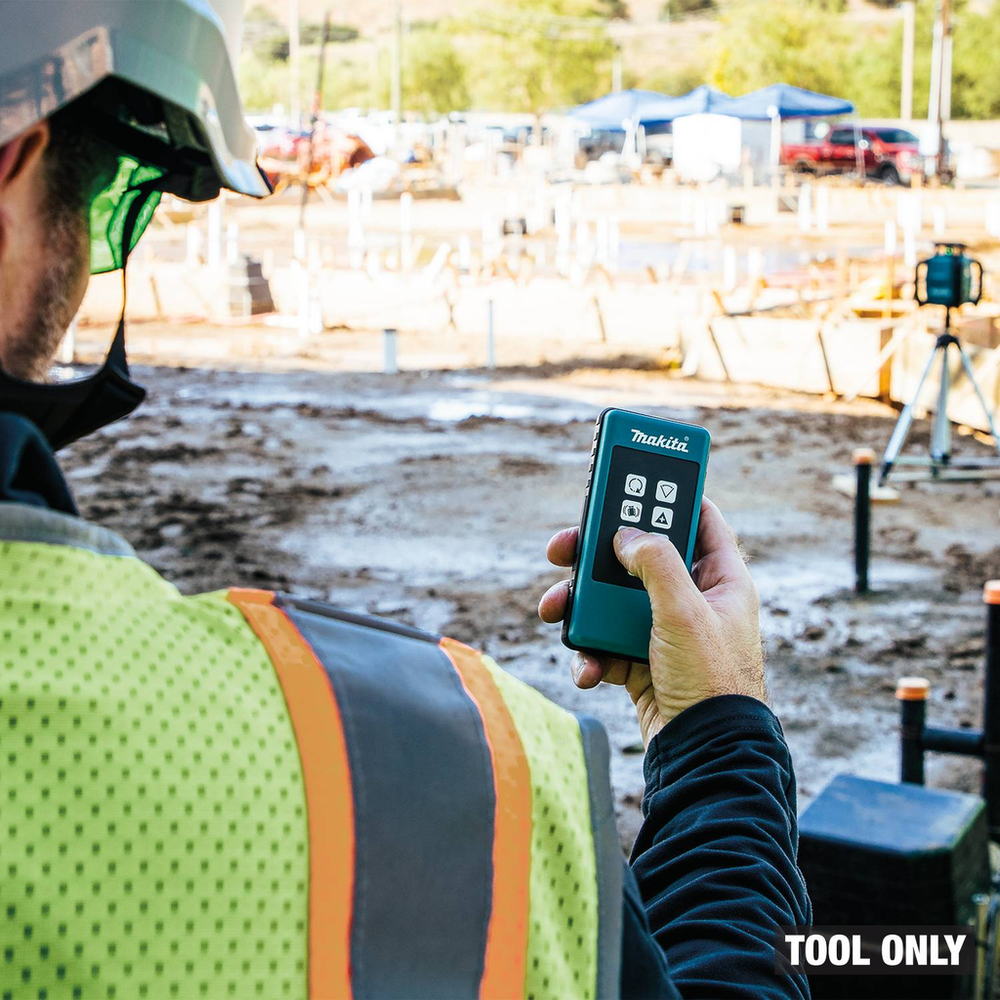

- 100 ft. Remote Control range via Bluetooth
- Green Dual Slope Laser for high visibility leveling and grading ramps, pipes, and all jobsite needs

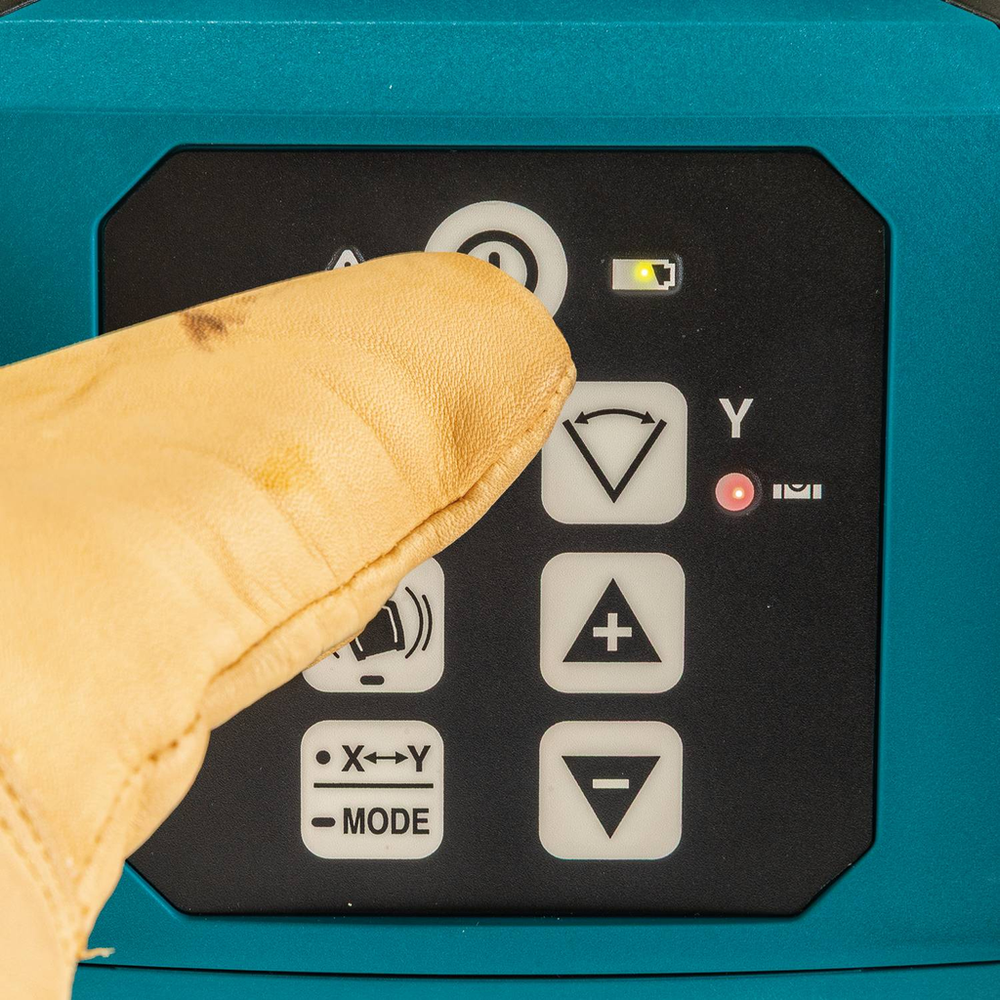

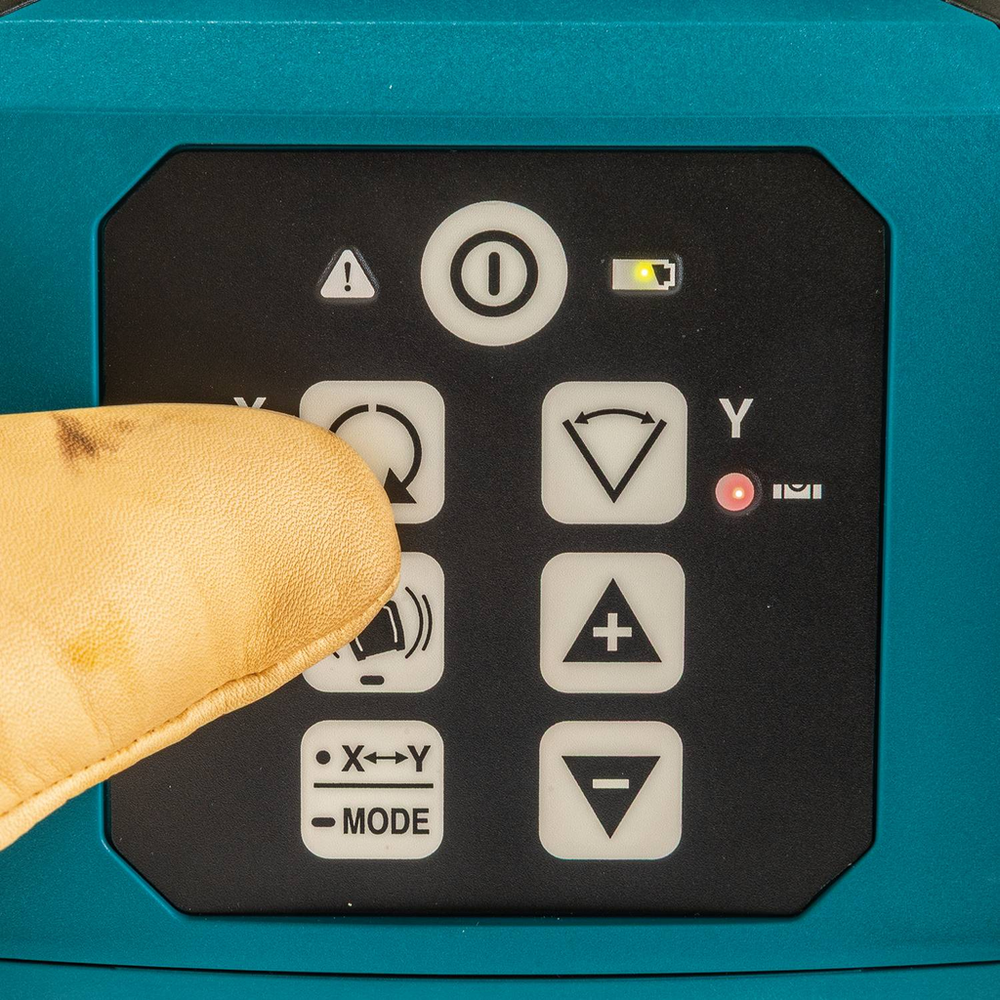

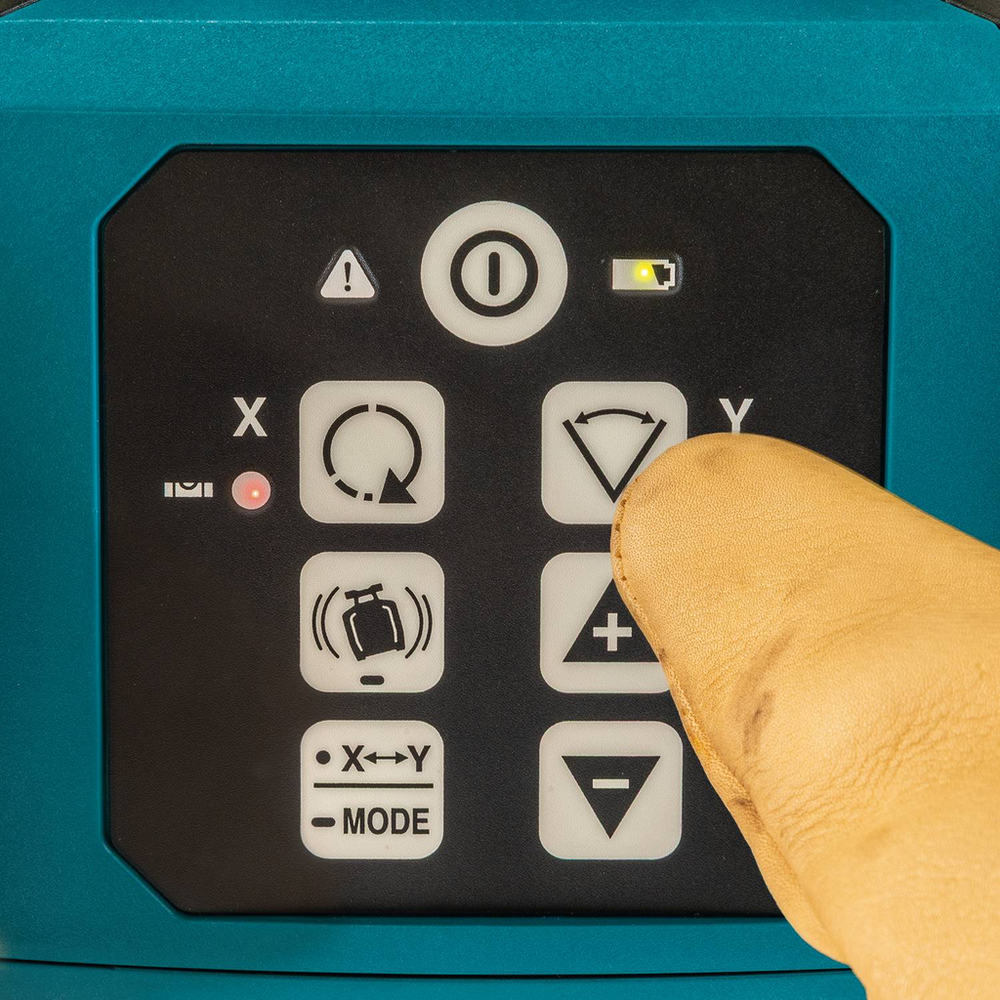

- 3 rotation speeds 150 / 300 / 600 RPM match the laser speed to the job application at the push of a button
- Up to 135 hours of run time with 6.0Ah 18V LXT® Battery at maximum rotation speed; up to 160 hours using 4.0Ah 40V max XGT® Battery
- APPLICATIONS - Green Dual Slope Laser for high visibility leveling and grading
- Self-leveling and Automatic Calibration within ± 5 Degrees makes start up quick and easy
- Fall protection to absorb impact from drops and tripod tip-overs up to 6 feet; includes tip-over alarm to alert operator
- PERFORMANCE - Operating range of 2,600 ft. with digital receiver
- Wall mount included for maximum mounting and positioning versatility
- ACCURACY - Horizontal Accuracy ± 1/16 in. @ 100 ft. and Vertical Accuracy ± 1/8 in. @ 100 ft.
- Operating range of 2,600 ft. with digital receiver for long-distance applications and superior accuracy

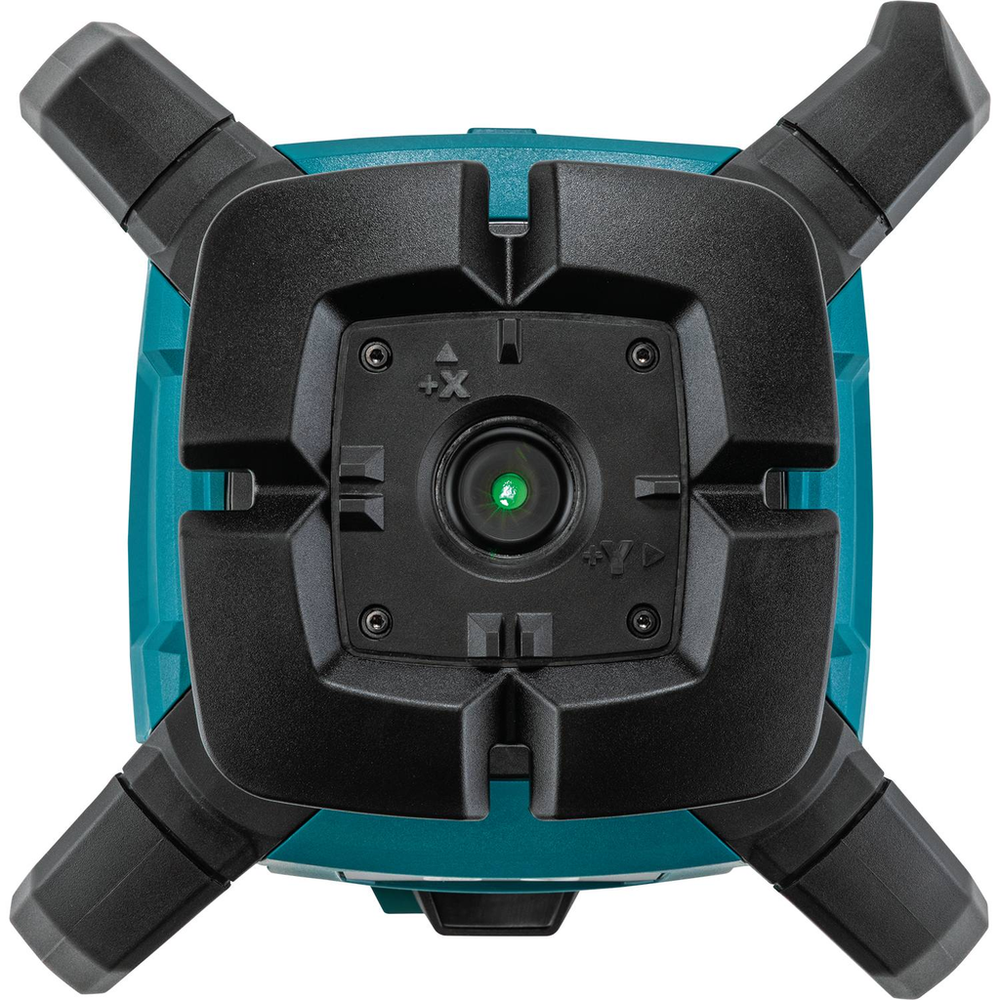

- 4-sided rubber handles for grip and impact protection from drops or tripod tip-overs
- Horizontal Accuracy ± 1/16 in. @ 100 ft. and Vertical Accuracy ± 1/8 in. @ 100 ft.
- IP67 Dust & Water Resistance protects laser from harsh jobsite environments
- 98 feet vertical plumb beam range ensures users can read in any direction
Prop 65
- WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: lead from lead-based paints, crystalline silica from bricks and cement and other masonry products, and arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles. For more information, visit www.P65warnings.ca.gov.

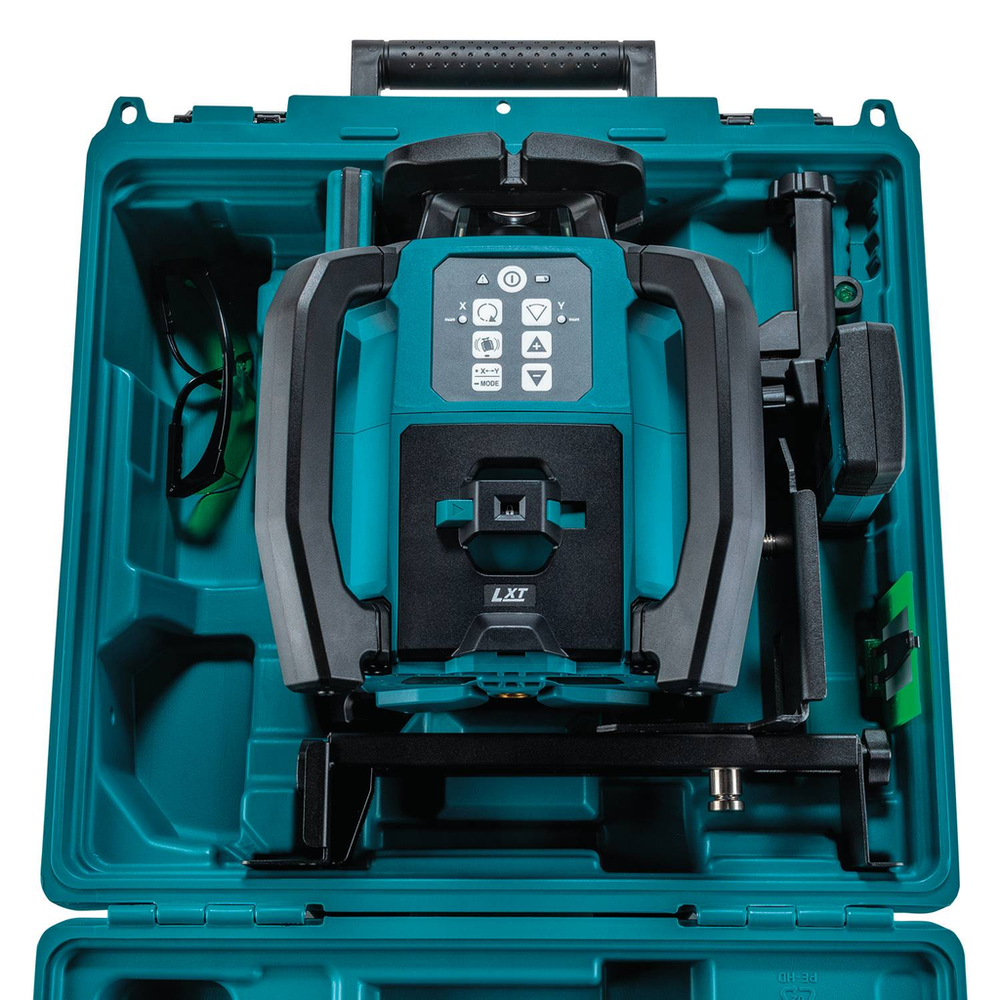

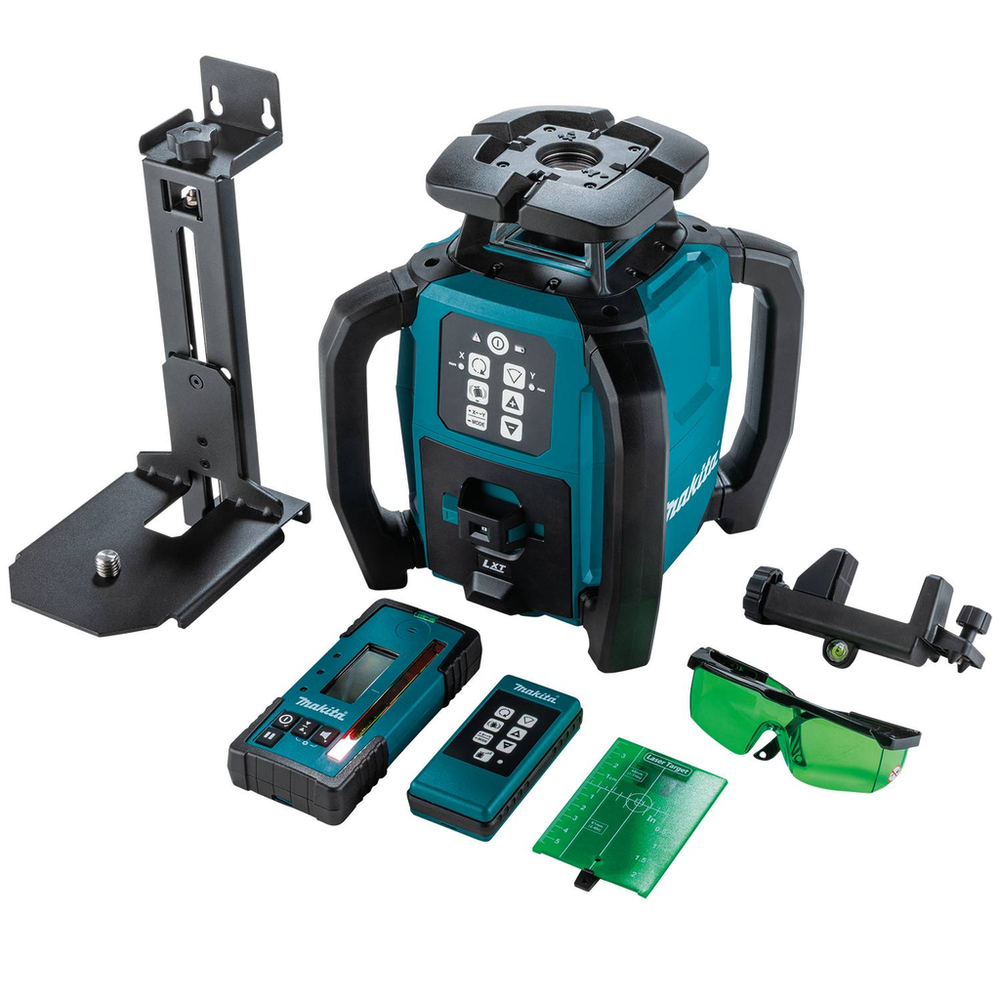

Includes

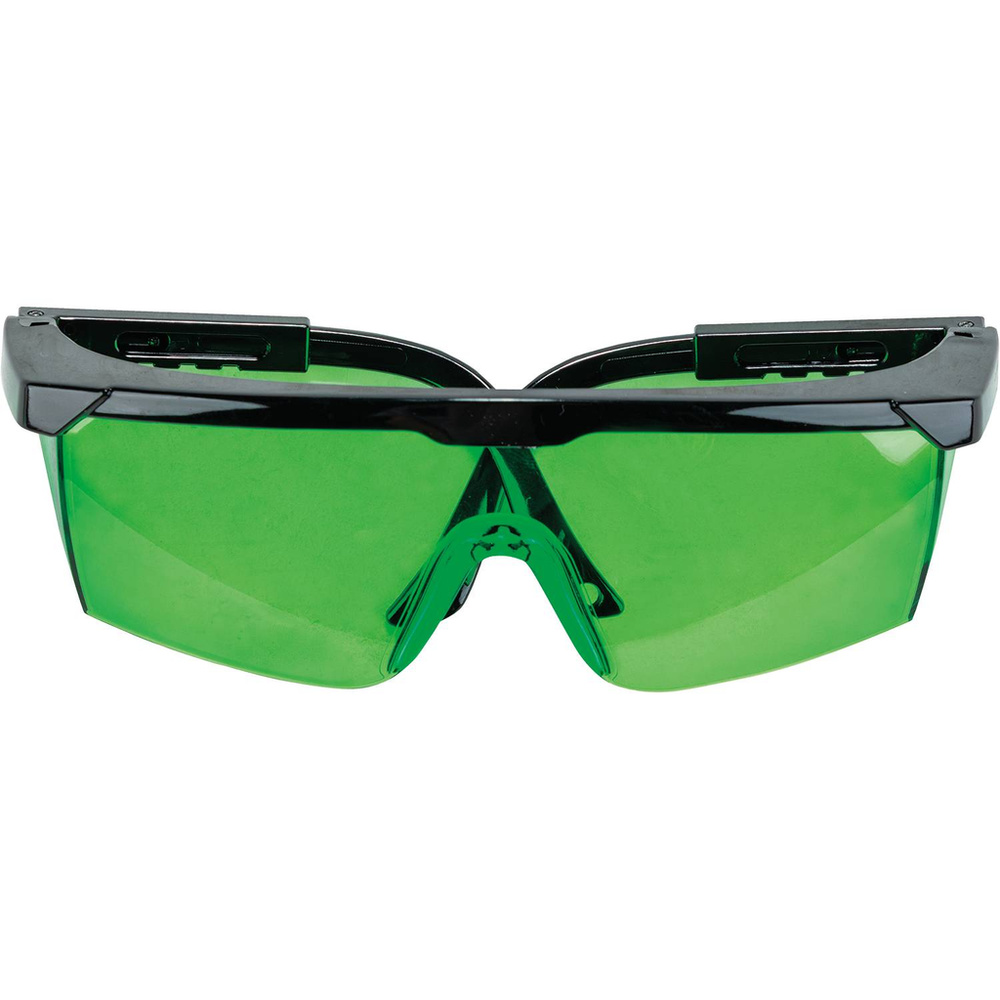

- Laser Safety Glasses

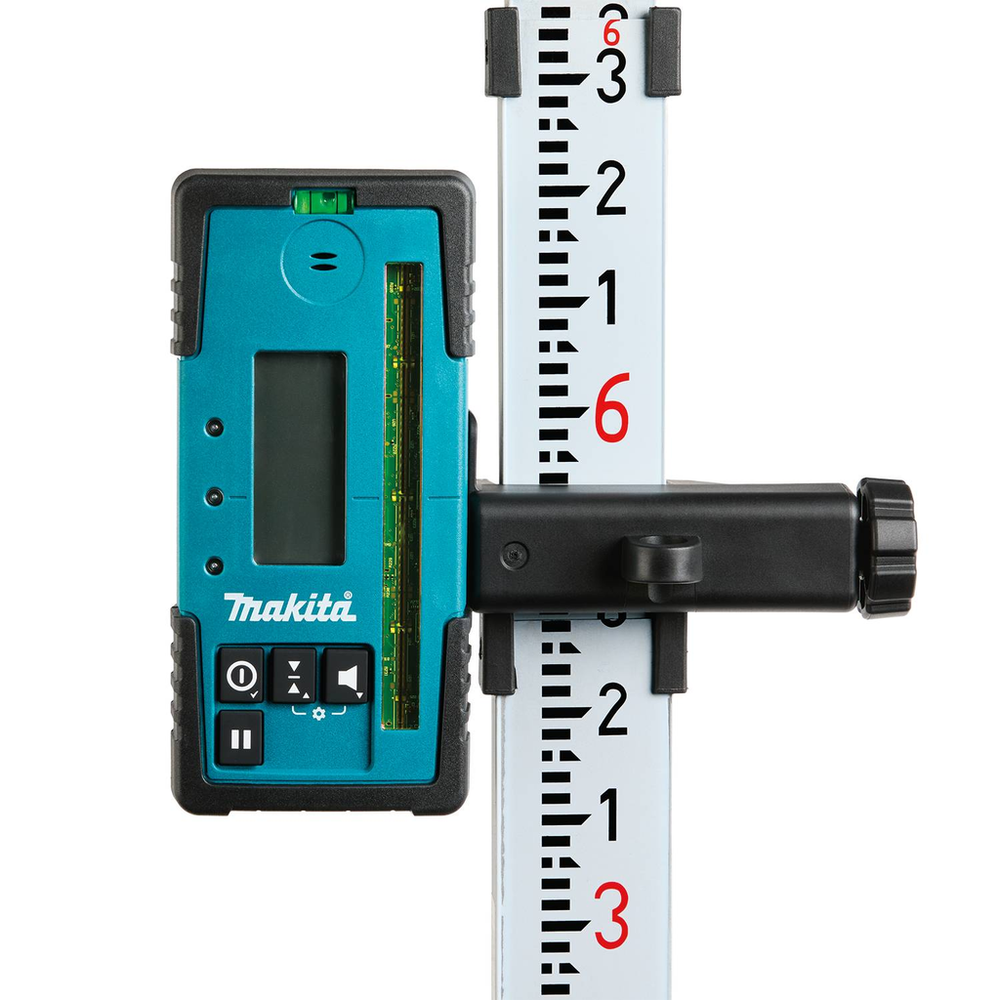

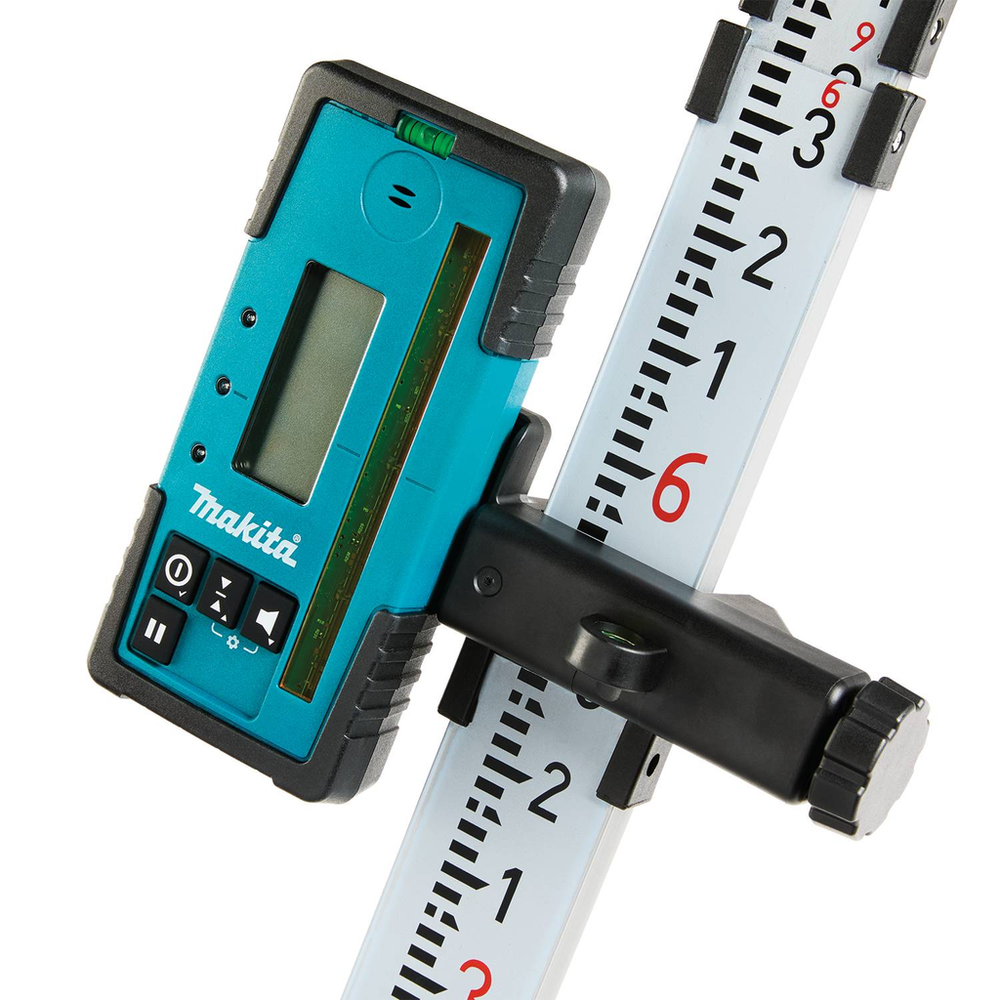

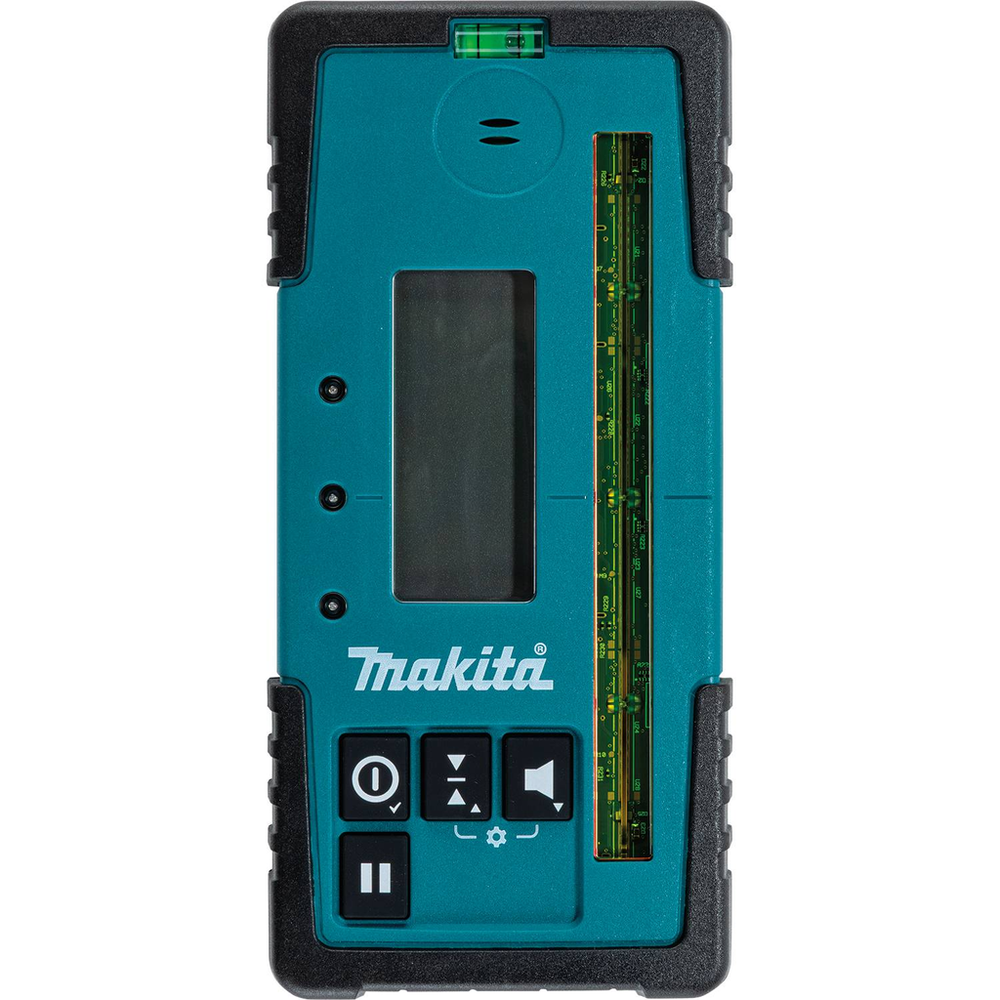

- LDX2 Digital Laser Receiver & Receiver Bracket Set, SKR001 (LE00981928)

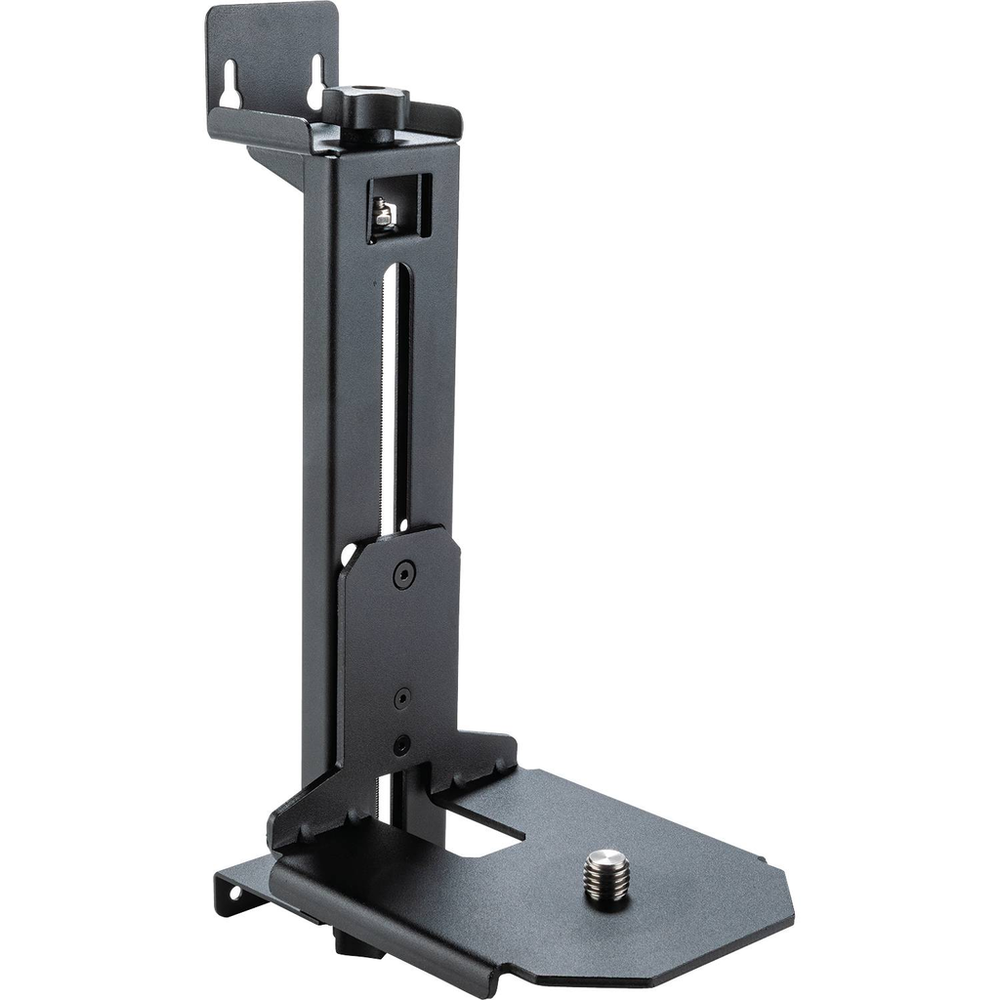

- Adjustable Wall Mount Bracket, SKR001 (LE00981930)

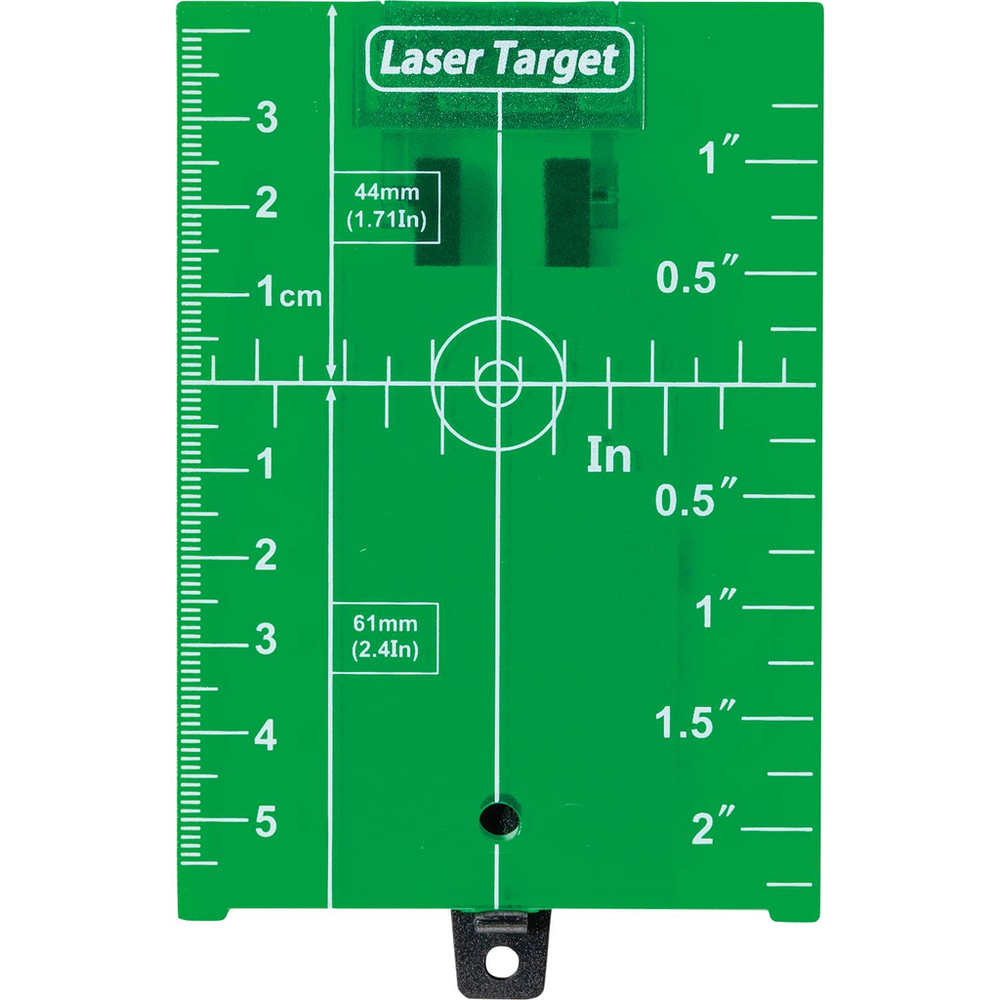

- Target Plate

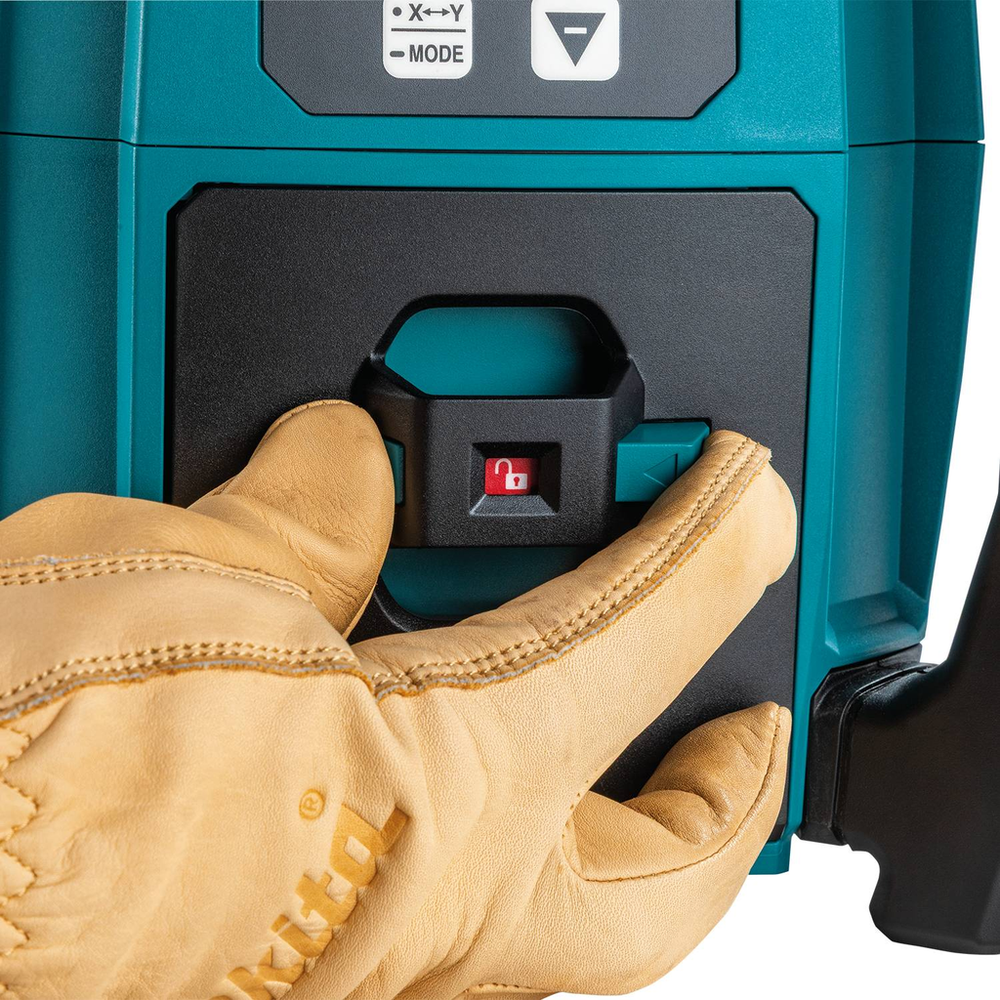

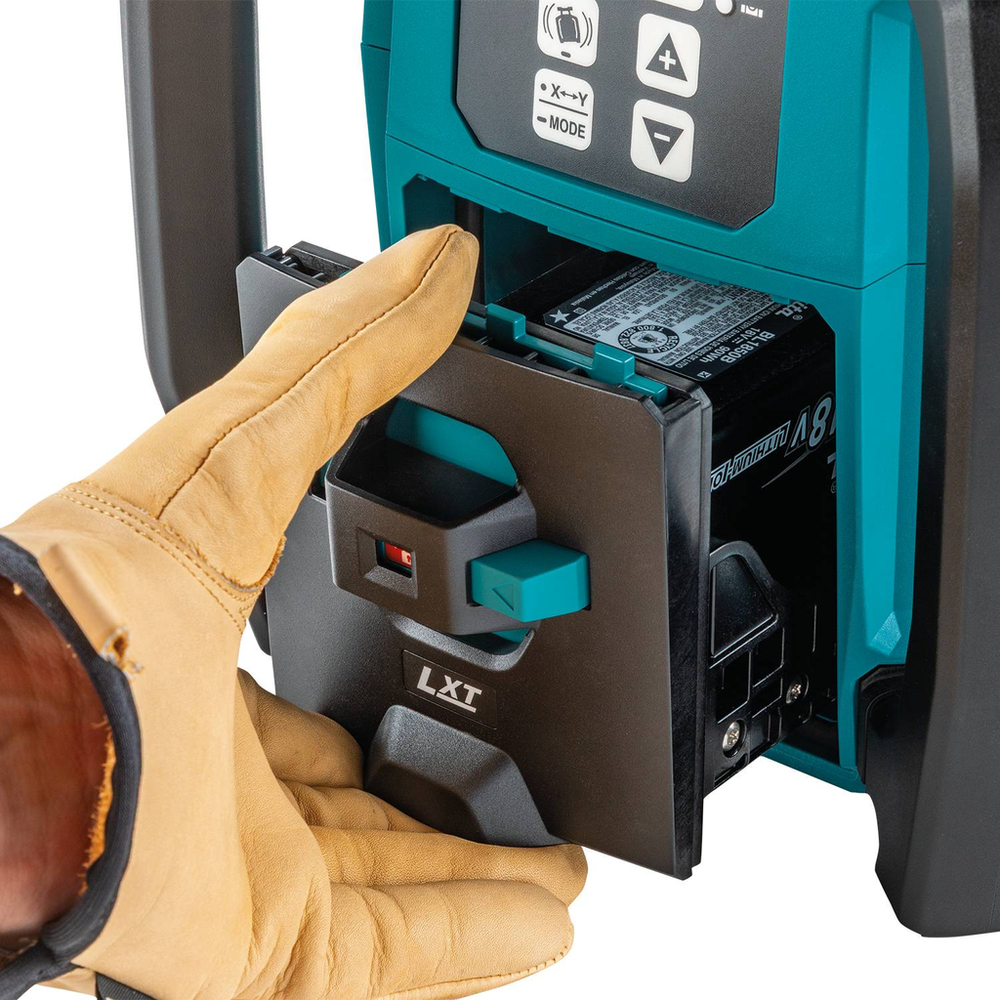

- LXT Battery Tray (LE00981912)

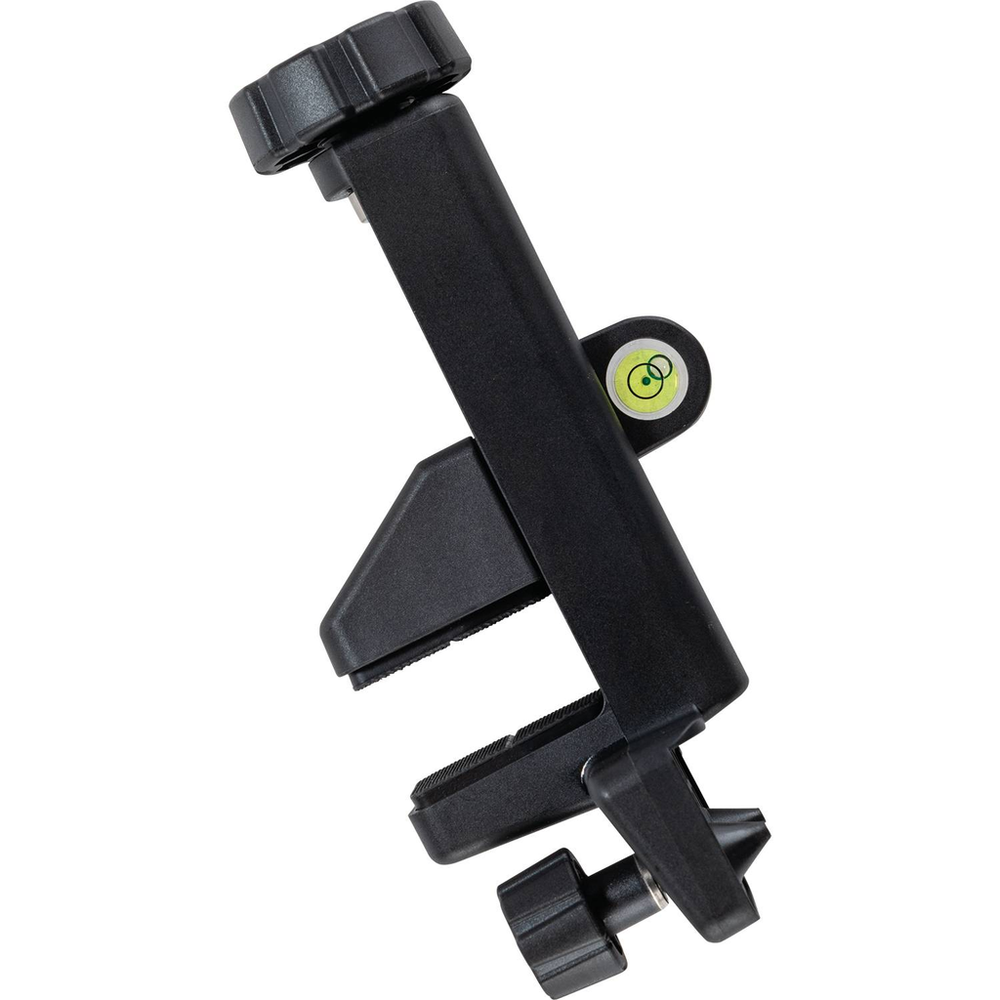

- Receiver Bracket, SKR001 (LE00835249)

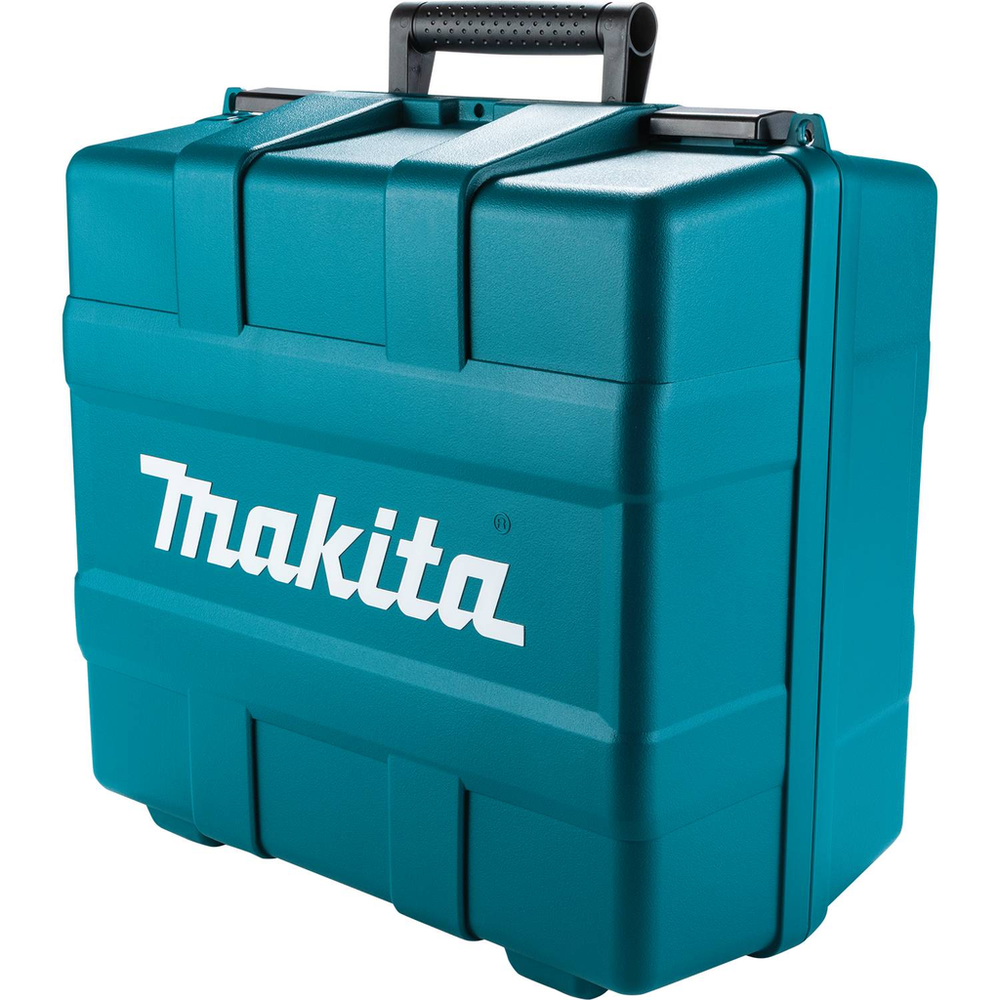

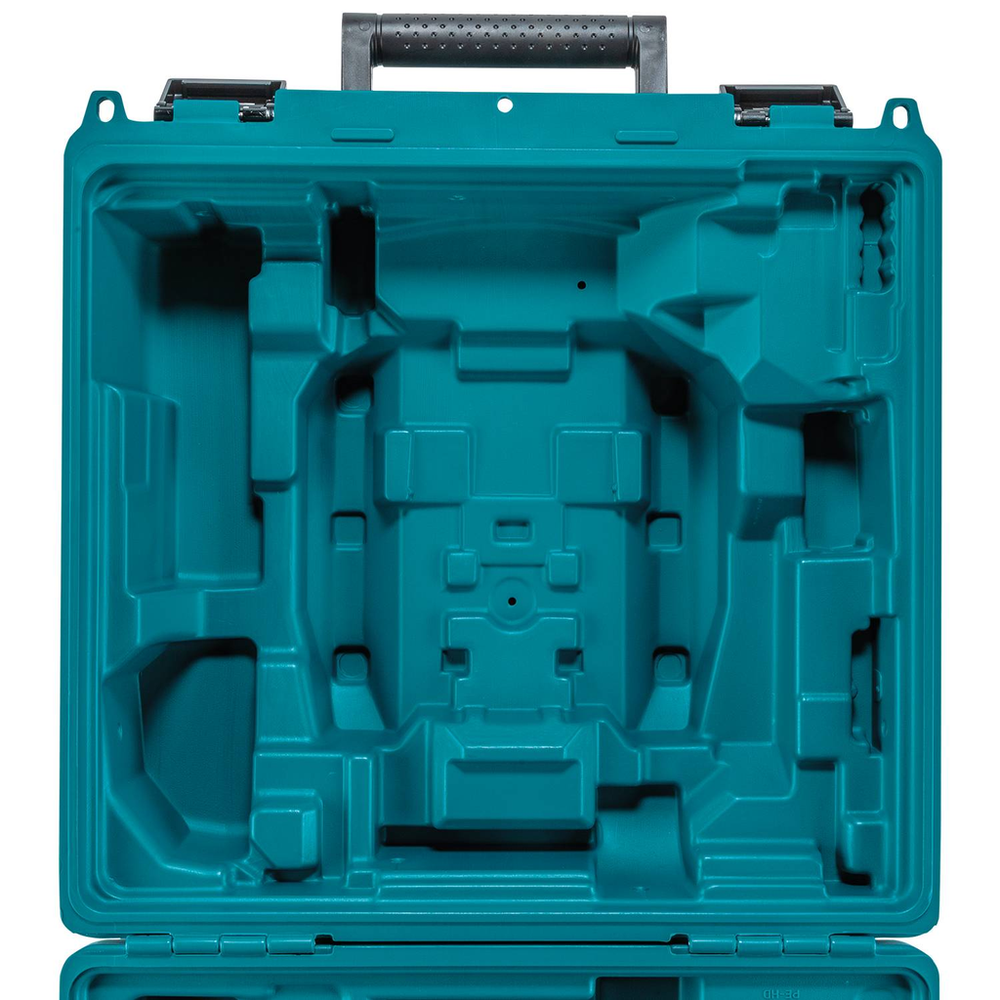

- Hard Plastic Case

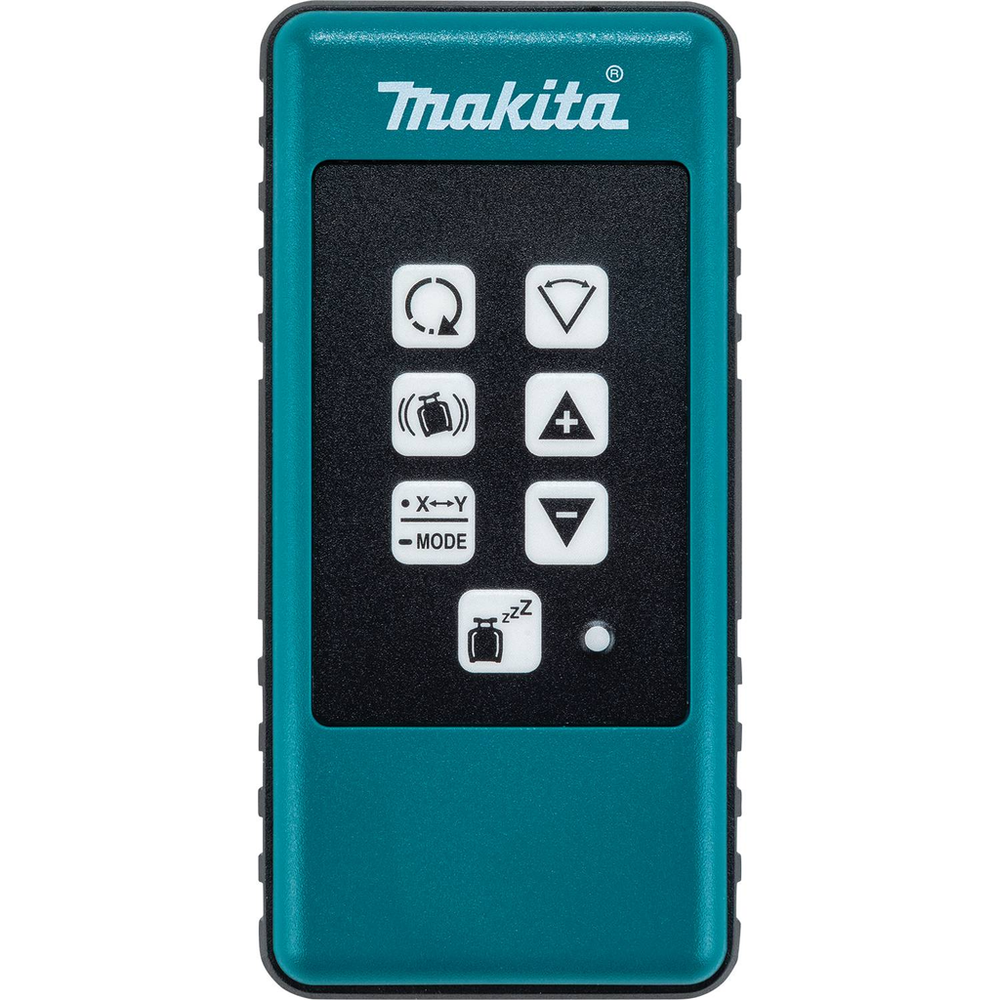

- Radio Remote Control, SKR001 (LE00981929)
