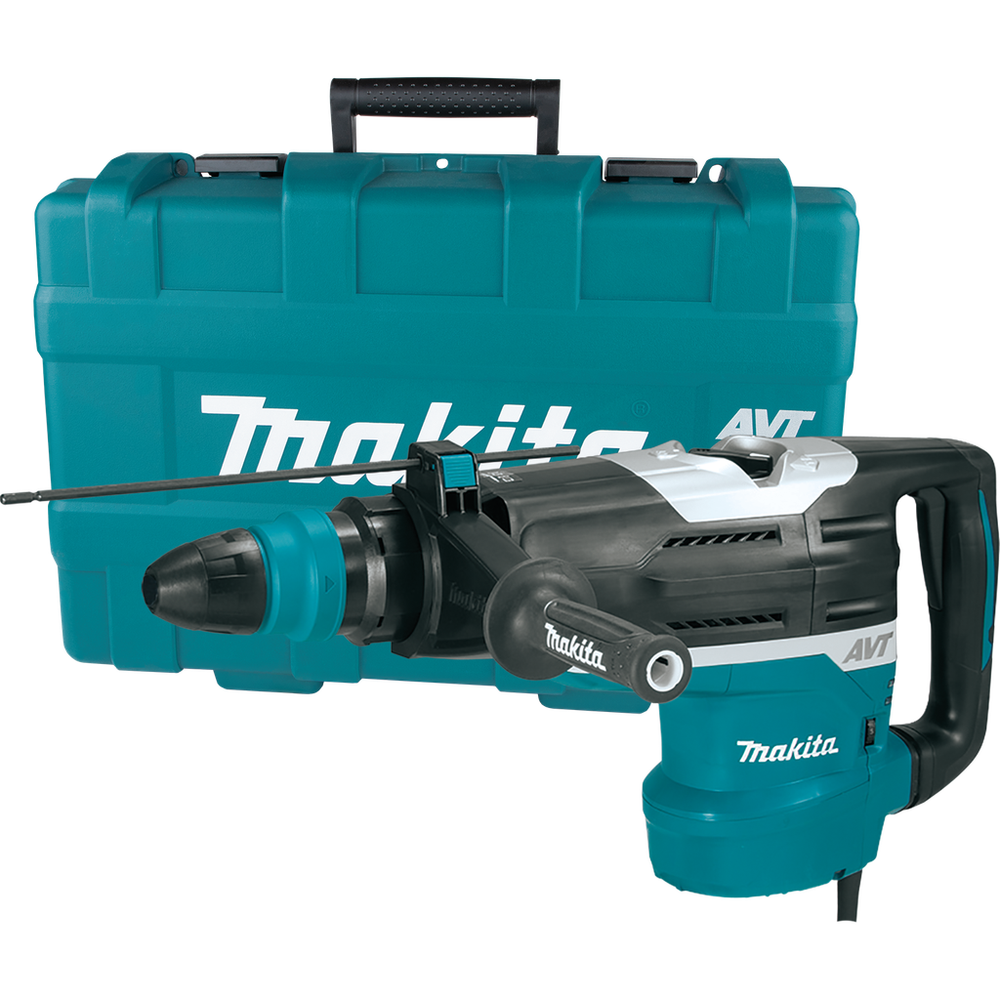

The 2” AVT® Rotary Hammer (model HR5212C) has over 45% less vibration than the previous model. It is engineered with enhanced Anti-Vibration Technology (AVT®), a synchronized three-component system for significantly less vibration. The result of the enhanced AVT® is a category-leading vibration rating of 9m/s². The powerful 15 AMP motor delivers 14 ft. lbs. (19.1 Joules) of impact energy. An added feature is the option of lock-on or trigger-activated in the “chipping only” mode, with a push button start/stop control for more convenient operation. The HR5212C is engineered for a range of concrete applications including drilling/coring through-holes for pipes, setting larger anchors, securing tilt-wall supports, small chipping applications, and more. It is ideal for a range of trades including masons, concrete contractors, demolition contractors, plumbers, electricians, sprinkler installers, and general contractors seeking a best-in-class rotary hammer.
Features
- Lock-on or trigger activation in "Chipping Only" mode with a push button start/stop control for more convenient operation
- "Soft no-load" function automatically reduces the speed of the motor when idling to help increase tool life and performance
- Advanced AVT® is an air actuated counterbalance, vibration absorving housing and impact bolt damper spring that more effectively reduces vibration
- Side Handle (135283-4)
- Electronic Controller is a feature package that provides constant speed control, soft start, soft no-load and variable speed
- Includes a 16.4 ft. power cord for user convenience

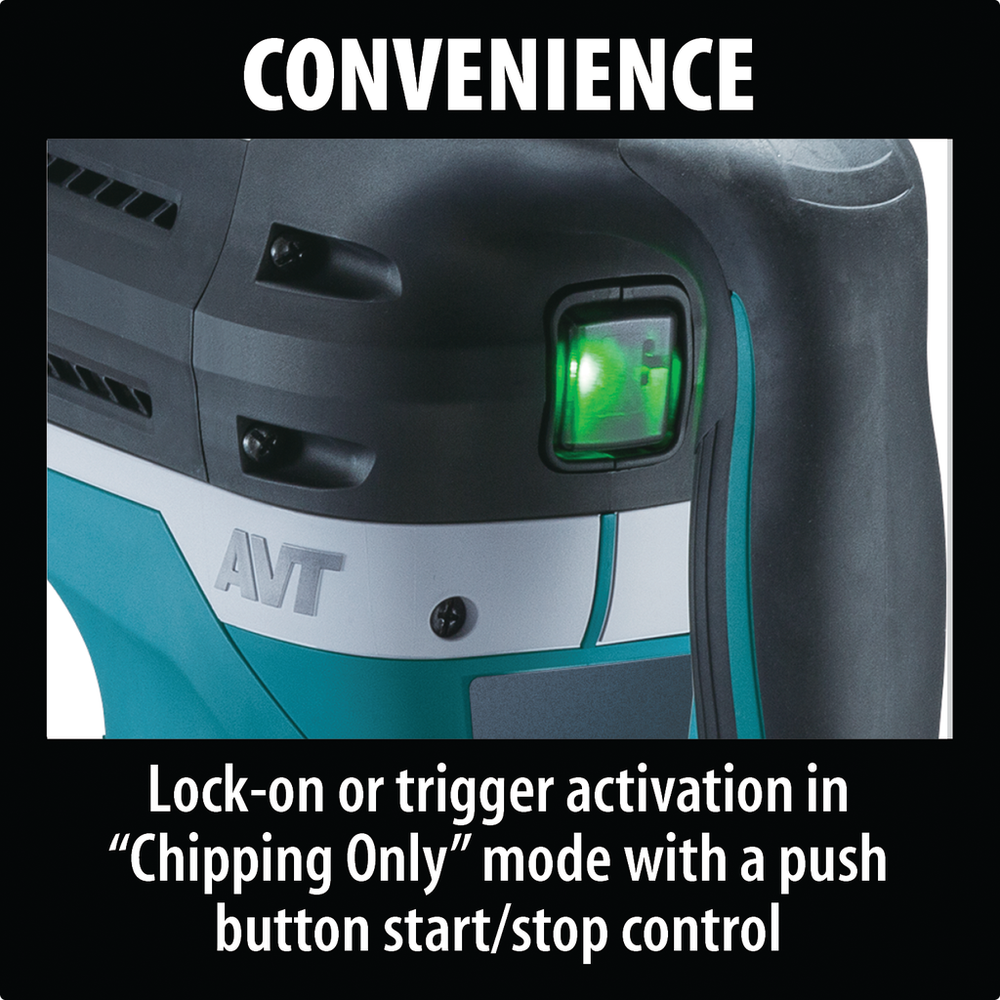

- CONVENIENCE - Lock-on or trigger activation in "Chipping Only" mode with a push button start/stop control
- Powerful 15 AMP motor delivers 14 ft.lbs. / 19 J. of impact energy
- Constant speed control automatically applies additional power to the motor to maintain speed under load to complete the most challenging jobs
- Automatic brush cut-off protects commutator from damage for longer tool life
- Depth Gauge (331955-1)
- Advanced AVT® includes a vibration absorbing housing with a spring loaded back handle and housing which moves independently of the motor and hammer mechanism effectively isolating more vibration away from the user
- SIDE GRIP ASSEMBLY (135629-4)
- Soft start suppresses start-up reaction for more precision and better accuracy
- Hammer Bit Grease (194683-7)
- Sequential impact timing delivers timed hammering during rotation to minimize overlapping bit impacts for up to 50% faster drilling
- Torque limiting clutch engineered to prevent gear damage
- CLOTH F/WIPING OIL (443122-7)
- L.E.D. power light indicates switch failure or cord damage

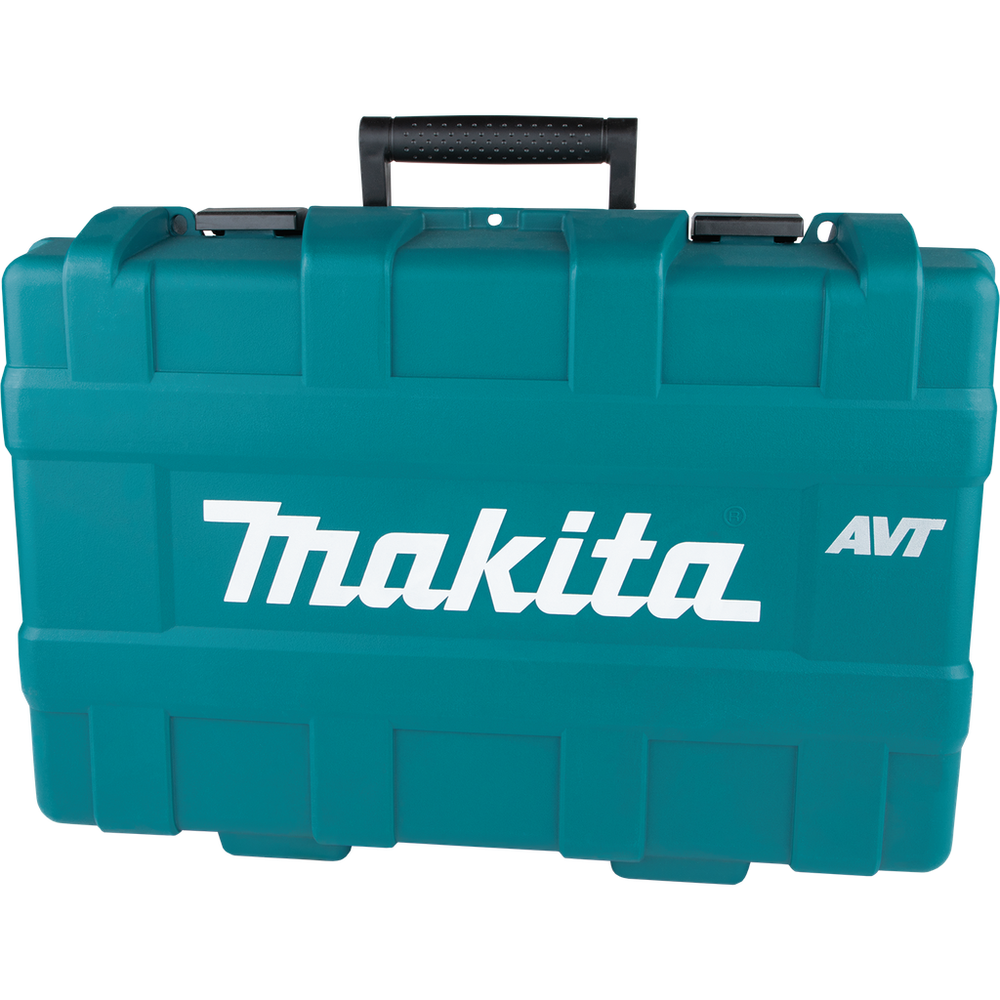

- Tool Case
- Advanced AVT® includes an integrated damper spring at the base of the impact bolt engineered to absorb impact vibrations from the drill bit

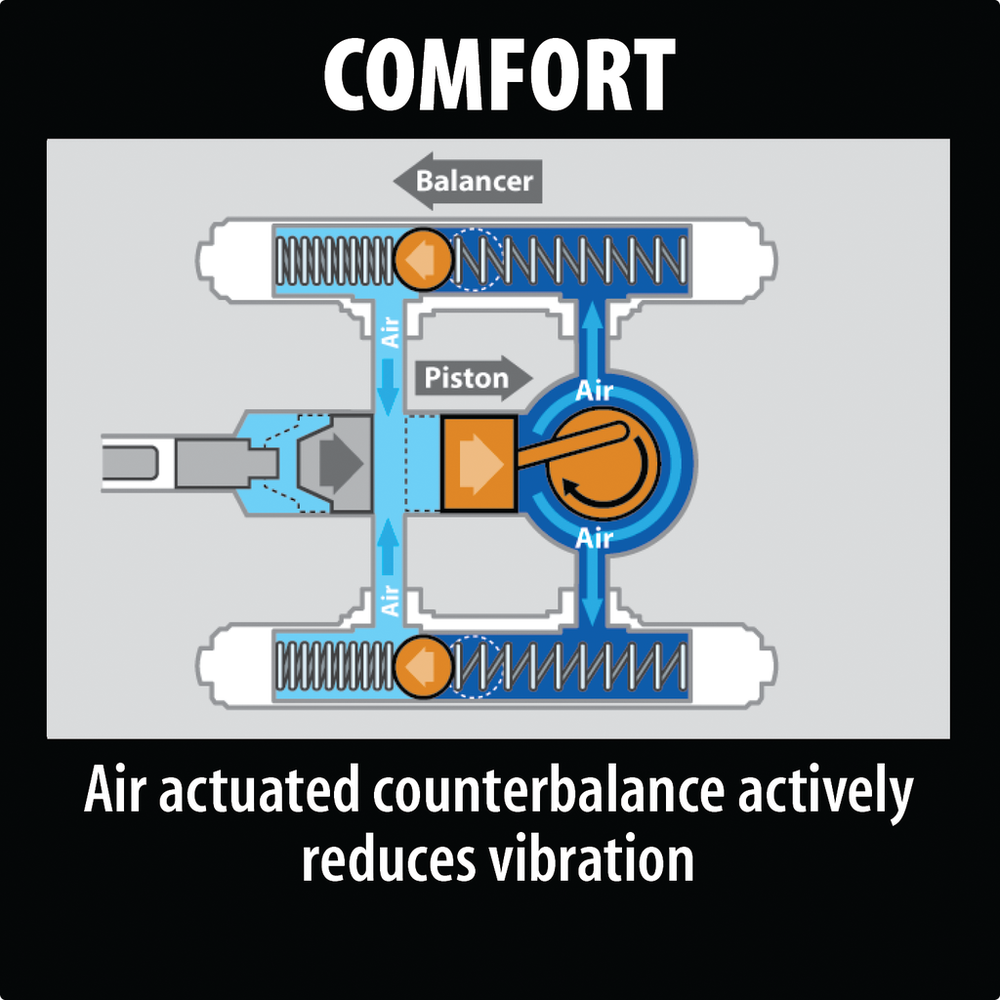

- Advanced AVT® includes an air actuated counterbalance that directs air pressure from the crank and barrel room into the counterbalance cylinders to move counterweight pistons in the opposite direction of the hammer mechanism to effectively reduce vibration
- One-touch sliding chuck for quick bit changes
- Advanced Anti-Vibration Technology (AVT®) is a synchronized, three-component system that more effectively reduces vibration resulting in a low 5m/s2
- Variable speed control dial enables user to match the speed to the application for greater versatility
- L.E.D. light indicates electrical failure or notifies the user when brushes need to be replaced
- COMFORT - Air actuated counterbalance actively reduces vibration
- 24 bit angle settings allow the bit to be set at different positions for operating convenience
- Torque limiting clutch engineered to prevent gear damage by automatically disengaging gears if the bit binds
- 2-mode operation for "Chipping Only" or "Hammering with Rotation"

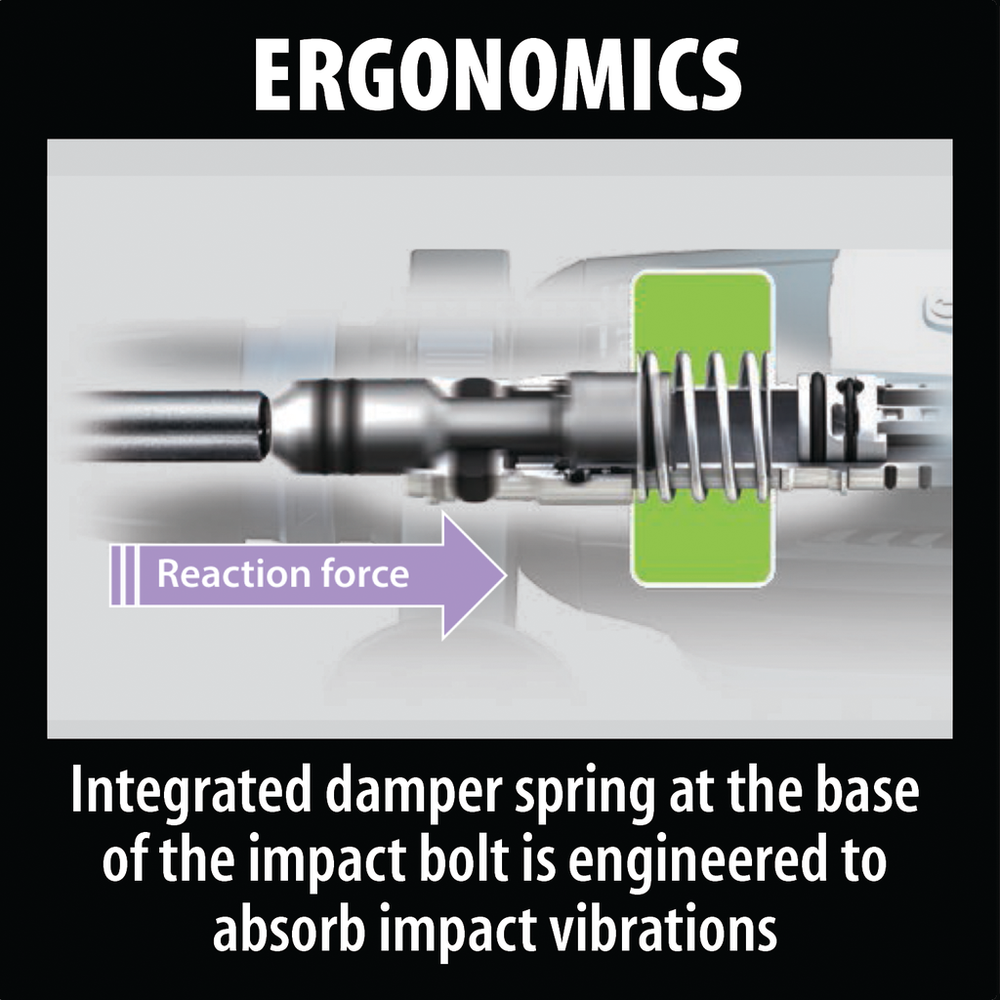

- ERGONOMICS - Integrated damper spring at the base of the impact bolt is engineered to absorb impact vibrations
- L.E.D. service light notifies the user approximately 8 hours before the brushes need to be replaced
- PERFORMANCE - Vibration absorbing housing moves independently of the motor and drive mechanism
- INCLUDES - Side handle, D-handle, depth rod, grease and case
- Powerful 15 AMP motor delivers 14 ft.lbs. / 19 J. of impact energy to handle the most demanding applications
