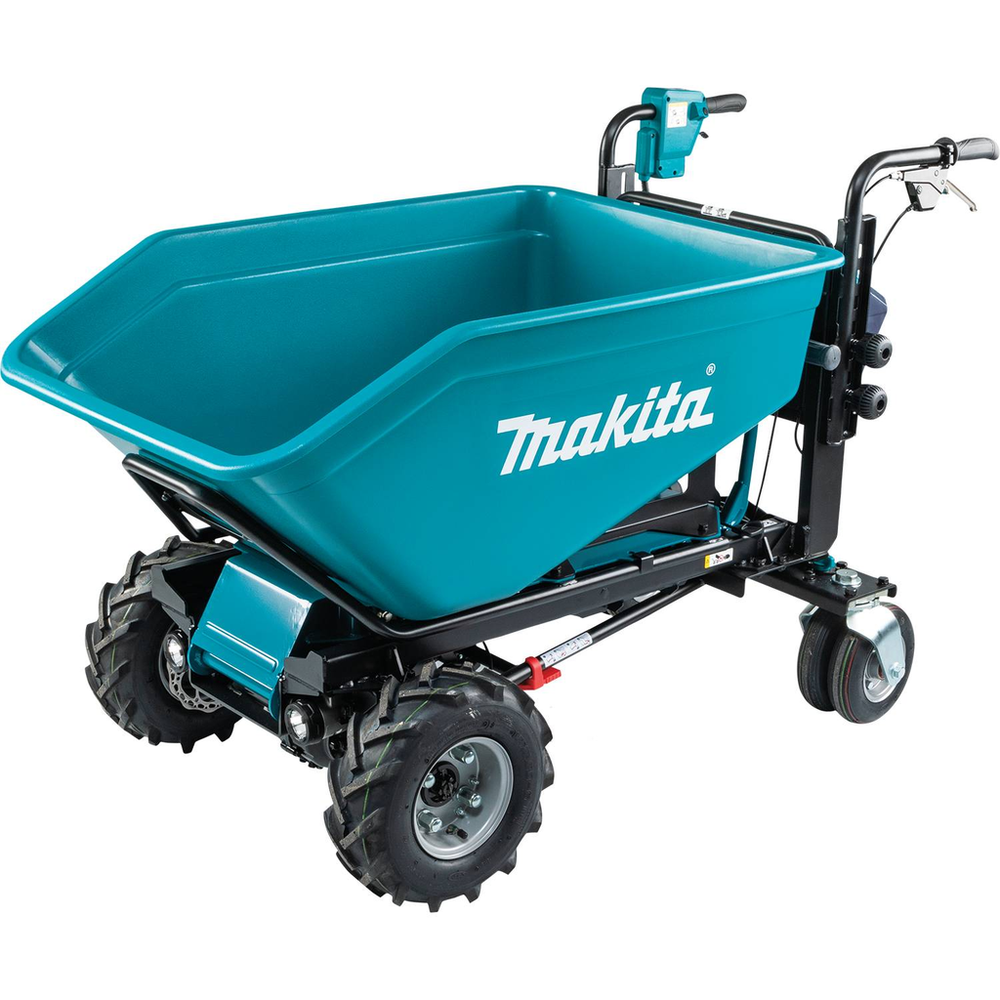

36V (18V X2) LXT® Brushless Material Handling, Dump Bucket, Tool Only - XUC04Z

Name: 36V (18V X2) LXT® Brushless Material Handling, Dump Bucket, Tool Only - XUC04Z
Brand: Makita
SKU: XUC04Z
Price: 6625 USD
Availability: InStock

SKU: XUC04Z

MPN: XUC04Z

Stock Item: Typical lead time for Makita products is 1-2 weeks.

UPC Code: 088381-764179

$6,625.00 each

Hurry up! Current stock:

Quantity:

Product Description

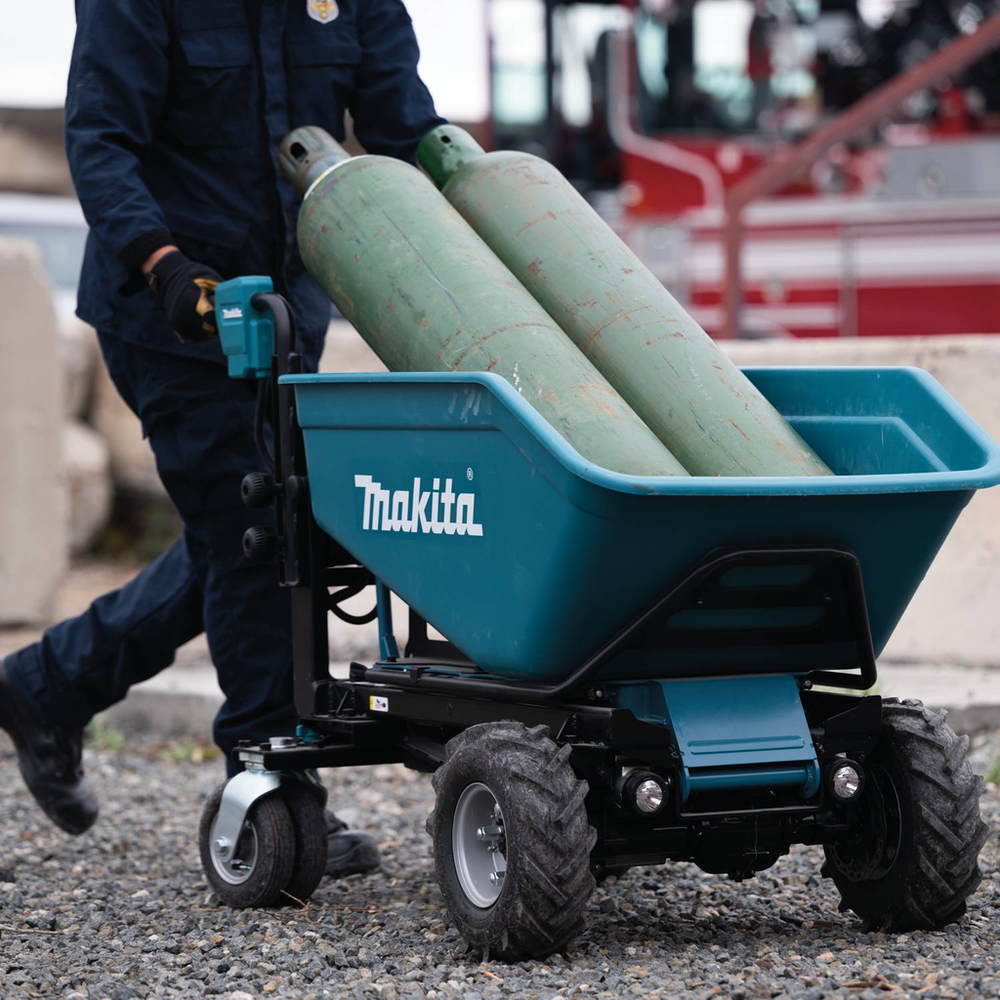

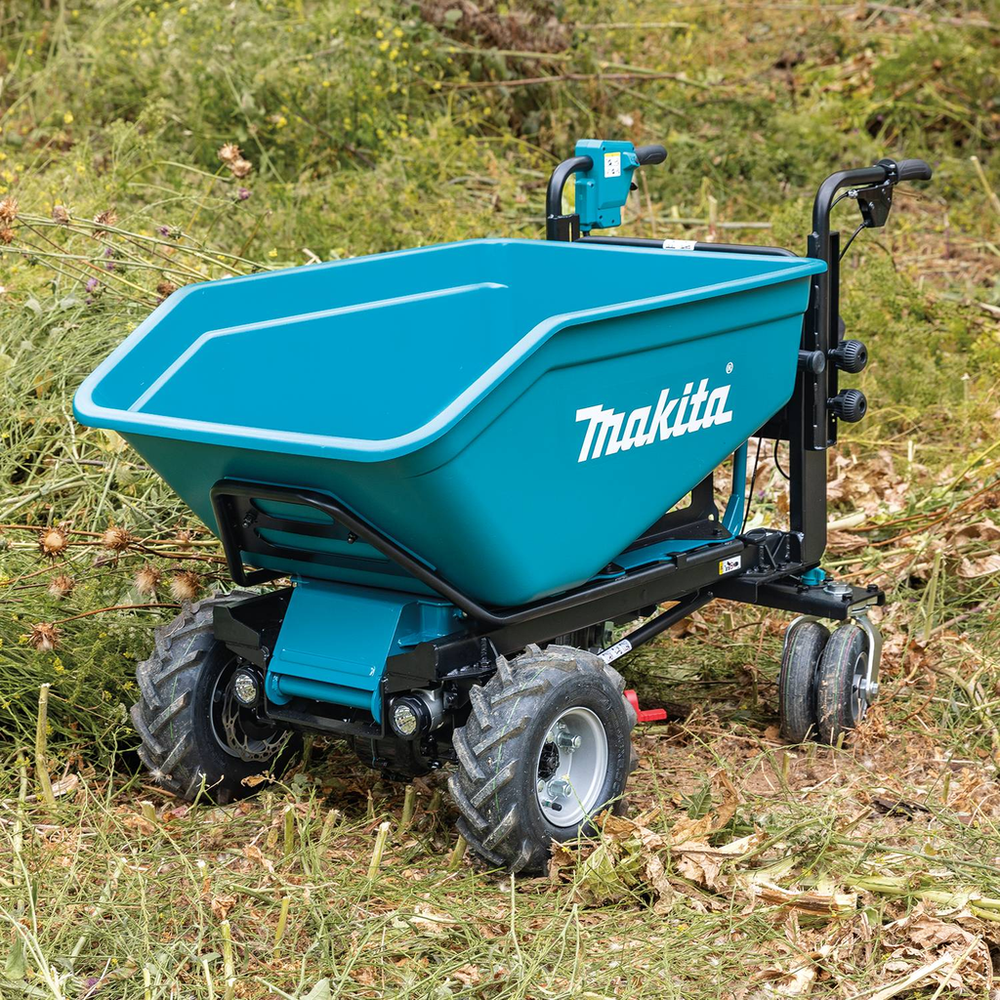

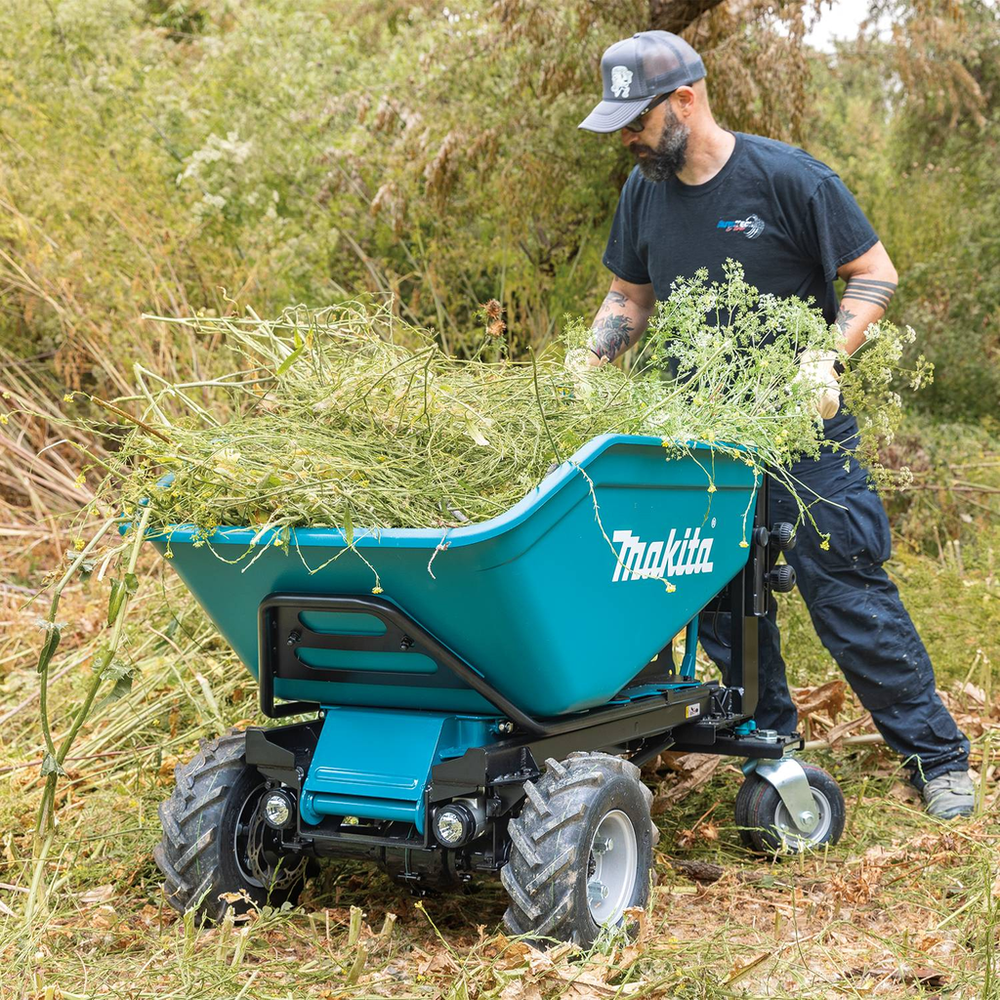

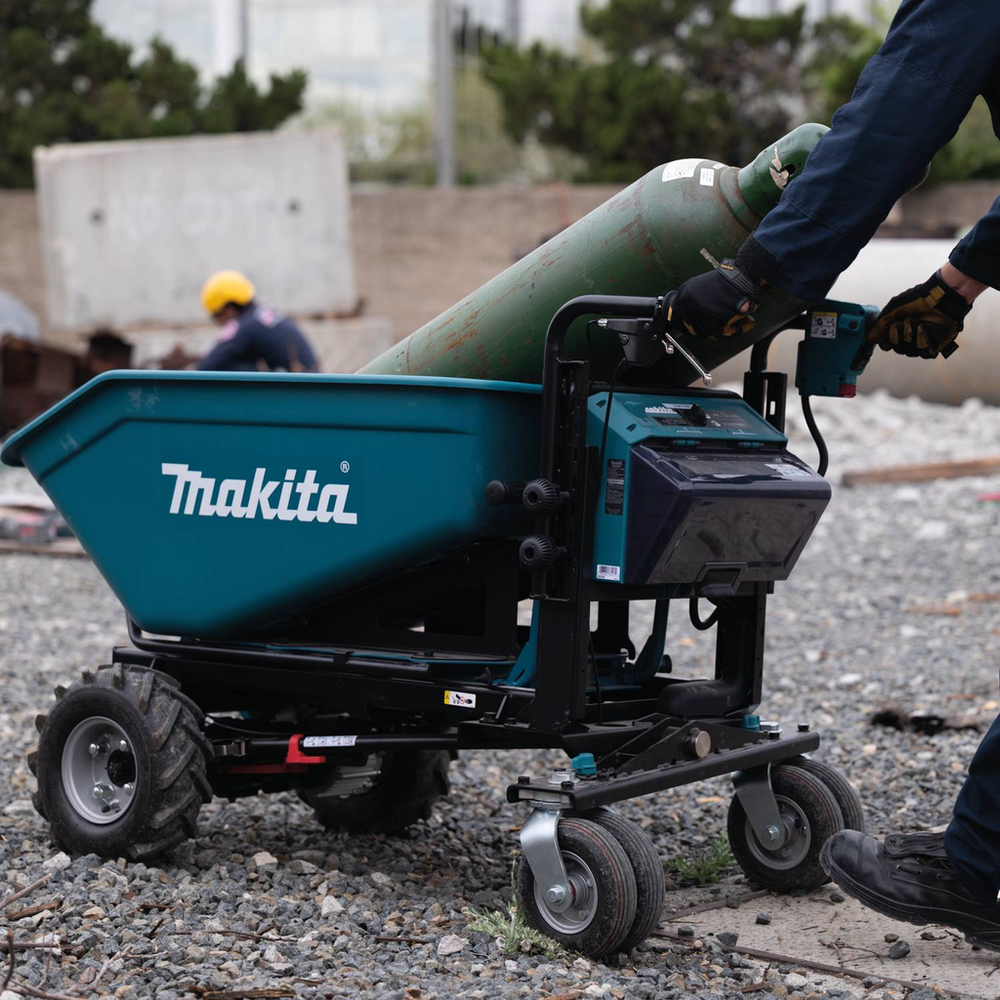

The 36V (18V X2) LXT® Brushless Material Handling with Dump Bucket, Tool Only (XUC04Z) is an ideal solution for transporting materials on job sites and other settings. The XUC04Z delivers up to 100 minutes of run time (distance equivalent to 4.5 miles) under load using four 18V LXT® 6.0Ah batteries (batteries sold separately). The Material Handler features three forward speeds and one reverse with variable speed controlled by a switch trigger in each range. The maximum load capacity is 660 lbs with a bucket capacity of over 200 liters. The XUC04Z is engineered to operate using two 18V batteries at a time, with the ability to utilize additional onboard batteries for longer run times. The XUC04Z features a warning beep that will go off if the unit is overloaded either on a slope or flat ground. It also beeps when in-use batteries are running low as a reminder to the user to cycle through the other set of batteries. Convenience features include a hand lever-operated mechanical axle disc brake plus an electromagnetic brake that prevents the Material Handler from rolling forward or backward when the throttle is not engaged. There are headlights, a taillight, and a level gauge for more convenience. It also features handles that adjust to three separate heights to accommodate multiple users, and the handles feature rubberized soft grips that provide increased comfort on the job. The Material Handler features Extreme Protection Technology (XPT™) which is engineered to provide increased dust and water resistance in harsh job site conditions. It’s part of Makita’s expanding 18V LXT System, the world’s largest cordless tool system powered by 18V lithium-ion slide-style batteries. Makita® 18V LXT® Lithium-Ion Batteries have the fastest charge times in their categories, so they spend more time working and less time sitting on the charger.

Features

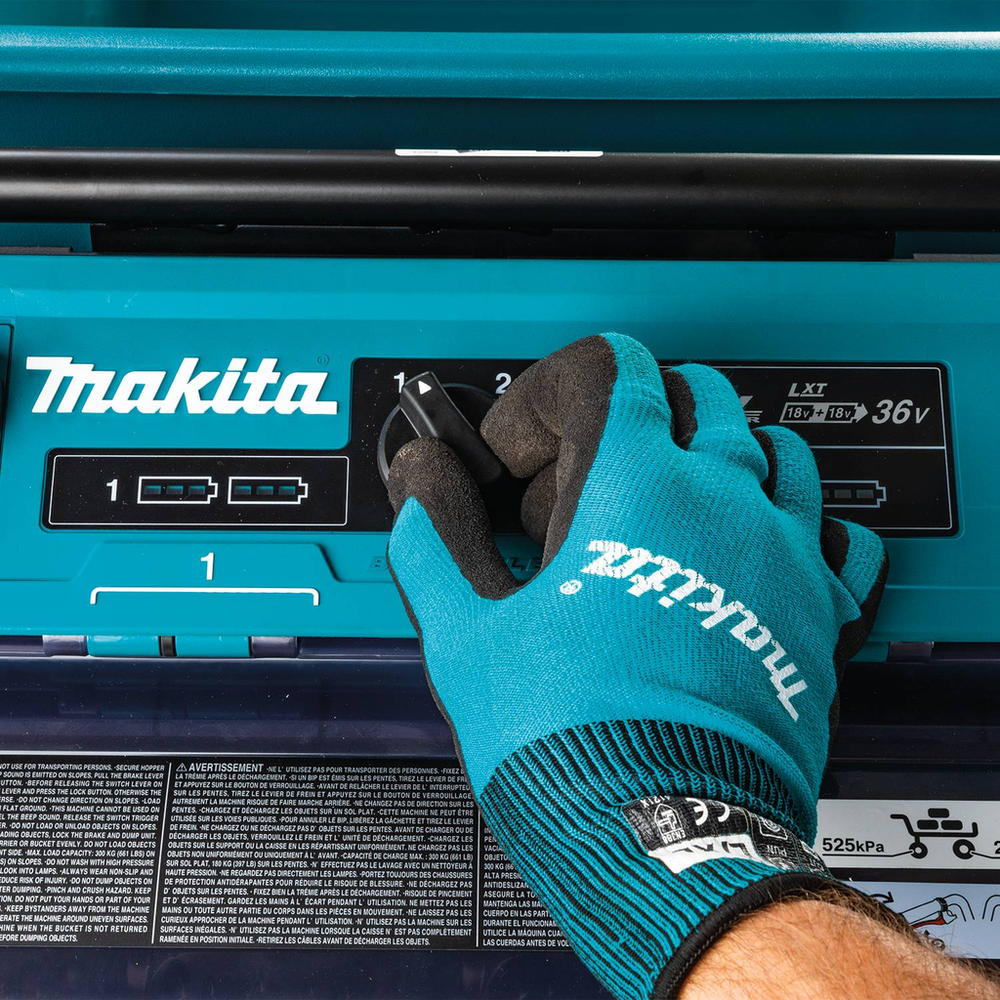

Holds (4) 18V LXT® Lithium-Ion batteries but operates using (2) 18V batteries at a time; utilizes additional batteries when needed (batteries not included)
Features Extreme Protection Technology (XPT™) which is engineered to provide increased dust and water resistance in harsh job site conditions

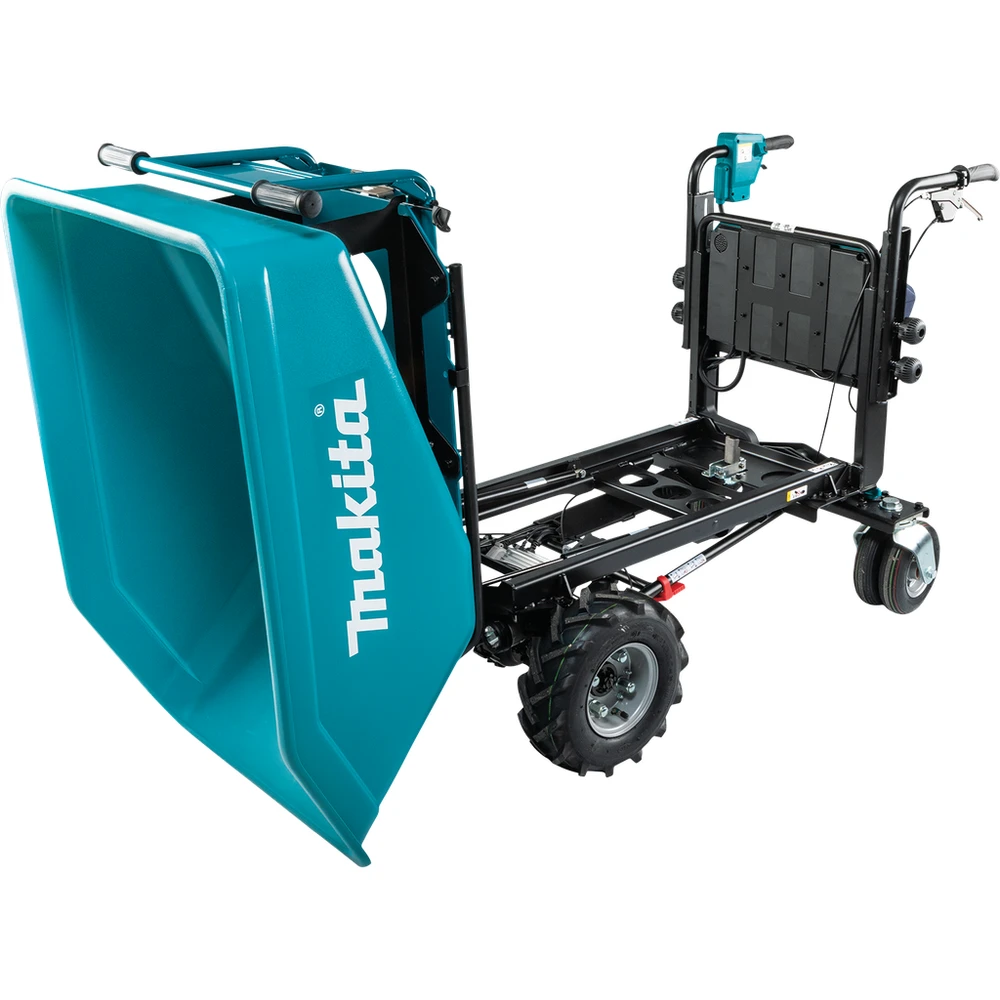

INCLUDES - Frame with motor, wheels, tires, and dump bucket
Functional Unit for XUC04, XUC05 Manual Dump (191B63-0)

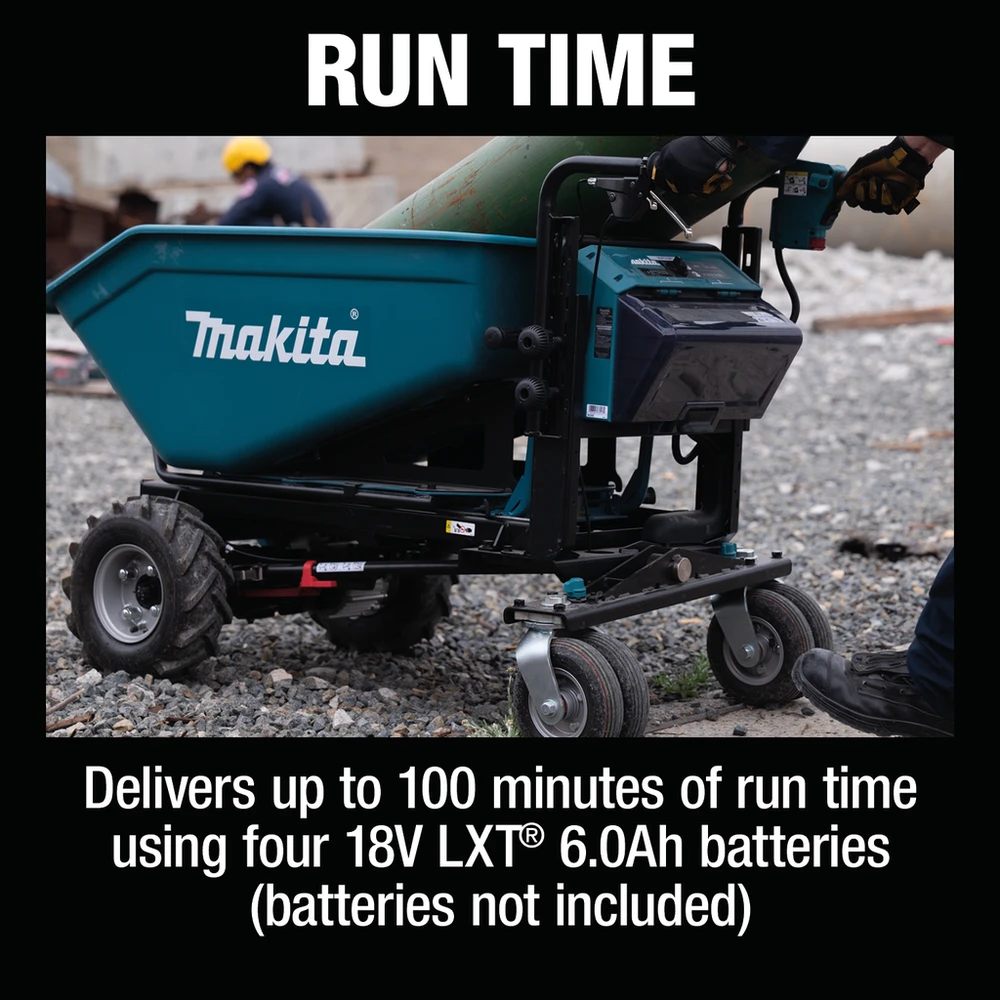

RUN TIME - Delivers up to 100 minutes of run time using four 18V LXT® 6.0Ah batteries (battery not included)
Delivers up to 100 minutes of run time (distance equivalent to 4.5 miles) under load using four 18V LXT® 6.0Ah BL1860 battery (battery not included)
Rubberized soft grip handles provide increased comfort on the job; adjust to 3 heights
Makita-built brushless motor for optimal performance
Only use genuine Makita batteries and chargers
3-year limited warranty

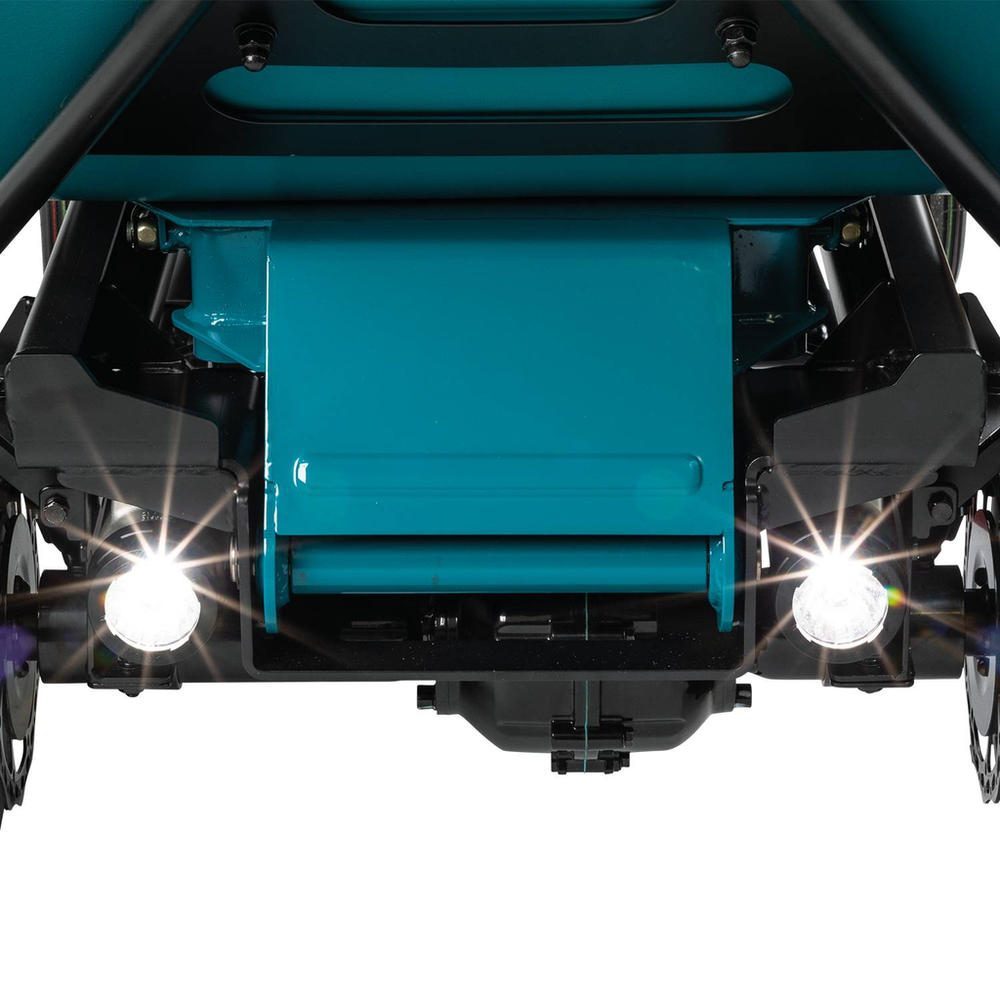

Headlights, taillight, warning beeper and level gauge for more convenience

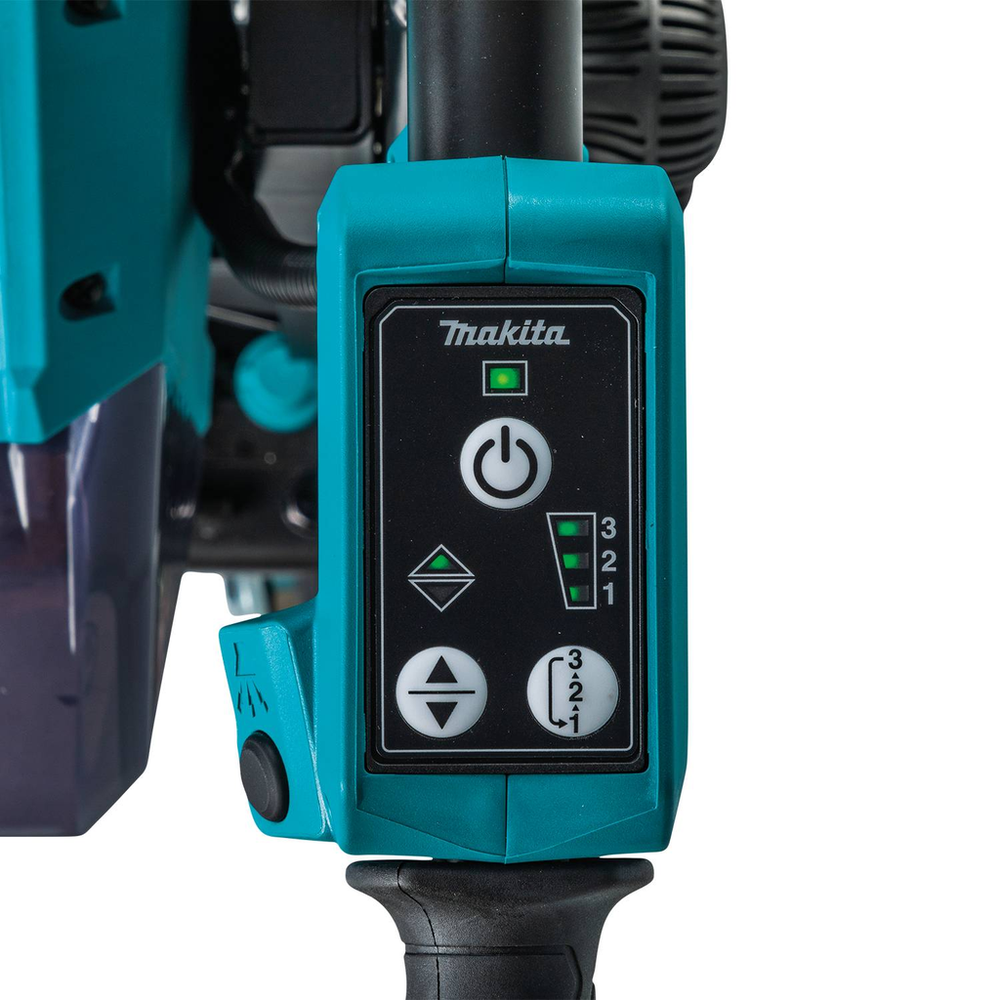

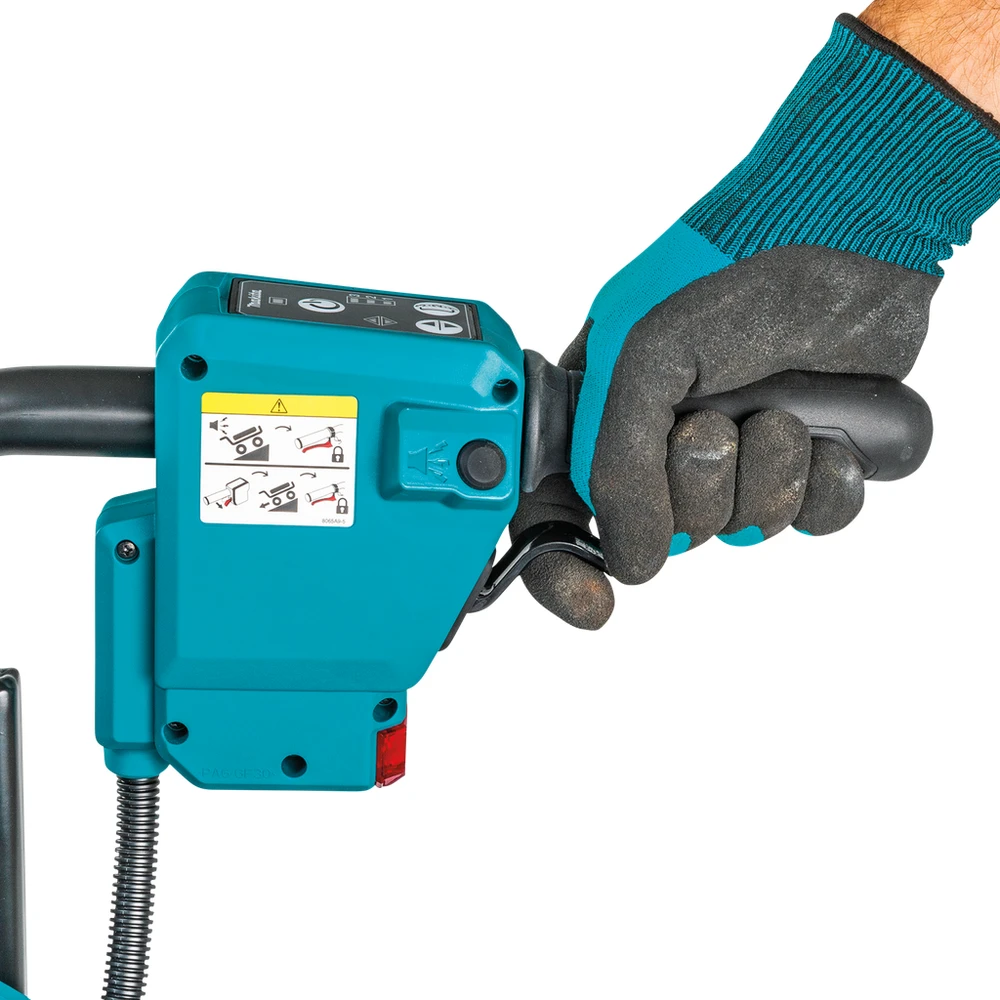

CONVENIENCE - 3 forward speeds and one reverse with variable speed control by switch trigger in each range
POWER - 200L heaped capacity with maximum load over 660 lbs
3 forward speeds and one reverse with variable speed control by switch trigger in each range
200L heaped capacity with maximum load over 660 lbs
Holds (4) 18V LXT® Lithium-Ion batteries, operates using (2) at a time; utilizes additional batteries when needed (batteries not included)
200L Bucket with Frame, XUC02 XUC04 (191B69-8)

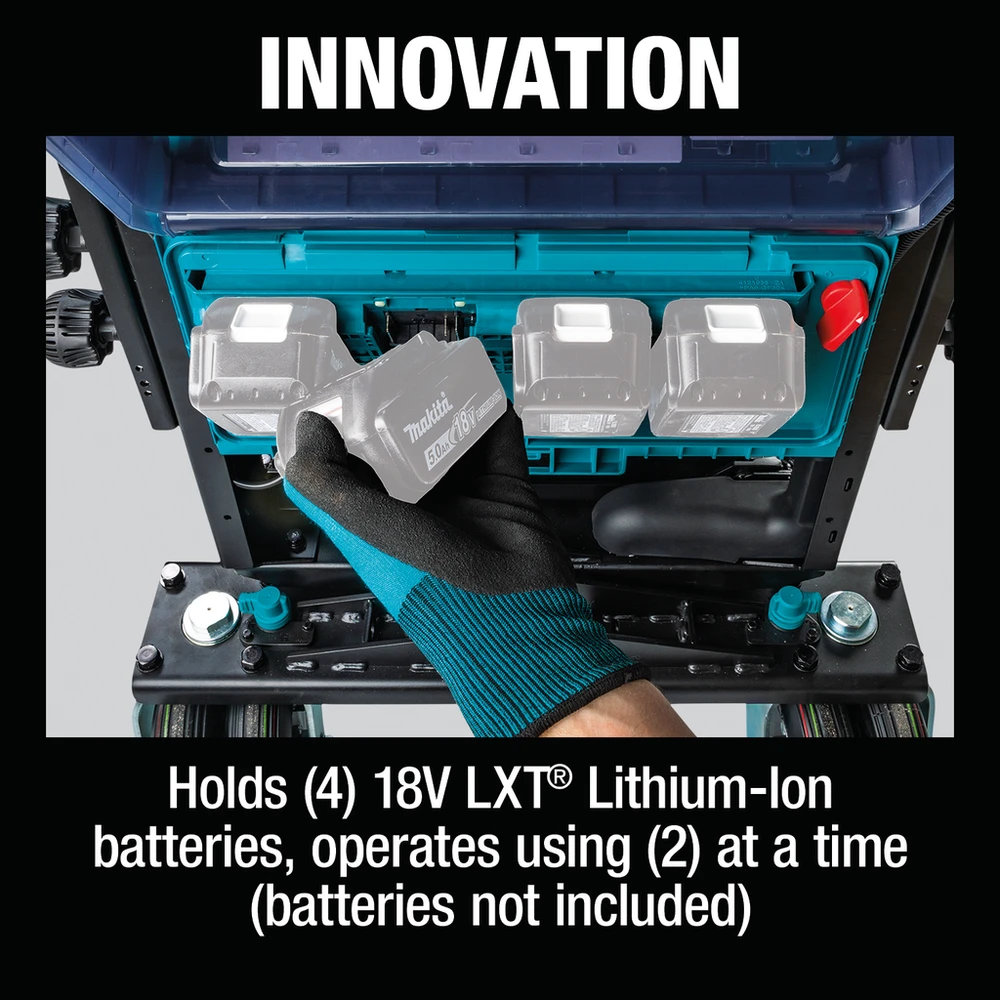

INNOVATION - Holds (4) 18V LXT® Lithium-Ion batteries, operates using (2) at a time (batteries not included)

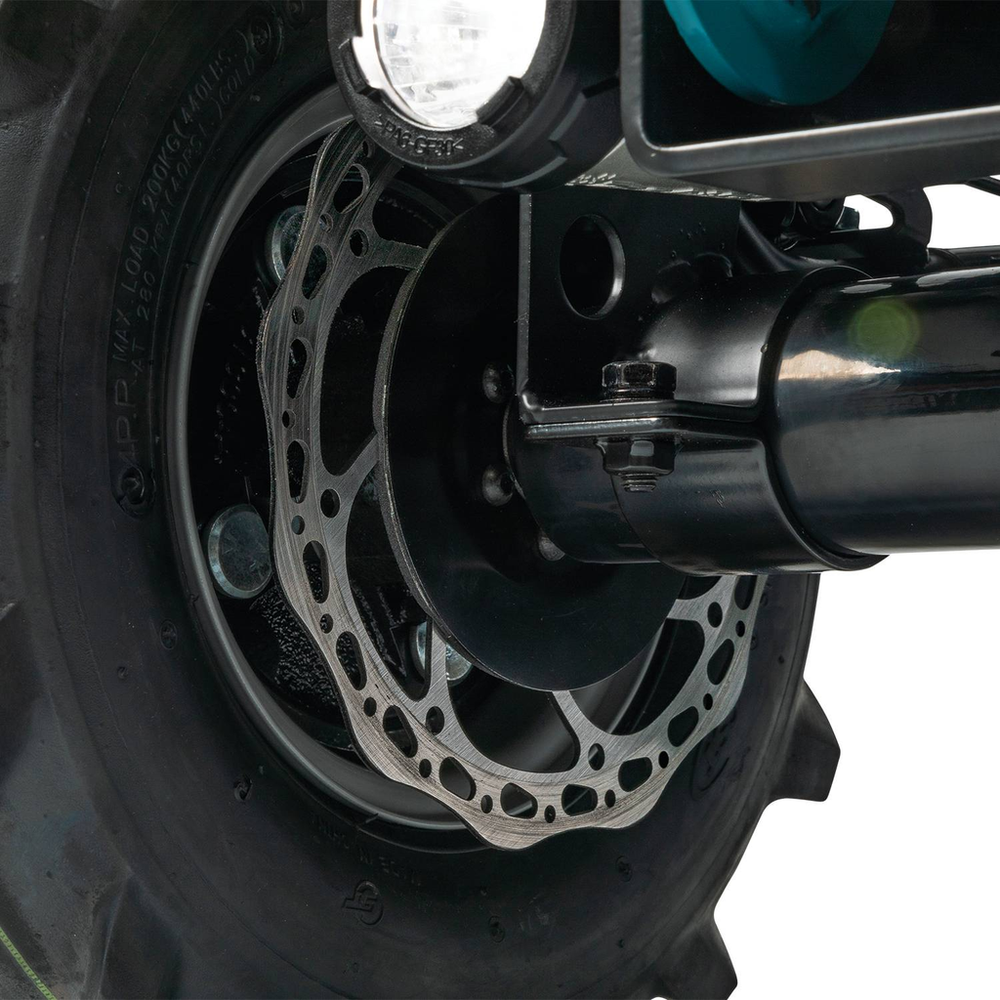

Hand lever-operated mechanical axle disc brake plus electromagnetic brake (motor)

Prop 65

WARNING: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Downloads

Makita XUC04 Parts Breakdown

XUC04_XCU05_XCU06 Instruction Manual

Specifications

Battery	36V LXT® Lithium-Ion
Motor Type	Brushless
Max. Grade	12°
Net Weight	273 lbs.
Shipping Weight	398 lbs.
Speed Reverse (MPH)	.63 MPH
Form Factor (LXT)	X2
Country of Origin	China
Max. Load Capacity	661 lbs.
Power Type	Cordless
Dimensions (LxWxH)	58-1/4" x 28-3/4" x 32-1/4"
Speed Forward (High/Low MPH)	3.1 / .93 MPH
