3M Products & Supplies

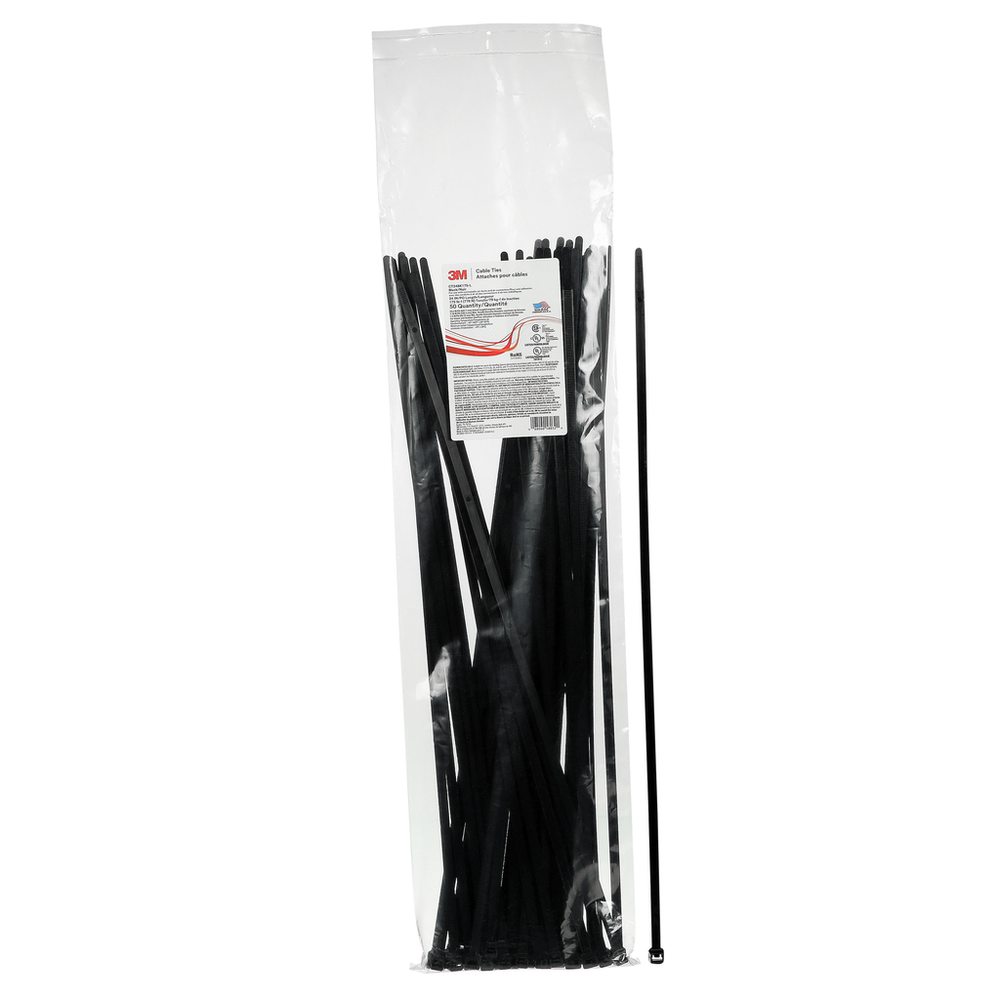

3M™ Cable Tie CT24BK175-L, Black 24 inch 175 lb, 50/Bag, 500/Case - 7100358828

Sold As: 500-Pack
SKU: 7100358828
MPN: 7100358828
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00068060580313
3M ID: 80000240160
$266.38 ($0.53 / Count)
Hurry up! Current stock:

Product Description

3M™ Standard Nylon Cable Ties are made with high-quality nylon 6/6 and designed to secure wire bundles and harness components quickly, without slipping. The curved tip allows for faster threading and installation, and they feature a self-locking head.

Features

  • Curved tip allows for faster threading and installation
  • Secure wire bundles and harness components quickly, without slipping
  • UL Listed 62275 Type 21 or 21S and Plenum Rated AH-2 for use in air handling spaces

Specifications

Maximum Operating Temperature (Fahrenheit)185.0
Cable Length (Metric)609.6
Tensile Strength (Metric)79.38
Cable Length (Metric) UOMmm
Maximum Recommended Voltage Rating UOMV
Maximum Operating Temperature (Fahrenheit) UOMDegree
Operating Temperature (Fahrenheit)185 Degree Fahrenheit
Tensile Strength (Metric) UOMkg
Cable Length (Imperial)24.0
Flammability RatingUL 94 V-2
Product ColorBlack
UL ApprovalYes
Operating Temperature Range (Celsius)-40 °C to 85 °C
Minimum Operating Temperature (Fahrenheit)-40.0
MIL ApprovalNo
Maximum Operating Temperature (Celsius)85.0
VG ApprovalNo
Maximum Insulation Outer Diameter (Metric)3.7
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Celsius) UOMDegree
Halogen FreeYes
TypeStandard
ApplicationSecure wire bundling
Maximum Recommended Voltage Rating600.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Tape TypeBarricade
Operating Temperature Range (Fahrenheit)-40 °F to 185 °F
Country of OriginUnited States
Maximum Insulation Outside Diameter0.145 in
Package Quantity UOMEACH
Minimum Operating Temperature (Celsius)-40.0
Cable Length (Imperial) UOMin
Product TypeCable Ties
Maximum Operating Temperature85 Degree Celsius
Maximum Insulation Outer Diameter (Metric) UOMmm
Solvable FastenerNo
Cable Diameter Range8,1 - 39,4 mm
Operating Temperature (Celsius)85 Degree Celsius
