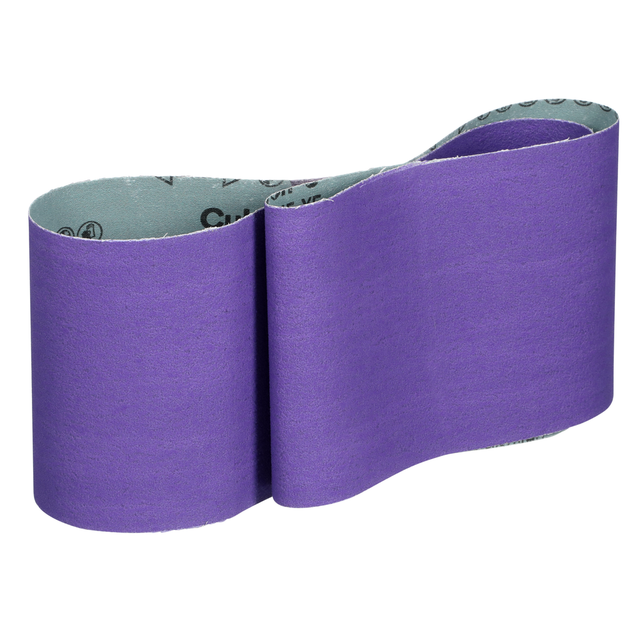

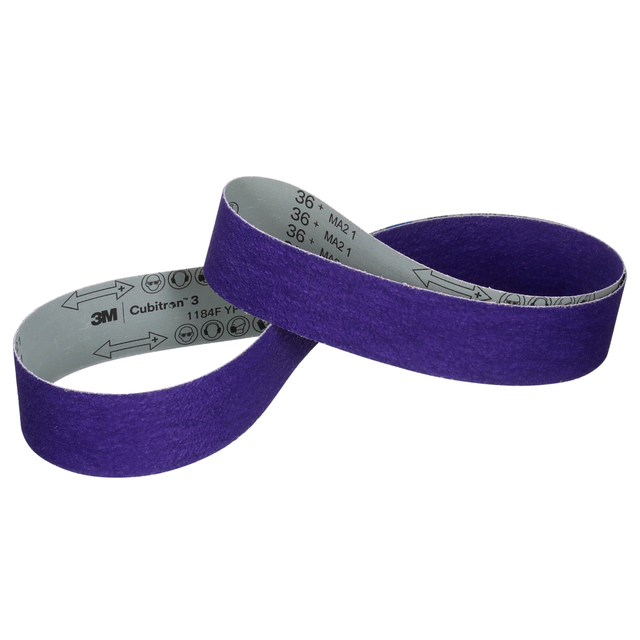

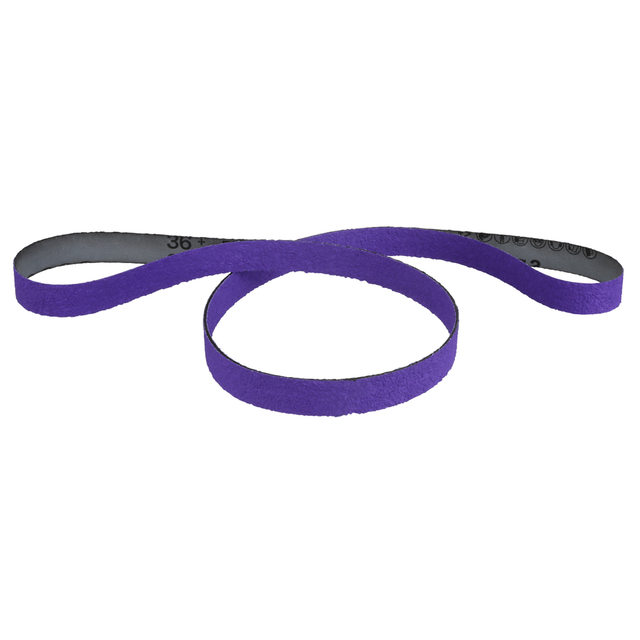

3M™ Cubitron™ 3 Cloth Belt 1184F, 60+ YF-weight, 1 in x 90 in, Film-lok, Single-flex - 7100410616

Sold As: 200-Pack
SKU: 7100410616
MPN: 7100410616
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00638060564639
3M ID: UU014854507
$2,679.71 ($13.40 / Count)
Hurry up! Current stock:

Product Description

Introducing the 3M™ Cubitron™ 3 Cloth Belt 1184F, featuring a re-engineered 3M Precision-Shaped Grain. Designed to give you the performance boost you need. The 36+ grit option delivers up to 86% faster cut rate compared to crushed ceramic competitors - providing the ultimate in performance. Available in 36+ grit for medium and high-pressure applications like gate grinding and other heavy grinding, and 60+ and 80+ grit for medium pressure applications.

Features

  • OPTIMIZED FOR ROBOTICS: Built for manual and automated applications designed for faster performance
  • LONGER LIFE: Fewer changeouts needed and less downtime
  • COOL CUTTING: Designed to run cooler and reduce metal discoloration and other heat-related outcomes
  • OPERATOR COMFORT PRIORITIZED: Cuts with less pressure, helping reduce the demands on operators
  • 3M RE-ENGINEERED PRECISION-SHAPED GRAIN: Helps increase cut rate and abrasive life to boost productivity
Spec Sheet



Downloads

Specifications

Abrasive MaterialPrecision Shaped Ceramic
Coat TypeClosed Coat
Number of Vacuum Holes-12345.0
Backing MaterialPolyester Cloth
Overall Width (Imperial) UOMin
Overall Length (Metric) UOMmm
IndustriesCastings and Forging, Metalworking
Overall Length (Imperial)90.0
Maximum Speed0.0
Splice TypeFilm-lok
Overall Length (Metric)2286.0
Flex TypeSingle-flex
Grit60+
Overall Width (Metric)25.4
Backing WeightYF Weight
Wet or DryWet or Dry
Overall Length (Imperial) UOMin
Country of OriginUnited States
Overall Width (Imperial)1.0
ApplicationDeburring; Finishing; Grinding; Polishing; Surface Preparation
Equipment - MachinesBackstand
Product FormBelt
Mesh Size0.0
Overall Width (Metric) UOMmm
