3M Products & Supplies

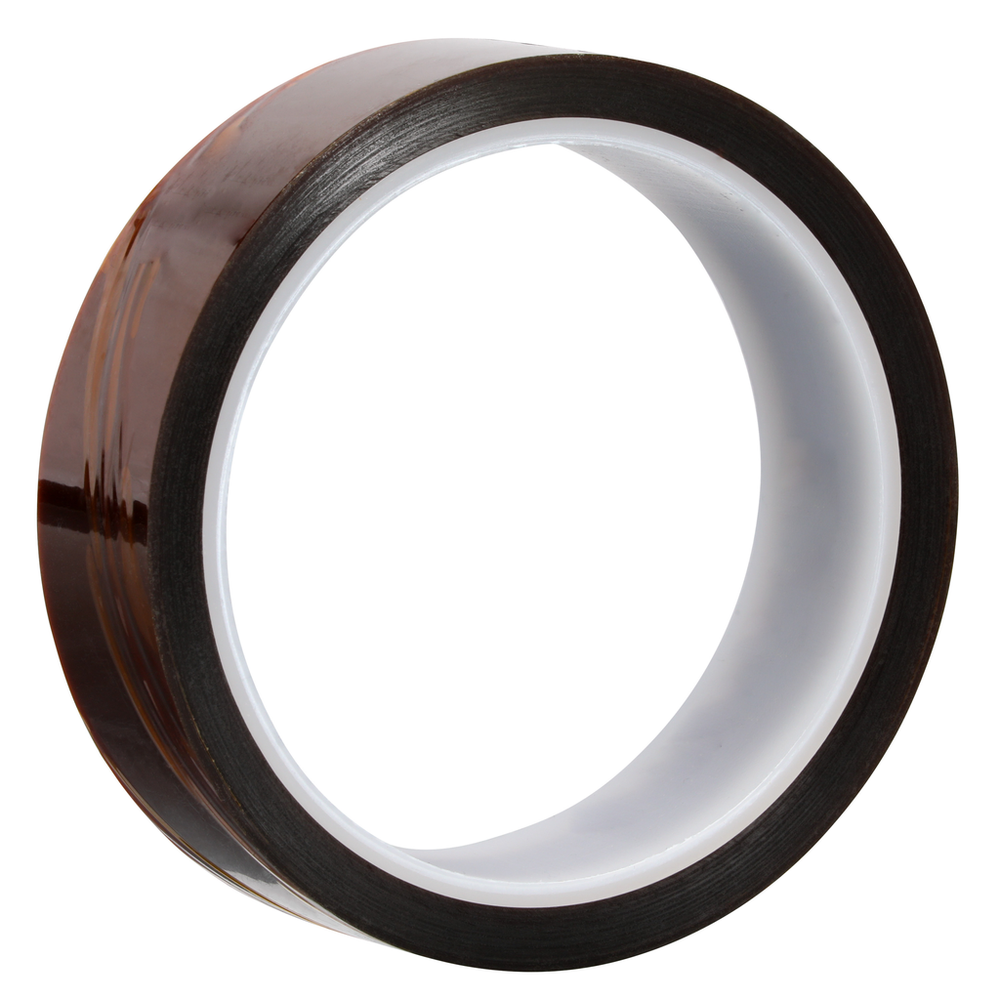

3M™ Low-Static Polyimide Film Tape 7419, NSNF, 25 in x 36 yds, 1 Roll/Case - 7100388757

SKU: 7100388757
MPN: 7100388757
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00068060478634
3M ID: 80001603044
$2,445.97 each
Hurry up! Current stock:

Product Description

3M™ Low-Static Polyimide Film Tape 7419 is a high-temperature tape for electronic applications. With a silicone-free adhesive, it withstands short-term exposure to typical solder mask temperatures and provides clean removal, helping minimize contamination risks.

Features

  • Offers clean removal from substrates like FR-4 and gold
  • Maintains static dissipative properties to protect sensitive components
  • High-temperature adhesive has excellent chemical resistance for demanding chemical masking applications
  • Stays firmly in place during processing and removes cleanly from typical electronic substrates even after 10 minutes at 260°C (500°F)
  • Wound on a polyethylene tape core
  • Silicone-free acrylic adhesive is resistant to typical solder mask temperatures for short periods of time
Spec Sheet



Downloads

Specifications

Shelf Life547
Adhesive TypeAcrylic
Overall Width (Metric) UOMmm
Overall Width (Imperial) UOMin
Product ColorAmber
Overall Length (Metric) UOMm
Overall Length (Imperial) UOMyd
Overall Length (Imperial)36.0
Backing (Carrier) MaterialPolyimide Film
Overall Width (Metric)635.0
Overall Length (Metric)32.918
Overall Width (Imperial)25.0
Adhesive MaterialAcrylic
Country of OriginUnited States
