3M Products & Supplies

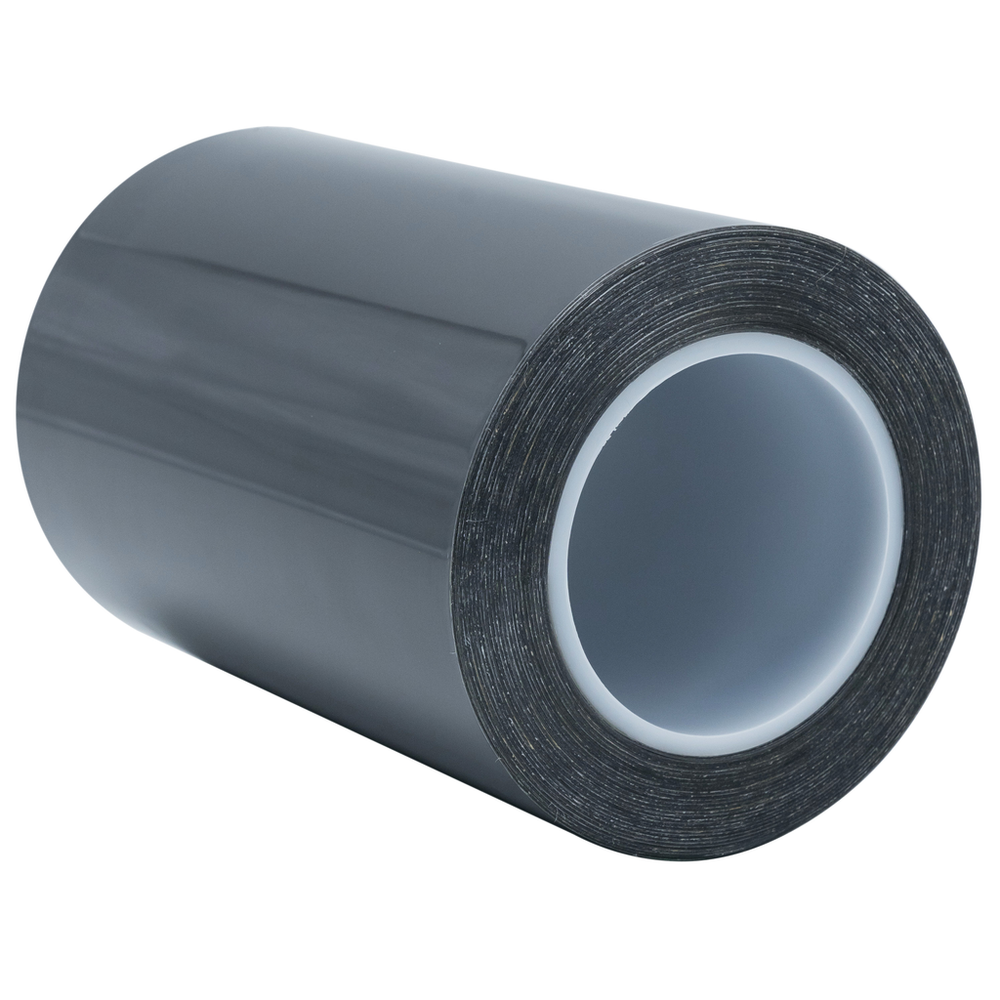

3M™ VHB™ Tape 47715, 600 mm x 100 m, 1 Roll/Case - 7100385996

SKU: 7100385996
MPN: 7100385996
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 06936177936115
3M ID: XP003859228
$1,937.89 each
Hurry up! Current stock:

Product Description

3M™ VHB™ Tape 47700 Series is a high-performance adhesive designed to enhance the structural integrity and durability of electronic devices. It offers significant advancements in design flexibility, allowing for stiffer and thinner constructions while increasing usable internal space. With high cohesive strength and dimensional stability, this tape provides up to 80% greater creep resistance than previous models, helping devices maintain their shape and functionality over time — even under extreme conditions such as high temperatures and humidity.

Features

  • IMPACT RESISTANCE: Designed to withstand greater shear impact forces, a crucial attribute for enhancing smartphone durability against drops
  • VERSATILE APPLICATIONS: Suitable for display and back cover bonding, helping screen stability and protection from impacts
  • INNOVATIVE ENGINEERING: A high modulus acrylic foam tape between two PET release liners that bonds to a wide range of high and medium-surface energy materials
  • DESIGN FLEXIBILITY: Enables the creation of stiffer and thinner designs, maximizing internal space for components
  • REDUCED TENSILE CREEP: With high cohesive strength, there is 60% greater creep resistance than 4914 and 80% greater creep resistance than 86420, helping the device retains its shape and functionality over time
  • DIMENSIONAL STABILITY: Offers flexural strength, providing OEMs with a compelling assurance of its resilience against bending forces
Spec Sheet



Downloads

Specifications

Shelf Life730
Core Size (Imperial) UOMin
Total Tape Thickness without Liner (Imperial)6.0
Shelf Life UOMMonth
Total Tape Thickness without Liner (Metric) UOMmm
ApplicationEnclosure Bonding; LCD Display Frame Attachment; Panels to Frame
Overall Length (Imperial) UOMyd
Overall Length (Metric)100.0
IndustriesConverter Solutions, Electronics
Tensile Strength (Imperial)120.0
Total Tape Thickness without Liner (Metric)0.15
Country of OriginChina
Core Size (Metric)76.2
Total Tape Thickness without Liner (Imperial) UOMmil
Core Size (Imperial)3.0
Product ColorDark Gray
Tensile Strength (Metric) UOMkPa
Overall Width (Imperial) UOMin
Overall Length (Imperial)109.361
Overall Width (Metric) UOMmm
Core Size (Metric) UOMmm
Overall Width (Metric)600.0
Adhesive TypeAcrylic
Tensile Strength (Metric)850.0
Foam TypeFirm
Indoor/OutdoorIndoor/Outdoor
Overall Width (Imperial)23.622
Tensile Strength (Imperial) UOMpsi
Overall Length (Metric) UOMm
