3M Products & Supplies

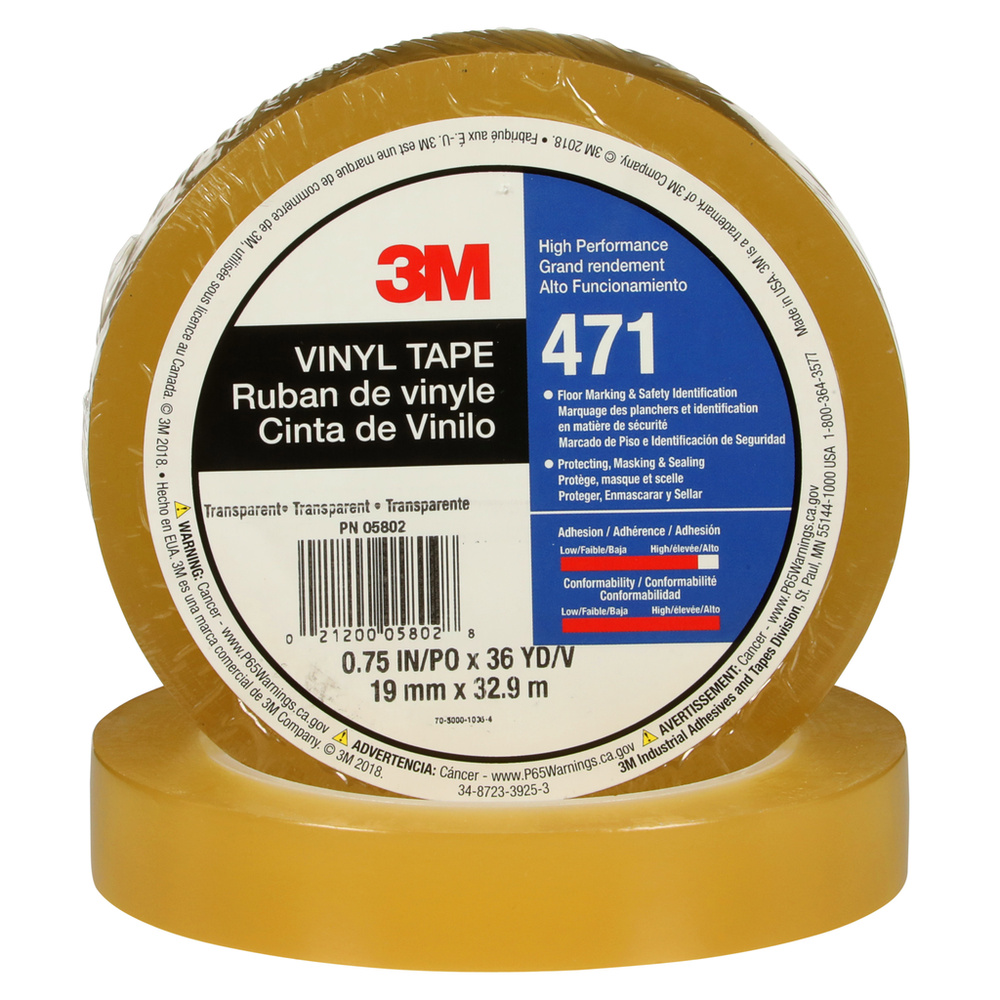

3M™ Vinyl Tape 471, Transparent, 3/4 in x 36 yd, 5.2 mil, 48 Roll/Case, Individually Wrapped Conveniently Packaged - 7100049356

Sold As: 48-Pack
SKU: 7100049356
MPN: 7100049356
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200058028
3M ID: 70500010064
$874.80 ($18.22 / Count)
Hurry up! Current stock:

Product Description

3M™ Vinyl Tape 471 is a versatile tape that provides temporary or long-lasting surface protection and reliable seals in complex situations across a variety of industries. Engineered with unique stretch properties, this tape conforms to rough, irregular, curved, and convex surfaces without lifting. It uses a rubber adhesive that bonds immediately and removes cleanly on a wide variety of substrates. Made for high performance, the see-through backing resists abrasion, moisture, and solvents. Conformability, instant adhesion, and clean removal all make transparent 3M™ Vinyl Tape 471 an exceptional choice for sealing, general-purpose surface protection, and bundling.

Features

  • Good abrasion and solvent resistance for long service life
  • One-piece, clean removal from many surfaces which helps reduce clean-up and labor costs
  • Available in a wide variety of vivid colors for diverse applications such as floor marking, paint masking, and surface protection
  • This is the transparent version of the product
  • Unique stretch properties enable tape to remain stretched to conform to uneven surfaces without lifting and retracting
  • Rubber adhesive provides excellent holding strength on many surfaces
Spec Sheet



Downloads

Specifications

Shelf Life547
Overall Length (Metric)32.91
Elongation at Break150%
Tensile Strength (Metric)270.0
Performance LevelHigh Performance
Tensile Strength (Imperial) UOMlb/in
Tensile Strength (Metric) UOMN/100mm
Overall Width (Imperial)0.75
Total Tape Thickness without Liner (Metric)0.132
Backing (Carrier) Thickness (Imperial)4.1
Minimum Operating Temperature (Celsius)4.0
Back Side Adhesive Thickness (Metric) UOMmm
Back Side Adhesive Thickness (Metric)0.1
Country of OriginUnited States
Overall Thickness (Imperial)5.3
Overall Width (Imperial) UOMin
ApplicationColor Coding Tools & Equipment; Electroplating and Anodizing Processes; Fine Line Masking; Floor and Safety Marking; General Use Vinyl; Paint Masking; Safety & Hazard Marking; Sealing; Sealing Plate Edges Against Ink Penetration
Units per Case48.0
Overall Width (Metric) UOMmm
Overall Length (Metric) UOMm
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Imperial) UOMmil
IndustriesAutomotive, General Industrial, MRO, Military and Government, Specialty Vehicles, Transportation
Tensile Strength (Imperial)14.0
Product FormRoll
Units per Case UOMRoll
Adhesion Strength (Metric) UOMN/100mm
Backing Thickness (Imperial)4.1
Backing Thickness (Metric)0.1
Backing (Carrier) Thickness (Metric)0.1
Total Tape Thickness without Liner (Imperial)5.2
Overall Thickness (Imperial) UOMmil
Shelf Life in Months (From Date of Manufacture)18.0
Overall Width (Metric)19.05
Adhesive TypeRubber
Minimum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Fahrenheit)170.0
Product ColorTransparent
Total Tape Thickness without Liner (Metric) UOMmm
Backing (Carrier) Thickness (Imperial) UOMmil
Maximum Operating Temperature (Celsius)76.0
Backing (Carrier) Thickness (Metric) UOMmm
Minimum Operating Temperature (Fahrenheit)40.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Adhesion Strength (Metric)28.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial)36.0
Backing Thickness (Imperial) UOMmil
Backing Thickness (Metric) UOMmm
Adhesion Strength26.0
Maximum Operating Temperature (Celsius) UOMDegree
Shelf Life in Months (From Date of Manufacture) UOMMonths
Backing MaterialVinyl
