Makita

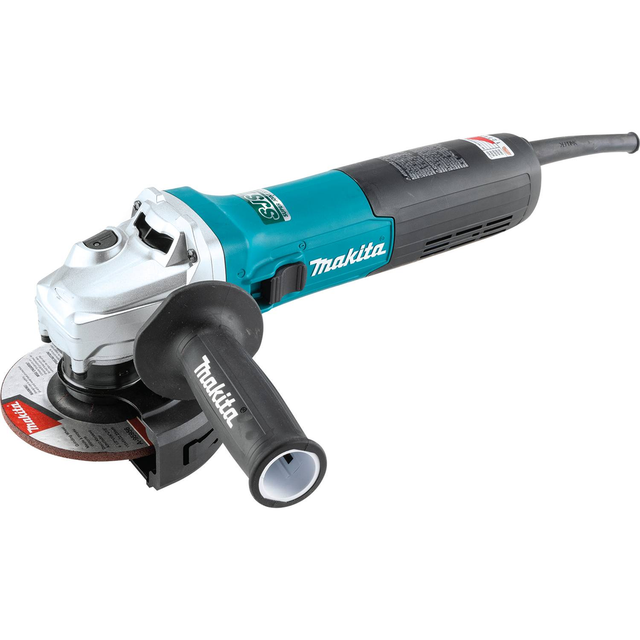

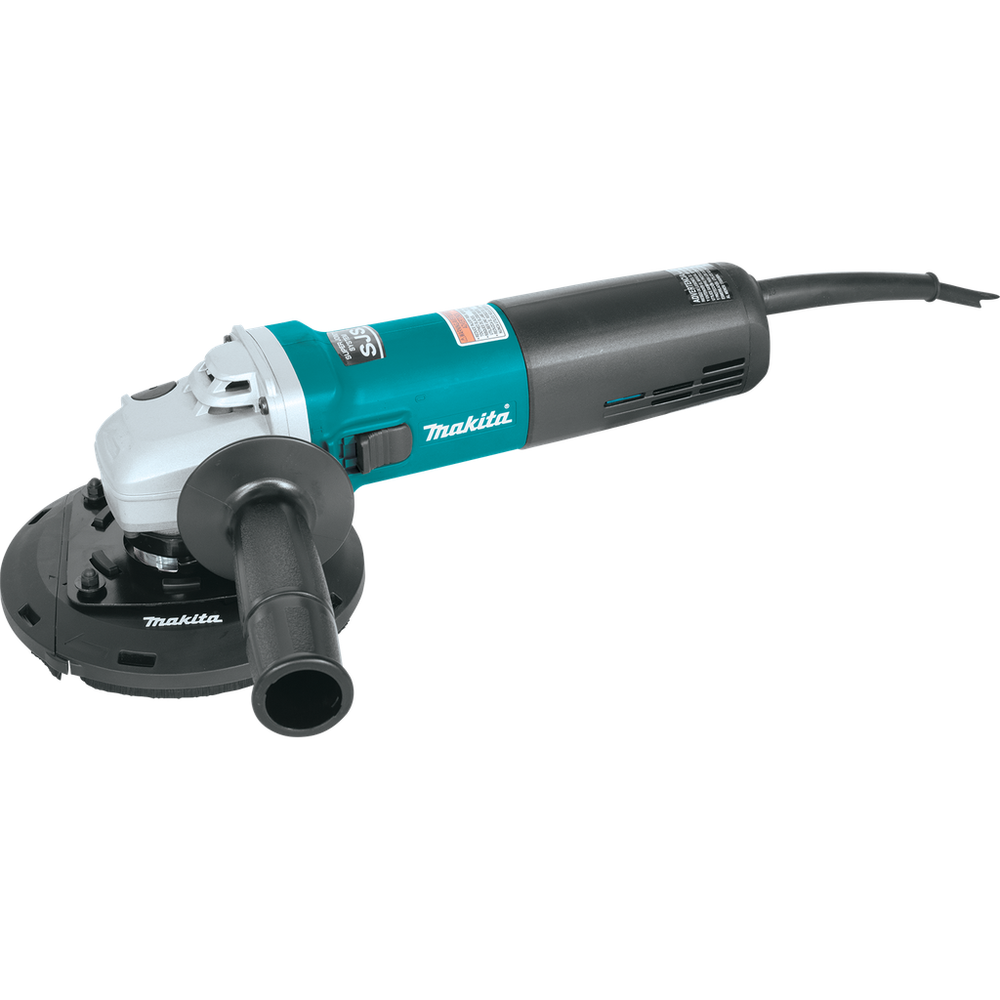

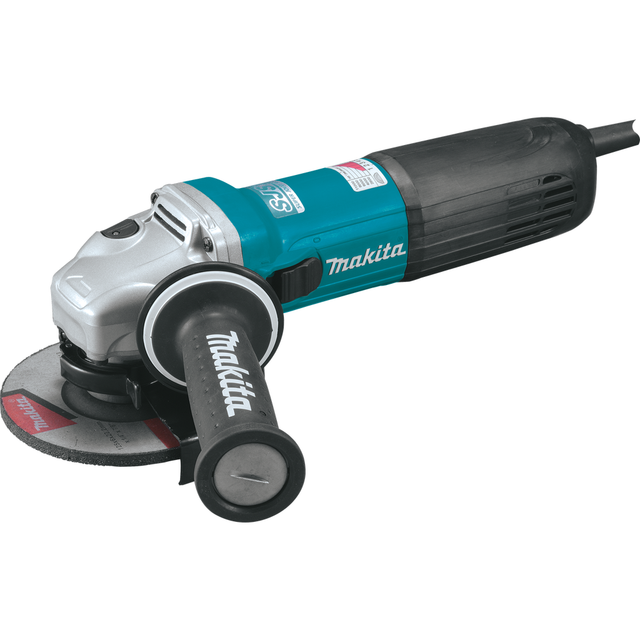

4-1/2" SJS™ High-Power Angle Grinder - 9564CV

Name: 4-1/2" SJS™ High-Power Angle Grinder - 9564CV
Brand: Makita
SKU: 9564CV
Price: 229 USD
Availability: InStock

SKU: 9564CV

MPN: 9564CV

Stock Item: Typical lead time for Makita products is 1-2 weeks.

UPC Code: 088381-037242

$229.00 each

Hurry up! Current stock:

Quantity:

Product Description

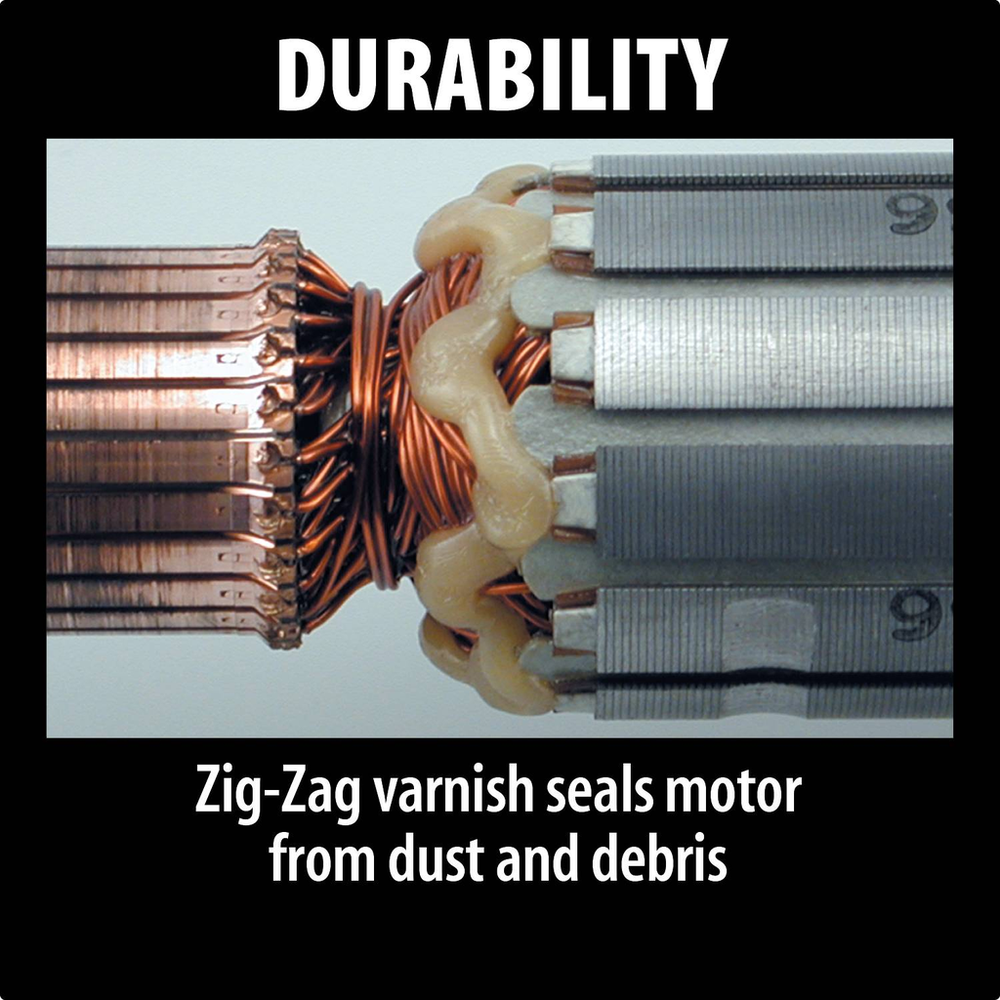

Makita’s 4-1/2” SJS™ Angle Grinder combines 13 AMP variable speed power with comfort and motor-protection features for longer-lasting stone grinding and polishing performance. The 9564CV is engineered with Makita’s innovative SJS™ mechanical clutch system to protect the gears for longer tool life. 13 AMP Power with SJS™ mechanical clutch system to Protect Gears The 9564CV is powered by a 13 AMP motor with soft start for smoother start-ups. The 5-stage variable speed dial (2,800 – 10,500 RPM) allows the user to match the RPM to the application. The electronic limiter stops the motor and reduces accidental motor overload and burnout, and the electronic speed control maintains consistent speed under load. Labyrinth construction protects the motor with a complex set of channels, prohibiting dust and contamination. In addition, the protective zig-zag varnish seals the motor and bearings from dust and debris by creating a barrier under rotation. The 9564CV is engineered with SJS™ mechanical clutch system, an innovation from Makita that protects the gears by automatically disengaging the motor should the grinding wheel accidentally catch or bind. Comfort and Ergonomics The 9564CV is built with comfort and ergonomic features for extended use. The grinder weighs just 5.3 lbs. with a lock-on switch for easy operation. In addition, the side handle can be easily installed on either side of the tool, and the “tool-less” wheel guard adjustment provides easy clamping. Variable Speed for Stone Work The 9564CV is a versatile and powerful grinder with variable speed, allowing the user to set the RPM to the material. The variable speed control feature makes the 9564CV ideal for stone work, including polishing and grinding.

Features

Variable speed control dial enables user to match the speed to the application
Two position adjustable side handle for operator covenience
POWER - 13 AMP motor delivers 2,800 - 10,500 RPM

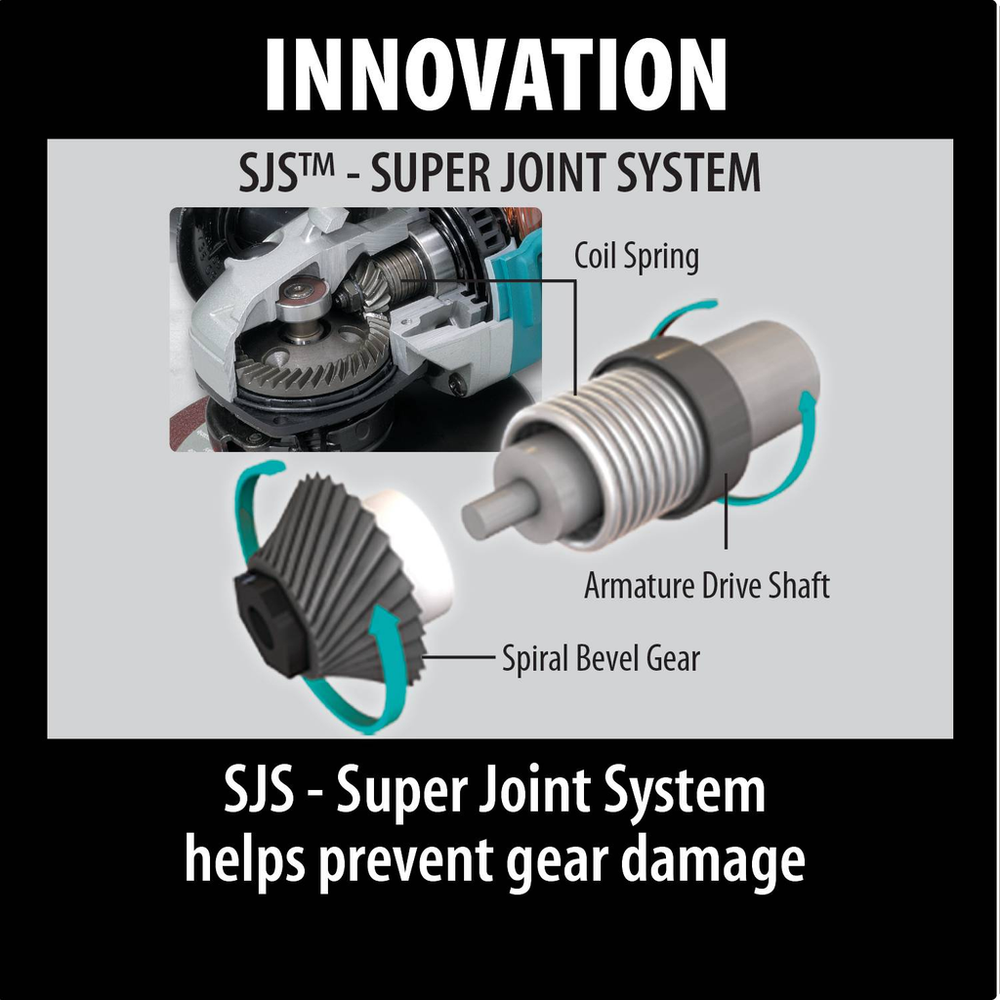

SJS™ technology is a mechanical clutch system that helps prevent motor and gear damage by allowing the drive shaft to slip if the wheel is forced to stop
VERSATILITY - Variable speed control dial enables user to match the speed to the application
INCLUDES - Grinding wheel, wheel guard, side handle, inner flange, lock-nut, and wrench
4-1/2" Tool-less Wheel Guard (135107-4)
Alternate model 9565CV features a 5" guard

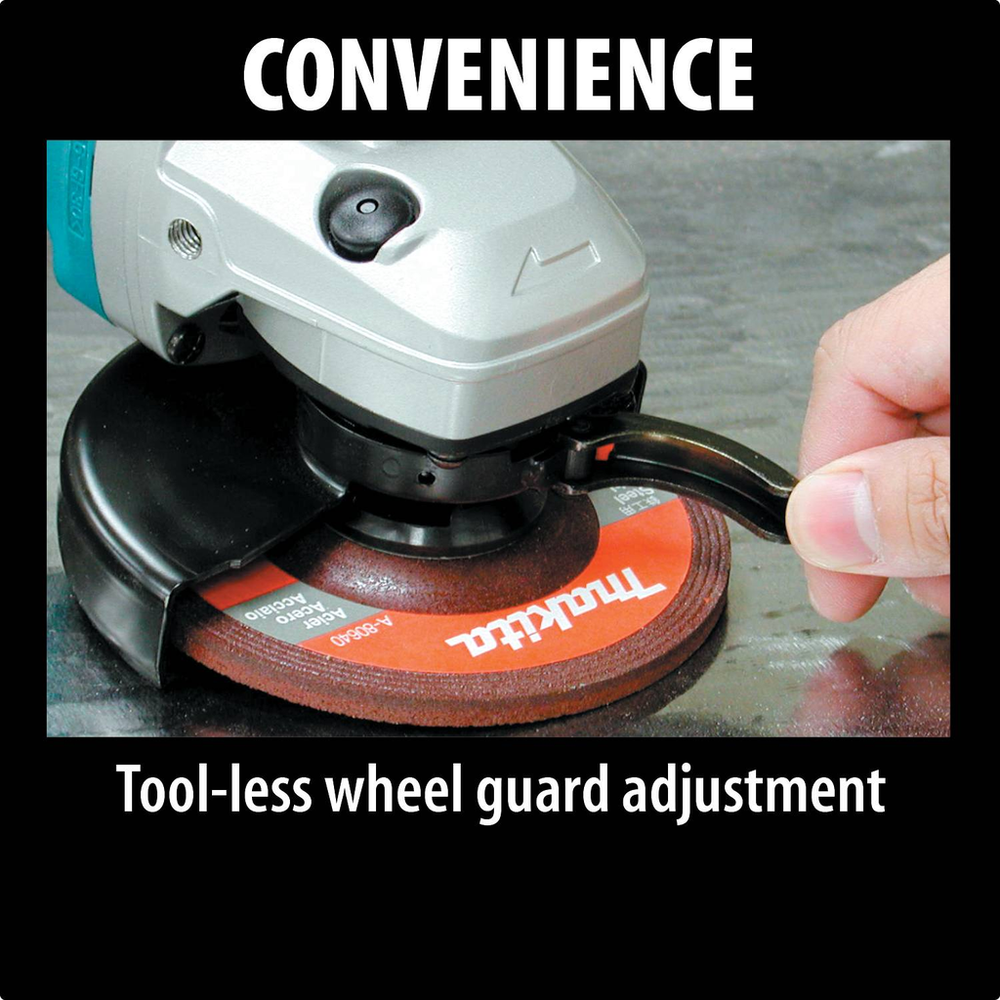

"Tool-less" wheel guard for more convenient adjustments
Inner Flange (224378-9)
Lock Nut (193465-4)
Soft start suppresses start-up reaction for smooth start-ups and longer gear life
Constant speed control automatically applies additional power to the motor to maintain speed under load
Powerful 13 AMP motor delivers more output and variable (2,800 - 10,500) RPM
Labyrinth construction seals and protects the motor and bearings from dust and debris for longer tool life
Slide switch with lock-on setting for continuous use
Spiral bevel gears for smoother rotations and a more efficient transfer of energy
PERFORMANCE - SJS™ technology is a mechanical clutch system that helps prevent motor and gear damage
Compact design at only 11-3/4" long and weighs only 5.3 lbs.
4-1/2" Grinding Wheel (A-95956)
DURABILITY - Soft start suppresses start-up reaction for smooth start-ups and longer gear life
Electronic current limiter helps protect the motor from overload
Lock Nut Wrench (782412-6)
Side Handle (153489-2)

Prop 65

WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: lead from lead-based paints, crystalline silica from bricks and cement and other masonry products, and arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles. For more information, visit www.P65warnings.ca.gov.

Downloads

Makita 9565CV Instruction Manual

Parts Breakdown

Specifications

Power Type	Corded
Wheel Diameter	4-1/2"
AMPS	13
Lock-Off Switch	No
Bind-Up Control	Yes
Switch Type	Body grip/slide
Lock-On Switch	Yes
Country of Origin	United States
Spindle Type	5/8" - 11 UNC
Shipping Weight	7.3 lbs.
Overall Length	11-3/4"
No Load Speed (variable speed)	2,800 - 10,500 RPM
Net Weight	5.3 lbs.
Variable speed dial	Yes
