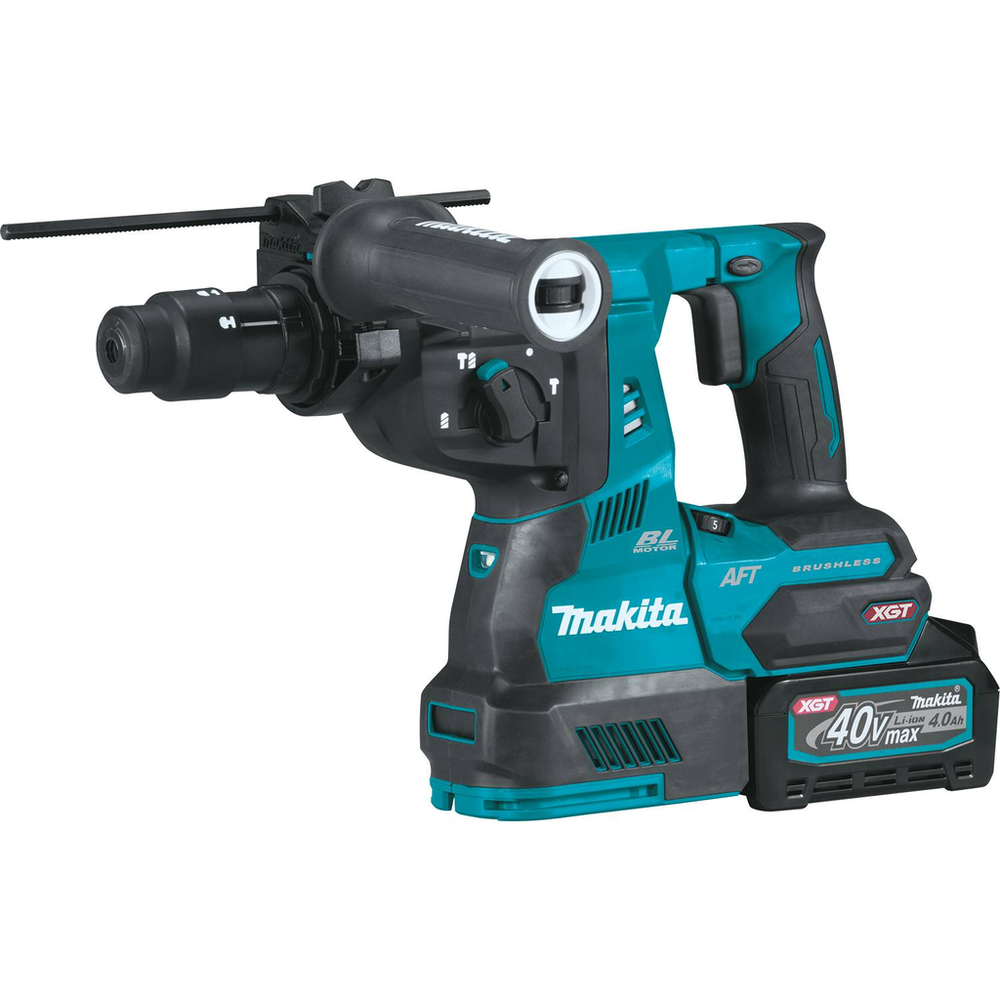

The 40V max XGT® Brushless 1-1/8” AVT® Rotary Hammer Kit with interchangeable chuck (GRH02M1) is a cordless concrete solution designed for heavy-load applications. The quick-change chuck allows the user to switch from SDS-PLUS bits to ½” keyless chuck to utilize straight shank bits. It delivers the power, speed, and run-time for corded demands, without the cord. XGT technology delivers up to 135 of 3/8” holes per charge when using one 40V max XGT 4.0Ah Battery. The Makita-built brushless motor delivers a full 2.8 ft. lbs. of impact energy, with 0-980 RPM and 0-5,000 BPM. Constant speed control automatically applies additional power under load for optimum performance. The GRH02M1 features Active Feedback-Sensing Technology (AFT®), which electronically turns off the motor if rotation of bit is suddenly forced to stop, and Anti-Vibration Technology (AVT®) for reduced vibration. More than just a padded handle, AVT is an internal counterbalance that uses air pressure to move counterweight pistons in the opposite direction of the drive piston to actively reduce vibration. In addition, the vibration-absorbing back handle and side handle further reduce vibration. For added durability in harsh job site conditions, Extreme Protection Technology (XPT™) is engineered for improved dust and water resistance. Additional performance features include an electric brake, variable speed dial, built-in L.E.D. light, and a retractable tool hook. The Rotary Hammer has dust extraction capability with an OSHA Table 1 compliant on-board HEPA dust extractor attachment (sold separately). It is ideal for a range of trades including mechanical/electrical/plumbing contractors, concrete contractors, road and bridge contractors, utility workers, pest control, maintenance operations, and more. XGT is a system of equipment, tools, batteries and chargers utilizing 40v max lithium-ion batteries. XGT is engineered to deliver high power to take on high-demand applications, allowing users to completely transition to a cordless job site. XGT is equipped with advanced brushless motor engineering, intelligent digital communication, and superior durability features to outpower, outsmart and outlast the rest.
Features
- Automatic-start Wireless System (AWS®) for wireless power-on/off communication between tool and dust extractor (AWS® Transmitter sold separately)
- Dust extraction capability with OSHA Table 1 compliant on-board HEPA Dust Extractor or stand-alone AWS® Extractor options
- DUST MANAGEMENT - Dust extraction capability with OSHA Table 1 compliant on-board HEPA Dust Extractor
- Grease (194683-7)
- XGT® Tools and Batteries are designed with a multi-layer contact interface for more constant power delivery to take on high-current demands

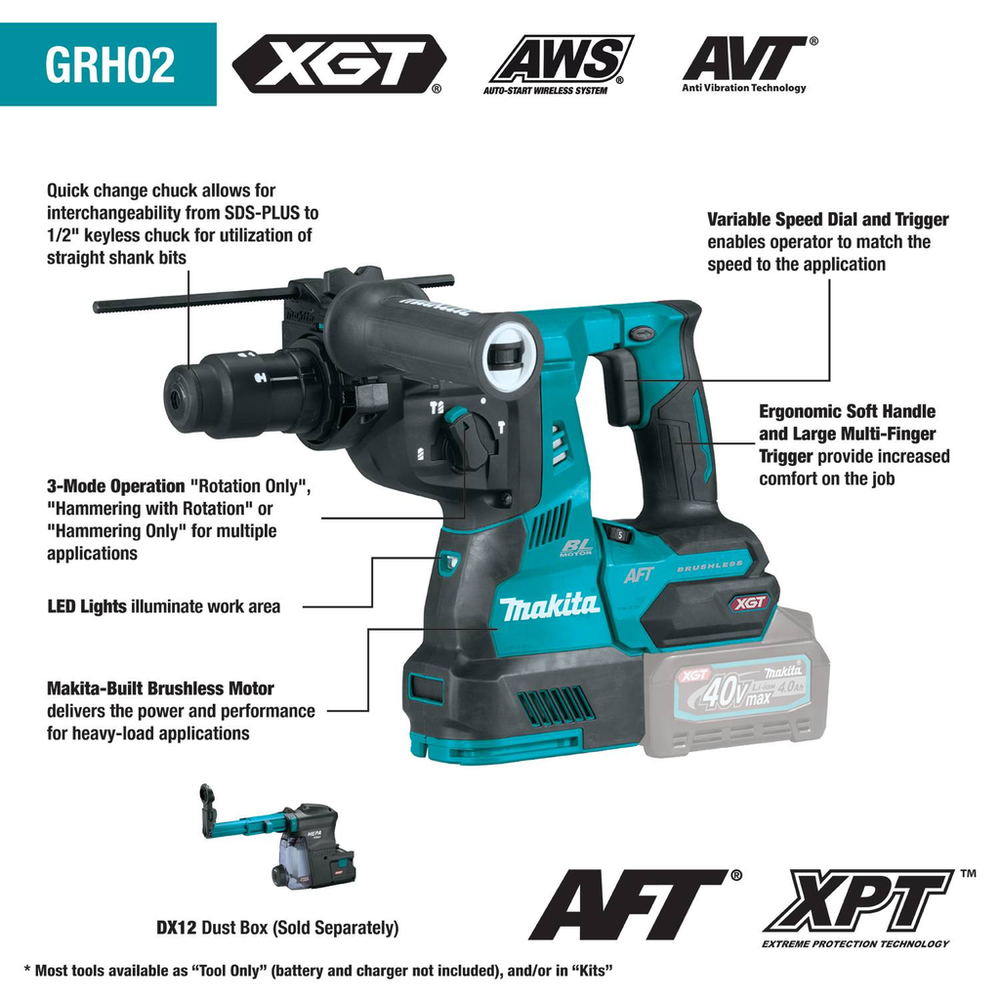

- Quick change chuck allows for interchangeability from SDS-PLUS to 1/2" keyless chuck for utilization of straight shank bits
- Electric brake allows the tool to be repositioned faster for maximum productivity
- The digital communication within XGT® optimizes performance to provide up to 2X longer sustained power under heavy-load applications
- The XGT® Rapid Charger’s digital display indicates battery charge level (-80%, +80%, 100%)
- The XGT® Rapid Charger’s built-in chip thoroughly communicates during the charging process to control current, voltage, and temperature for more efficient charging
- Variable speed dial and trigger enables user to match the speed to the application
- COMFORT - AVT® is a counterbalance system along with vibration-absorbing handles that work to reduce vibration
- 3-mode operation for "Rotation Only", "Hammering with Rotation" or "Hammering Only" for multiple applications
- Extreme Protection Technology (XPT™) is engineered for improved dust and water resistance for operation in harsh conditions
- Auto-Start Wireless System (AWS®) which utilizes Bluetooth® technology for wireless power-on/off communication between tool and dust extractor (AWS® Transmitter sold separately)
- Anti-Vibration Technology (AVT®) is an internal counterbalance system along with vibration-absorbing handles that work together to reduce vibration
- POWER - Makita brushless motor and 40V max XGT® battery deliver the power needed for heavy applications
- INCLUDES - (1) 40V max XGT® Lithium-Ion 4.0Ah battery, charger, side handle, grease, towel, tool case

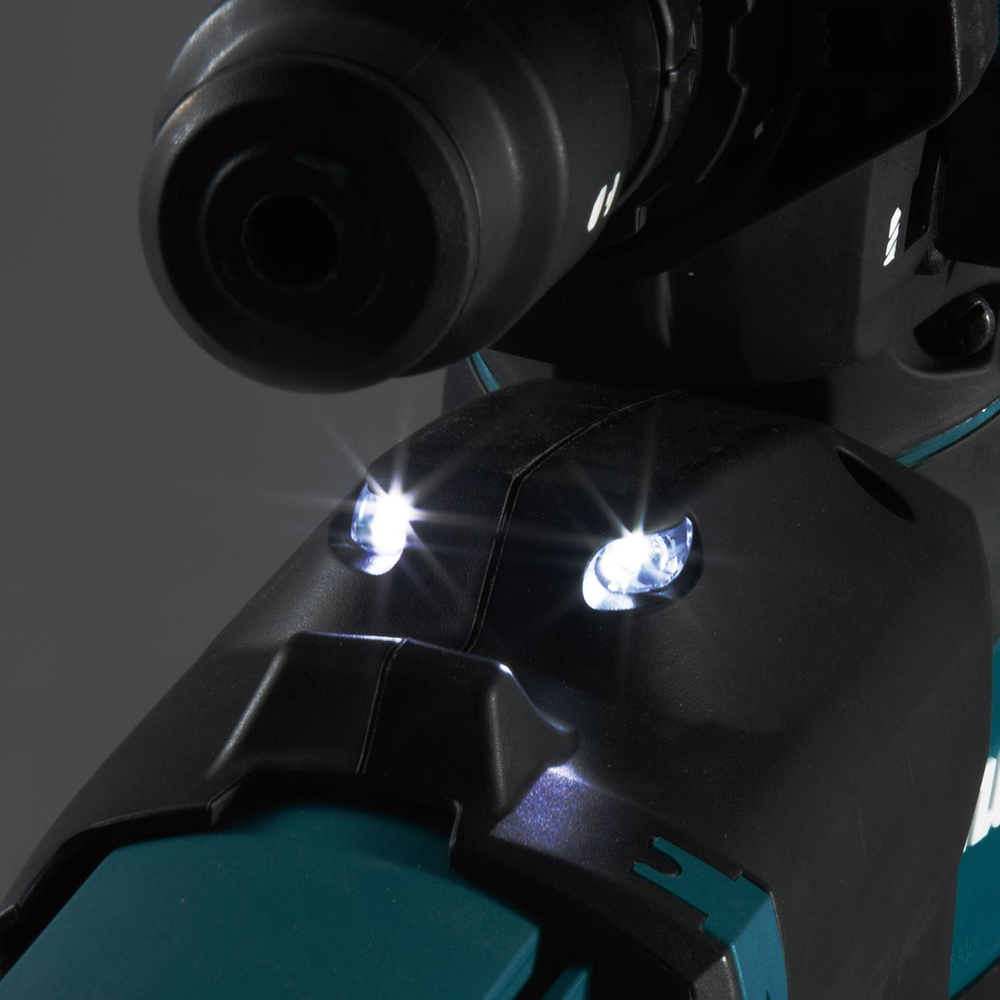

- Built-in L.E.D. light with an independent on/off illuminates the work area
- Ergonomic soft-grip handle and large 2-finger trigger provide increased comfort on the job
- The digital communication within XGT® actively monitors and protects against overload, over-discharge and overheating
- 40V max XGT® 4.0Ah Battery (BL4040)
- Tool Bag
- Side Handle Assembly (126882-3)
- Makita-built brushless motor along with 40V max XGT® battery combine to deliver the power performance required for heavy-load application
- The XGT® Rapid Charger with dual-fan design circulates air through the battery to cool the battery and circuit board quickly for faster charging

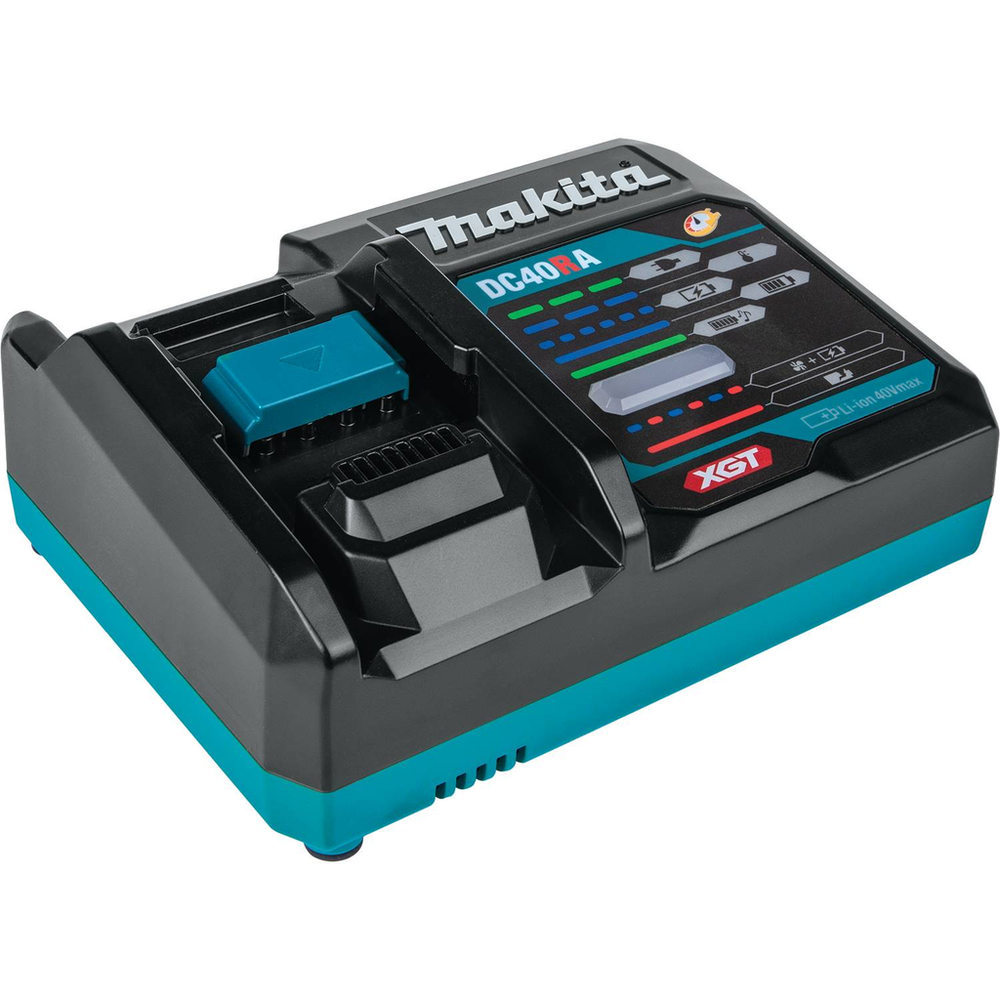

- 40V max XGT® Rapid Optimum Charger (DC40RA)
- Cloth Towel (443122-7)
- VERSATILITY - Quick change chuck allows for interchangeability from SDS-PLUS to 1/2" keyless chuck
- XGT® Batteries feature rigid rails with impact-resistant construction to secure the battery to the tool during high-demand applications
- OUTPOWER: Makita-built brushless motor along with 40V max XGT® battery combine to deliver the power performance required for heavy-load application
- XGT® technology delivers up to 135 of 3/8" holes per charge using full charged 40V XGT® 4.0Ah battery*
- OUTSMART: Constant speed control automatically applies additional power under load for optimum performance
- 40V max XGT® Lithium-Ion 4.0Ah Battery (BL1840) reaches a full charge in 45 minutes or less
- Quick Change 1/2" Keyless Chuck (199139-5)

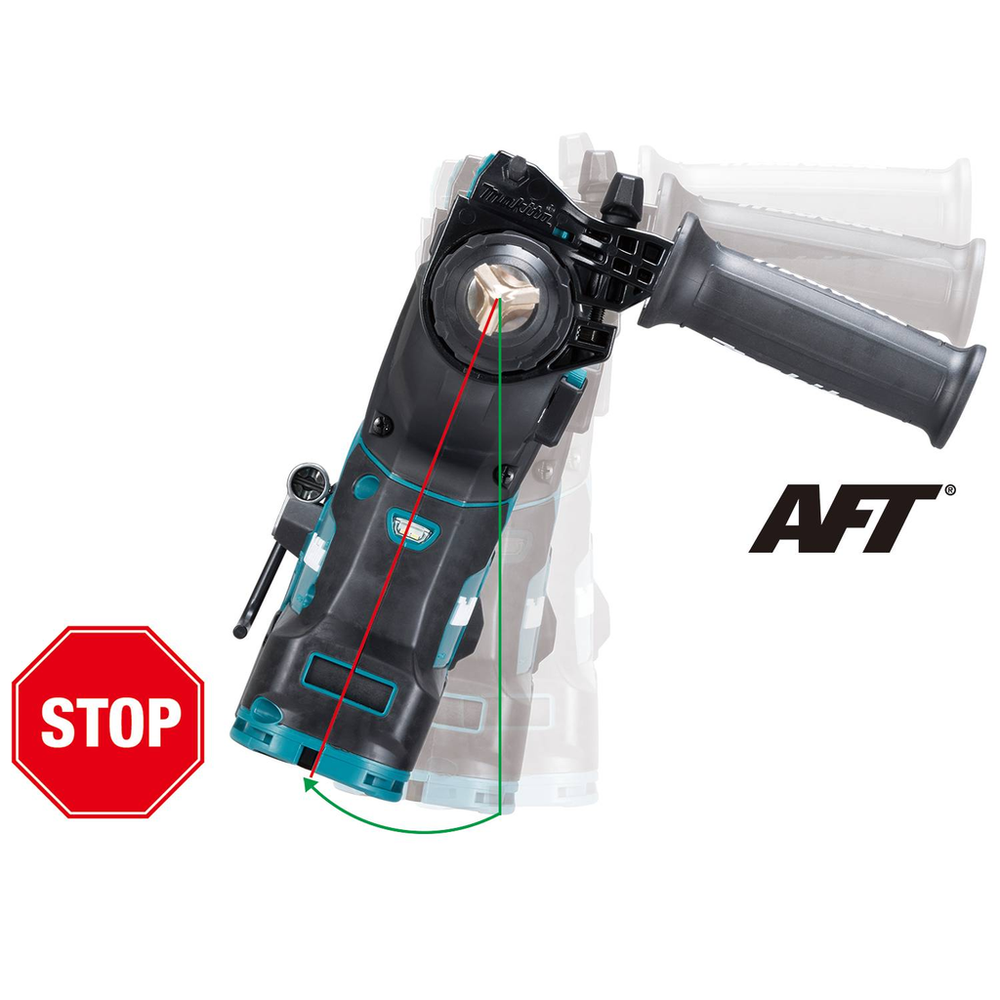

- Active Feedback-Sensing Technology (AFT®) electronically turns off the motor if rotation of bit is suddenly forced to stop
- OUTLAST: Overload protection is designed to protect the motor from burnout in abnormally high torque situations
- Retractable tool hook secures the tool when not in use
- Constant speed control automatically applies additional power under load for optimum performance
- Torque limiting clutch engineered to prevent gear damage by automatically disengaging gears during a bind-up situation
- 40V max XGT® Brushless 1-1/8" SDS-PLUS AVT® Rotary Hammer, with Interchangeable Chuck, AWS® Capable (GRH02Z)
Prop 65
- WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: lead from lead-based paints, crystalline silica from bricks and cement and other masonry products, and arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles. For more information, visit www.P65warnings.ca.gov.
Downloads
DC40RA Instruction ManualDC40RA Parts BreakdownGRH02 Parts BreakdownGRH01_GRH02 Instruction Manual
