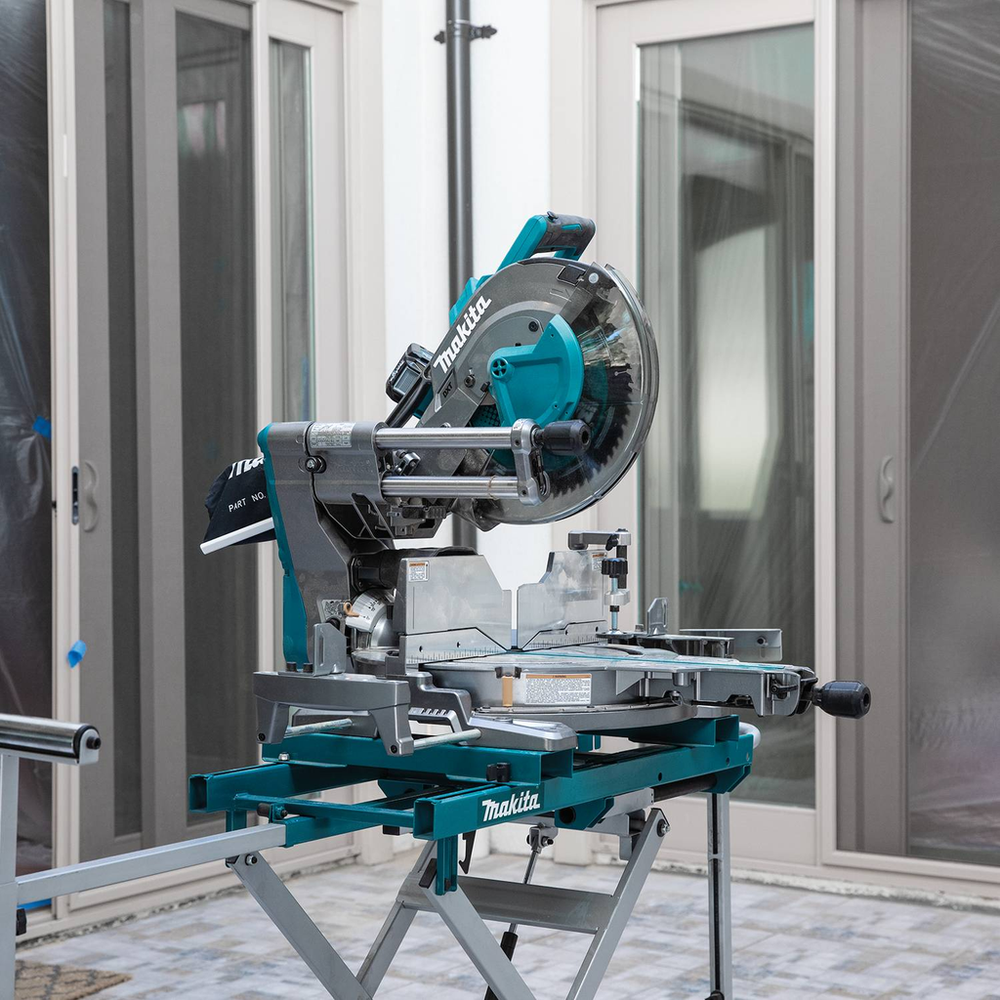

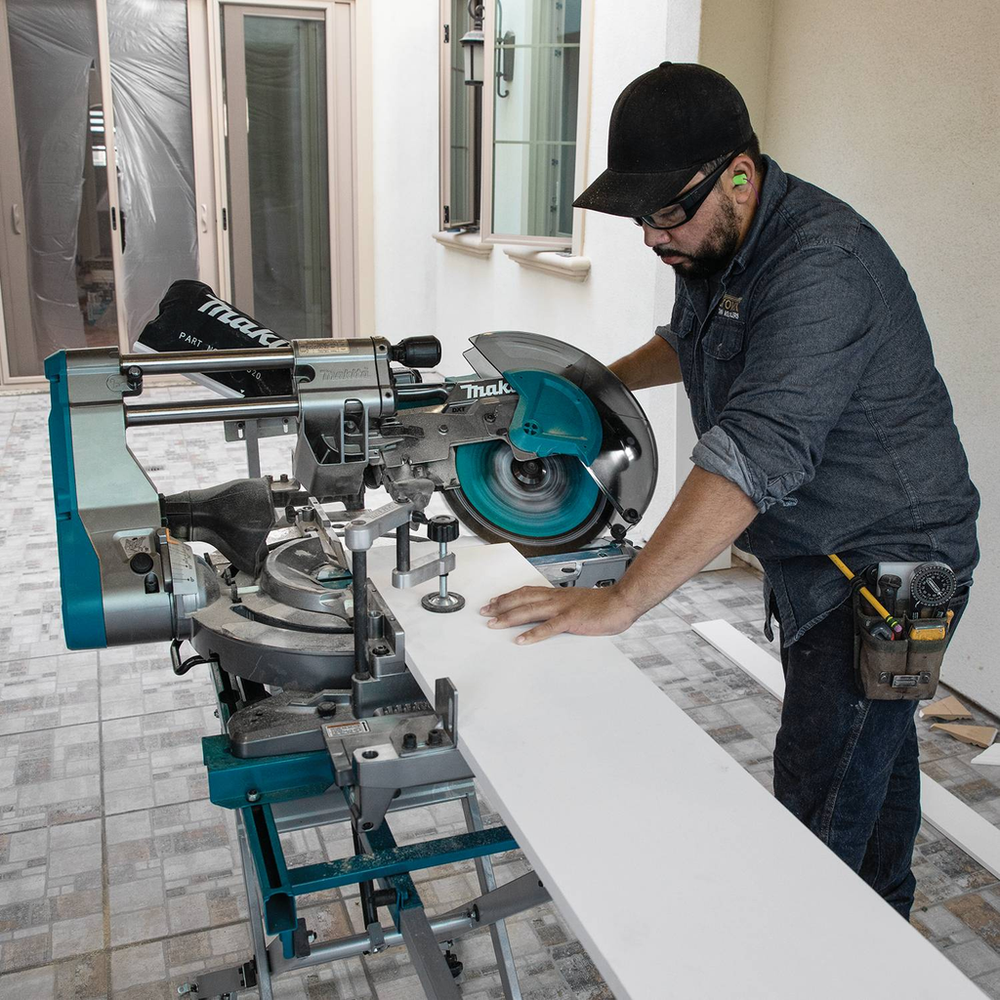

The 40V max XGT® Brushless 12” Dual-Bevel Sliding Compound Miter Saw Kit (GSL04M1) delivers faster and smoother cutting. The rail-forward design maximizes workspace when the miter saw is positioned flush against a wall. The miter saw has a large 3-5/8” x 15” cutting capacity at 90-degrees. The saw miters 0° to 60° left and right and bevels from 0° to 48° (left and right). The efficient brushless motor runs cooler and more efficiently for longer tool life, with direct drive that delivers 3,600 RPM for faster cutting performance, with no belts to slip or replace. Extension wings are included for cutting longer materials, and retract for easier storage. An electric brake provides maximum productivity. An L.E.D. light casts a shadow of the saw blade onto the material for an exact cutting line. For improved efficiency, it is capable of wirelessly starting a connected dust management solution. Auto-start Wireless System (AWS®) utilizes Bluetooth® technology for wireless communication between the tool and dust extractor (sold separately). When the trigger of the AWS-equipped GSL04M1 is engaged, the AWS-equipped dust extractor powers-up. When the trigger is released, the dust extractor powers-down. AWS is intelligent communication that eliminates cords and excessive noise since the dust extractor runs only when the tool is running. An AWS transmitter is needed (sold separately). XGT is a system of equipment, tools, batteries, and chargers utilizing 40v max lithium-ion batteries. XGT is engineered to deliver high power to take on high-demand applications, allowing users to completely transition to a cordless job site. XGT is equipped with advanced brushless motor engineering, intelligent digital communication, and superior durability features to outpower, outsmart and outlast the rest.
Prop 65
- WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: lead from lead-based paints, crystalline silica from bricks and cement and other masonry products, and arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles. For more information, visit www.P65warnings.ca.gov.
Features

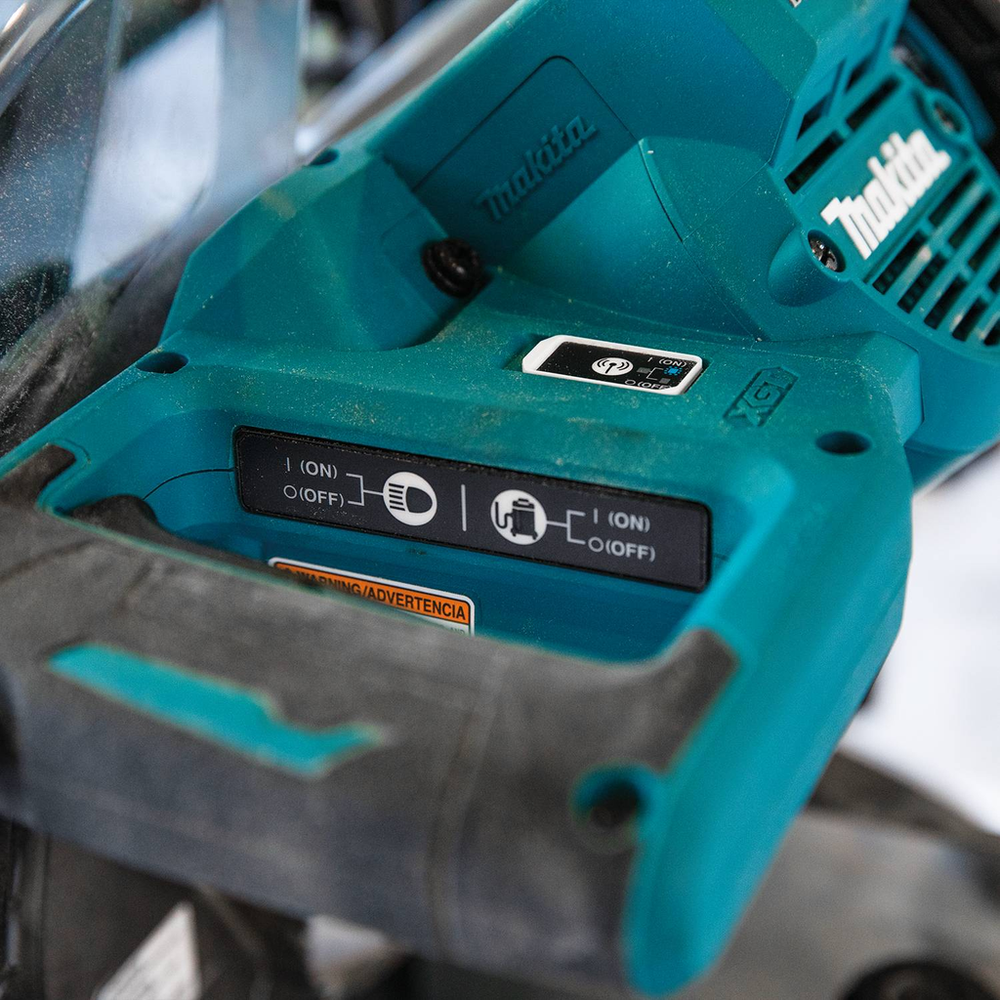

- L.E.D. light casts a shadow of the saw blade onto the material as an exact cutting line
- Convenient onboard hex wrench storage for blade changes
- Only use genuine Makita Batteries and Chargers

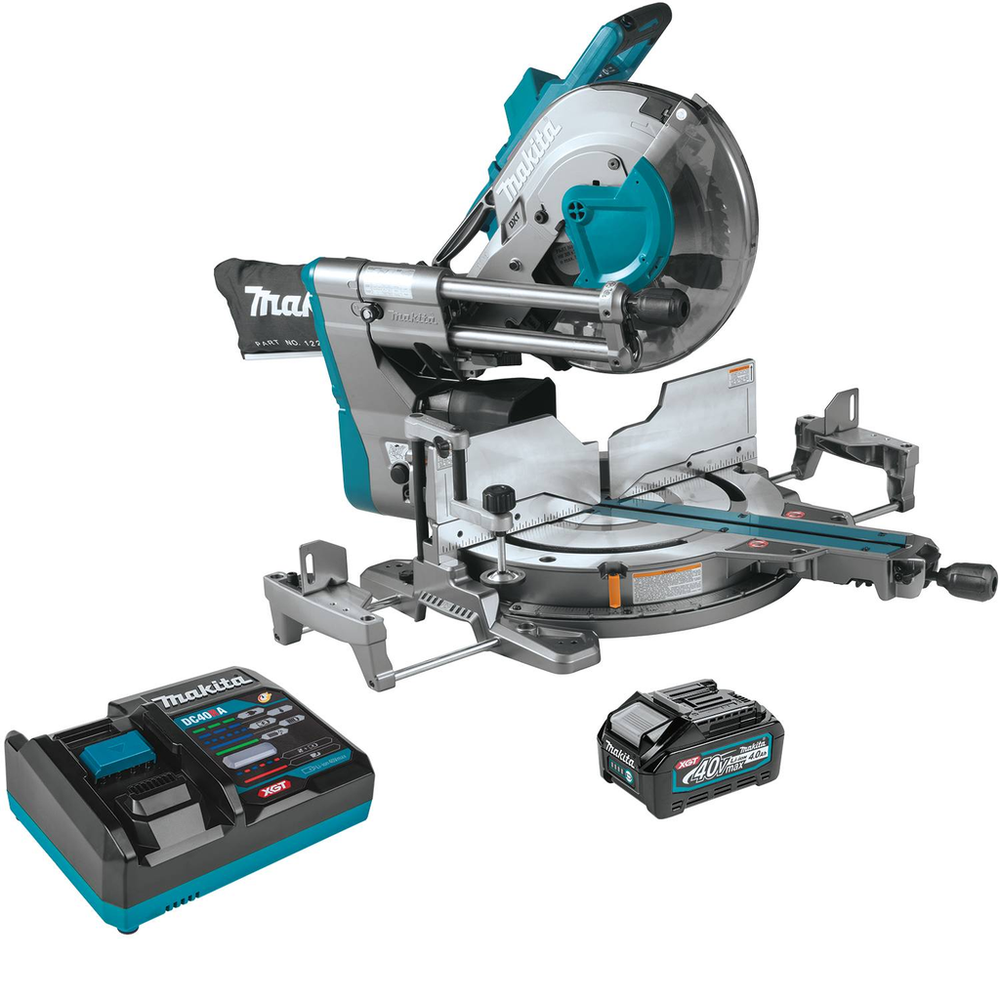

- INCLUDES - (1) 40V max XGT® Lithium-Ion 4.0Ah battery, rapid charger, 12" saw blade, vertical vice, dust bag, hex wrench
- AWS® capable with Auto-start Wireless Transmitter (part no. 198901-5) sold separately

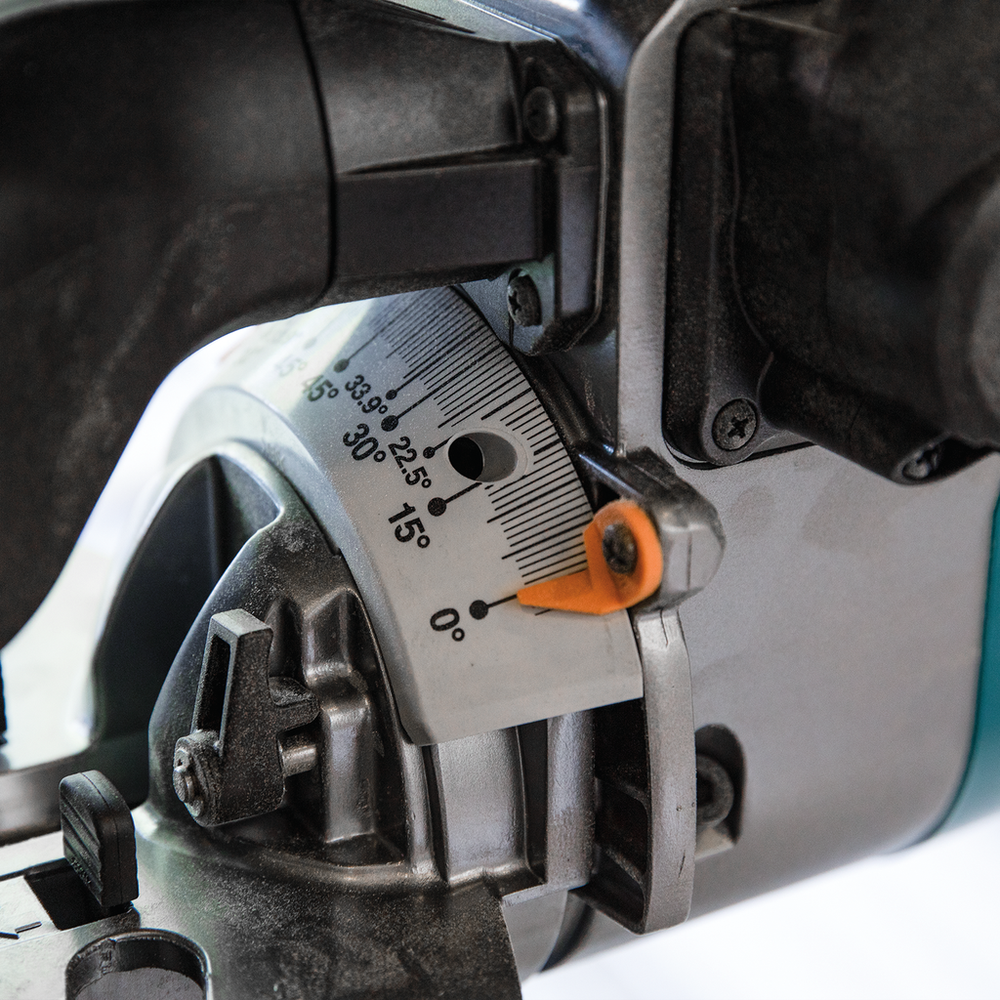

- Bevels 0-48° left and right; Miters 0-60° left and right, with positive stops at 0°, 15°, 22.5°, 30°, 31.6°, 45°, and 60° left and right
- 40V max XGT® 4.0Ah Battery (BL4040)
- The XGT® Rapid Charger’s built-in chip thoroughly communicates during the charging process to control current, voltage, and temperature for more efficient charging
- ACCURACY - L.E.D. light casts a shadow of the saw blade onto the material as an exact cutting line
- OUTSMART: The digital communication within XGT® optimizes performance to provide up to 2X longer sustained power under heavy-load applications
- Hex Wrench (781044-6)
- XGT® Batteries feature rigid rails with impact-resistant construction to secure the battery to the tool during high-demand applications
- The XGT® Rapid Charger with dual-fan design circulates air through the battery to cool the battery and circuit board quickly for faster charging
- COMPATIBILITY - AWS® Capable for wireless power-on/off communication between tool and extractor
- Triangular Rule (762001-3)
- The XGT® Rapid Charger’s digital display indicates battery charge level (-80%, +80%, 100%)

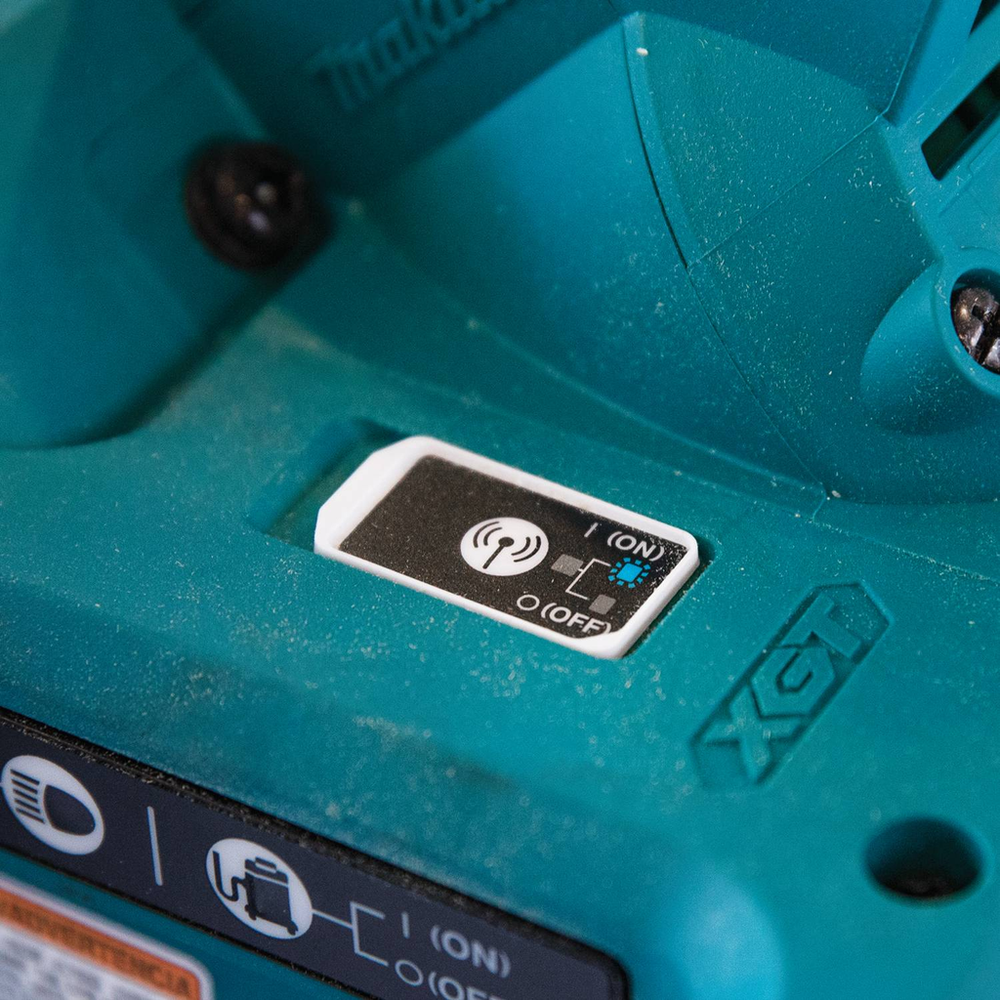

- Auto-start wireless System (AWS®) utilizes Bluetooth technology for wireless on-off communication between the tool and dust extractor
- Vertical Vise (126617-2)
- 12" 60T Carbide-Tipped Max Efficiency Miter Saw Blade (B-66983)
- 40V max XGT® Rapid Optimum Charger (DC40RA)
- Extra large 3-5/8” x 15” cutting capacity at 90°; cuts up to 8" crown molding (vertically nested) and 6-3/4" baseboard (vertical)

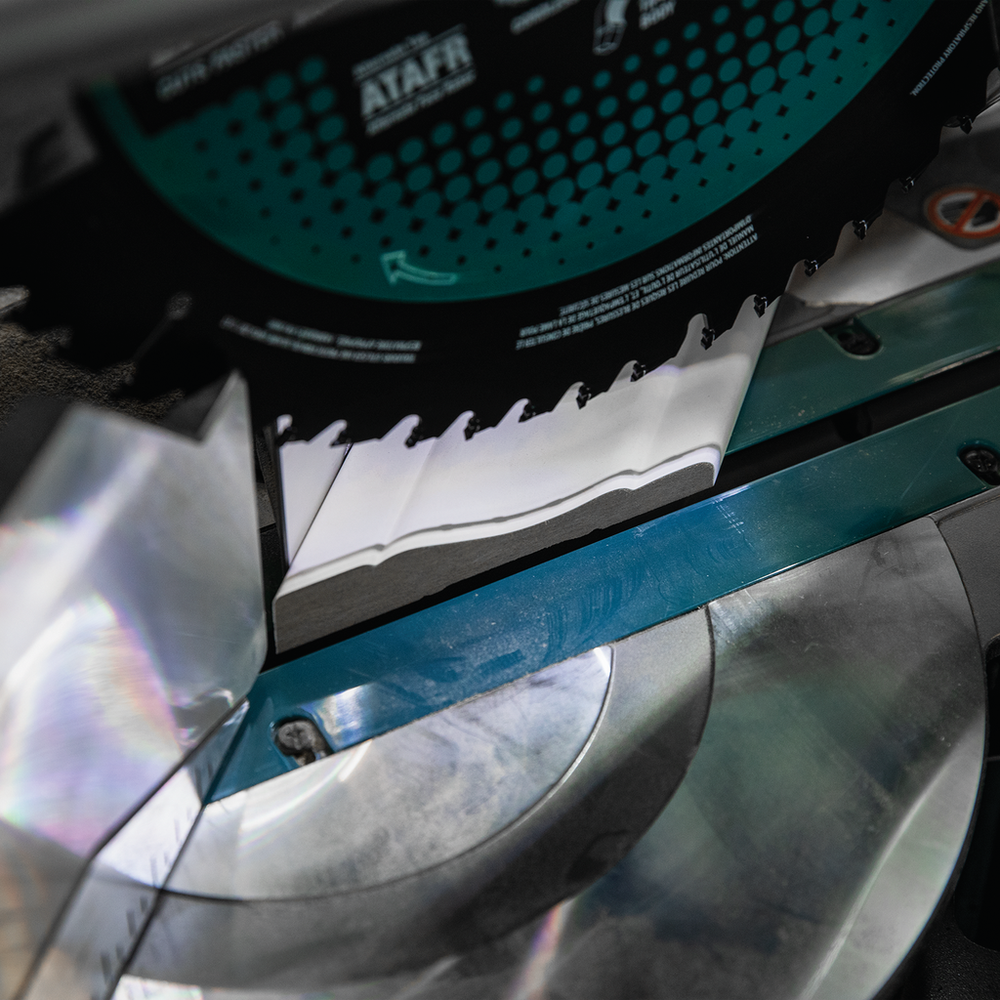

- CAPACITY - Cuts up to 8" crown molding (nested) and 6-3/4" baseboard (vertical), crosscuts up to 15" at 90°
- POWER - Makita-built brushless motor delivers 3,600 RPM for faster cutting performance
- Dust Bag (122852-0)
- Electric brake for maximum productivity
- OUTLAST: The digital communication within XGT® actively monitors and protects against overload, over-discharge and overheating
- XGT® Tools and Batteries are designed with a multi-layer contact interface for more constant power delivery to take on high-current demands
- 3-year limited warranty on tool, battery and charger

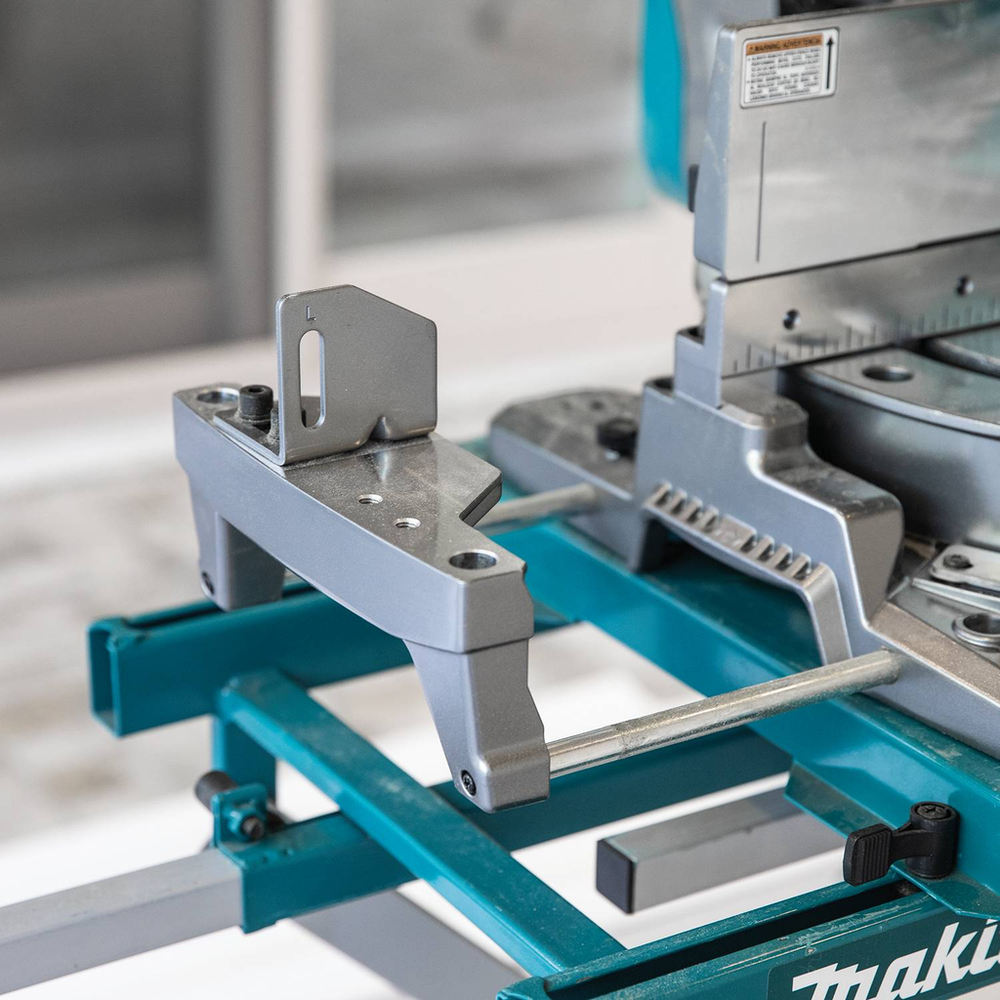

- Extension wings for cutting longer material; retractable for more compact storage
- Bevel angle lock and release knob at front of tool for easy access and repositioning
- OUTPOWER: Makita-built brushless motor delivers 3,600 RPM for faster cutting performance
- Soft start suppresses start-up reaction for smooth start-ups and longer gear life
Downloads
GSL04 Parts BreakdownGSL04 Instruction Manual
