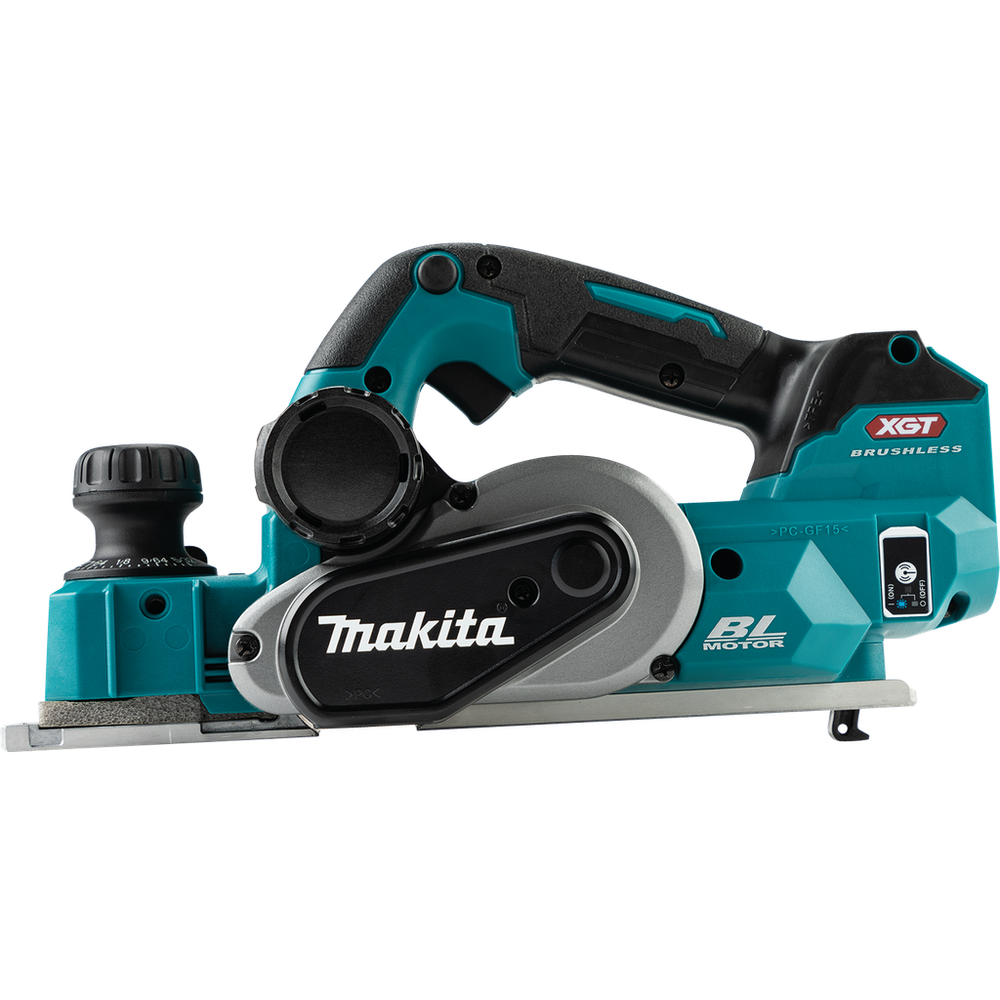

The 40V XGT® Brushless 3-1/4” Planer is AWS® Capable and engineered for door and window installers, finish carpenters, deck installers, remodelers, and general contractors seeking a brushless cordless planer. The Planer delivers 15,000 RPM for fast stock removal. It will plane up to 311 feet at 1/16” depth on a single charge of a 40V XGT 4.0Ah battery. It is capable of planning 3-1/4” wide and 5/32” deep in a single pass. The Makita-built brushless motor eliminates carbon brushes, enabling the motor to run cooler and more efficiently for longer life. The two-blade cutter head and double-edge carbide blades increase performance and contribute to a smooth finish. Other features include a spring-loaded stand to elevate the base and protect the blades and workpiece, while the click-depth adjustment knob has an easy-to-read scale with settings from 0” to 5/32” for precise depth adjustment. In addition, the precision-machined aluminum base is engineered for increased planning accuracy and offers three chamfering groove options. Chip ejection can be directed to either side of the tool for convenience. The blade setting system is engineered for fast blade installation, with an electric brake for maximum productivity. Auto-Start Wireless System (AWS®) uses Bluetooth® technology for wireless power-on and power-off communication between the equipped tool and dust extractor. Once connected via AWS, the AWS-equipped dust extractor will automatically power on or off when the AWS-equipped cordless tool starts or stops, running only when the tool is in use. This increases productivity on a single charge and reduces continuous noise at the job or work site. AWS is activated with an AWS Wireless Transmitter (198901-5, sold separately). XGT® is a system of equipment, tools, batteries, and chargers utilizing 40v max lithium-ion batteries. XGT® is engineered to deliver high power to take on high-demand applications, allowing users to completely transition to a cordless job site. XGT® is equipped with advanced brushless motor engineering, intelligent digital communication, and superior durability features to outpower, outsmart and outlast the rest.
Features
- OUTSMART: Delivers up to 38% faster planing speed
- The XGT® Rapid Charger’s digital display indicates battery charge level (-80%, +80%, 100%)
- Click depth adjustment knob with easy-to-read scale with settings from 0" to 5/32" for precise depth adjustment
- XGT® Batteries feature rigid rails with impact-resistant construction to secure the battery to the tool during high-demand applications (battery not included)

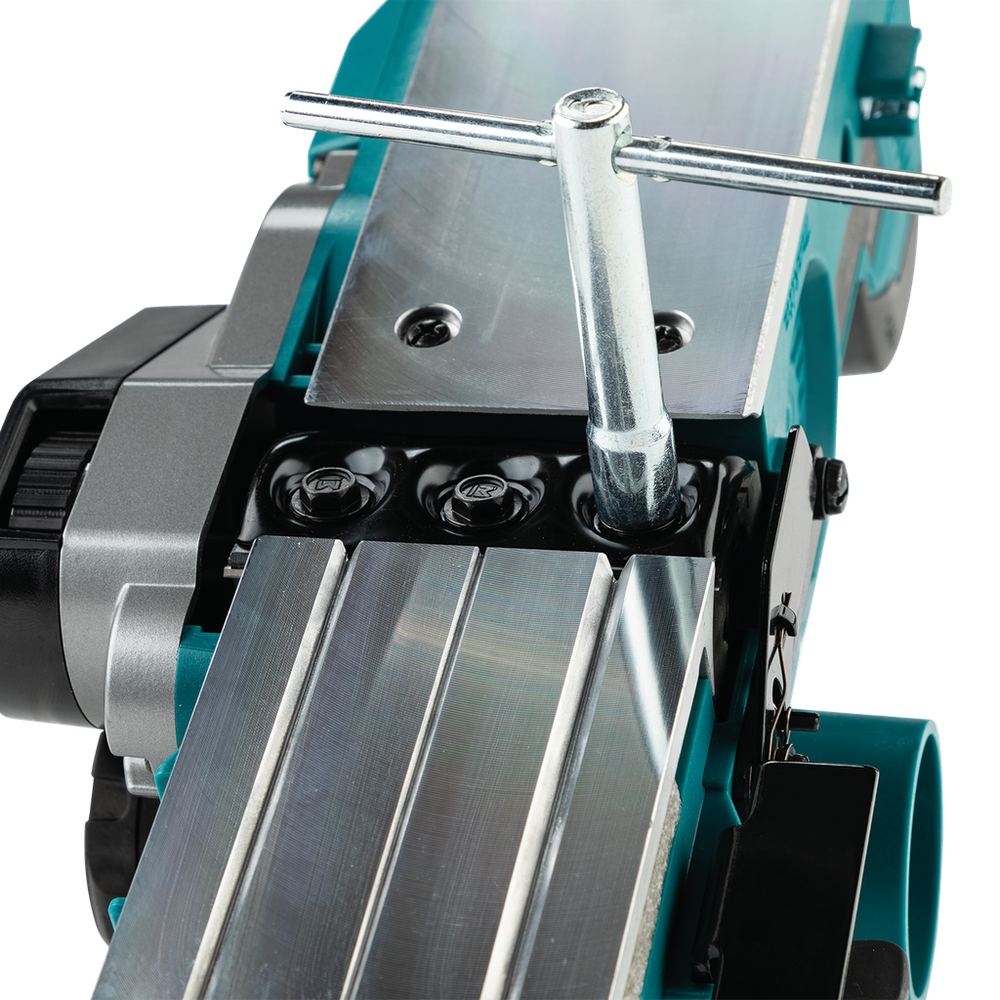

- Easy blade setting system for fast blade installation
- Guide Rule (122785-9)
- Extreme Protection Technology XPT™ is engineered to provide increased dust and water resistance in harsh job site conditions
- Capable of planing up to 311 ft. at 1/16" depth using a fully charged 40V XGT® 4.0Ah battery (battery not included)
- RUN TIME - Capable of planing up to 311 ft. at 1/16" depth with a 40V XGT® 4.0Ah battery (battery not included)
- 2-blade cutter head with double edge carbide blades for added performance and smooth finish
- Makita-built brushless motor delivers 15,000 RPM for faster stock removal
- Precision machined aluminum base for planing accuracy; features 3 chamfering groove options for convenience
- 3-year limited warranty
- Blade Gauge (191C19-9)
- The XGT® Rapid Charger with dual-fan design circulates air through the battery to cool the battery and circuit board quickly for faster charging (charger not included)
- Ergonomically centered balance with rubberized soft grips on the front and rear handles for increased comfort on the job
- XGT® Tools and Batteries are designed with a multi-layer contact interface for more constant power delivery to take on high-current demands
- CAPACITY - Planes up to 3-1/4" wide and 5/32" deep in a single pass with the ability rabbet up to 1" deep
- Spring-loaded stand elevates the base to protect the blades and workpiece
- POWER - Makita-built brushless motor delivers 15,000 RPM for faster stock removal than corded
- Compatible with Makita® 40V max XGT® Lithium-Ion Batteries
- ACCURACY - Precision machined aluminum base for planing accuracy, with 3 chamfering grooves for convenience
- Electric brake for maximum productivity
- Chip ejection can be directed to either side of the tool for convenience
- Socket Wrench (782209-3)
- OUTLAST: Extreme Protection Technology XPT™ is engineered to provide increased dust and water resistance in harsh job site conditions
- Only use genuine Makita® Batteries and Chargers
- OUTPOWER: Makita-built brushless motor delivers 15,000 RPM for faster stock removal
- Depth Guide (342390-8)
- Auto-start wireless System (AWS®) utilizes Bluetooth technology for wireless on-off communication between the tool and dust extractor
- Delivers up to 38% faster planing speed
- The XGT® Rapid Charger’s built-in chip thoroughly communicates during the charging process to control current, voltage, and temperature for more efficient charging
- Planes up to 3-1/4" wide and 5/32" deep in a single pass with the ability rabbet up to 1" deep
- Capable of planing up to 311 ft. at 1/16" depth using a fully charged 40V XGT® 4.0Ah battery
- 3-1/4" Planer Blade, 2/pk (D-46246)
- AWS® capable with Auto-start Wireless Transmitter (part no. 198901-5) sold separately
- INCLUDES - Tool only (battery and charger not included)
Prop 65
- WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: lead from lead-based paints, crystalline silica from bricks and cement and other masonry products, and arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles. For more information, visit www.P65warnings.ca.gov.
