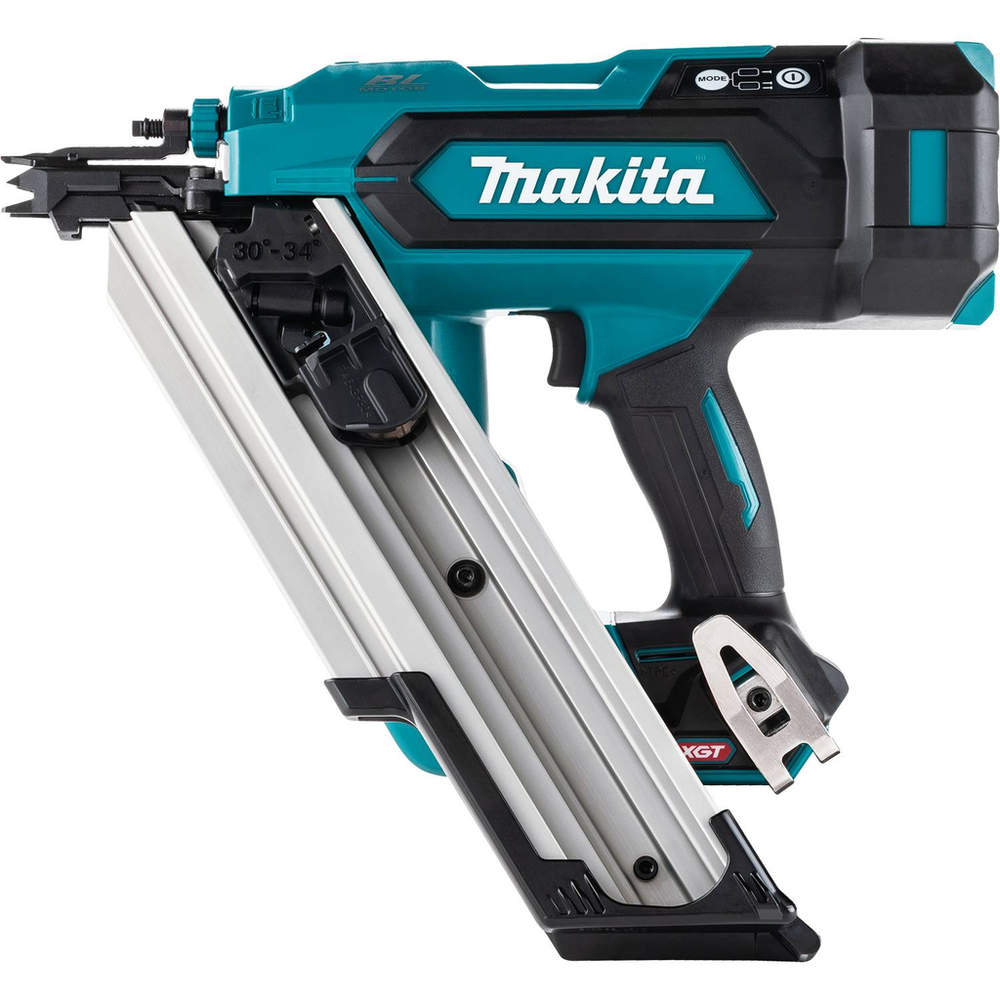

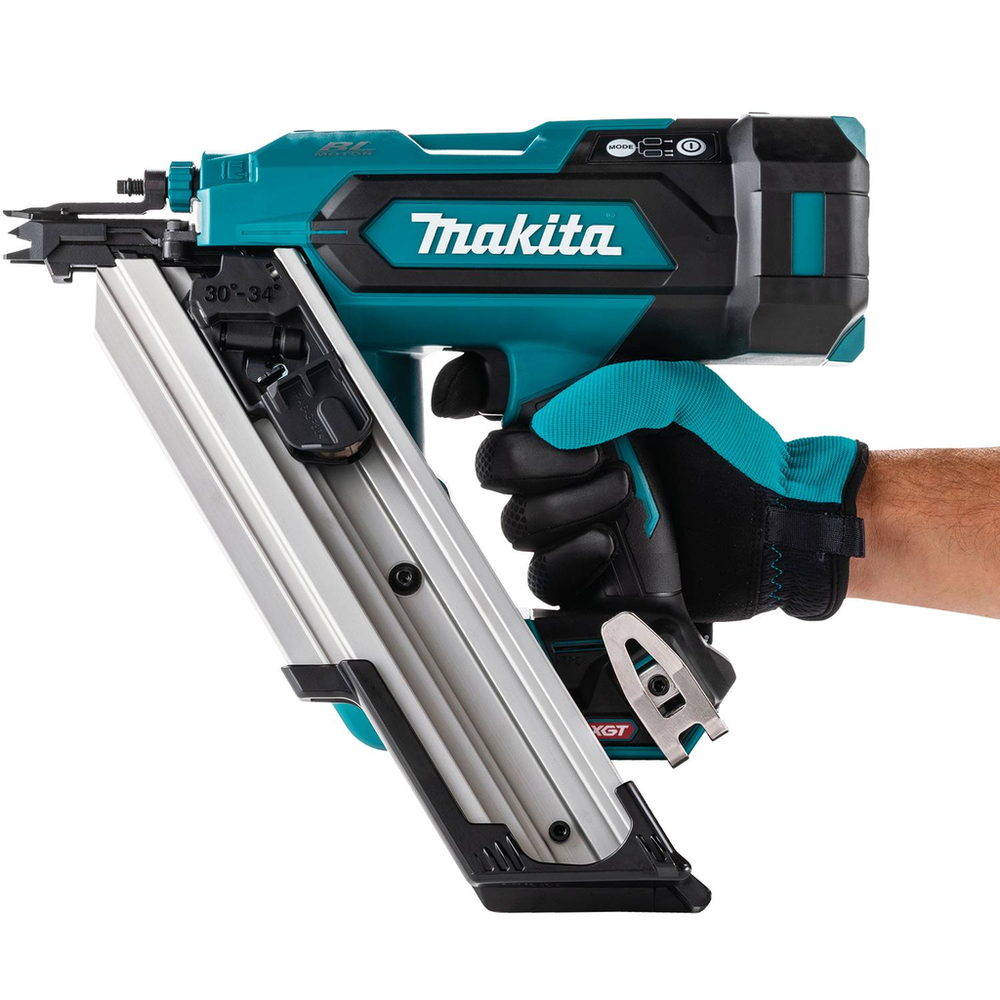

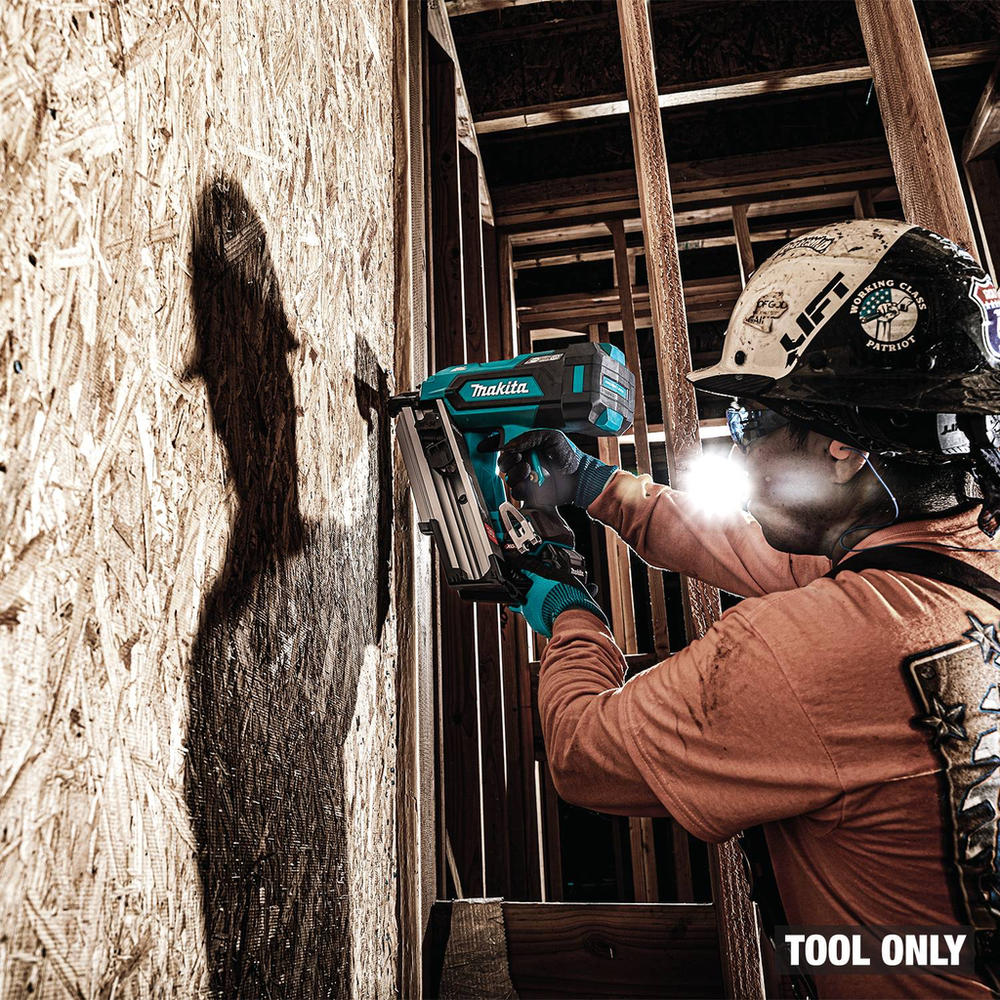

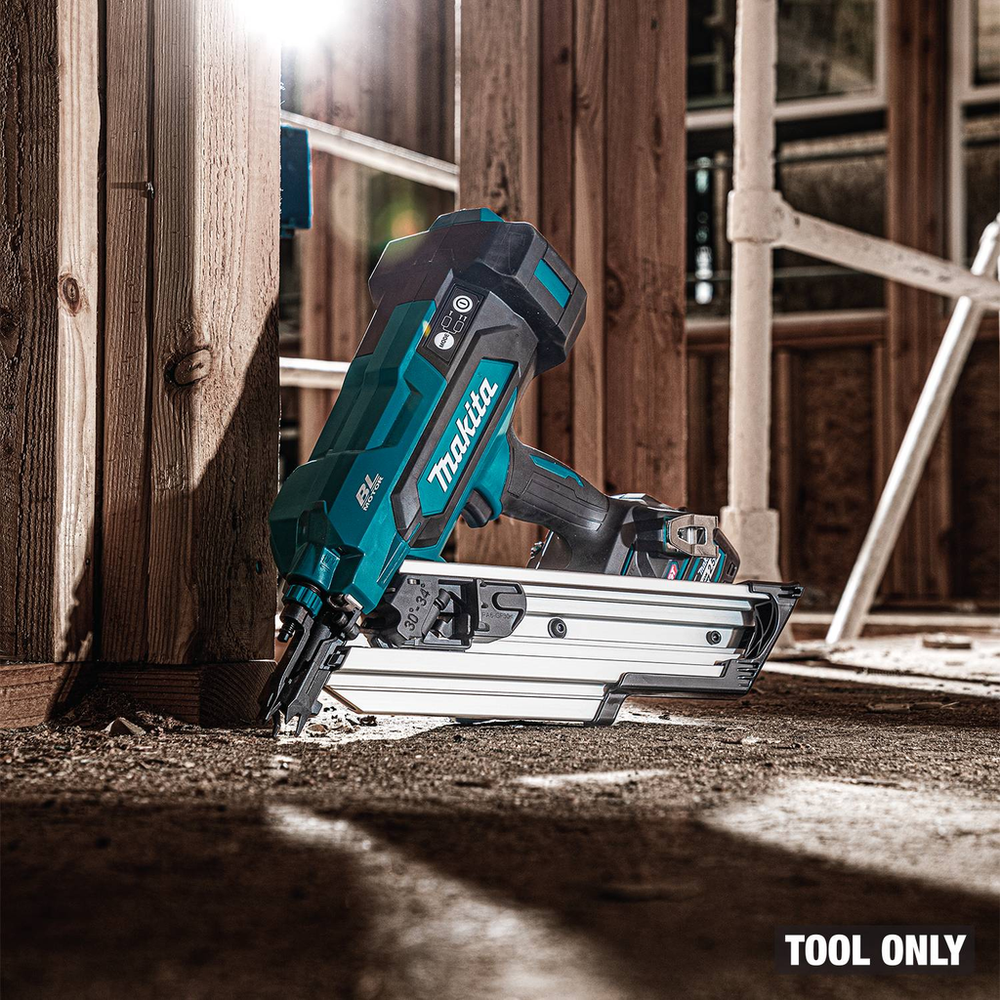

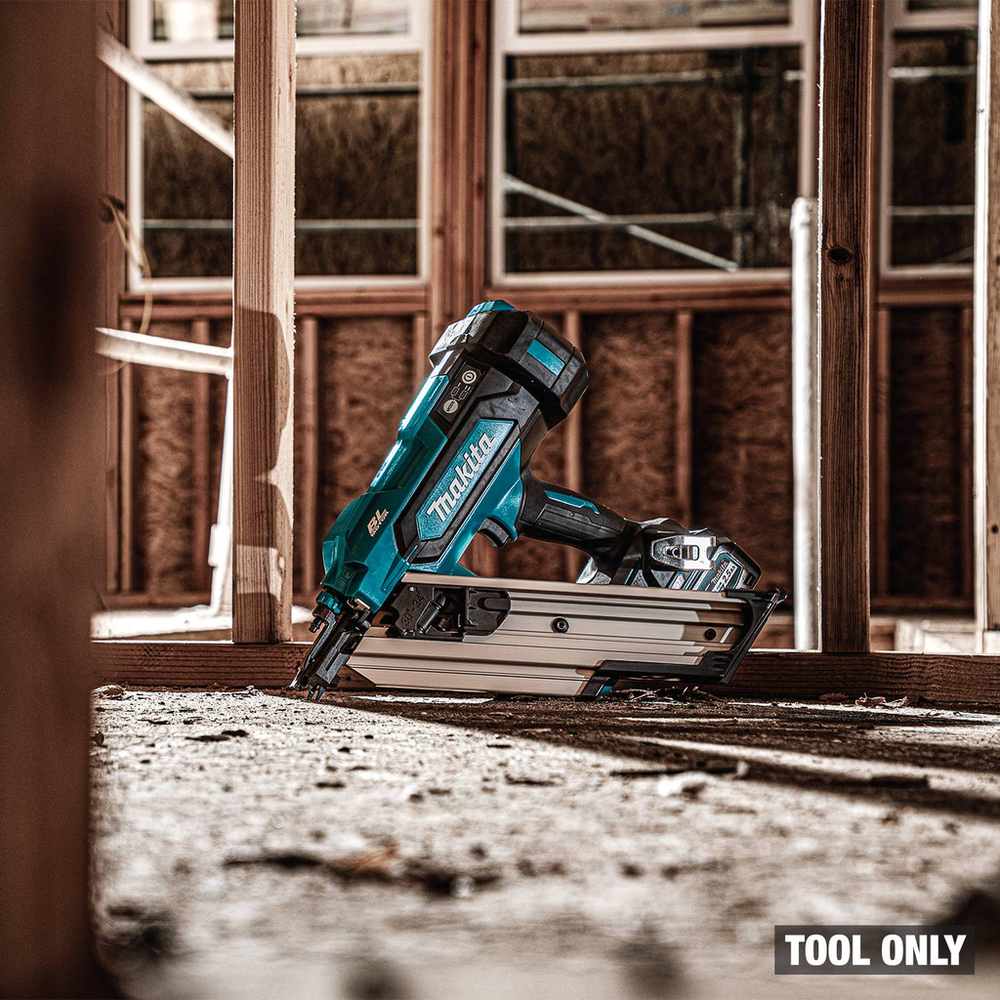

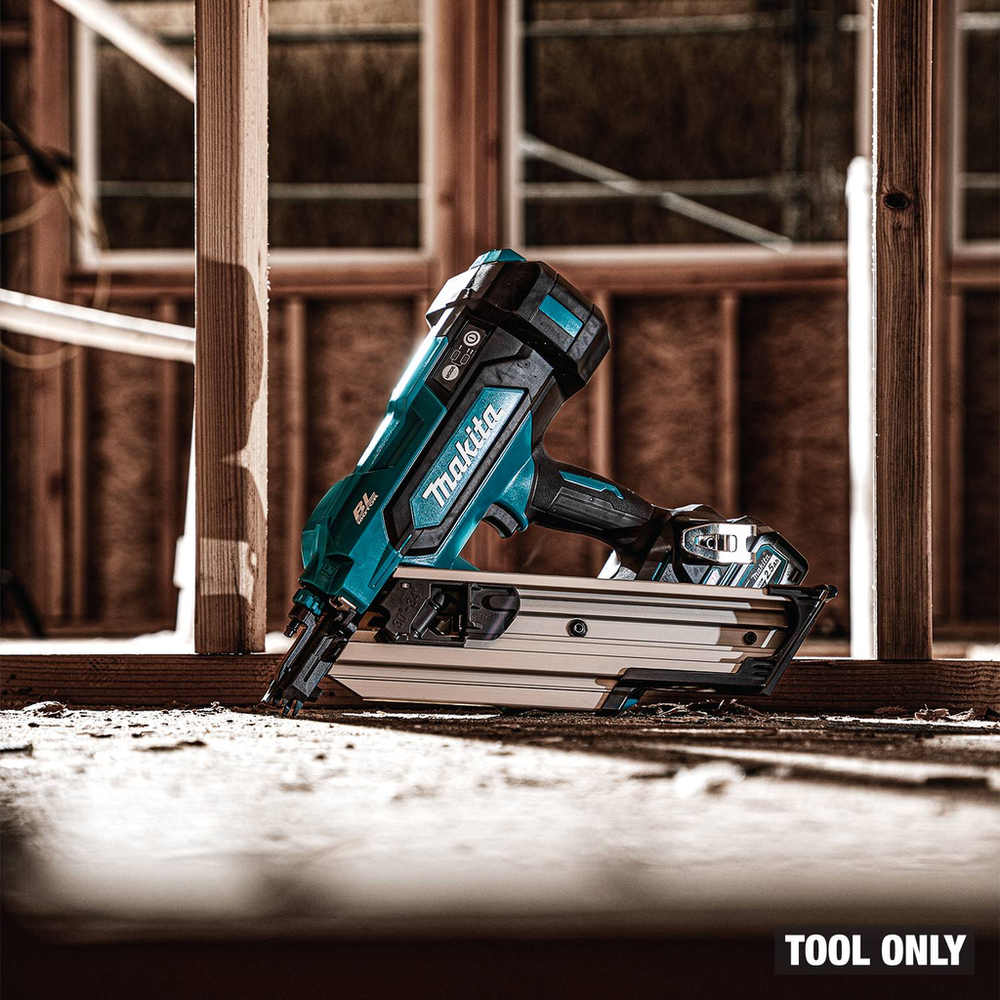

The 40V max XGT® 30º Clipped Head 3-1/2" Framing Nailer (GNB01) delivers the power of pneumatic without all the hassles of a cord and compressor. It delivers class-leading cordless performance with up to two-times faster nailing speeds*. The 30º Clipped Head Framing Nailer drives full clipped-head nails into dense engineered lumber with power and ease. It drives up to 1,020 framing nails on a single charge using a 40V XGT® 2.5Ah Battery (battery not included). The GNB01 drives 30º collated framing nails from 2" to 3-1/2" in length and .113 to .131 in diameter. It features a two-mode selector switch that allows the operator to select between sequential nailing or bump fire options. It also features an anti-dry fire mechanism engineered to help prevent driving blanks. The Framing Nailer features an anti-slip nose for controlled nailing at an angle. The GNB01 features a “tool-less" depth adjustment engineered for more precise flush and countersink nailing. It weighs only 11.9 lbs. with 40V XGT® battery (battery not included) for reduced operator fatigue. It also features a rear lock-and-load magazine that holds up to 58 nails for maximum efficiency. An accessory for the GNB01 is the Extended Capacity Magazine Set that holds 97 Nails (1914P1-6, sold separately). Convenience features include a built-in L.E.D. light that illuminates the work area, a belt hook with a retractable, extra-wide tool hook that secures the tool when not in use, and an ergonomically designed handle with a rubberized soft grip that provides increased comfort. XGT® is a system of equipment, tools, batteries, and chargers utilizing 40V max lithium-ion batteries. XGT® is engineered to deliver high power to take on high-demand applications, allowing users to completely transition to a cordless job site. XGT® is equipped with advanced brushless motor engineering, intelligent digital communication, and superior durability features to outpower, outsmart, and outlast the rest. *When compared to the Makita 18V LXT® 30º Clipped Head 3 1/2" Framing Nailer (XNB07Z).
Features
- Ergonomically designed handle with rubberized soft grip provides increased comfort

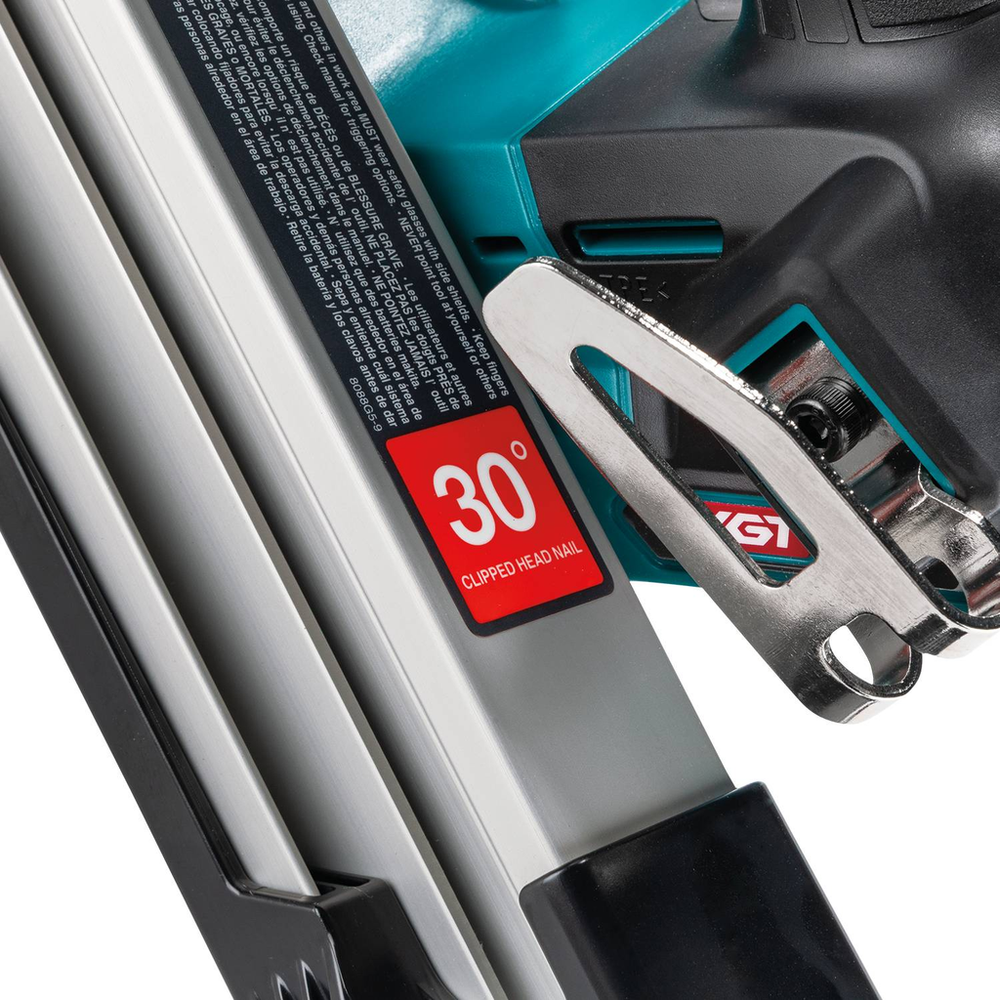

- Belt Hook with retractable extra-wide tool hook secures the tool when not in use
- Cordless for increased convenience; eliminates the need for a compressor and air hose

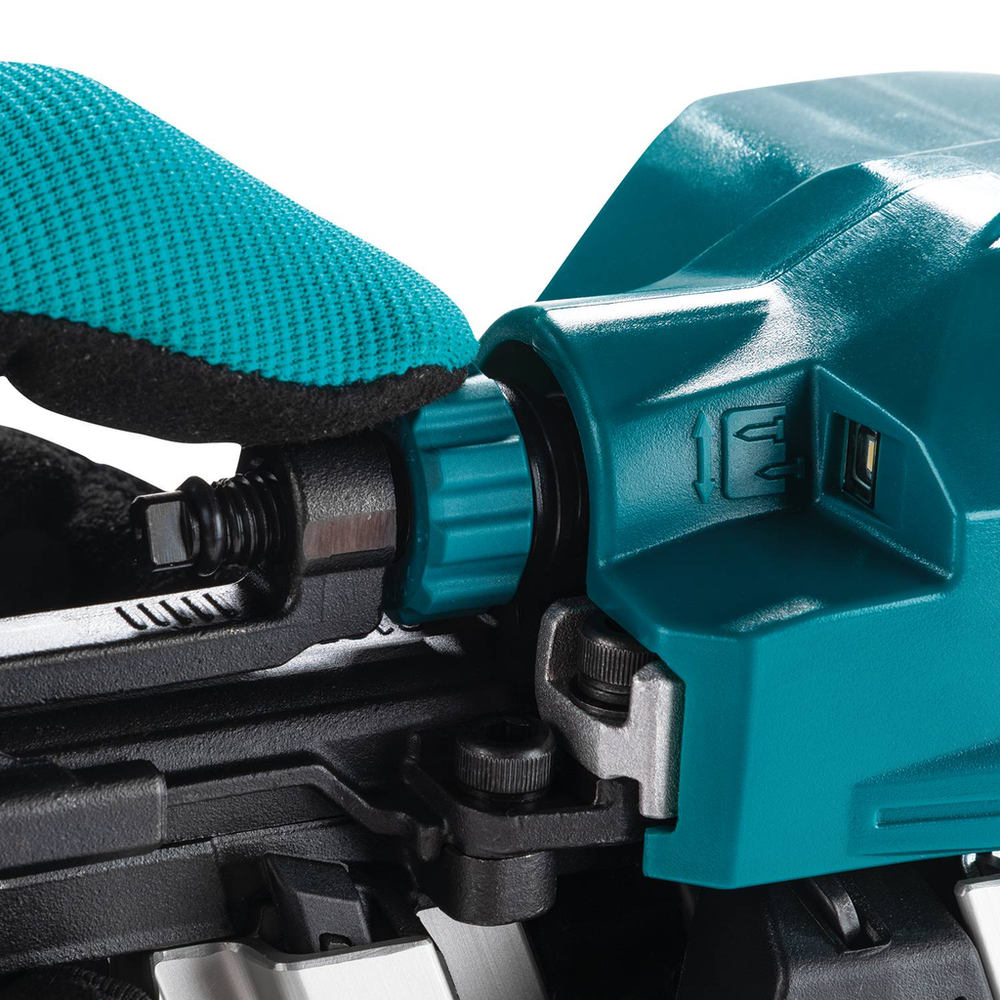

- “Tool-less" depth adjustment engineered for more precise flush and countersink nailing
- The XGT® Rapid Charger’s digital display indicates battery charge level (-80%, +80%, 100%)
- Only use genuine Makita® Batteries and Chargers
- Drives up to 1,020 framing nails on a single charge using a 40V XGT® 2.5Ah Battery (battery not included)
- 3-year limited warranty
- Drives clipped-head nails into dense engineered lumber with power and ease
- Delivers class-leading cordless performance with up to 2X faster nailing speeds*
- The XGT® Rapid Charger with dual-fan design circulates air through the battery to cool the battery and circuit board quickly for faster charging (charger not included)
- * Compared to XNB07Z
- INCLUDES - Nailer, hex wrench, belt hook, rafter hook, and nose adapter
- Anti-slip nose for controlled nailing at an angle
- PRECISION - Drives clipped head nails into dense engineered lumber with power and ease
- XGT® Batteries feature rigid rails with impact-resistant construction to secure the battery to the tool during high-demand applications
- EFFICIENCY - Drives up to 1,020 framing nails on a single charge
- The XGT® Rapid Charger’s built-in chip thoroughly communicates during the charging process to control current, voltage, and temperature for more efficient charging
- OUTSMART: Drives clipped-head nails into dense engineered lumber with power and ease
- OUTPOWER: Delivers class-leading cordless performance with up to 2X faster nailing speeds*
- OUTLAST: Drives up to 1,020 framing nails on a single charge using a 40V XGT® 2.5Ah Battery (battery not included)

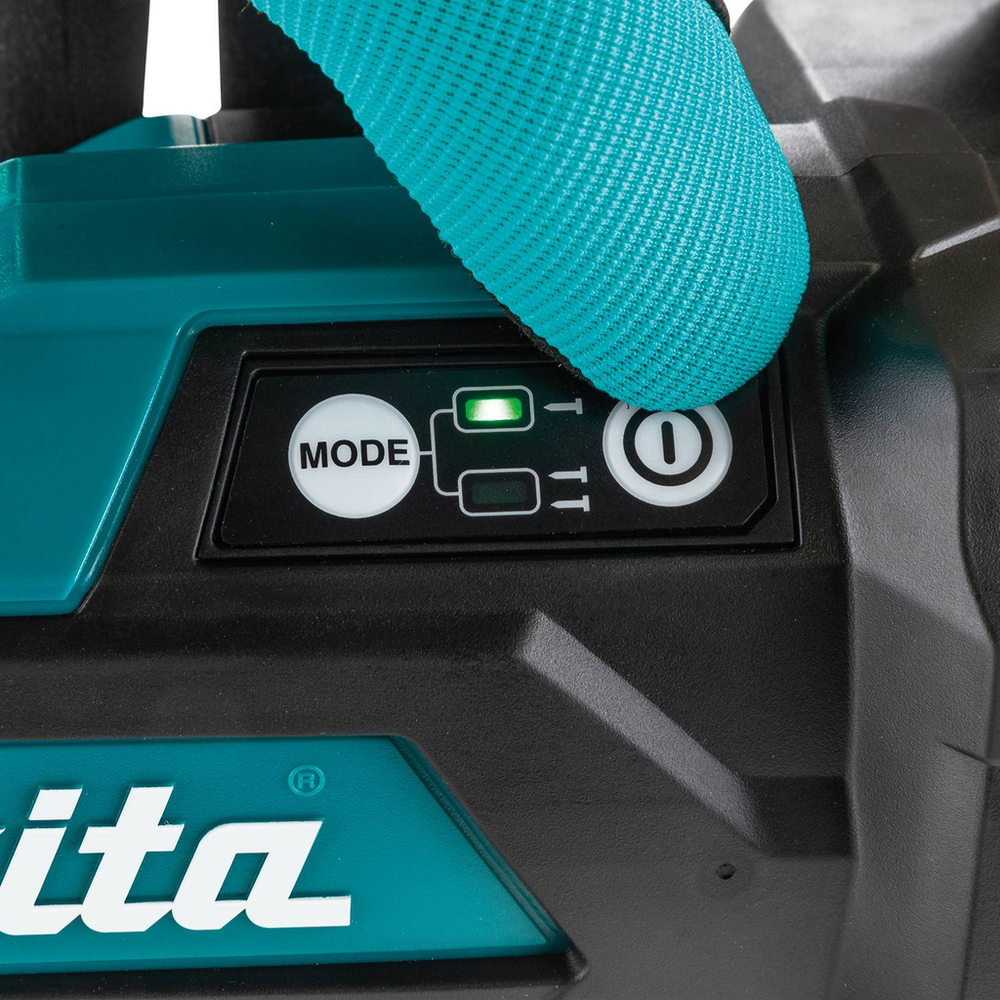

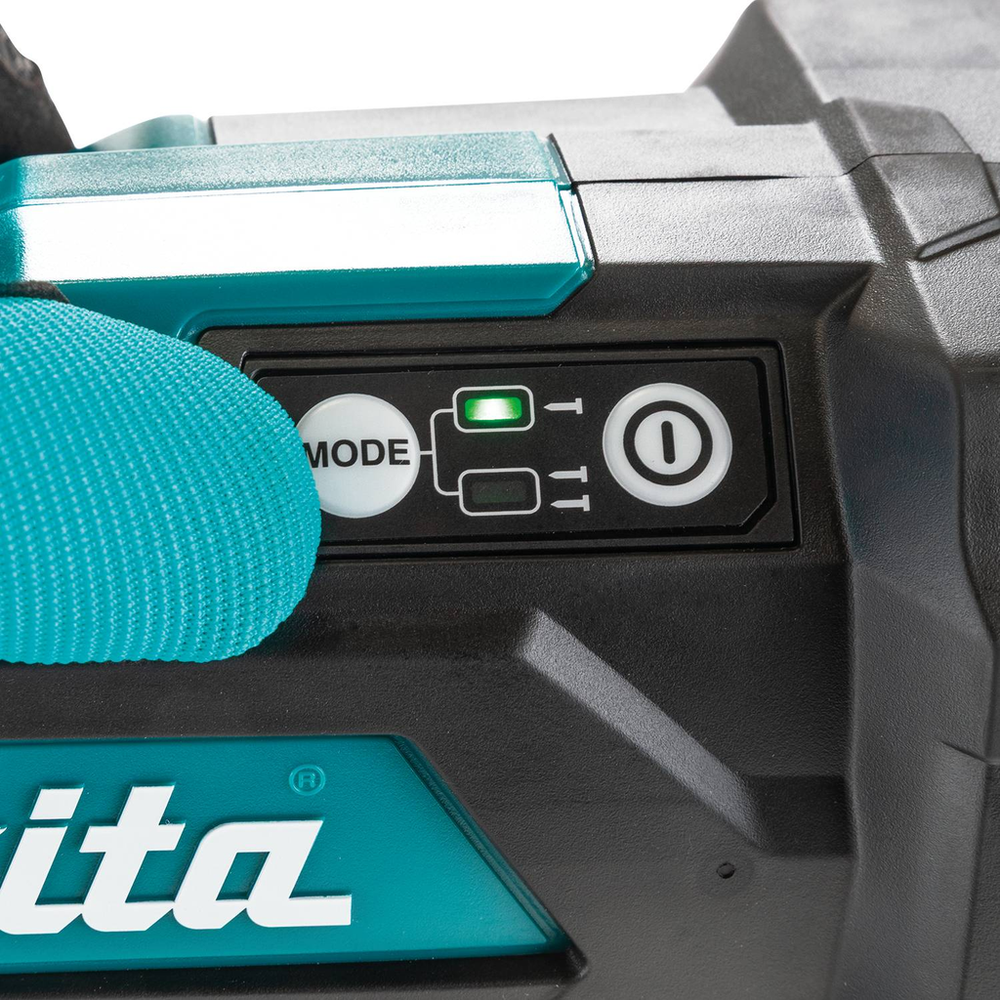

- 2-mode selector switch allows operator to select sequential nailing or bump fire options
- Drives 30º clipped head framing nails from 2" to 3-1/2" in length and .113 to .131 in diameter
- Extended Capacity Magazine Set that holds 97 Nails part no.1914P1-6 available (sold separately)

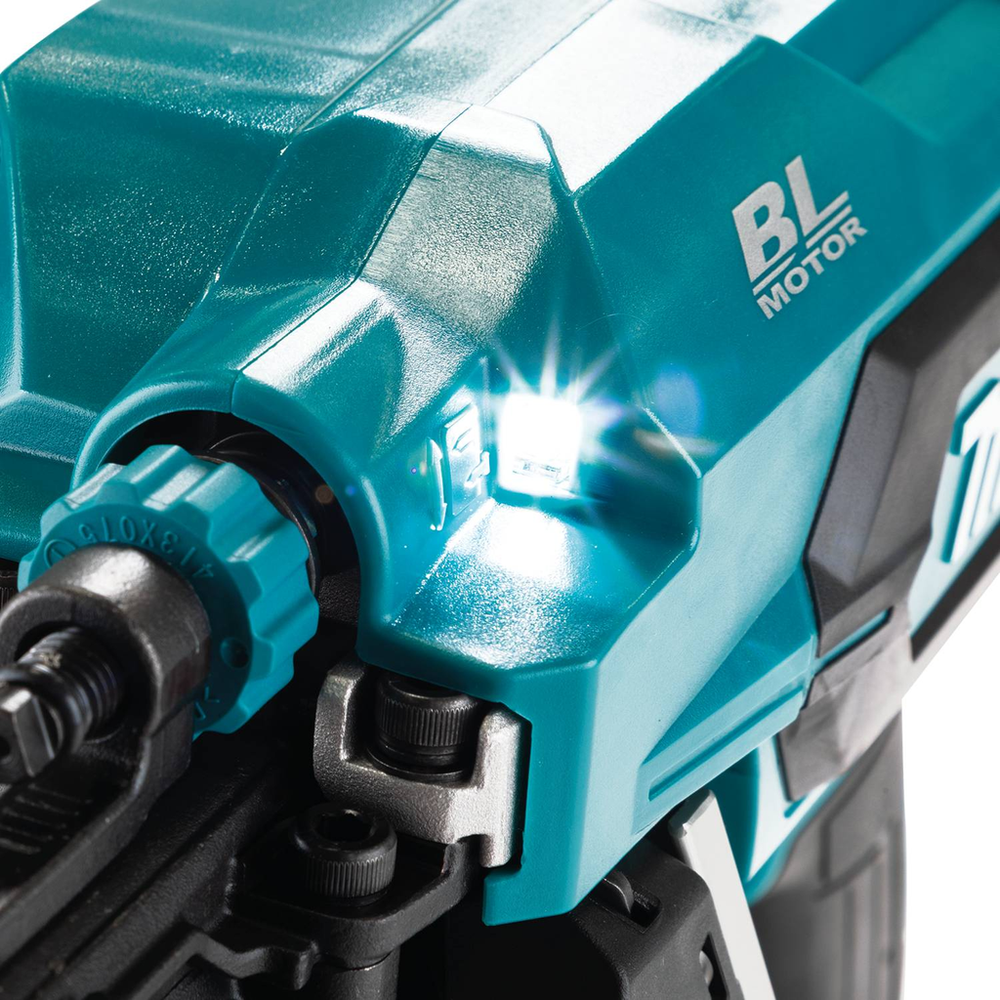

- Built-in L.E.D. light illuminates the work area
- Anti-dry fire mechanism engineered to help prevent driving blanks
- Rear lock-and-load magazine holds up to 58 nails for maximum efficiency
- Weighs only 11.9 lbs. with 40V XGT® battery (battery not included) for reduced operator fatigue
- SPEED - Up to 2X faster nailing speeds
- Compatible with Makita® 40V max XGT® Lithium-Ion Batteries (batteries sold separately)
- POWER - Delivers the power of Pneumatic
Includes

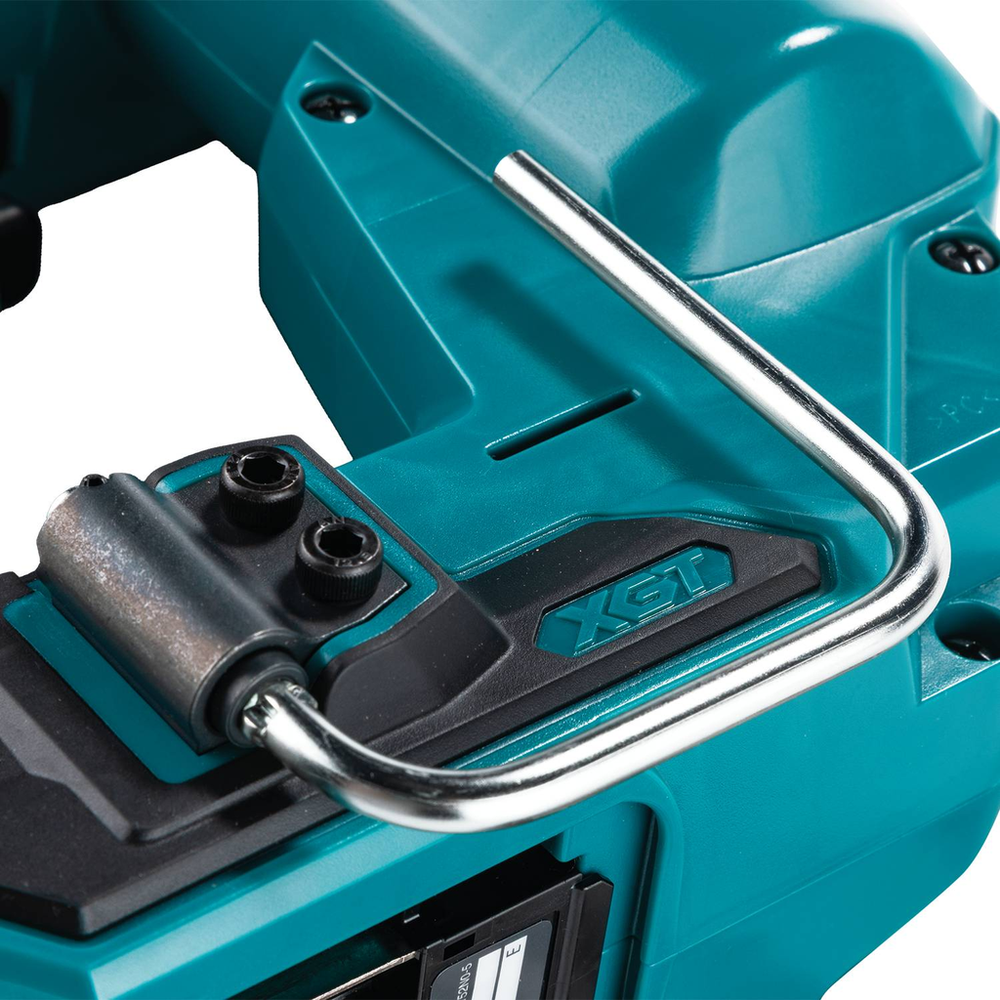

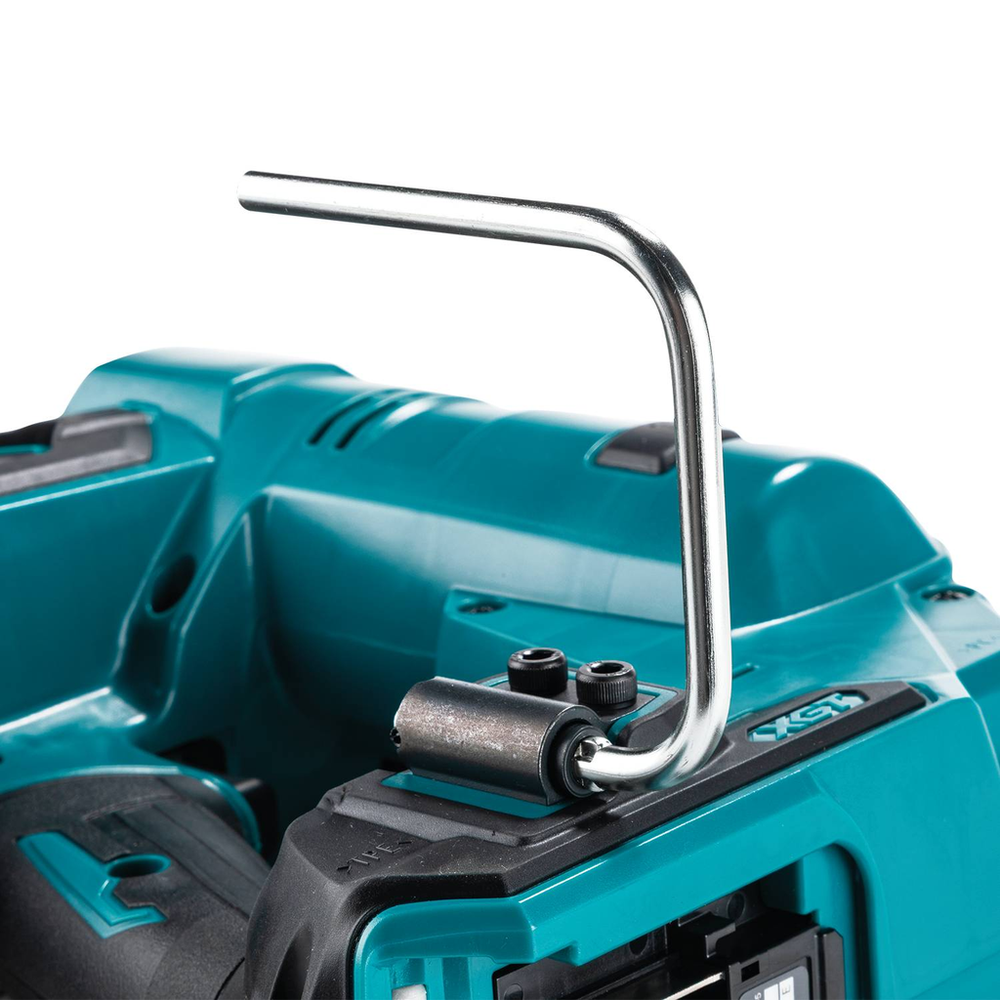

- Rafter Hook, XNB03Z, XNB07Z (141X57-7)

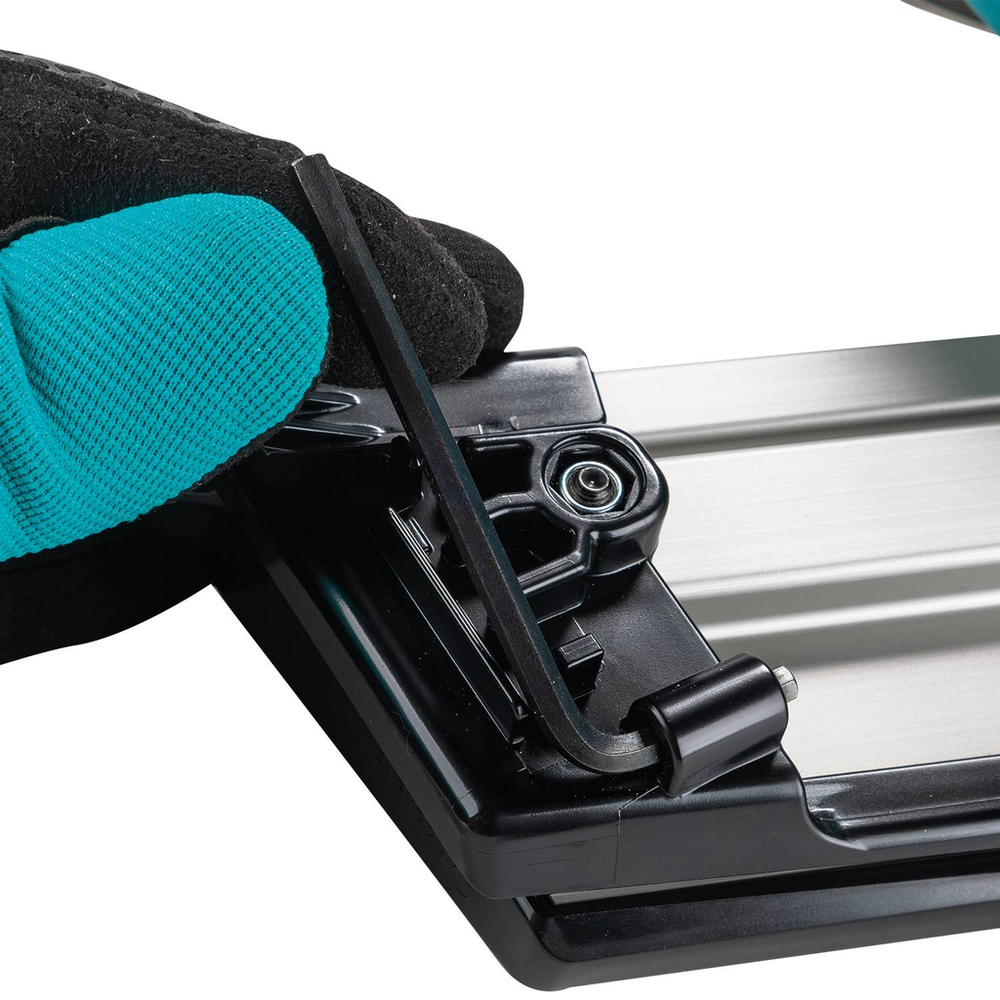

- Hex Wrench (783202-0)
- Belt Hook, XNB03Z, XNB07Z (347C14-9)

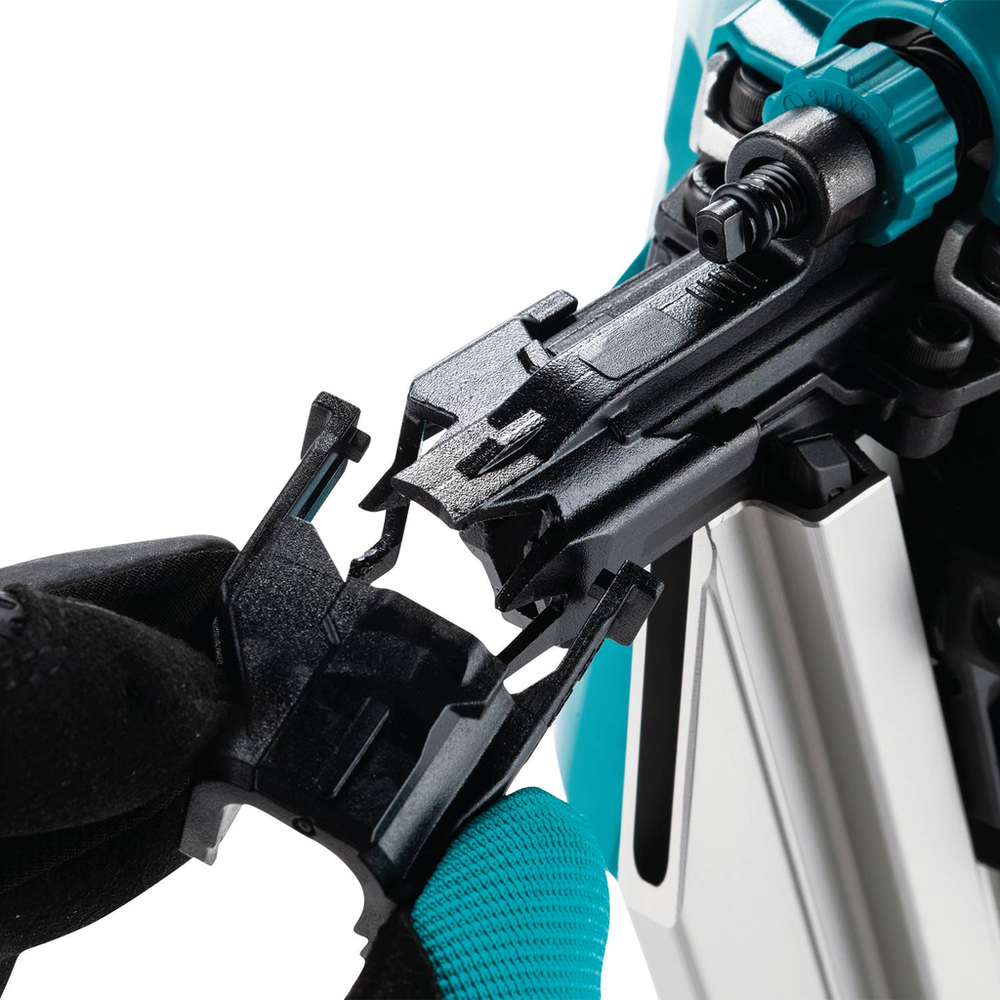

- No‑Mar Tip, GNB01, GNB02 (4133Y2-4)
Prop 65
- WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: lead from lead-based paints, crystalline silica from bricks and cement and other masonry products, and arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles. For more information, visit www.P65warnings.ca.gov.
Downloads
Makita GNB01 GNB02 Instruction Manual
