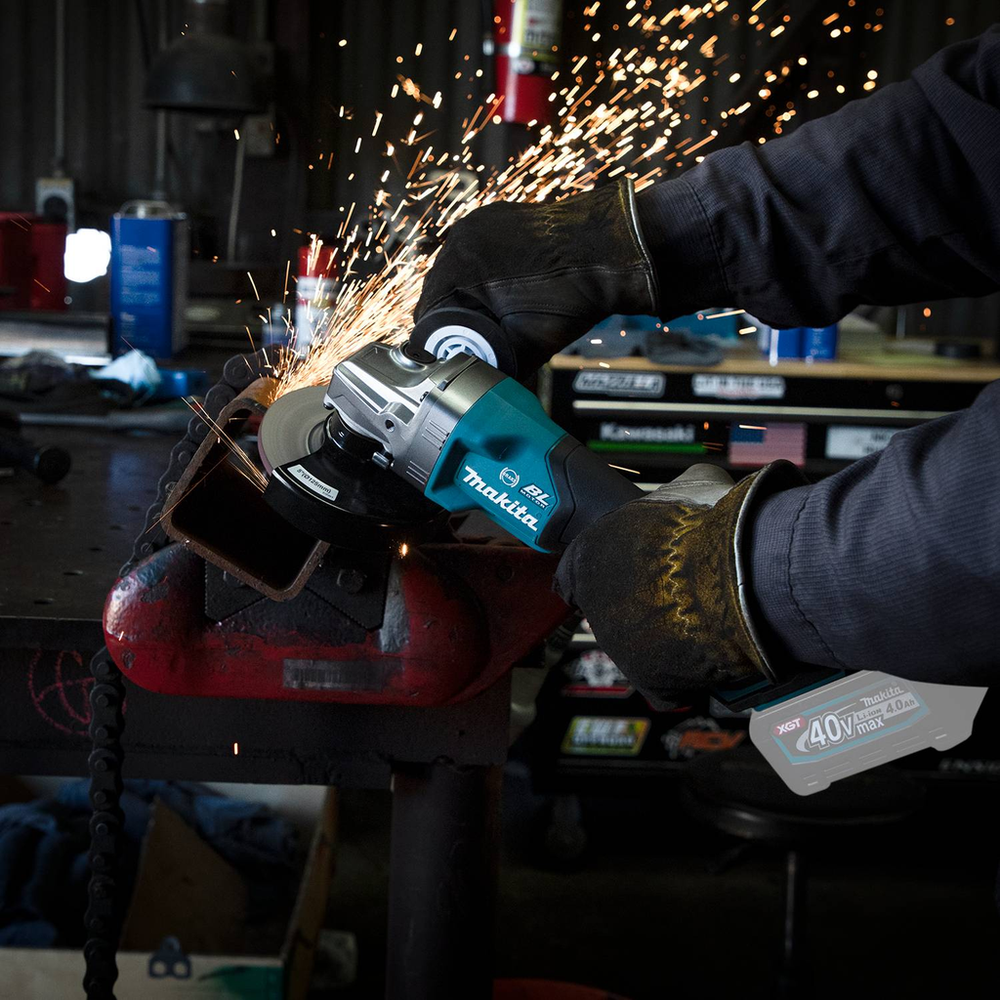

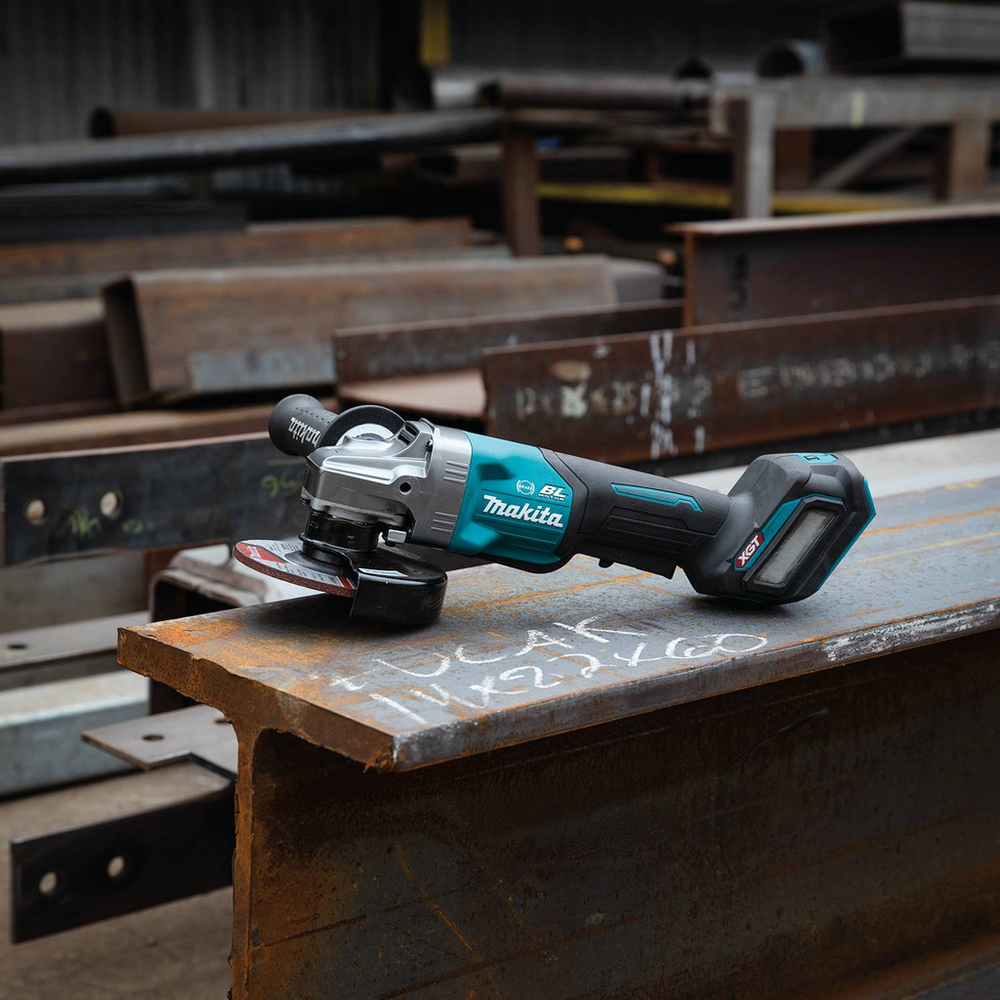

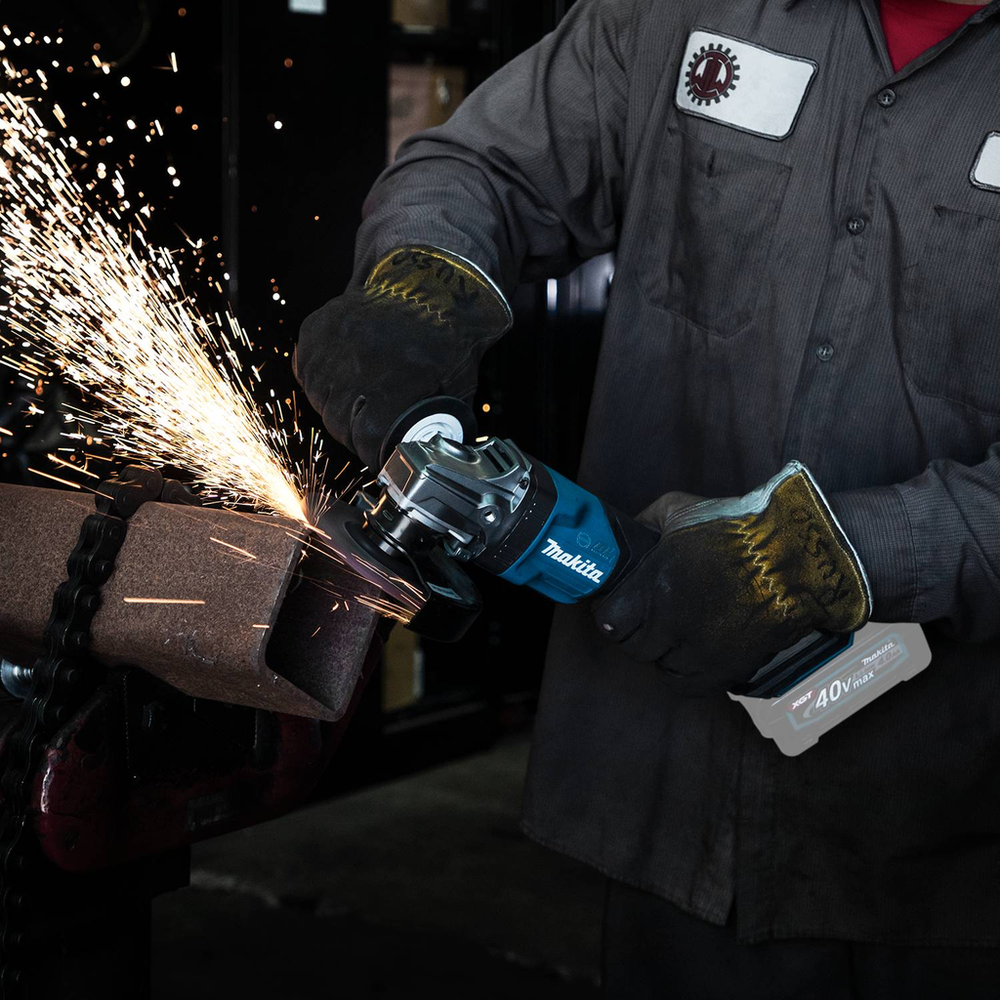

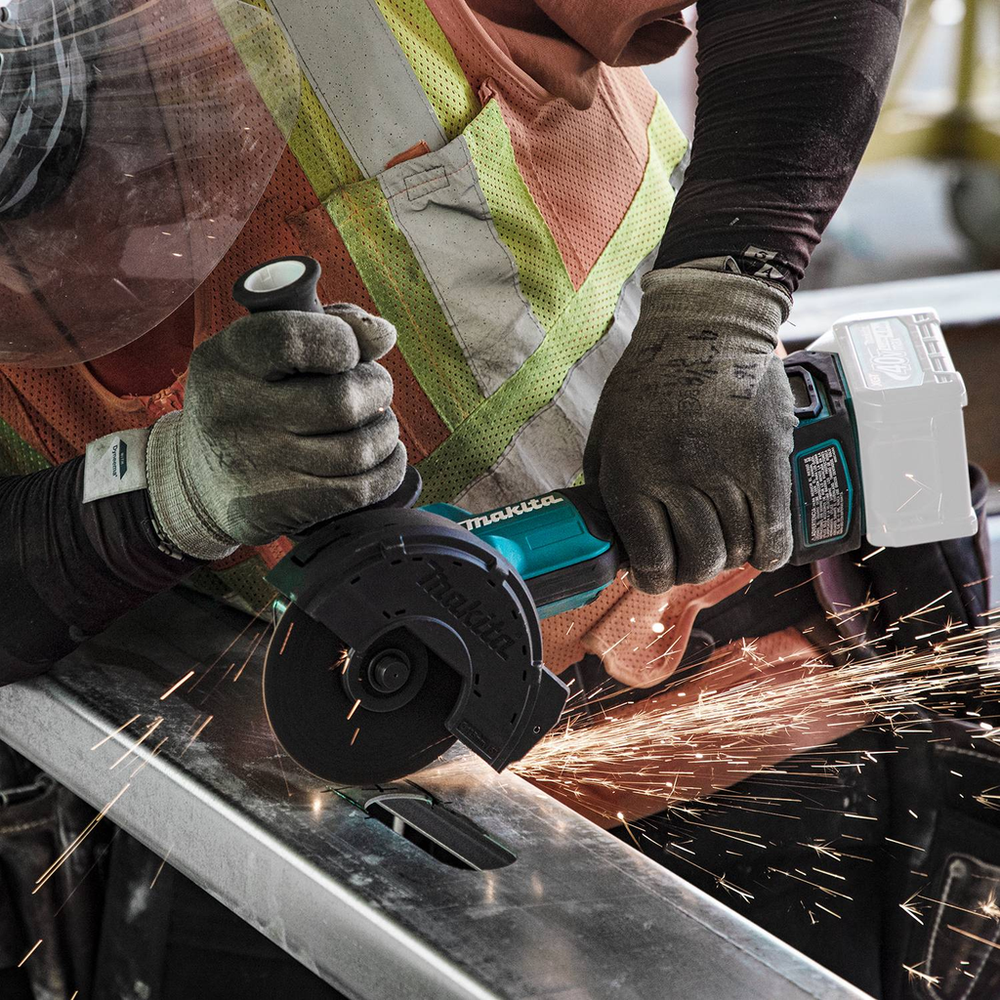

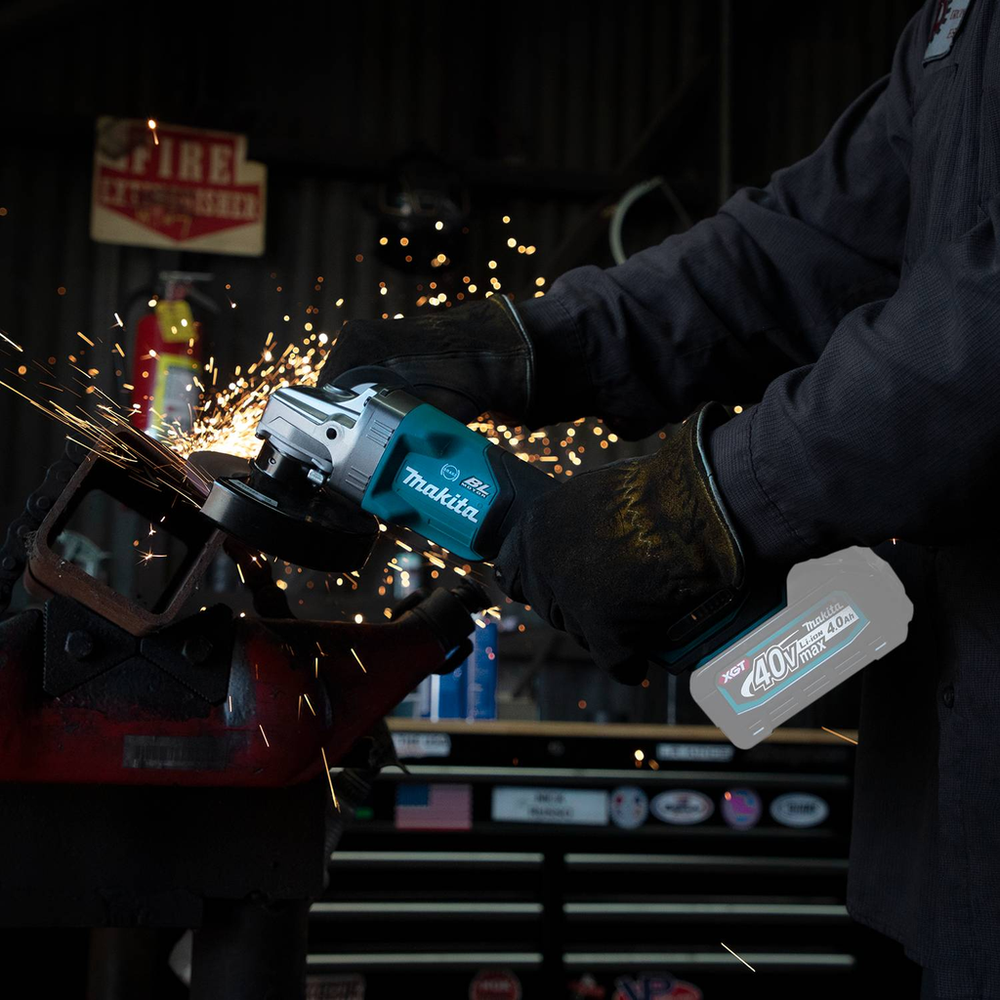

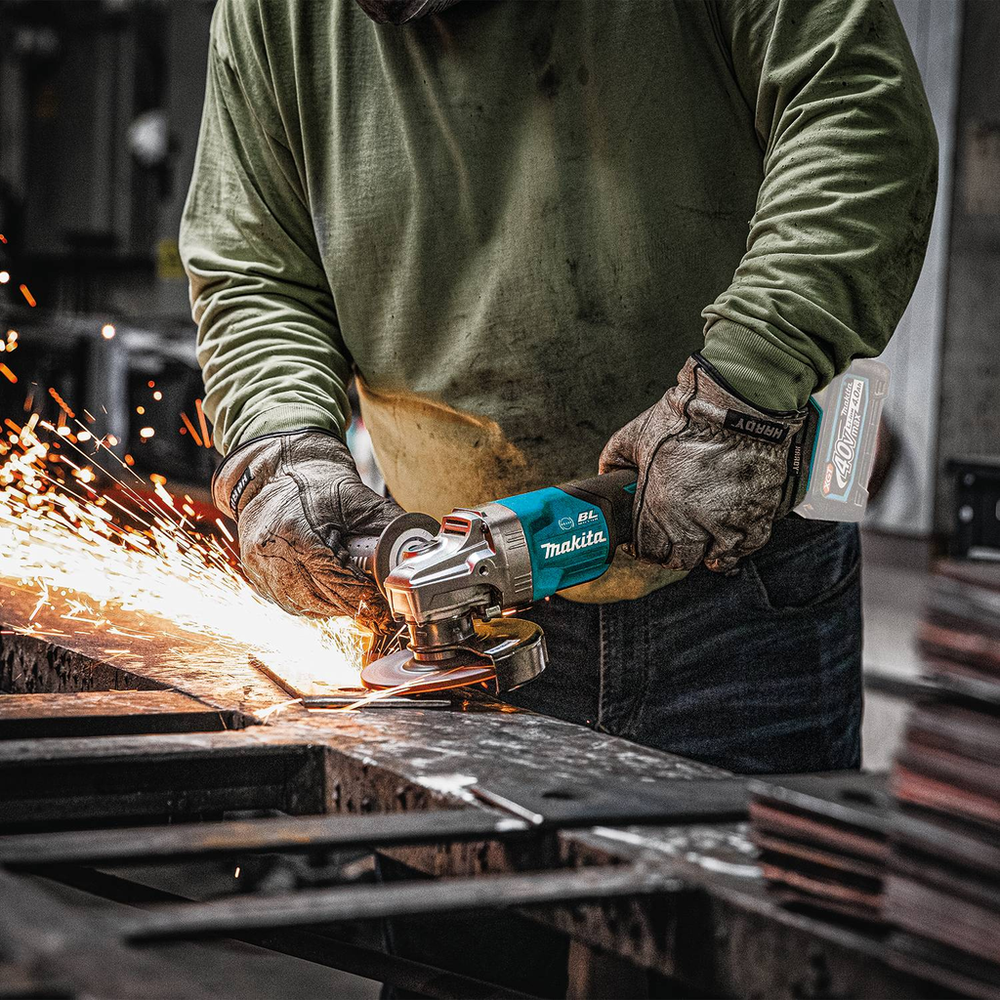

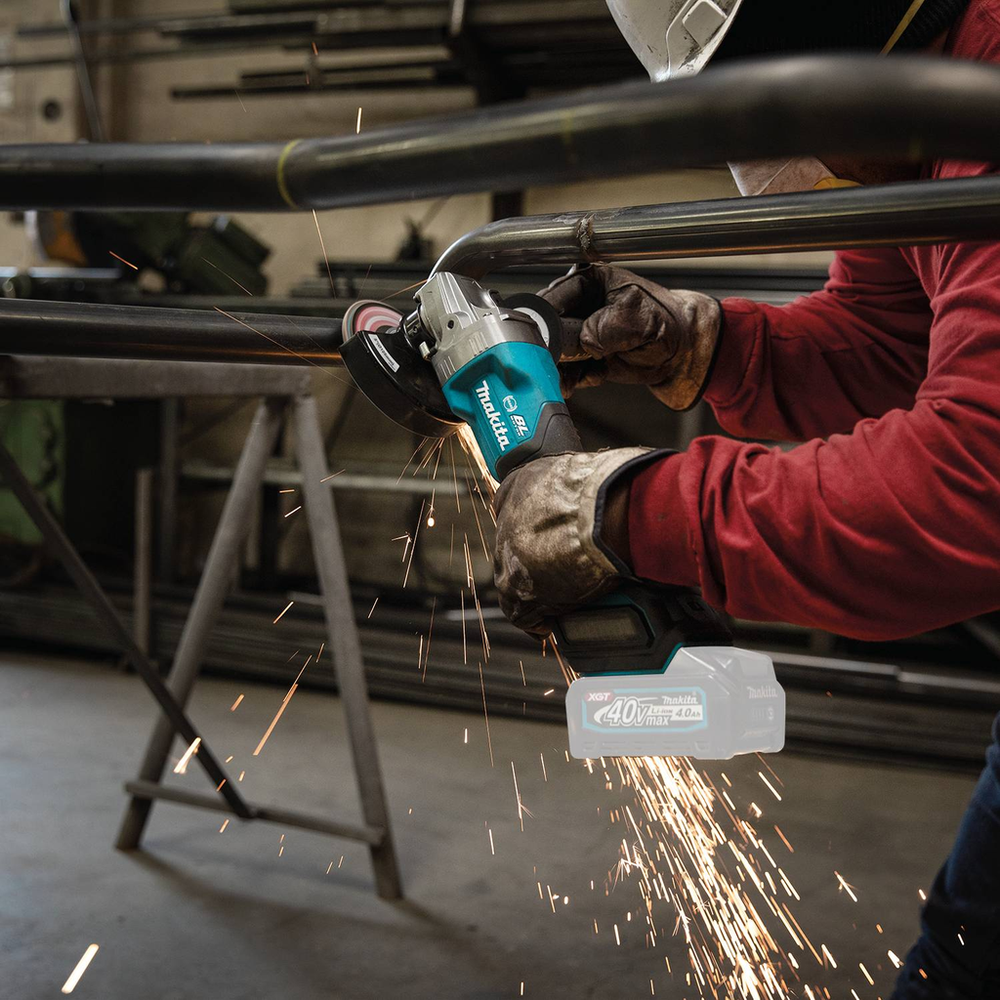

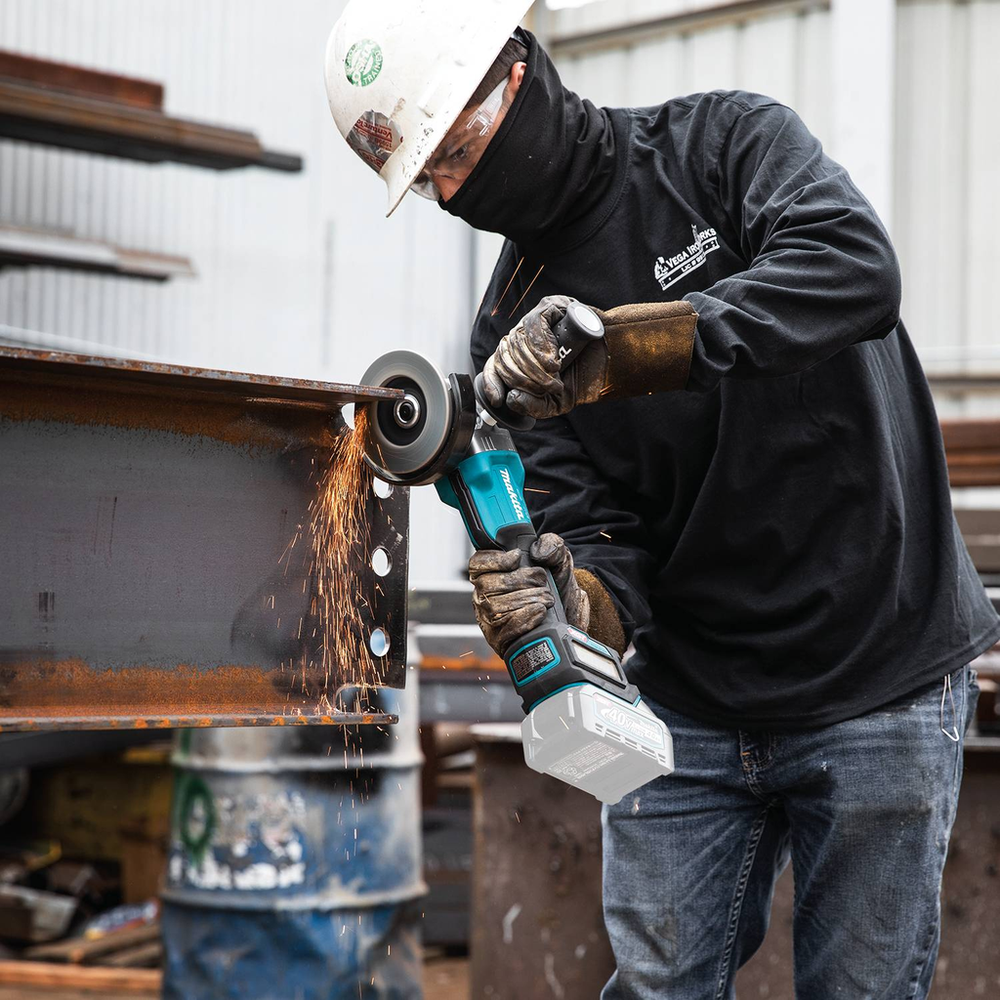

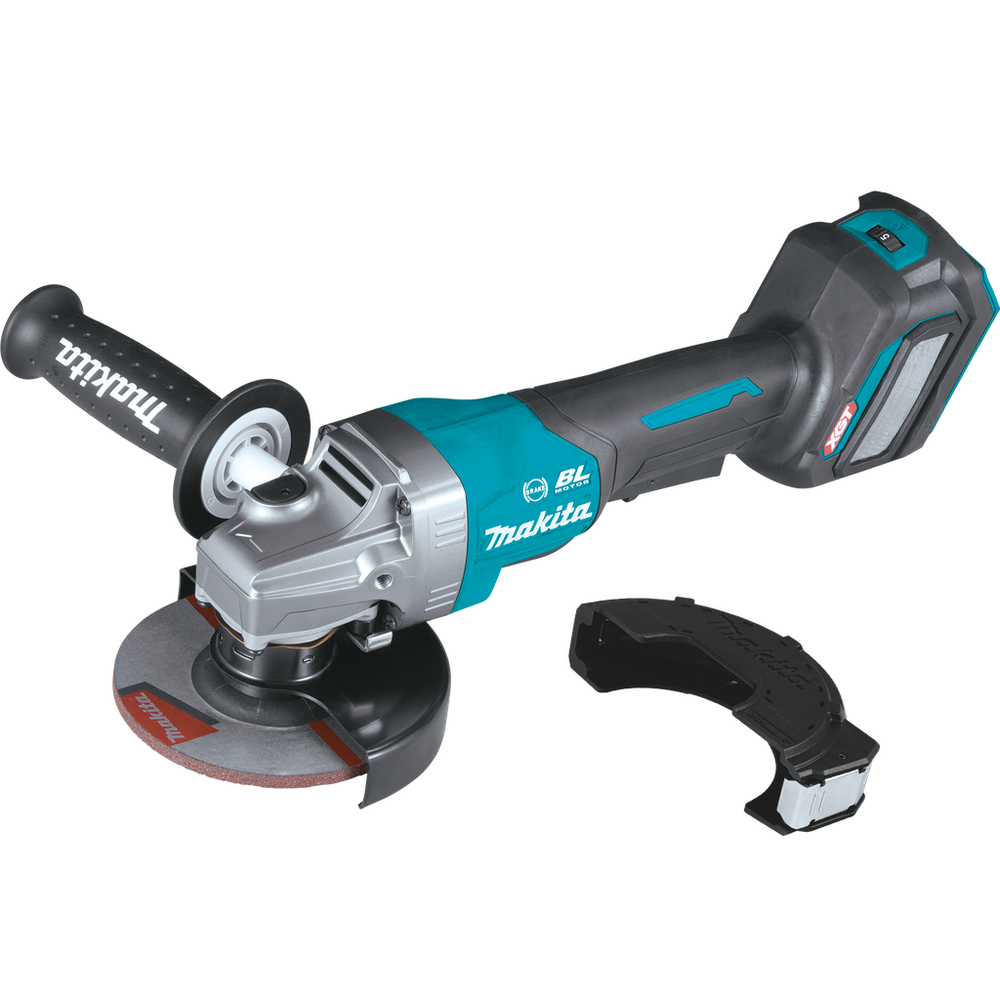

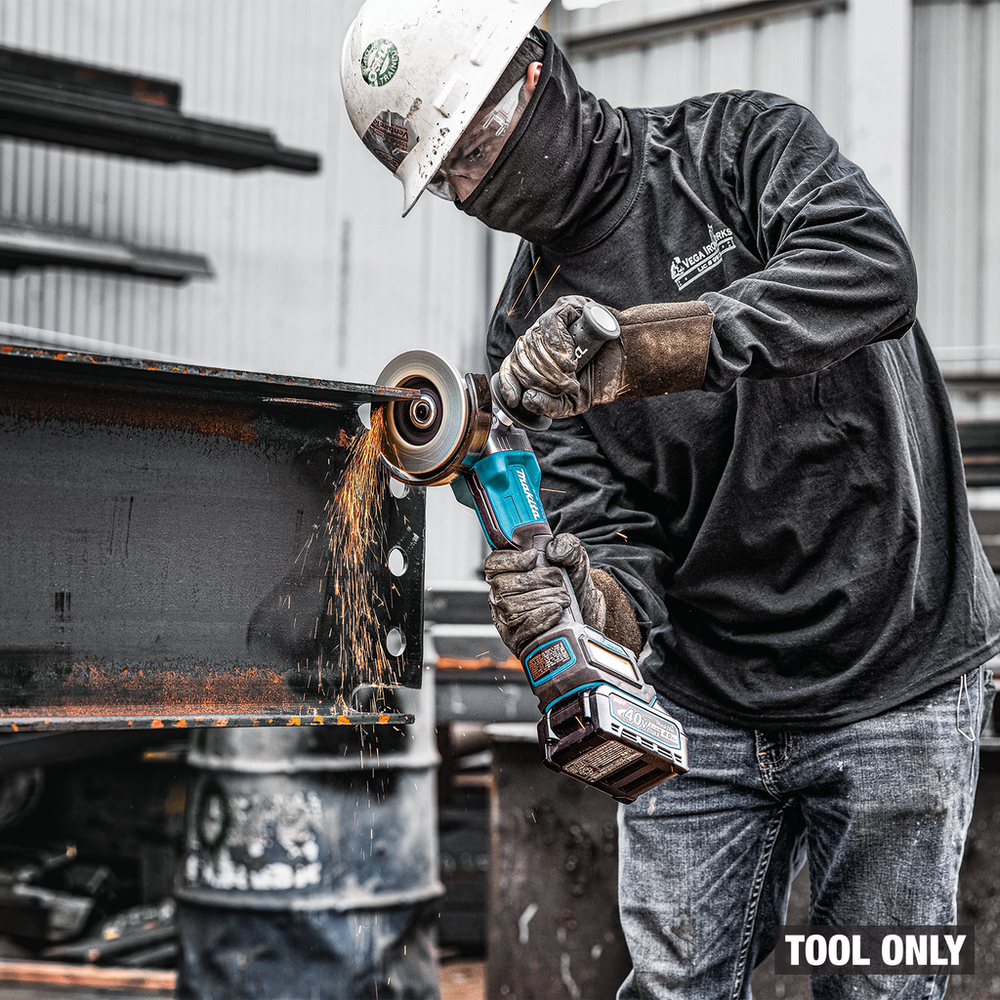

The 40V max XGT® Brushless Cordless 4-1/2" / 5” Paddle Switch Angle Grinder with Electric Brake and AWS® (GAG06Z, tool only) delivers corded grinding performance without the cord for the most demanding applications. It's powered by a Makita-built brushless motor which delivers variable 3,000-8,500 RPM for heavy-load applications and increased power and speed. The GAG06Z offers up to 60% faster cutting speed when cutting #5 (5/8”) rebar. It is ideal for grinding and cutting a wide range of materials including tile, concrete, pipe, conduit, and more. An electric current limiter helps protect the motor from overload in high-torque applications. Additional features include an electric brake that stops the grinding or cut-off wheel in 2 seconds or less and Active Feedback-sensing Technology (AFT®) that turns the motor off if rotation of the wheel is forced to a stop. A paddle switch with no lock-on is convenient, while quick guard rotation provides tool-less adjustments for increased productivity. Anti-restart protection is engineered to prevent motor start-up when the battery is inserted while the switch is locked on. A soft start suppresses start-up reaction and provides smooth start-ups. Wire mesh intake covers are engineered to prevent debris from entering the motor. The GAG06Z is also equipped with Makita's Extreme Protection Technology (XPT™), a series of protective seals inside the tool. XPT is designed to improve a tool’s operation in harsh conditions by channeling water and dust from key internal components. Reinforced metal gear housing provides additional durability on the job site. XGT is a system of equipment, tools, batteries and chargers utilizing 40v max lithium-ion batteries. XGT is engineered to deliver high power to take on high-demand applications, allowing users to completely transition to a cordless job site. XGT is equipped with advanced brushless motor engineering, intelligent digital communication, and superior durability features to outpower, outsmart and outlast the rest. Auto-Start Wireless System (AWS®) uses Bluetooth® technology for wireless power-on and power-off communication between the equipped tool and dust extractor. Once connected via AWS, the AWS-equipped dust extractor will automatically power on or off when the AWS-equipped cordless tool starts or stops, running only when the tool is in use. This increases productivity on a single charge and reduces continuous noise at the job or work site.

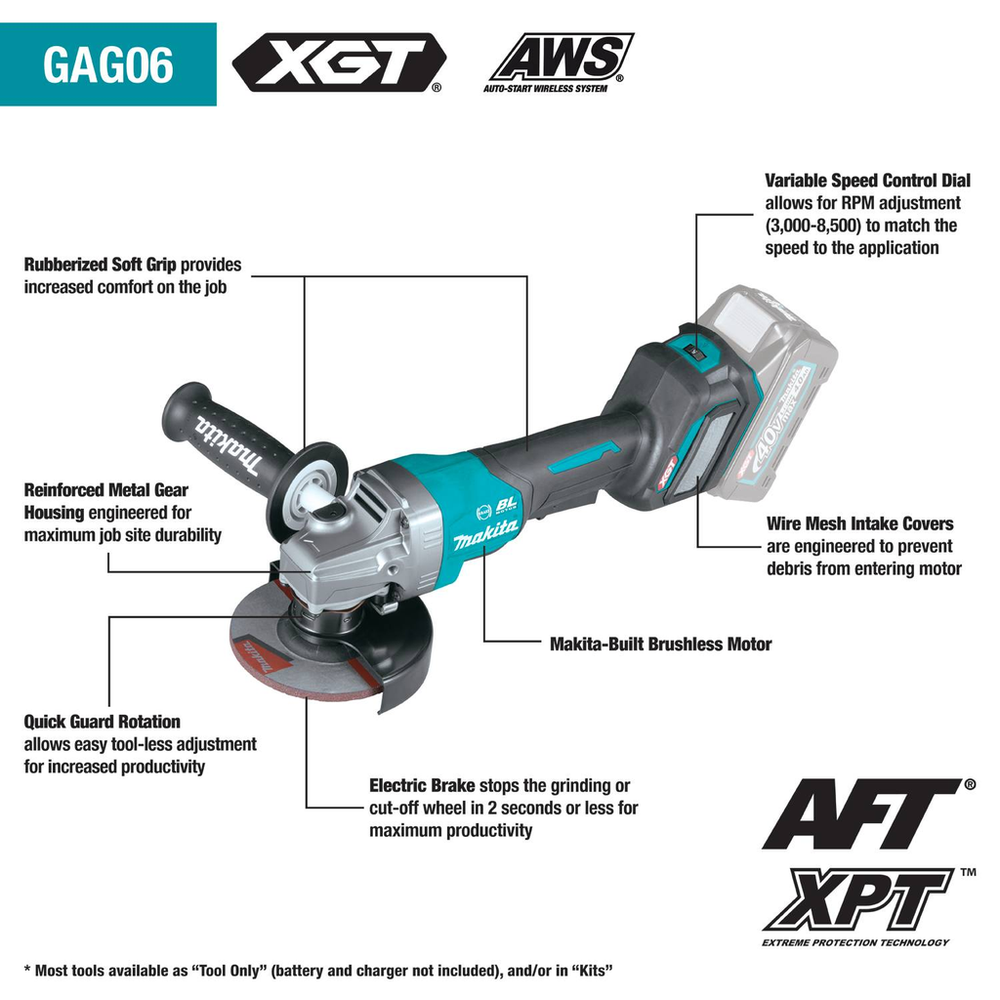

Features
- The XGT® Rapid Charger’s digital display indicates battery charge level (-80%, +80%, 100%)
- Quick guard rotation allows easy tool-less adjustment for increased productivity

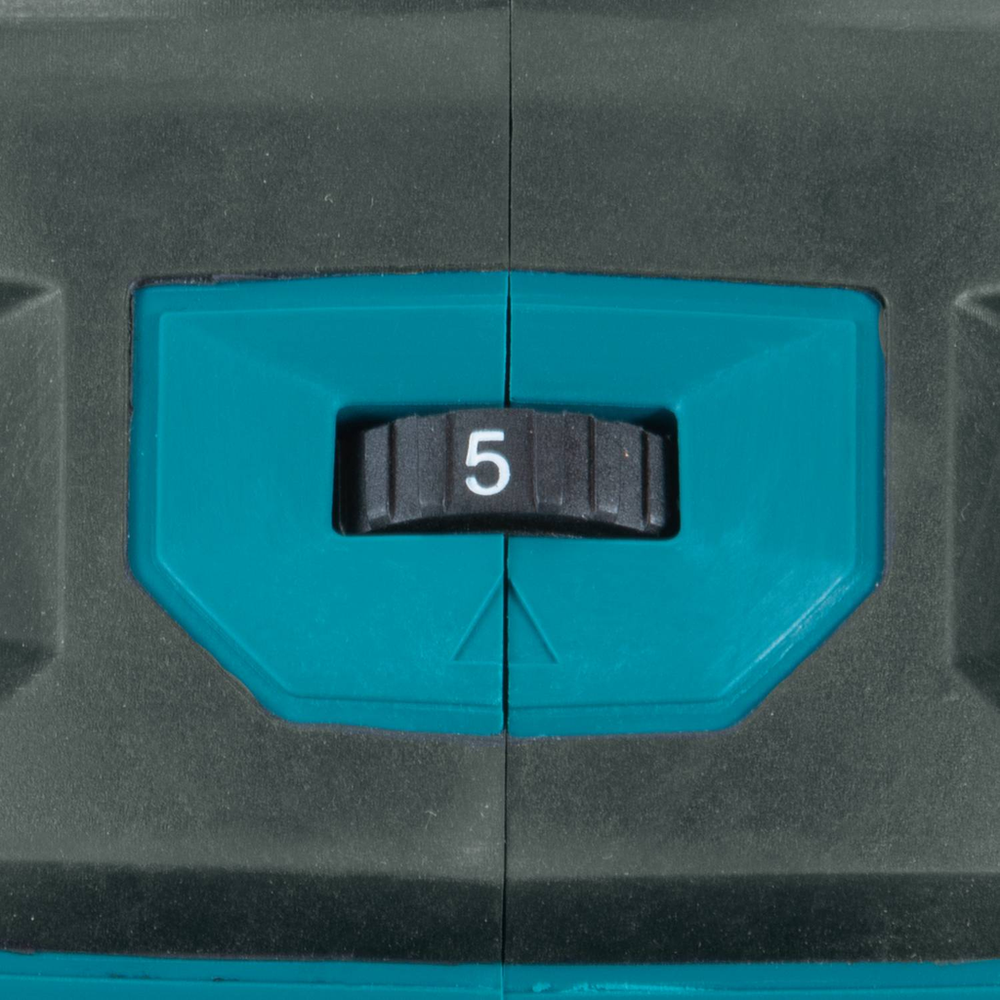

- Variable speed control dial allows for RPM adjustment (3,000-8,500) to match the speed to the application
- OUTSMART: Auto-start Wireless System (AWS®) utilizes Bluetooth® technology for wireless power-on/off communication between tool and dust extractor (AWS® Transmitter sold separately)
- Only use genuine Makita batteries and chargers
- 5" x 1/4" x 7/8" INOX Grinding Wheel, 36 Grit (A-95962)
- Compact at only 16-3/4" long; ideal for tight spaces
- Rubberized soft grip provides increased comfort on the job
- Electronic current limiter helps protect the motor from overload in high torque application
- Lock Nut Wrench (782424-9)
- Side Handle
- Automatic-start Wireless System (AWS®) for wireless power-on/off communication between tool and dust extractor (AWS® Transmitter sold separately)
- The XGT® Rapid Charger with dual-fan design circulates air through the battery to cool the battery and circuit board quickly for faster charging (charger not included)
- OUTLAST: Electronic current limiter helps protect the motor from overload in high torque application
- XGT® Tools and Batteries are designed with a multi-layer contact interface for more constant power delivery to take on high-current demands
- Spiral bevel gears for smoother rotations and a more efficient transfer of energy
- PRODUCTIVITY - Electric brake stops the grinding or cut-off wheel in 2 seconds or less for maximum productivity
- The digital communication within XGT® actively monitors and protects against overload, over-discharge and overheating
- Soft start suppresses start-up reaction for smooth start-ups and longer gear life
- PERFORMANCE - Makita-built brushless motor along with 40V max XGT® battery delivers up to 60% faster cutting speed
- Makita-built brushless motor along with 40V max XGT® battery combine to deliver powerful grinding and up to 60% faster cutting speed*
- Extreme Protection Technology (XPT™) is engineered for improved dust and water resistance for operation in harsh conditions
- Active Feedback-sensing Technology (AFT®) turns the motor off if rotation of the wheel is suddenly forced to stop
- OUTPOWER: Makita-built brushless motor along with 40V max XGT® battery combine to deliver powerful grinding and up to 60% faster cutting speed than predecessor models*
- Wire mesh intake covers are engineered to prevent debris from entering motor
- The digital communication within XGT® optimizes performance to provide up to 2X longer sustained power under heavy-load applications
- POWER - 13 AMP Corded Power
- Paddle switch with no lock-on for operator convenience
- Electric brake stops the grinding or cut-off wheel in 2 seconds or less for maximum productivity
- The XGT® Rapid Charger’s built-in chip thoroughly communicates during the charging process to control current, voltage, and temperature for more efficient charging
- Compatible with Makita® 40V max XGT® Lithium-Ion Batteries
- Anti-restart protection engineered to prevent motor start up when battery is inserted with switch locked on
- INCLUDES - Grinding wheel, wheel guard and side handle (battery and charger not included)
- *Makita XAG04 cutting #5 (5/8”) rebar
- Reinforced metal gear housing engineered for maximum job site durability
- 5" Tool-Less Wheel Guard (140N43-5)
- XGT® Batteries feature rigid rails with impact-resistant construction to secure the battery to the tool during high-demand applications (batteries not included)
- CONTROL - AFT® turns the motor off if rotation of the wheel is suddenly forced to stop
Prop 65
- WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: lead from lead-based paints, crystalline silica from bricks and cement and other masonry products, and arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles. For more information, visit www.P65warnings.ca.gov.
Downloads
GAG06 Parts BreakdownGAG06 Instruction Manual
